Turbochargers Intercoolers

Utilizing advanced Aerospace technology, Garrett performance turbo intercoolers offer superior fatigue protection for the high boost pressures and temperatures of today’s extreme engines. Reduce intake temperatures and increase horsepower.

Garrett Intercoolers and Intercooler Cores

Garrett intercoolers offer superior thermal fatigue protection for high boost pressures and temperatures of today’s extreme engines. We engineer and manufacture complete intercoolers for vehicle specific applications, and intercooler cores for custom builds. Select from our large offering of air-to-air cores that support from 300 – 1275 horsepower, and our air-to-liquid cores that range from 500-1000 horsepower.

Superior Thermal Protection

PowerMax Vehicle Specific Drop-In Intercoolers

Garrett PowerMax drop-in intercoolers are engineered to increase vehicle performance while maintaining OEM fitment. Advanced CFD combined with bar and plate core technology results in in lower intake temperatures and prolonged heat saturation.

Part Number Application Horsepower* Product Page Installation Instructions
857564-6001 2015+ Mustang 2.3L EcoBoost Up to 600 Click Here Click Here
870702-6001 2015+ 3.5L | 2.7L Ford F-150 C.A.R.B Certified (EO# D-794) up to 750 Click Here Click Here
880736-6001 2013-2018 2.0L Ford Focus ST up to 670 Click Here Click Here
891185-6001 2015+ Subaru WRX 2.0L Intercooler up to 530 Click Here Click Here
881649-6001 2011 – 2021 Ford Ranger PX1 PX2 PX3 | Everest
and 2011-2020 Mazda BT50 3.2L | 2.2L | 2.0L
up to 499kW Click Here Click Here
888883-6002 2015+ BMW M3 – M4 (F80 \ F82 \ F83)
up to 980 Click Here Click Here
893516-6001 2016+ Honda Civic 1.5L T/Si
up to 660 Click Here Coming Soon

Air-To-Air Intercooler Cores

A full range of bar and plate intercooler cores that are manufactured by Garrett technicians. Our bar and plate intercooler cores are proven to reduce intake temperatures through advanced fin density and offset composition.

Part Number Model Supported Horsepower Length/Hot Flow Height/No Flow Width/Cold Flow
(in) (mm) (in) (mm) (in) (mm)
848054-6012 Air / Air 300 10.2 260 8.1 205 4.7 120
703518-6015 Air / Air 310 18.0 457 6.4 163 3.0 76
703521-6003 Air / Air 375 10.0 254 12.3 312 4.5 114
703518-6016 Air / Air 410 18.0 457 8.0 203 3.0 76
703520-6025 Air / Air 425 18.0 457 8.0 203 3.5 89
848054-6013 Air / Air 450 13.5 343 8.6 219 5.5 140
703518-6018 Air / Air 475 24.0 610 6.4 163 3.0 76
703520-6009 Air / Air 500 24.0 610 6.4 163 3.5 89
703518-6017 Air / Air 510 18.0 457 10.5 267 3.0 76
703520-6002 Air / Air 550 14.0 356 12.1 307 3.5 89
487085-6002 Air / Air 600 20.1 511 11.2 284 3.0 76
703520-6010 Air / Air 600 24.0 610 8.0 203 3.5 89
848054-6004 Air / Air 600 21.0 533 5.4 137 5.3 135
848054-6024 Air / Air 600 13.0 330 10.2 259 4.0 102
893513-6001 Air / Air 660 27.5 699 6.2 157 3.5 89
848054-6037 Air / Air Vertical Flow 750 8.0 203 24.0 609 3.5 89
858893-6001 Air / Air 750 9.0 229 22.1 561 4.0 102
703518-6004 Air / Air 750 18.0 457 12.1 307 3.0 76
703522-6008 Air / Air 750 18.0 457 11.2 284 4.5 114
848054-6015 Air / Air 750 21.0 533 9.4 239 5.3 135
703522-6004 Air / Air 785 18.0 457 12.1 307 4.5 114
703520-6011 Air / Air 800 24.0 610 10.5 267 3.5 89
848054-6020 Air / Air 800 26.3 668 7.8 198 4.3 109
703518-6005 Air / Air 900 24.0 610 12.1 307 3.0 76
703520-6005 Air / Air 925 24.0 610 12.1 307 3.5 89
703522-6005 Air / Air 950 24.0 610 12.1 307 4.5 114
848054-6021 Air / Air 950 26.8 681 10.4 264 4.0 102
486827-6002 Air / Air 1000 23.7 602 12.0 305 3.8 97
848054-6039 Air / Air Vertical Flow 1100 12.0 305 22.4 568 4.5 114
701596-6001 Air / Air 1260 27.8 706 12.7 323 5.1 130
858893-6003 Air / Air 1275 14.0 356 22.1 561 4.5 114

* Horsepower rating shown for normal operating conditions, Maximum horsepower potential will be higher than the listed values.

Air-To-Liquid Intercooler Cores

A full range of bar and plate intercooler cores that are manufactured by Garrett technicians. Our bar and plate intercooler cores are proven to reduce intake temperatures through advanced fin density and offset composition.



Part Number Model Supported Horsepower Length/Hot Flow Height/No Flow Width/Cold Flow
(in) (mm) (in) (mm) (in) (mm)
717874-6009 Air / Liquid 500 3.8 97 3.7 95 9.8 249
717874-6008 Air / Liquid 750 3.8 97 3.7 95 11.7 297
873213-6002 Air / Liquid 980 7.2 183 3.6 91 9.8 249
734408-6005 Air / Liquid 1000 4.8 122 4.5 114 11.9 302

* Horsepower rating shown for normal operating conditions, Maximum horsepower potential will be higher than the listed values.

Turbochargers Intercoolers and Intercooler Cores

Utilizing advanced Aerospace technology, Garrett intercoolers offer superior fatigue protection for the high boost pressures and temperatures of today’s extreme engines. With over 75 years of charge air cooler experience, Garrett remains ahead of the industry in intercooler design and function making it the number one choice for some of the premier names in the performance car industry – Roush, Saleen, Mercedes-Benz AMG, Ford SVT, GM, and McLaren have all turned to Garrett to intercool their hottest models.

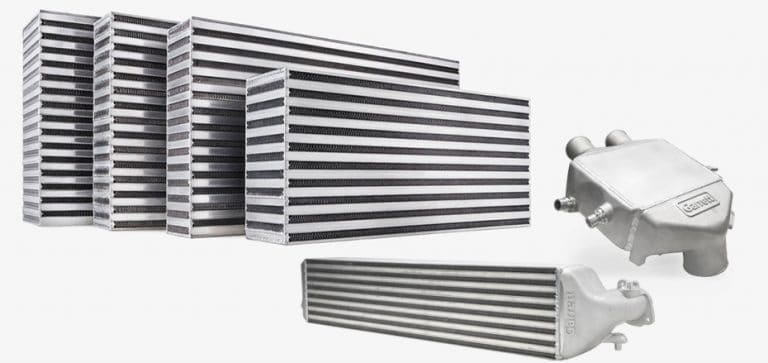

A full range of bar and plate intercooler cores that are manufactured by Garrett technicians. Our bar and plate intercooler cores are proven to reduce intake temperatures through advanced fin density and offset composition. From air-to-air cores sized for sport compact cars to air-to-liquid cores capable of supporting 1000+ hp, find the perfect fit for every project, at the perfect price with Garrett.

Vehicle specific intercoolers Selecting the right intercooler core Air-to-air cores Air-to-liquid cores Intercooler Technology

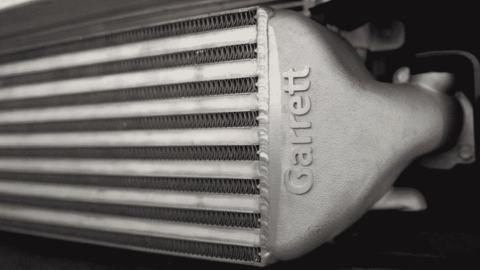

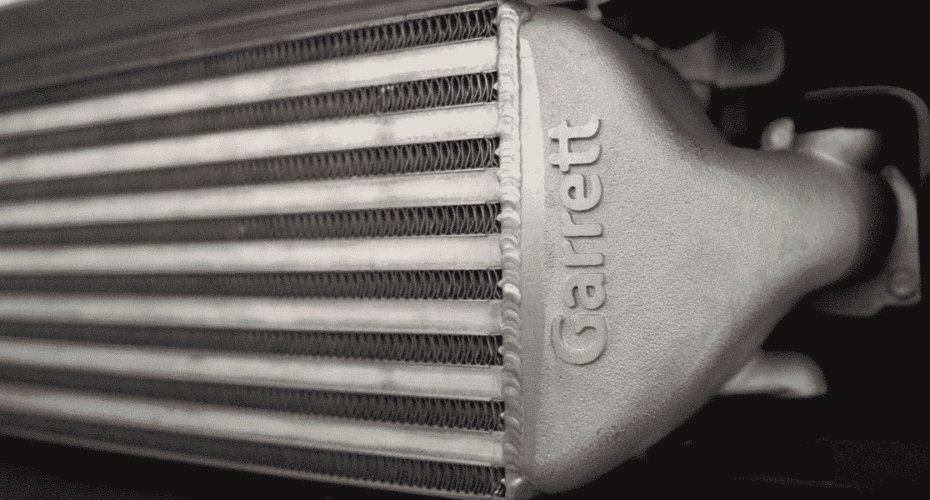

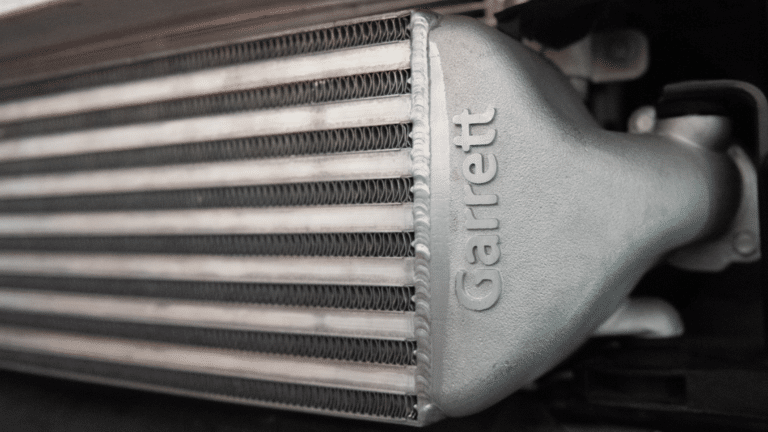

Selecting The Right Intercooler

We manufacture a wide range of air to air intercooler cores rated from 310 horsepower applications up to 1260 horsepower applications. Each core is rated for a specific horsepower, making it easy to match your desired power target to the core. In general, use the largest core that will fit within the packaging constraints of the application.

Learn More About Thermal Tech

January 29, 2020

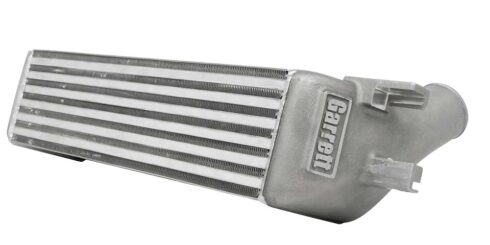

Garrett Performance Intercoolers

Performance Intercoolers Garrett performance intercoolers and intercooler cores work together with the turbocharger as part of the total induction system. When air is compressed in…

March 28, 2020

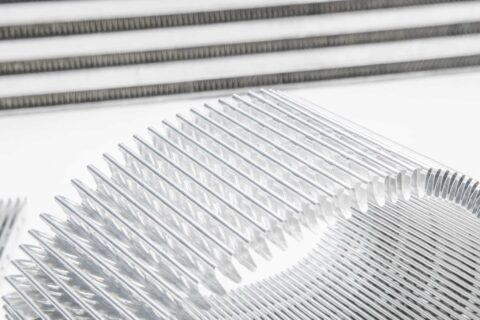

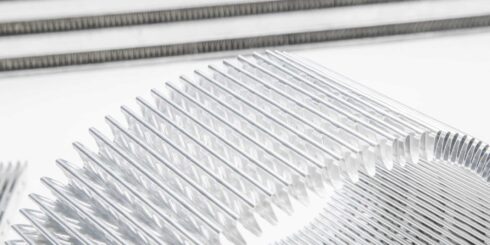

Intercooler Tech: What Is Fin Density

Intercooler Tech: Fin Density In the first intercooler article we talked about heat transfer and selecting the best intercooler for your application. (Click here to…

June 2, 2020

Intercooler Sizing And End Tank Design With Rob Dahm

Rob Dahm rethinks, redesigns, and retests his current intercooler and end tanks to unlock more horsepower on his 4 rotor RX7. Using CFD analysis, he identifies where the current setup has restrictions that are causing pressure drop and robbing Rob’s 4 Rotor of horsepower

July 23, 2019

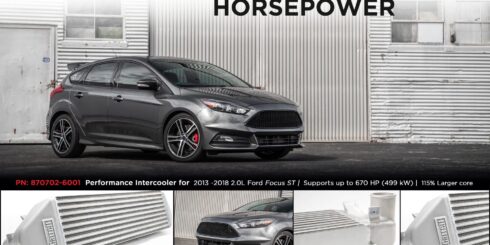

2013 – 2018 Ford Focus ST Performance Intercooler

    Replace Heat With Horsepower PowerMax performance products by Garrett Motion are vehicle specific turbo and intercooler upgrades for the most popular OEM turbocharged…

June 17, 2020

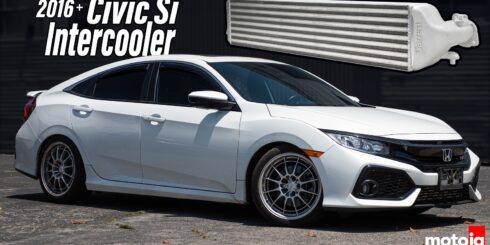

Garrett Performance Intercooler Test: 2016+ Honda Civic Si

MotoIQ tests the new Garrett drop-in performance intercooler for the 2016+ Honda Civic Si. 17HP and 14 lb-ft of torque gained over stock when tested in a wind tunnel dyno, all from a drop-in unit.

October 6, 2017

Garrett Intercooler upgrade for the 2.3L Ford Mustang

Garrett has released a new drop-in intercooler upgrade for the 2015 and newer Mustang 2.3L EcoBoost engine platform. The 857564-6001 intercooler is C.A.R.B. certified and…

February 24, 2020

Making Power With The PowerMax Twin Turbo and Intercooler Upgrade For 3.5L F-150

PowerMax Performance For Your Ford F-150 If you are looking for a little extra power for your ecoboost engine, Garrett PowerMax turbos and intercoolers are…

Performance Intercoolers

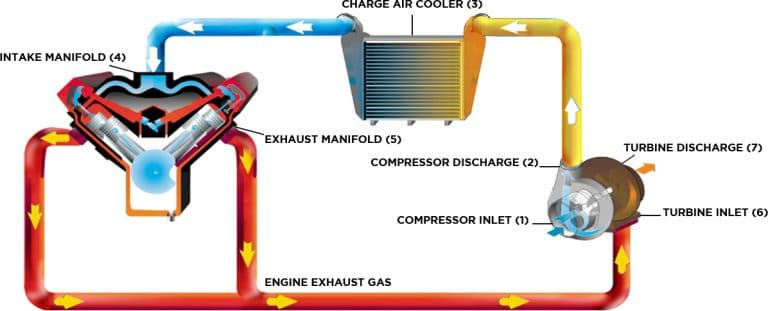

Garrett performance intercoolers and intercooler cores work together with the turbocharger as part of the total induction system. When air is compressed in the turbocharger it gains a lot of heat. Hot air is less dense and therefore is not able to produce as much energy because less can be fed into the engines cylinders. The job of the intercooler is to remove heat from the charge air making it more dense. The denser charge equals more air and fuel reaching the engine and that translates to more horsepower.

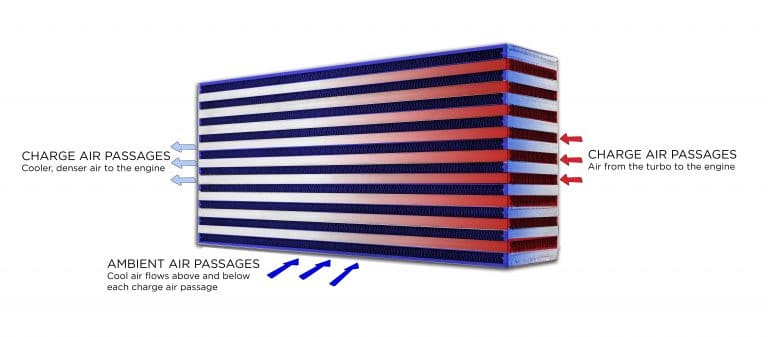

Intercooler Construction

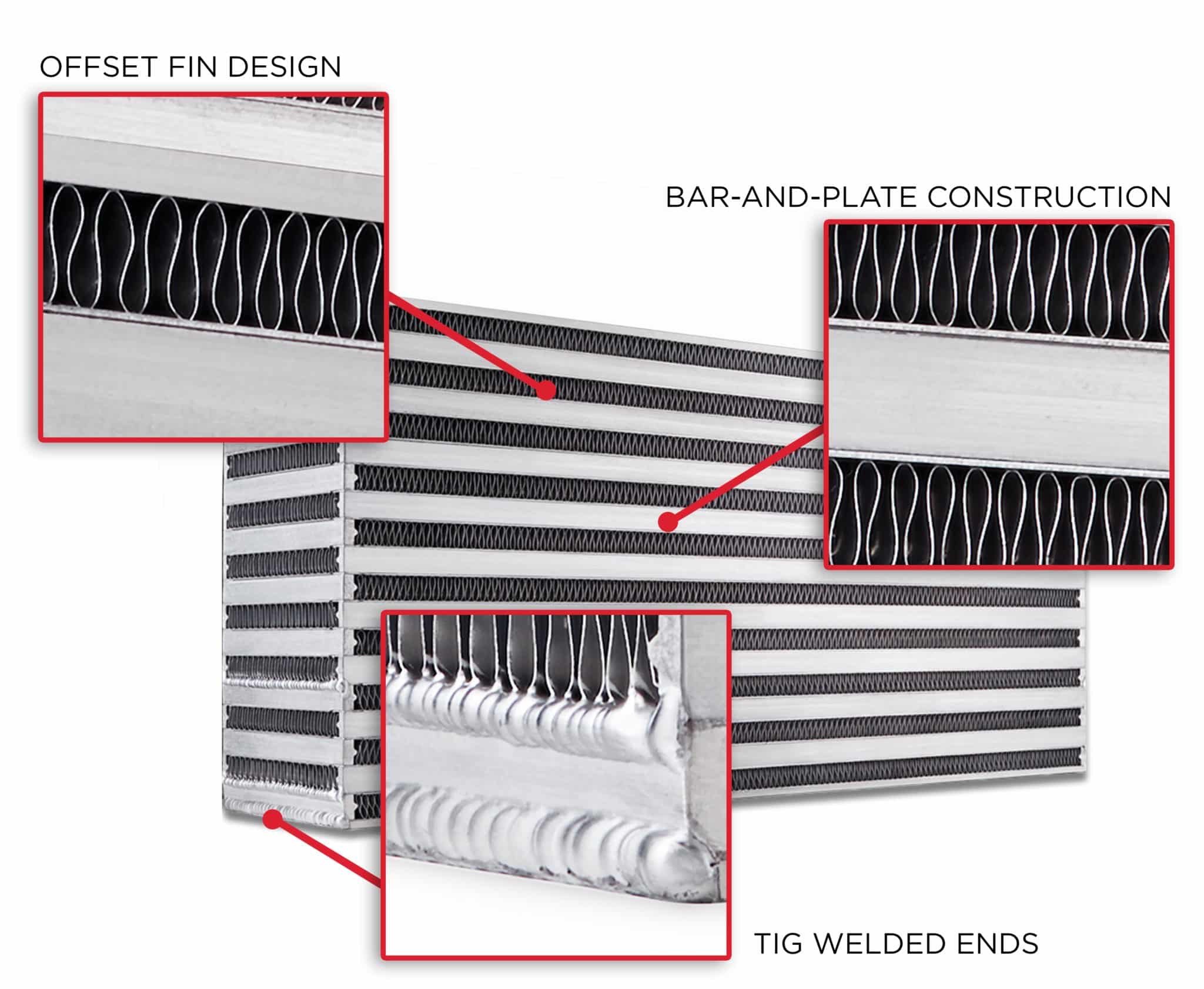

Garrett intercooler cores are bar and plate horizontal flow design. Charge air from the turbo flows within enclosed passages in one direction, with separate cooling passages flowing cooler ambient air in a perpendicular cross-flow pattern to the charge air. In bar and plate designs the passages consist of plates on top and bottom with fins in between. The passages are enclosed by bars on either side depending on if it is a charge air passage or an ambient air/cooling passage. Passages are stacked alternately until the desired stack height is reached. On the sides of the stacked cores, added to the final passage is a side plate of thicker material to provide structural integrity, protect the more delicate fins, and provide a surface for welding on end tanks if desired.

Heat Transfer

How does the intercooler remove heat from the charge air? There are three types of heat transfer modes, but the bar and plate intercooler relies on Conduction and Convection to extract heat from the charge air. Conduction is the transfer of heat to materials that have direct contact with each other. Convection is the transfer of heat from one place to another by movement of air. As you can see in the image below, the bars, plates, and fins alternate direction and flow and all play a part in extracting heat from the charge air. The charge air fins transfer heat from the charge air to the plates and the ambient air fins transfer the the heat from the plates and the ambient air cools the fins. The process repeats as long the car is moving or until the core gets heat soaked.

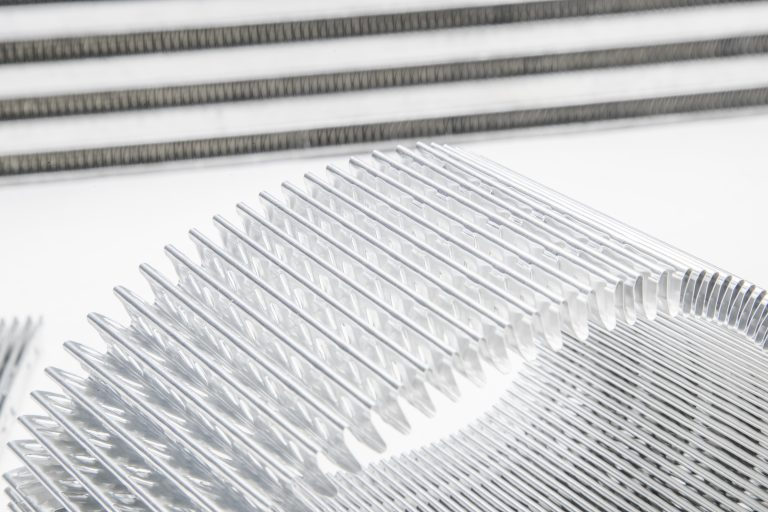

Fin Density

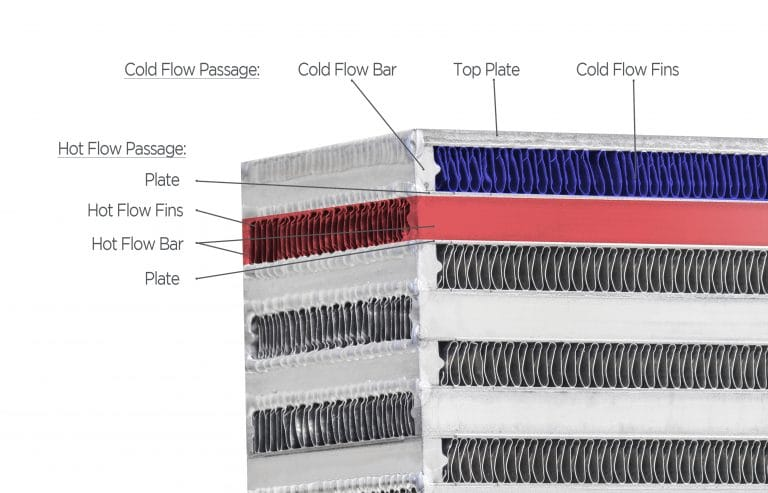

Fin density is measured in FPI or fins per inch. Each fin surface counts as one fin meaning there are two fins per wave. Fin stacks start off as flat sheets of aluminum that are fed through a special machine where they are bent to the desired FPI per row height and length. Garrett manufacturers around 20 different air-to-air and air-to-liquid intercooler cores supporting a range of horsepower from 310 up to 1260. Each of those cores are different in length, width, and height to meet the needs of different performance enthusiasts.

Garrett Intercooler cores utilize a combination of fin density depending on the flow path of the core. For example, the cold flow path or the front of the intercooler commonly has a higher density fin count to allow for better thermal performance and cooling. Core width/ cold flow can range from 3 – 5 inches so higher fin density is critical with the short span the ambient air travels across to cool the charge air passages. Additionally, the cold air passages are not sealed or pressurized like the charge air passages, so your ambient air flows through, cools the hot passages and evacuates into the engine compartment.

Hot flow passages have a longer run spanning from 11-28 inches in some intercooler cores. The hot flow path is a series of sealed chambers with fins spanning the entire length. There is a lot of surface area for heat transfer to take place and for that reason, the hot chambers have a lower fin density.  This also helps reduce pressure drop as the charge air travels from one side to the other.

Pressure Drop

Pressure drop is the difference in pressure between two points caused by flow resistance. An example of pressure drop is when the air pressure leaving the intercooler is less than the pressure that went in. You may never actually see this happening because your turbo will work harder (spin faster) to deliver the correct PSI to the engine. The faster a turbo spins the hotter the air is so it’s critical to use an intercooler that has a good balance of fin density so you don’t overwork the turbo.

Think about driving down the road with your hand out of the window and your palm facing forward. Your hand is interrupting the flow of the air and it must find a way around your hand to pass. Now imagine you and 10 friends in a limousine with your hands out of the window one after another. The last person in line will not feel the same flow as the first person because of pressure drop.
