Wastegate and Free Floating Turbochargers

Garrett wastegate and free-floating turbochargers provide powertrain boosting for a wide range of on-and-off-highway commercial applications – from light vehicles and medium and heavy-duty trucks to mining equipment, generator sets, locomotives, marine applications and more.





ENHANCING FUEL EFFICIENCY, DURABILITY AND PERFORMANCE

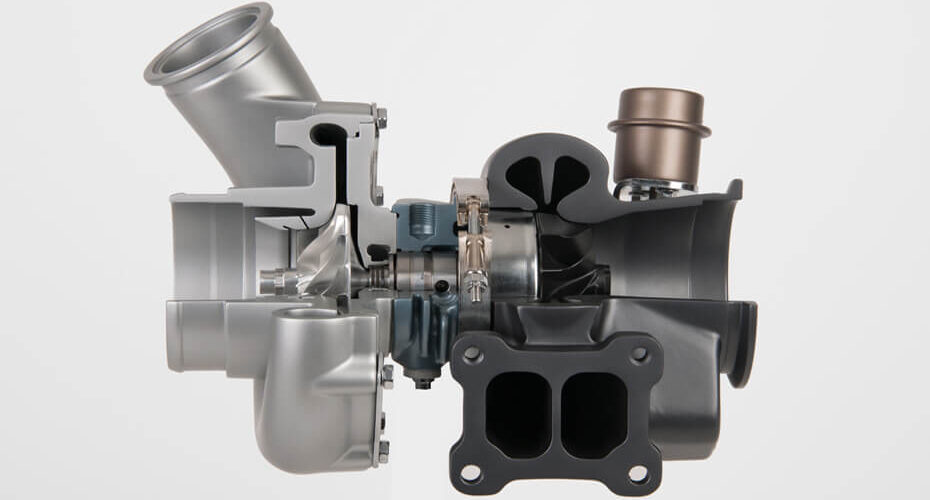

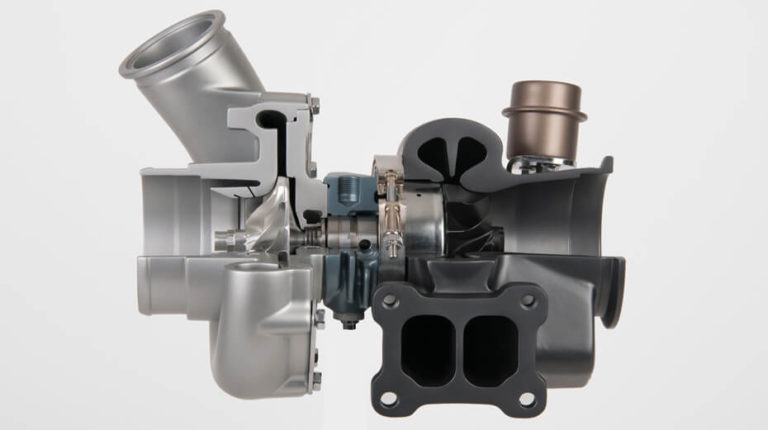

Engine Range

While wastegate turbos cover engines with sizes above 1L and below 64L, the free floating turbos are mainly focused on engines that range from 64L to 110L. With turbo Ranging for a GT12 to GT70, Garrett offers the largest range of turbo size for on- & off- highway Commercial Engines in the Industry.

Read more

Commercial Vehicle Wastegate / Free Floating Turbochargers Key Features

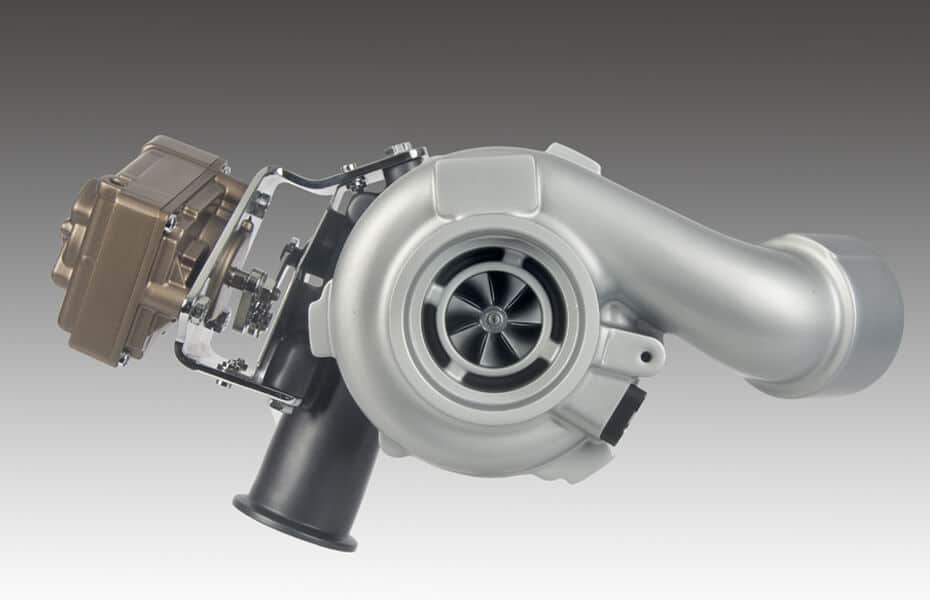

Garrett wastegate and free-floating turbos for highway applications are known for their track record of performing under harsh conditions. Backed by decades of experience and based on proven design, they offer a great reliability and durability, providing up to 20,000 hours of useful life. Free floating turbos rely heavily on the engine manufacturer’s control strategy to maintain acceptable operating conditions, while the wastegate turbos offer more flexibility in controlling turbo speed by bypassing exhaust gas when the pressure reaches pre-determined application-specific limits.

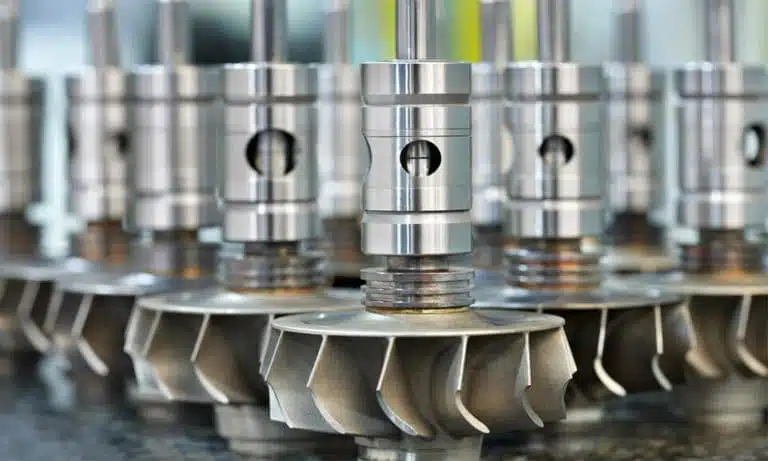

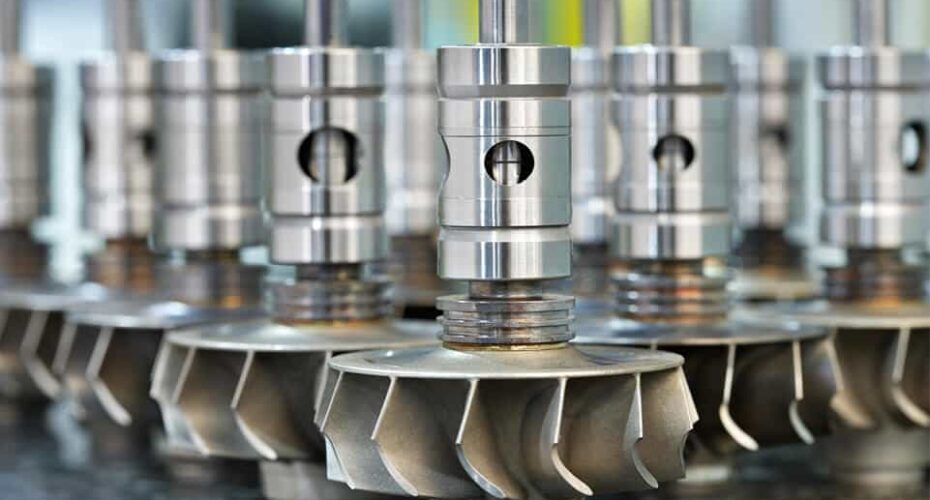

For highly cyclic applications like mine trucks, Garrett turbos are designed to maximize mechanical robustness with features like titanium compressor wheels, long-life turbine wheel design, materials and special casting processes. For non-cyclical applications such as generator sets, Garrett turbos are designed to minimize the failure modes that historically plague these applications, with special attention being paid to bearing design, oil management and thrust capacity.

New emissions regulations and economic drivers are also adding additional requirements for the turbochargers for this across segments, maintaining performance at high-altitude conditions and improving fuel efficiency.

ENHANCING FUEL EFFICIENCY, DURABILITY AND PERFORMANCE

Commercial Vehicle Wastegate / Free Floating Turbochargers Benefits

Through advanced aerodynamic designs, Garrett engineers are able to deliver on both without compromising on reliability. Key benefits include:

Low-stress turbine wheels

eliminate the primary failure mode through design and casting process

unique bearing system

featuring a one-piece cartridge, designed to eliminate failure modes

Titanium compressor wheels

leads to higher mechanical robustness

Improved fuel efficiency

over a broad operating range for variable speed applications

Mounting and packaging flexibility

on a variety of engine applications

Evolution and Future Trends

Since the launch of wastegate and free floating turbos, Garrett engineers have made significant improvements in the areas of turbo performance and durability through advances in aerodynamics and bearing systems. Garrett engineers are accelerating their development in aerodynamics to further increase pressure ratio capability and efficiency and in bearing systems to further reduce mechanical losses. Wastegate turbocharger will see a larger adoption of Electric Actuator instead of the traditional pressure system to further improve controllability of the Wastegate function allowing for example an open position at cold start or part load operation. Fixed geometry turbo are also adopting Ball Bearing technology to further lower mechanical losses of the bearing system to improve fuel efficiency and performance.
