Maximum Performance
Turbocharger Accessories
Genuine replacement components for most Garrett G Series and GTX Gen II turbochargers
Garrett turbo accessories include speed sensors, boost gauges, actuator kits, and more. We also offer genuine replacement components for most G Series and GTX Gen II turbochargers. From bolts, to clamps, actuator brackets, rod ends, o-rings, oil and water fittings and more. Scroll below to see all the categories.

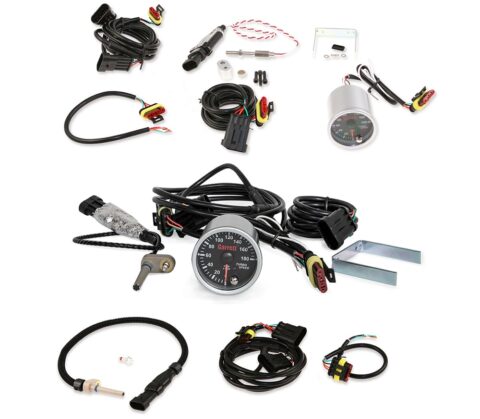

Speed Sensor

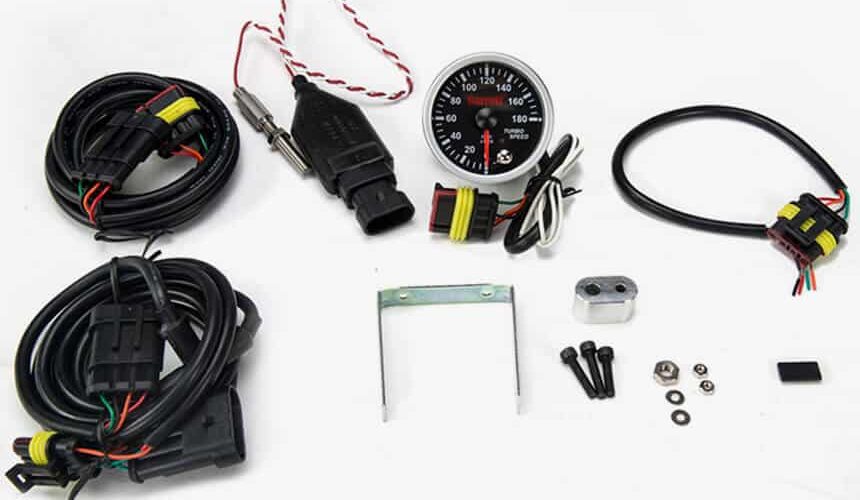

Select GTX turbochargers come standard with a fully machined speed sensor port. Just remove the bolt and screw in the appropriate kit for your application. GT/GTX speed sensor kit not applicable on G Series turbochargers. The Garrett Turbocharger Speed Sensor works with any turbocharger to accurately determine compressor wheel speed. The instructions include detailed drawings of the exact machining specifications for all Garrett GT catalog turbochargers as well as general guidelines for other compressor housing types. The Garrett Turbocharger Speed Sensor Kit includes all necessary wiring for easy installation and simple data logging.
| Speed Sensor Kits | Part Number | Type | Sensor | Harness | Gauge | Bolt | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GTX Gen II \ GTX \ GT \ GTW | 781328-0001 | Street | Y | Y | Y | |||||||
| GTX Gen II \ GTX \ GT \ GTW | 781328-0002 | Pro | Y | Y | ||||||||
| G Series \ GTX55 Gen II \ GTX50 Gen II \ GTX47 Gen II | 781328-0003 | Street | Y | Y | Y | Y | ||||||
| G Series \ GTX55 Gen II \ GTX50 Gen II \ GTX47 Gen II | 781328-0004 | Pro | Y | Y | Y | |||||||
Maximum Performance
Comparing boost levels and shaft speed on a compressor map, you can determine the ideal operating conditions to insure peak power over a wider operating range. All Garrett Turbocharger Speed Sensor Kits are compatible with data loggers to enhance engine tuning capability. In addition, the Garrett-branded gauge’s maximum speed recall function will retain the highest wheel speed for five minutes for easy mapping.
The data gained from the Garrett Turbocharger Speed Sensor Kit can be used to closely estimate the engine’s flow behavior without a flow bench. Flow information is invaluable for determining if the turbocharger is reaching its maximum performance, for validating the turbo match, and for ensuring that it is not over-speeding, allowing you to avoid potentially damaging operating conditions.
This kit could even be used in conjunction with an aftermarket ECU to limit compressor speed. The Garrett Turbocharger Speed Sensor Kit will help you be sure you’ve got the correct turbo for your needs!
Boost Gauge
Boost Gauge PSI Part Number: 773326-0001 Boost Gauge BAR Part Number: 773326-0002
The Garrett Mechanical Boost Gauge is the perfect addition to your interior for the important job of accurately monitoring your boost levels. The gauge has a sleek design and features a black face, white backlit numbers, and a brushed aluminum ring. The gauge monitors boost from 30 Hg of vacuum to 30 psi of boost. Gauge kit comes with vacuum line, hardware, mounting brace and installation instructions.
Adjustable Wastegate Bracket
Part Number: 773151-0002
The Garrett Adjustable Wastegate Bracket allows for a significantly greater range of motion to set up the compressor outlet and wastegate can. This provides easier fitment in tight engine bays by giving you the ability to make smaller adjustments to compressor housing clocking than would be possible through the standard bolt adjustments which adjust the compressor outlet at 60* increments on GT25R and GT28R turbochargers. The bracket also allows for redirection of the actuator to keep vacuum lines away from heat or sharp edges. The adjustable actuator bracket is available for use on GT25R, GT28R, and GT30R turbochargers.
Turbine Inlet Divided V-Band Adapter
This adapter converts the turbine inlet on Garrett GT/GTX30-35 V-band, and G25, G30, G35 V-band turbine housings from an open inlet to twin scroll.
Part Number: 813444-0001
GTX & G Series Spare Components
G Series turbochargers have many new features on the compressor and CHRA sides of the turbo. The new speed sensor plug, bolt, and o-ring, pressure port plug, and oil and water fittings to name a few. These small ancillary components are now available for purchase.
Part Number Chart
| Description | Model | Part Number |
|---|---|---|
| Plug, compressor housing | GTX Gen II, G Series | 400809-0203 |
| O-ring, speed sensor | G Series | 403069-0242 |
| Plug, speed sensor | G Series | 871104-0001 |
| Bolt, speed sensor | G Series | 400674-0516 |
| Bolt, compressor housing | G25, G30, G35-900 | 700975-0203 |
| Bolt, compressor housing | GTX28 Gen II, G35-1050 | 400975-0303 |
| Clamp, compressor housing | G25, G30, G35-900 | 871795-0001 |
| Clamp, compressor housing | G35-1050 | 871795-0003 |
| O-ring, compressor housing | GTX30 Gen II, GTX35 Gen II | 403069-0077 |
| O-ring, compressor housing | G25, G30-660 | 403069-0157 |
| O-ring, compressor housing | G30-770, G30-900, G35 | 403069-0162 |
| O-ring backplate | GTX 28, 30, 35 Gen II | 403069-0164 |
| Fitting, oil inlet | GTX 28, 30, 35 Gen II, G25, G30, G35 | 767567-0002 |
| Plug, water | GTX 28, 30, 35 Gen II, G25, G30, G35 | 434705-0004 |
| Fitting, water | GTX 28, 30, 35 Gen II, G25, G30, G35, G40, G42, G45 | 872902-0001 |
| Washer, copper | GTX 28, 30, 35 Gen II, G25, G30, G35, G40, G42, G45 | 444657-0006 |
| Circlip, rod end | GTX 28, 30, 35 Gen II, G25, G30, G35 | 400702-1025 |
| Rod end | GTX 28, 30, 35 Gen II, G25, G30, G35 | 413885-0032 |
| Nut, actuator bracket / rod end | GTX 28, 30, 35 Gen II, G25, G30, G35 | 400146-0207 |
| Bracket, actuator – standard rotation | G25 | 876079-0001 |
| Bracket, actuator – reverse rotation | G25 | 876079-0002 |
| Bracket, actuator – twin scroll | G25 | G30-660 | 876079-0003 |
| V-band, turbine inlet | GTX28(turbine outlet), GTX30- GTX35 Gen II, G25, G30, G35 | 826466-0001 |
| V-band, turbine outlet | GTX30 – GTX35 Gen II, G25, G30, G35 | 446397-0364 |
| V-band, center hsg to turbine housing | G25, G30, G35 | 446397-0382 |
| Locknut, V-band | GTX Gen II, G Series | 400515-0212 |
Actuator Kits
| Accessory PN | Description |
|---|---|
| 773326-0001 | Boost Gauge PSI |
| 773326-0002 | Boost Gauge BAR |
| 774175-0001 | 3.0″ V-Band Turbine Outlet Adapter G25 | G30 | G35 | GTX30 | GTX35 |
| 813444-0001 | Turbine Inlet Div V-Band Flange Adapter |
| 773151-0002 | Adjustable Actuator Bracket GT25, GT28, GT30 |
| 785928-0001 | Heat Shield Kit (Turbine Hsg) GT28/28 |
| 781328-0003 | Speed Sensor Street Kit: G Series Models |
| 781328-0004 | Speed Sensor Pro: G Series Models |
| 781328-0001 | Speed Sensor Street Kit GT/GTX Models |
| 781328-0002 | Speed Sensor Pro GT/GTX Models |
| PN | Model | Bar | Actuator Assembly |
|---|---|---|---|
| 480009-0009 | G|GT|GTX28 | 0.5 | Actuator *Rod end, jam nut, bracket, heat shield, retaining clip not included |
| 480009-0006 | G|GT|GTX28 | 1 | |
| 480009-0010 | G|GT|GTX28 | 1.5 | |
| Kit PN | Model | Bar | Actuator Assembly Kit |
| 700187-0001 | T25 | Actuator (fixed rod), bracket, heat shield. | |
| 759498-0001 | GT|GTX28 | 0.5 | Actuator, rod end, jam nut, retaining clip. *Bracket and heat shield not included |
| 759498-0007 | GT|GTX28 | 1.0 | |
| 759498-0005 | GT|GTX28 | 1.5 | |
| 759498-0004 | GT|GTX35R | 0.8 | |
| 759498-0008 | G25 | 0.5 | G-Series V-band standard rotation, actuator, bracket and bolts, rod end, jam nut, retaining clip. *Heat shield not included |
| 759498-0009 | G25 | 1.0 | |
| 759498-0010 | G25 | 1.5 | |
| 759498-0011 | G25 | 0.5 | G-Series V-band reverse rotation, actuator, bracket and bolts, rod end, jam nut, retaining clip. *Heat shield not included |
| 759498-0012 | G25 | 1.0 | |
| 759498-0013 | G25 | 1.5 | |
| 759498-0014 | G25 | 0.5 | G-Series T4 standard rotation, actuator, bracket and bolts, rod end, jam nut, retaining clip. *Heat shield not included |
| 759498-0015 | G25 | 1.0 | |
| 759498-0016 | G25 | 1.5 | |
| 759498-0004 for use with turbine housing wastegate family 771300 | |||
| Downloadable Instructions | Download | View |
|---|---|---|
| Garrett Turbocharger Speed Sensor Installation Instructions | Click Here | Click Here |
| Garrett Turbocharger Machining Drawings (Print to 11 x 17 paper) | Click Here | Click Here |
