PN: 870702-6001

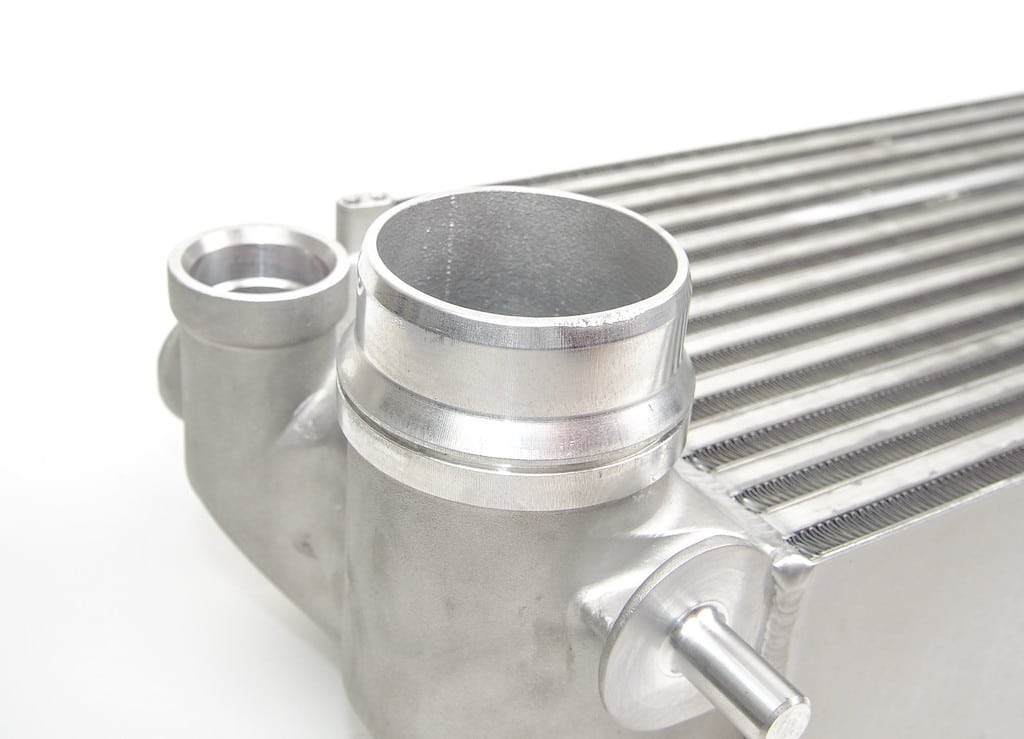

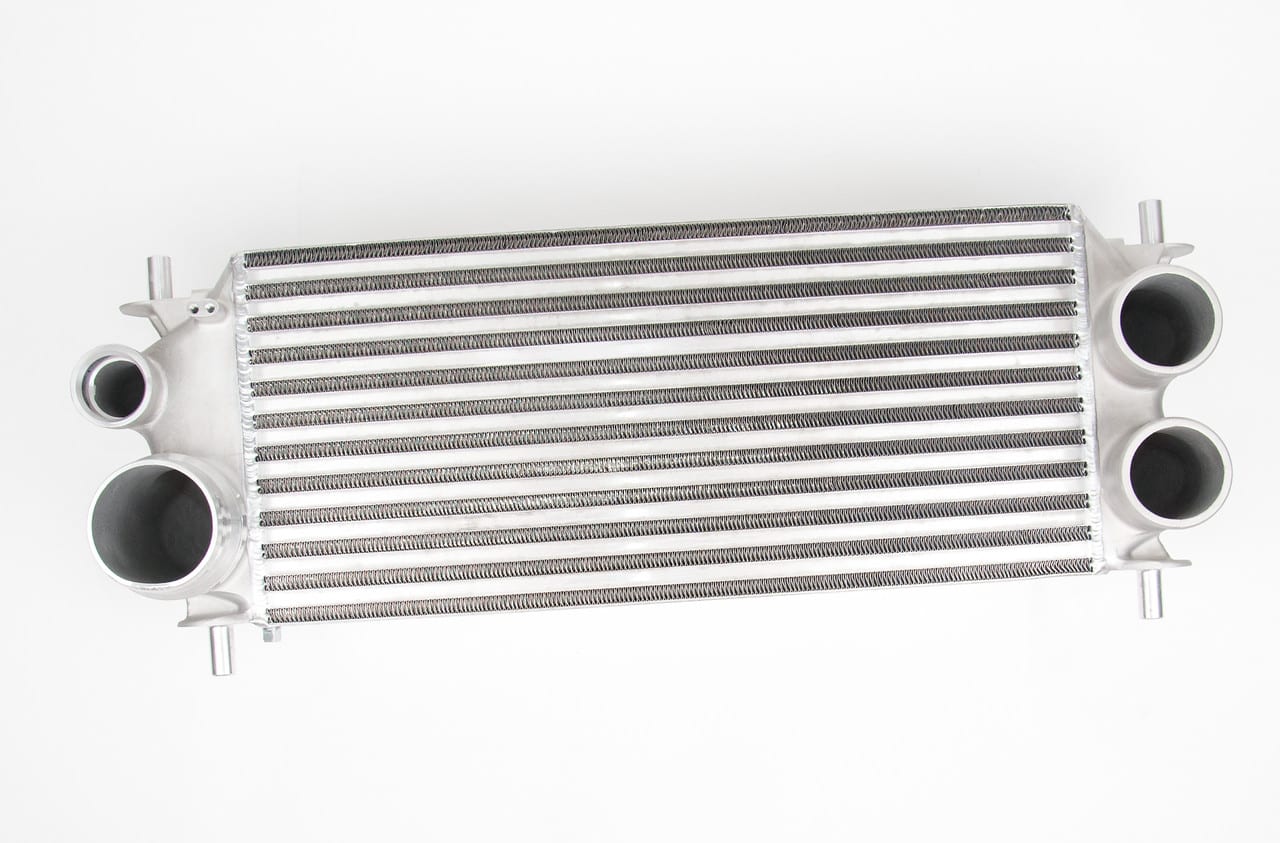

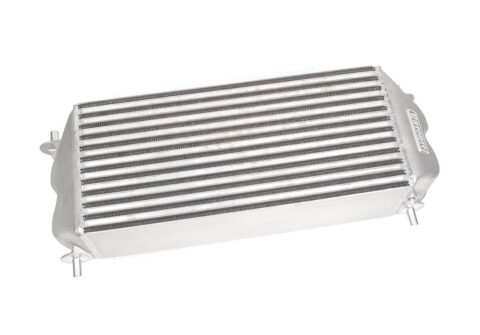

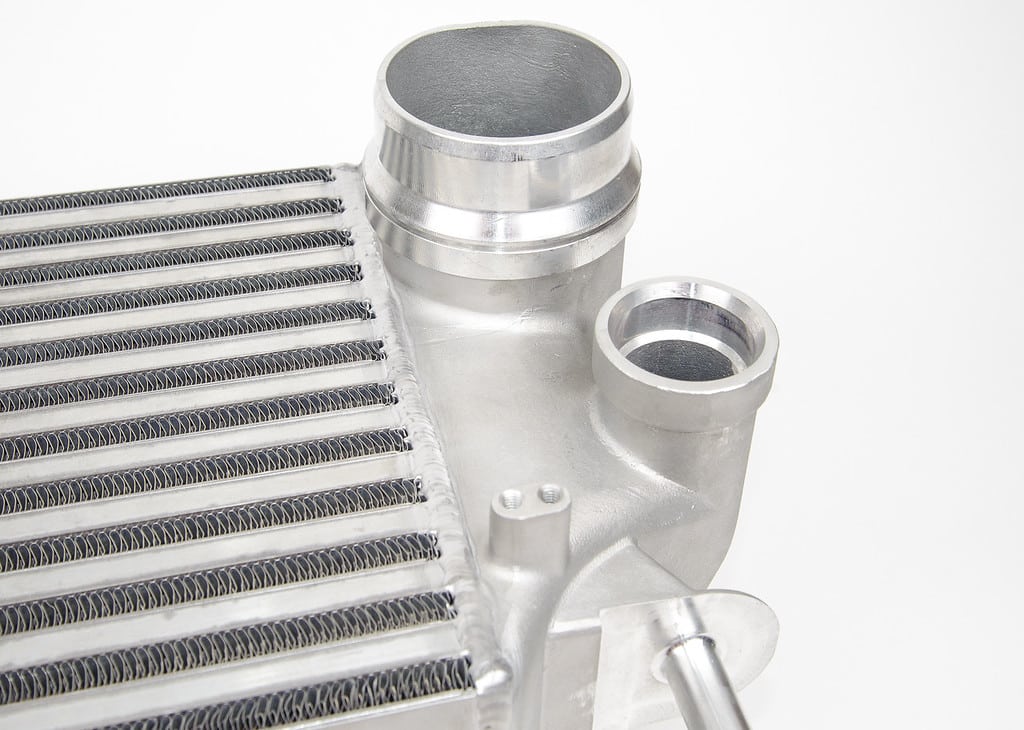

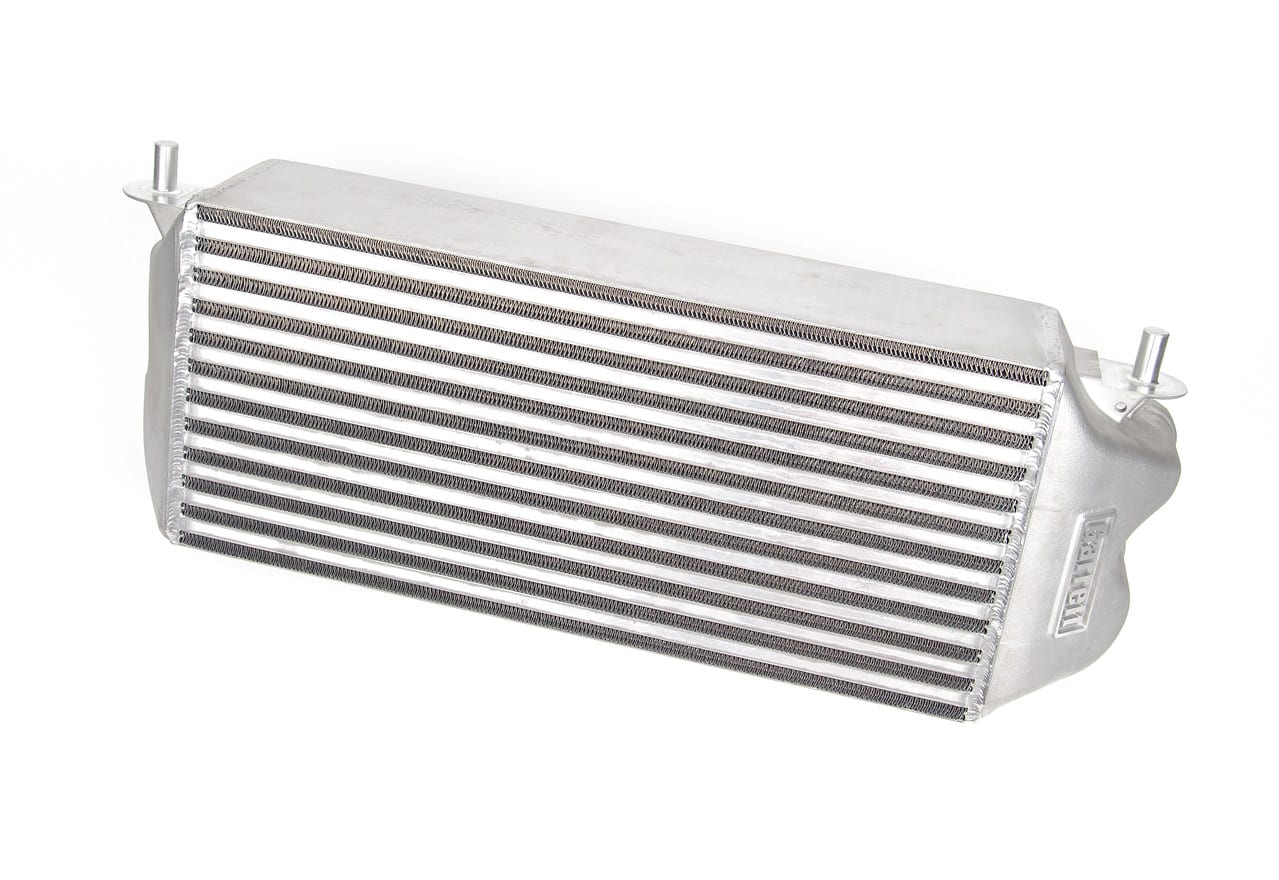

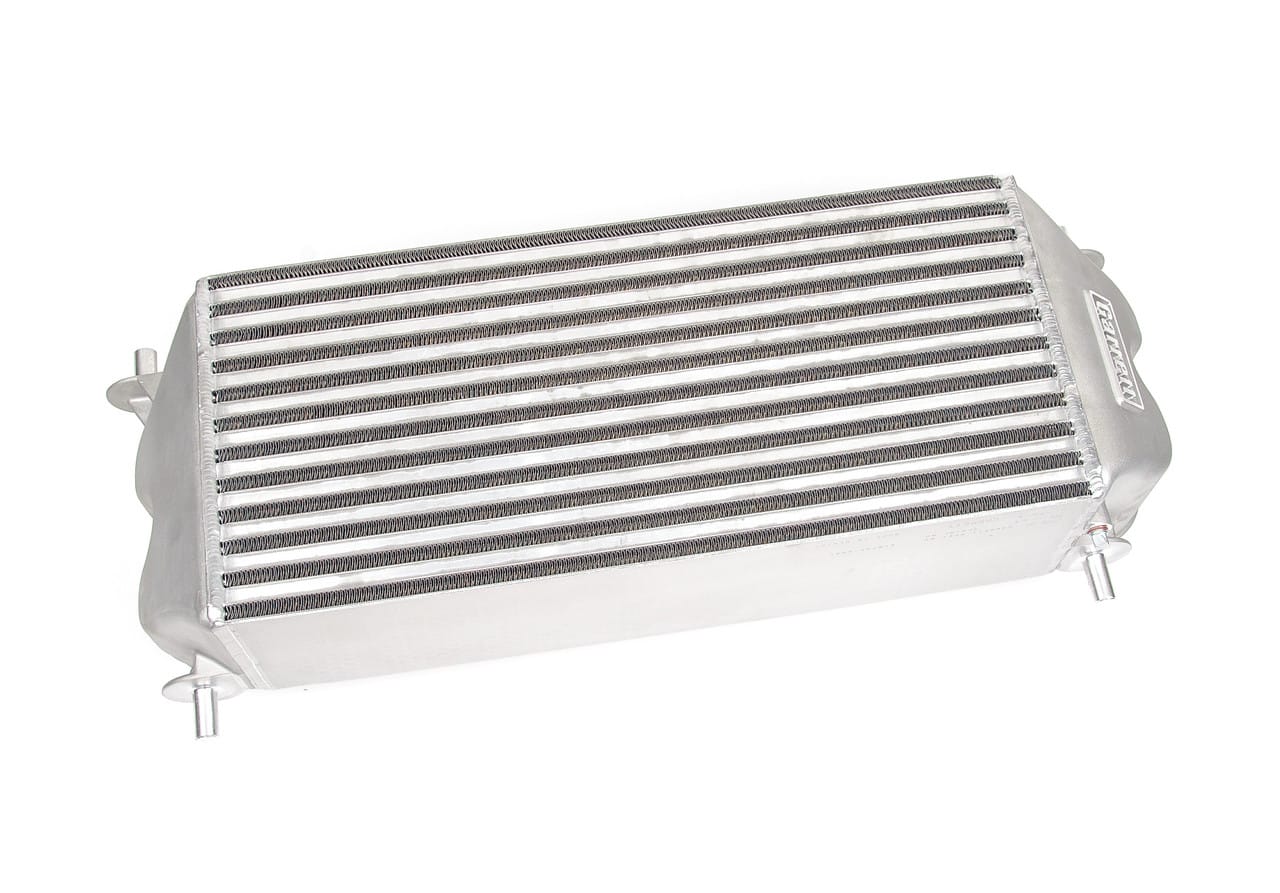

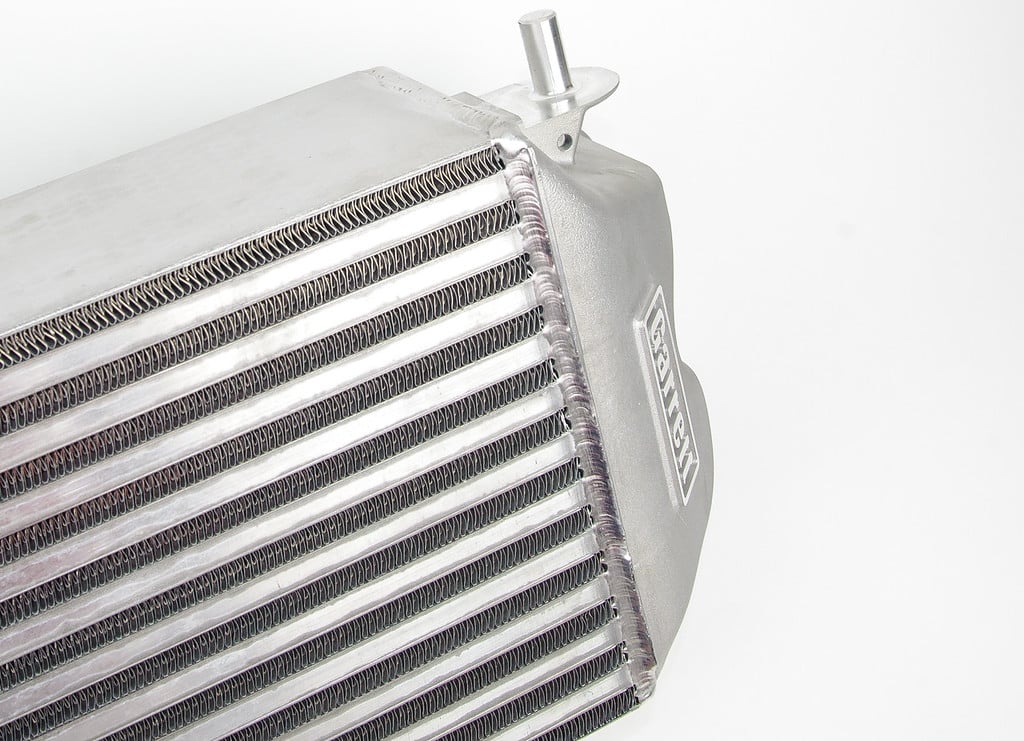

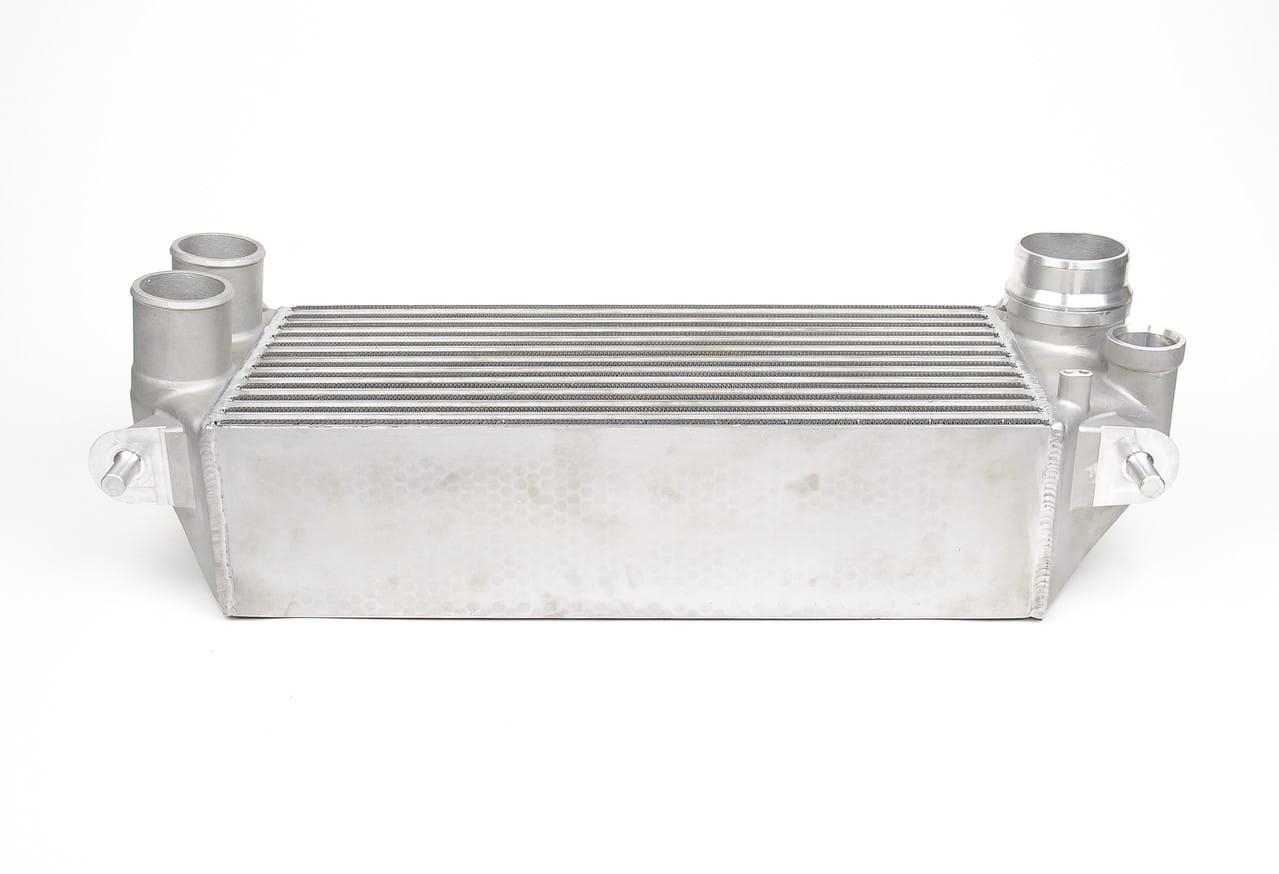

2015+ Ford F-150 | Raptor 3.5L & 2.7L Ecoboost Intercooler

All aluminum, TIG welded construction increases strength and durability for on road and off road applications.

Features:

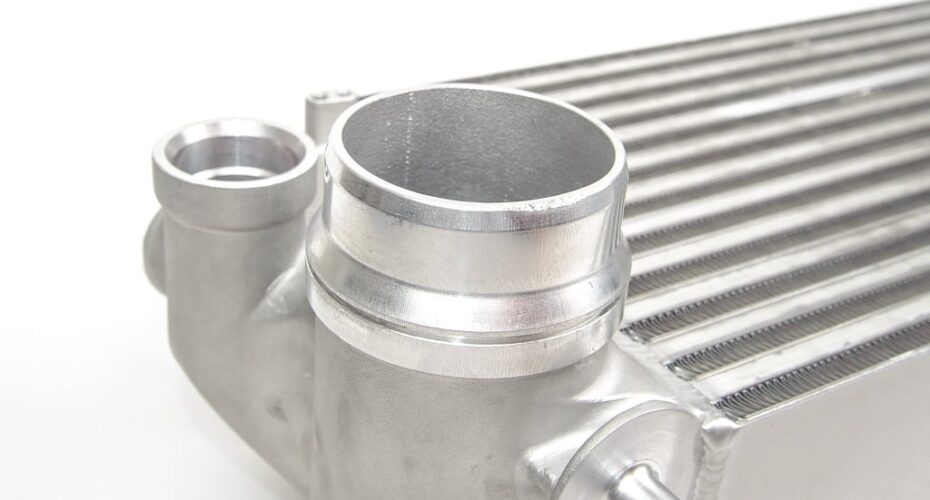

  • Cast aluminum end tanks
  • Advanced offset fin design
  • TIG welded for improved strength
  • Vacuum brazed bar-and-plate design
  • 83% larger aluminum intercooler core
  • Up to 30 degree reduction in charge air temp

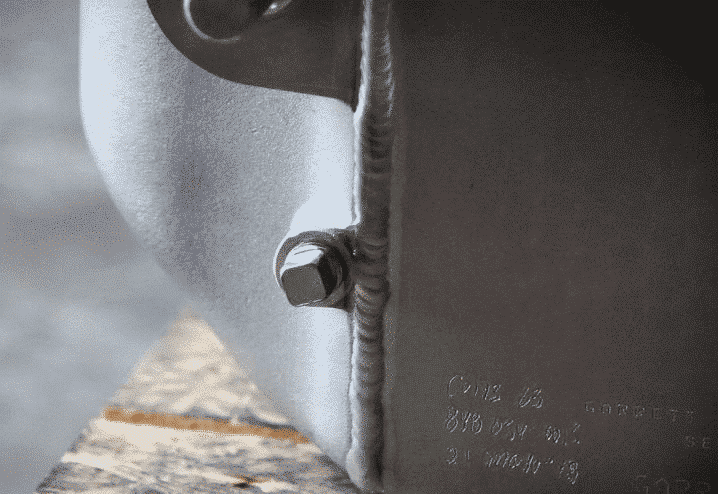

Drain Plug Feature

The Garrett direct fit performance charge air cooler comes with a fully machined drain plug to relieve condensation buildup commonly found in the F150 platform. The bolt can be removed with a 3/8 open ended wrench. Installers can test for condensation by turning the engine on, transmission in park, remove the bolt and place a catch can under the opening. Observe for any fluids. If fluid is present, gently rev the engine several times to dispel. Be sure to dispose of fluid with your local waste management facility.


Download section

File NameDownloadLink
Ford F-150 Intercooler TrainingDownloadView
Ford F-150 Intercooler Installation InstructionsDownloadView

Intercooler specifications



Part Number:870702-6001
Vehicle
MakeFord
ModelF-150 | Raptor
Year2015+
Engine
TypeEcoBoost 3.5L / 2.7L
FuelGas
Size Specs21″ x 5.32″ x 9.43″
