Features
- GEN II AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
- 85mm COMPRESSOR INDUCER | 133MM COMPRESSOR EXDUCER
- 112MM TURBINE INDUCER | 102MM TURBINE EXDUCER
- FLOWS UP TO 160 LBS/MIN | 1760 HORSEPOWER
- NEW FULLY-MACHINED SPEED SENSOR PORT
- IMPROVED PORTED SHROUD DESIGN FOR SURGE RESISTANCE
- LIGHT WEIGHT BILLET BACKPLATE
- SFI SUPERCORE AND TURBINE OPTIONS AVAILABLE
- V-BAND COMPRESSOR OUTLET CONFIGURATION
- 85MM SUPERCORE PN: 851285-5001S
WARNING: Maximum allowable turbocharger speed is 84krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)
Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
Buy now
IMPORTANT PRODUCT INFORMATION
“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”
Learn More About Other Racer Vehicle Setups
Each of these contain a detailed vehicle write up and dyno graphs.
The Fastest Radial Drag Car In The World With 4690 Horsepower
Jason Carter and Mark Micke are two of the biggest names in drag racing and current world record holders with 221 MPH in the 1/8th mile! Garrett GTX5533R
Single Turbo Drag Racing Classes Making Big Power With GTX5533R Gen II Turbochargers
Ford Mustang Drag car featuring a Disomma Race Engines 400 cubic inch small block Ford with a single Garrett GTX5533R Gen II 98mm turbocharger
World’s First 1000 Horsepower AWD Billet 4 Rotor RX7
Rob Dahm has staked his claim and built the world’s first 1000 horsepower AWD (all-wheel drive) billet 4 rotor RX7! Rob has been on a…
World Series of Pro Mod Winner Carl Stevens Jr Makes 4600 Horsepower On GTX5533R Turbos
Carl Stevens Pro Modified drag race car gets on the dyno to show how much power it takes to be one of the quickest and fastest cars on the track today. His XRE engine combined with Garrett GTX5533R Gen II turbos made 4615 horsepower!
Australia’s Castle Hill Performance takes 1st place in Australia drag racing series
Australia’s Castle Hill Performance race team took their race car to the Willowbank raceway in Brisbane Australia for the 3rd round of the Kenda 660…
Mike Jovanis Wins NMRA True Street with GTX5533R Gen II Turbocharger
Mike Jovanis takes home another True Street drag racing win with an 8.05 average in NMRA True Street class. The 1989 Mustang is boosted by…
Josh Klugger – First official 3-second eighth-mile time in Pro 275 competition powered by a Garrett turbo
Josh Klugger made history on January 20th 2018 as he became the first official 3-second eighth-mile time in Pro 275 competition at Orlando Speed World…
Diesel Tuning Tips From High Performance Academy
Ever wondered what’s different about tuning diesel engines? The team at HP Academy cover some of the basics in this diesel turbo tech writeup
“Valley Fever” Land Speed Streamliner Goes 300+ MPH with Garrett Turbocharged 2JZ Engine
Running at over 300 mph on the salt flats, the “Valley Fever” uses a Toyota 2JZ-GTE engine and single Garrett turbo.
“LTRex” Chevy-Powered Ford Mustang Finds Plenty of Medium Prep Success with Haltech and Garrett Turbo
With a Garrett turbocharged Chevy LT1 engine under its hood, this Haltech-controlled Mustang dominates medium prep drag racing.
Gray’s Racing’s “2NASTI” 2,000+ HP 1969 Chevy Camaro Gets it Done with a 102mm Garrett Turbo
Making 2,000+ horsepower with its single 102mm Garrett turbo, Gray’s Racing’s “2NASTI” 1969 Camaro dominates the drag strip.
David Mazzei’s Radical “Formula 7” 4-Rotor Mazda RX-7 Makes 1,000+ RWHP with Garrett Turbo
David Mazzei’s radical “Formula 7” 4-rotor Mazda RX-7 road race car makes 1,000+ RWHP with Garrett turbo and is street legal.
Nth Moto’s “Juggernaut” 3,000+HP Dodge Viper Sets a New World Record with Twin Garrett Turbos
Nth Moto’s “Juggernaut” 3,000+ horsepower Dodge Viper set a new drag racing world record with its twin Garrett turbochargers.
Eric Kenward’s 2,000+ HP “Wheelie Wagon” Garrett Turbo ’79 Chevy Malibu Wagon Drag Car
Eric Kenward’s 2,000+ horsepower Chevy Malibu drag car is known as the “Wheelie Wagon” and is boosted by Garrett turbo power.
Mike Jovanis Wins NMRA True Street Class Over 130 Car Field
Consistency is key in NMRA True Street Racing”, says Jovanis, “from the GTX5533R Gen II 88mm turbo, to the Disomma Racing Engine
GTX5533R GEN II 85mm
Reference Data
| GTX5533R GEN II | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| HP: 1000-2500 Disp: 3.0L-12.0L | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| Supercore | PN | |||||||
| 851285-5001S | 85mm | 133mm | 41 | 0.88 | 112mm | 102mm | 84 | |
| 851285-5002S | 88mm | 133mm | 44 | 0.88 | 112mm | 102mm | 84 | |
| 851285-5003S | 91mm | 133mm | 47 | 0.96 | 112mm | 102mm | 84 | |
| 851285-5004S | 94mm | 133mm | 50 | 0.96 | 112mm | 102mm | 84 | |
| 851285-5005S | 98mm | 133mm | 54 | 0.96 | 112mm | 102mm | 84 | |
| Turbine Kits: GTX55 | PN | A/R | Inlet | Outlet | Wastegate | Divided | ||
| Interchangeable with GT|GTX 5533 5544 Supercores
* Long outlet with cross bolts |
*761208-0062 | 1.24 | V-Band | V-Band | Free Float | N | ||
| *761208-0063 | 1.40 | V-Band | V-Band | Free Float | N | |||
| 761208-0064 | 1.24 | V-Band | V-Band | Free Float | N | |||
| 761208-0065 | 1.40 | V-Band | V-Band | Free Float | N | |||
| 761208-0015 | 1.12 | T6 | V-Band | Free Float | N | |||
| 761208-0025 | 1.24 | T6 | V-Band | Free Float | N | |||
| 761208-0017 | 1.40 | T6 | V-Band | Free Float | N | |||
GTX5533R GEN II 85mm
Download Section
| File Name | View |
|---|---|
| Compressor Map 85MM Inducer | View |
| Compressor Map 88MM Inducer | View |
| Compressor Map 91MM Inducer | View |
| Compressor Map 94MM Inducer | View |
| Compressor Map 98MM Inducer | View |
| File Name | Link | View |
|---|---|---|
| Compressor Map | Download | View |
| Exhaust Flow Chart | Download | View |
| Product Photo | Download | View |
| Flange Diagram | Download | View |
| Speed Sensor Kit Installation Instruction | Download | View |
GTX5533R GEN II 85mm

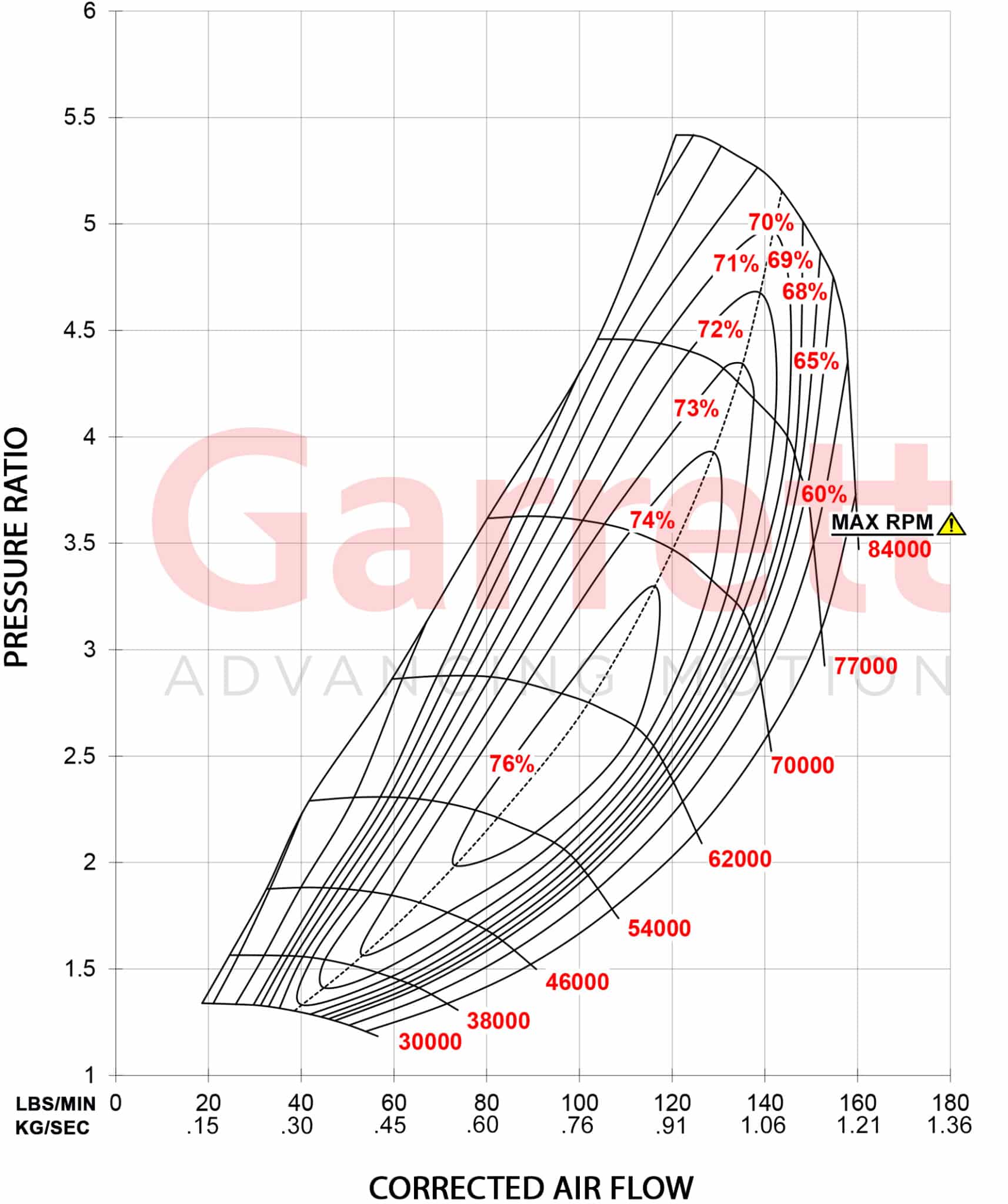

Compressor Map & Exhaust Flow Chart
