GTX3582R GEN II Turbocharger
Horsepower: 450 - 900
Displacement: 2.0L - 4.5L
Features
- GEN II AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
- 66mm TURBOCHARGER COMPRESSOR OPTION
- NEW FULLY-MACHINED SPEED SENSOR PORT
- STANDARD AND REVERSE ROTATION OPTIONS AVAILABLE
- DUAL CERAMIC BALL BEARING
- WATER COOLED CENTER HOUSING
WARNING: Maximum allowable turbocharger speed is 130krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)
Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
Buy now
IMPORTANT PRODUCT INFORMATION
“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”
Learn More About Turbos
World Challenge Evolved: This Garrett Turbocharged Evo Gets a Second Shot at Life
When this Mitsubishi Evolution X was wrecked while serving in Pirelli World Challenge competition, Ravi Dolwani of CSF, Inc. picked it up and gave it a second shot at road racing glory with an all-new build and a heaping helping of boost thanks to a wicked Garrett turbo.
Single OR Twin Turbo LS
What is the best setup for an LS engine? Is it a big single turbo or smaller twin turbos? Tune in for the details as we analyze the data from Pro 2 Formula Drift driver Jonathan Hurst’s 5.3L / 800WHP G37 drift machine.
Pump Gas Vs E85: Tunable Performance For Your Turbo
Same car, same engine, same tuner, and same turbo combination (GTX2867R Gen II) and how E85 vs Pump Gas impact performance
Turbo Tech: The Difference An A/R Makes Going From .83 To 1.01 With A GTX3076R Gen II Turbo
Ever wondered what A/R stands for and how it affects turbo performance? This explains the basic concepts of the theory with dyno data to show the results
800 WHP Unlimited Front Wheel Drive Acura Integra Type R
Jim Houghton’s 800 WHP Unlimited Front Wheel Drive Acura Integra Type R is one of the fastest cars in Time Attack Racing. It’s 2.4L turbocharged engine is..
Drift With George Kiriakopoulos In His Turbocharged 2JZ Powered Nissan 370Z
The GTX3582R Gen II is a great choice for the 2JZGTE engine because the (66 68 mm) compressor to turbine wheel combination provides big power and quick boost response. The power curve provides sufficient boost at a wide range of RPMs needed for drift events.
Turbocharged 1.9L Honda Civic Makes 785 Horsepower With GTX3582R Gen II
Time Attack competitors are always chasing more horsepower while trying to maintain reliability and a useable power-band. Boersma’s car of choice is a 1999 Honda Civic with a 1.9L Honda B Series turbo engine that cranks out 785 horsepower with a Garrett GTX3582R Gen II!
One Fast Lap: Racing The Clock In Time Attack
One Fast Lap: Racing The Clock With The RS Motors Time Attack Racing Team This car is built for one thing- Time Attack Racing. Time…
Jesse James Unveils His Dodge Polara
Garrett pairs up with Roadster Shop and the famous motorcycle builder on his 1500HP Hot Rod Car and motorcycle builder Jesse James unveiled his latest …
How To Select A Turbo Part 1
With over 35 Garrett turbos to choose, how do you select the right one? This provides some insight into the complicated process.
Making High Altitude Horsepower with Motion Auto’s 2JZ-Powered and Garrett Turbo S14 Nissan 240SX
By Ainsley Jacobs Motion Auto’s 2JZ-swapped and Garrett turbo-equipped S14 Nissan 240SX drift car makes great power at a high altitude.Sometimes project cars take on…

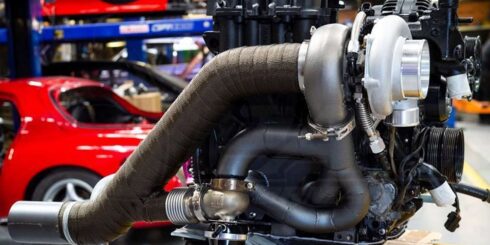

Pac Performance’s FD3S Mazda RX7 Single Garrett Turbo Kit Delivers 500+ Wheel Horsepower
Developed by Pac Performance, this single turbo conversion kit for the FD3S Mazda RX7 uses a Garrett turbo to provide 500whp.

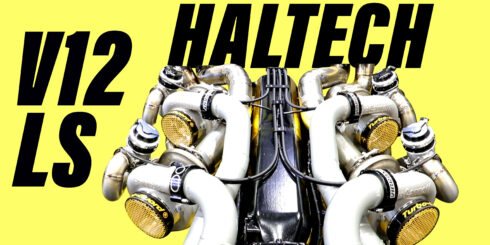

Garrett Boost Gone Wild: Haltech’s Quad Turbo V12 LS is the Ultimate LS Engine
Haltech creates the ultimate Chevy LS engine with a V12 configuration and four Garrett GTX3582R ball bearing turbochargers.
This 2JZ-Swapped S550 Ford Mustang Makes 550+ Horsepower With its Garrett Turbo
Motion Auto’s crazy Toyota 2JZ-swapped S550 Ford Mustang drift car makes 550+ horsepower with a Garrett GTX3582R turbo.
ZWING’s Beater E30 BMW is Reborn as a Stunning Show Car with Garrett Turbocharged S52 Power
Zach Wingfield rebuilt his beater E30 BMW 325i as a stunning SEMA Show car with an S52 swap and potent Garrett GTX3582 turbo.
GTX3582R GEN II 66mm
Reference Data
| GTX3582R GEN II | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | ||
| HP: 450-900 Disp: 2.0L-4.5L | 66mm | 82mm | 64 | 0.70 | 68mm | 62mm | 84 | |
| Supercore | Assembly Kit | Turbine Kit | A/R | Inlet | Outlet | Wastegate | Divided | |
| 851154-5004S | 740902-0012 | 0.63 | T3 | V-Band | Free Float | N | ||
| 856801-5068S | 740902-0011 | 0.82 | T3 | V-Band | Free Float | N | ||
| 740902-0010 | 1.06 | T3 | V-Band | Free Float | N | |||
| 740902-0018 | 0.63 | T4 | V-Band | Free Float | N | |||
| 856801-5071S | 740902-0017 | 0.82 | T4 | V-Band | Free Float | N | ||
| 740902-0016 | 1.06 | T4 | V-Band | Free Float | N | |||
| 740902-0033 | 0.61 | V-Band | V-Band | Free Float | N | |||
| Assembly Kit PN Includes | 856801-5080S | 740902-0032 | 0.83 | V-Band | V-Band | Free Float | N | |
| Supercore and Turbine Kit | 856801-5079S | 740902-0031 | 1.01 | V-Band | V-Band | Free Float | N | |
GTX3582R GEN II 66mm
Compressor Map & Exhaust Flow Chart
Compressor Map
Exhaust Flow Chart
GTX GEN II: The Next Generation in Turbocharging Technology
Garrett Motion is excited to introduce the GTX3582R GEN II Turbocharger. The GTX GEN II is the next evolution of our GTX line with major updates and new technology. Updates include a compressor wheel aero update that gives it the ability to produce up to 20% more horsepower than the previous version.
Redeveloped Compressor Wheels
GTX GEN II compressor wheels were designed using proprietary Garrett Motion computer simulation technology focusing on CFD analysis to optimize the wheel design to reach maximum efficiency and mass flow for each turbocharger.
Each GTX GEN II turbocharger can create more air mass flow, offering enthusiasts a wider range of power output when tuning the vehicle. The 8mm dual ceramic ball bearing cartridge provides optimal turbo response and reliability through its reduction in shaft motion.
Fully-Machined Inlet, Outlet and Shroud
The GEN II GTX Series Turbochargers feature a fully-machined compressor inlet, fully-machined compressor outlet, and fully-machined ported shroud for precise and accurate tolerances.
Redesigned High-Flowing Compressor Housing
We also added a brand-new compressor housing featuring a high-flowing design matched perfectly for the new compressor wheel upgrade. GEN II compressor housings are not interchangeable with GEN I compressor wheels; however, all GEN II turbochargers are outline interchangeable with the equivalent GT and GTX GEN I products making a turbo swap easy to perform using all existing piping.
Fully-Machined Speed Sensor Port
The new compressor housings are equipped with a fully machined speed sensor port that accepts the Garrett Motion speed sensor (Sold separately). This feature allows tuners to understand existing operating conditions, which is important when fine-tuning a turbocharger to its most efficient operating conditions. The speed sensor port comes plugged from the factory and can be removed using a 5mm Allen key when ready to install a speed sensor kit.
Cross Compatibility Turbo Turbine Housing Kit Platform
All GEN II GTX series turbochargers are compatible with all existing GT and GTX turbine housings kits. GEN II turbochargers are only offered through Garrett Motion authorized distribution centers.
