G-Series G30-770 58mm

Horsepower: 475 - 770

Displacement: 2.0L - 3.5L

Features

  • G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
  • 58mm TURBOCHARGER COMPRESSOR WHEEL
  • 76% MAXIMUM COMPRESSOR EFFICIENCY
  • MAR-M ALLOY TURBINE WHEEL RATED UP TO 1050° C
  • NEW TURBINE AERO PROVIDES HIGHER FLOW AND EFFICIENCY
  • STAINLESS STEEL TURBINE HOUSINGS RATED UP TO 1050° C
  • OIL RESTRICTOR AND WATER FITTINGS INCLUDED
  • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
  • TURBOCHARGER ASSEMBLIES ARE CALIBRATED WITH A 0.5 BAR ACTUATOR
  • STANDARD ROTATION SUPERCORE 880693-5002S
  • REVERSE ROTATION SUPERCORE 880694-5002S
  • Read About Turbo System Optimization: A guide to setting up your turbocharger

WARNING: Maximum allowable turbocharger speed is 150krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.

Buy now

IMPORTANT PRODUCT INFORMATION

“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”

Learn More About Race Vehicle Setups

January 26, 2022

Chris Forsberg’s Twin Turbo Nissan Altimaniac Drift Machine

Drift superstar Chris Forsberg’s insane GTR-powered RWD Nissan Altima makes 1300WHP horsepower with its twin Garrett turbos.

April 8, 2020

Building A 9 Second 2020 Toyota Supra

Unboxing And Installing The Boost Logic Turbo Kit Building a car that can go 9 seconds in 1/4 mile is not an easy task. You…

April 24, 2023

How To Select A Turbo Part 1

With over 35 Garrett turbos to choose, how do you select the right one? This provides some insight into the complicated process.

October 2, 2019

Turbo Tech: The Difference An A/R Makes Going From .83 To 1.01 With A GTX3076R Gen II Turbo

Ever wondered what A/R stands for and how it affects turbo performance? This explains the basic concepts of the theory with dyno data to show the results

January 29, 2020

Garrett Performance Intercoolers

Performance Intercoolers Garrett performance intercoolers and intercooler cores work together with the turbocharger as part of the total induction system. When air is compressed in…

August 15, 2019

Turbocharging At Elevation

A naturally aspirated combustion engine will lose 3% of its power for every 1,000 ft of elevation gain. Add a Garrett turbocharger to minimize the loss

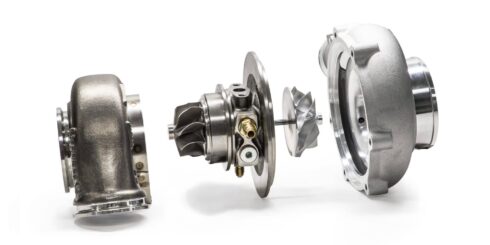

August 24, 2019

Garrett G30-660 and G30-770 Turbochargers Combine High Flowing, Efficient Aero In A Compact Package

The Garrett G30-660 and G30-770 Turbochargers Garrett G Series turbochargers feature advanced compressor and turbine aero to offer enthusiasts a wide range of performance boosting…

May 12, 2020

Under Construction: Cody Miles 1JZ Powered S13

Cody Miles is no stranger to speed and has a natural talent for racing. He has focused most of his efforts on driving his 2007…

October 13, 2020

Bruno Massel: NHRA 101 Turbos In Drag Racing

Bruno Massel has one of the most unique cars in NHRA Comp Eliminator. See more about the 1400 horsepower, 2JZ, twin Garrett G30-770 race car.

February 23, 2022

Hoonigan’s “Lord Frightening” Ford F-150 Lightning Makes 500HP with its Garrett Turbo

An homage to the Fast & the Furious movie’s first shop truck, Hoonigan’s “Lord Frightening” F150 monster is Garrett turbocharged.

March 19, 2022

Garrett Turbo Helps Bruno Massel Win NHRA Comp Championship with His 2JZ-Powered Cobalt

With Garrett turbochargers boosting his Toyota 2JZ engine, Bruno Massel earned an NHRA Comp championship in his Chevy Cobalt.

April 13, 2022

First Impressions of Big Boost from TJ Hunt’s Garrett Turbocharged A90 Toyota Supra

Capable of supporting 770 horsepower, TJ Hunt bolts on a big single Garrett G30-770 turbocharger to his new A90 Toyota Supra.

April 13, 2022

RS Future’s K20-Powered and Garrett Turbocharged Time Attack Acura NSX Makes 500+ Horsepower

Built to dominate in time attack racing, RS Future’s killer Acura NSX is powered by a Garrett turbocharged Honda K20 engine.

G-Series G30-770 58mm

Reference Data

G30-770 Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 475-770 Disp: 2.0L-3.5L 58mm 71mm 65 0.72 60mm 55mm 84
Turbo: Standard Rotation PN A/R Inlet Outlet Wastegate Divided
Assembled and calibrated with 0.5 bar actuator 880704-5005S 0.83 V-Band V-band Internal N
880704-5006S 1.01 V-Band V-band Internal N
Supercore PN
Standard Rotation 880693-5002S
Reverse Rotation 880694-5002S
Turbine Kits Standard Rotation PN A/R Inlet Outlet Wastegate Divided
Free Float 740902-0092 1.06 T4 V-Band Free Float Y
740902-0090 0.83 T3 V-Band Free Float N
740902-0091 1.01 T3 V-Band Free Float N
740902-0086 0.61 V-Band V-Band Free Float N
740902-0087 0.83 V-Band V-band Free Float N
740902-0088 1.01 V-Band V-band Free Float N
740902-0089 1.21 V-Band V-band Free Float N
Turbine Kits Reverse Rotation PN A/R Inlet Outlet Wastegate Divided
Free Float 740902-0100 0.83 T3 V-Band Free Float N
740902-0101 1.01 T3 V-Band Free Float N
740902-0096 0.61 V-Band V-Band Free Float N
740902-0097 0.83 V-Band V-band Free Float N
740902-0098 1.01 V-Band V-band Free Float N
740902-0099 1.21 V-Band V-band Free Float N

G-Series G30-770 58mm

Download Section

File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View

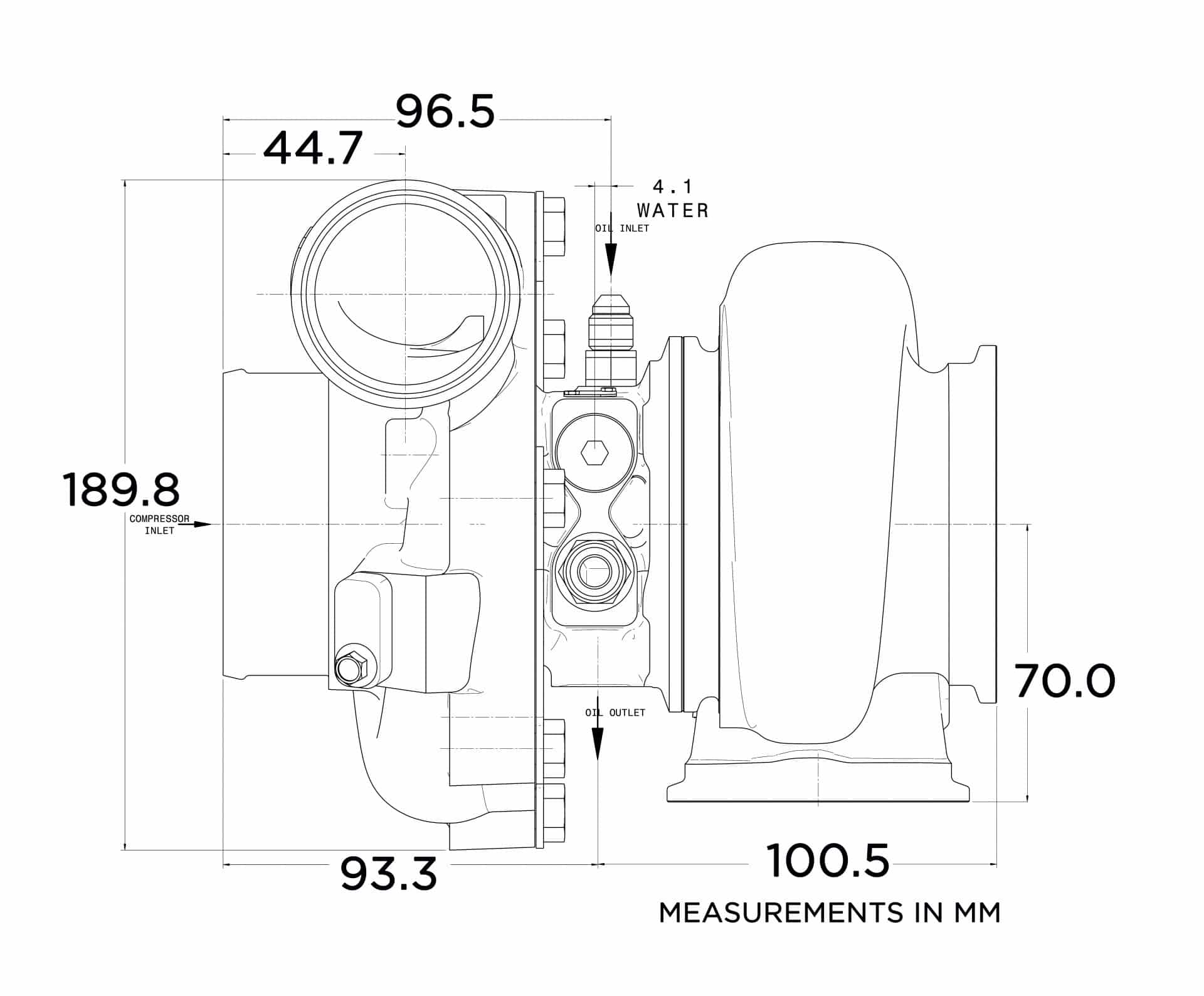

Flange Diagram Download View
