G-Series G30-660 54mm

Horsepower: 350 - 660

Displacement: 2.0L - 3.5L

Features

  • G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
  • 54mm TURBOCHARGER COMPRESSOR WHEEL
  • 79% MAXIMUM COMPRESSOR EFFICIENCY
  • MAR-M ALLOY TURBINE WHEEL RATED UP TO 1050° C
  • NEW TURBINE AERO PROVIDES HIGHER FLOW AND EFFICIENCY
  • STAINLESS STEEL TURBINE HOUSINGS RATED UP TO 1050° C
  • OIL RESTRICTOR AND WATER FITTINGS INCLUDED
  • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
  • TURBOCHARGER ASSEMBLIES ARE CALIBRATED WITH A 0.5 BAR ACTUATOR
    STANDARD ROTATION SUPERCORE 880693-5001S
    REVERSE ROTATION SUPERCORE 880694-5001S
    Read About Turbo System Optimization: A guide to setting up your turbocharger

WARNING: Maximum allowable turbocharger speed is 165krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.

Buy now

IMPORTANT PRODUCT INFORMATION

“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”

Learn More About Turbochargers

April 10, 2020

Adam LZ’s 605 Horsepower 1.5JZ Swapped BMW E36

The BMW E36 is a popular vehicle platform for the aftermarket performance community and has hundreds of products designed specifically to increase the vehicle’s performance…

April 24, 2023

How To Select A Turbo Part 1

With over 35 Garrett turbos to choose, how do you select the right one? This provides some insight into the complicated process.

October 2, 2019

Turbo Tech: The Difference An A/R Makes Going From .83 To 1.01 With A GTX3076R Gen II Turbo

Ever wondered what A/R stands for and how it affects turbo performance? This explains the basic concepts of the theory with dyno data to show the results

January 29, 2020

Garrett Performance Intercoolers

Performance Intercoolers Garrett performance intercoolers and intercooler cores work together with the turbocharger as part of the total induction system. When air is compressed in…

March 28, 2020

Intercooler Tech: What Is Fin Density

Intercooler Tech: Fin Density In the first intercooler article we talked about heat transfer and selecting the best intercooler for your application. (Click here to…

August 24, 2019

Garrett G30-660 and G30-770 Turbochargers Combine High Flowing, Efficient Aero In A Compact Package

The Garrett G30-660 and G30-770 Turbochargers Garrett G Series turbochargers feature advanced compressor and turbine aero to offer enthusiasts a wide range of performance boosting…

May 12, 2020

Under Construction: Cody Miles 1JZ Powered S13

Cody Miles is no stranger to speed and has a natural talent for racing. He has focused most of his efforts on driving his 2007…

April 8, 2020

Building A 9 Second 2020 Toyota Supra

Unboxing And Installing The Boost Logic Turbo Kit Building a car that can go 9 seconds in 1/4 mile is not an easy task. You…

October 13, 2020

Bruno Massel: NHRA 101 Turbos In Drag Racing

Bruno Massel has one of the most unique cars in NHRA Comp Eliminator. See more about the 1400 horsepower, 2JZ, twin Garrett G30-770 race car.

January 26, 2022

Chris Forsberg’s Twin Turbo Nissan Altimaniac Drift Machine

Drift superstar Chris Forsberg’s insane GTR-powered RWD Nissan Altima makes 1300WHP horsepower with its twin Garrett turbos.

February 23, 2022

Hoonigan’s “Lord Frightening” Ford F-150 Lightning Makes 500HP with its Garrett Turbo

An homage to the Fast & the Furious movie’s first shop truck, Hoonigan’s “Lord Frightening” F150 monster is Garrett turbocharged.

April 13, 2022

First Impressions of Big Boost from TJ Hunt’s Garrett Turbocharged A90 Toyota Supra

Capable of supporting 770 horsepower, TJ Hunt bolts on a big single Garrett G30-770 turbocharger to his new A90 Toyota Supra.

April 13, 2022

RS Future’s K20-Powered and Garrett Turbocharged Time Attack Acura NSX Makes 500+ Horsepower

Built to dominate in time attack racing, RS Future’s killer Acura NSX is powered by a Garrett turbocharged Honda K20 engine.

G-Series G30-660 54mm

Reference Data

G30-660 Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 350-660 Disp: 2.0L-3.5L 54mm 67mm 65 0.70 60mm 55mm 84
Turbo: Standard Rotation PN A/R Inlet Outlet Wastegate Divided
Assembled and calibrated with 0.5 bar actuator
880704-5002S 0.83 V-Band V-Band Internal N
880704-5003S 1.01 V-Band V-Band Internal N
Supercore PN
Standard Rotation 880693-5001S
Reverse Rotation 880694-5001S
Turbine Kits Standard Rotation PN A/R Inlet Outlet Wastegate Divided
Free Float Turbine Housing 740902-0092 1.06 T4 V-Band External Y
740902-0090 0.83 T3 V-Band External N
740902-0091 1.01 T3 V-Band External N
740902-0086 0.61 V-Band V-Band External N
740902-0087 0.83 V-Band V-Band External N
740902-0088 1.01 V-Band V-Band External N
740902-0089 1.21 V-Band V-Band External N
Turbine Kits Reverse Rotation PN A/R Inlet Outlet Wastegate Divided
Free Float Turbine Housing 740902-0100 0.83 T3 V-Band External N
740902-0101 1.01 T3 V-Band External N
740902-0096 0.61 V-Band V-Band External N
740902-0097 0.83 V-Band V-Band External N
740902-0098 1.01 V-Band V-Band External N
740902-0099 1.21 V-Band V-Band External N

G-Series G30-660 54mm

Download Section

File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

G-Series G30-660 54mm

Compressor Map & Exhaust Flow Chart

Compressor Map

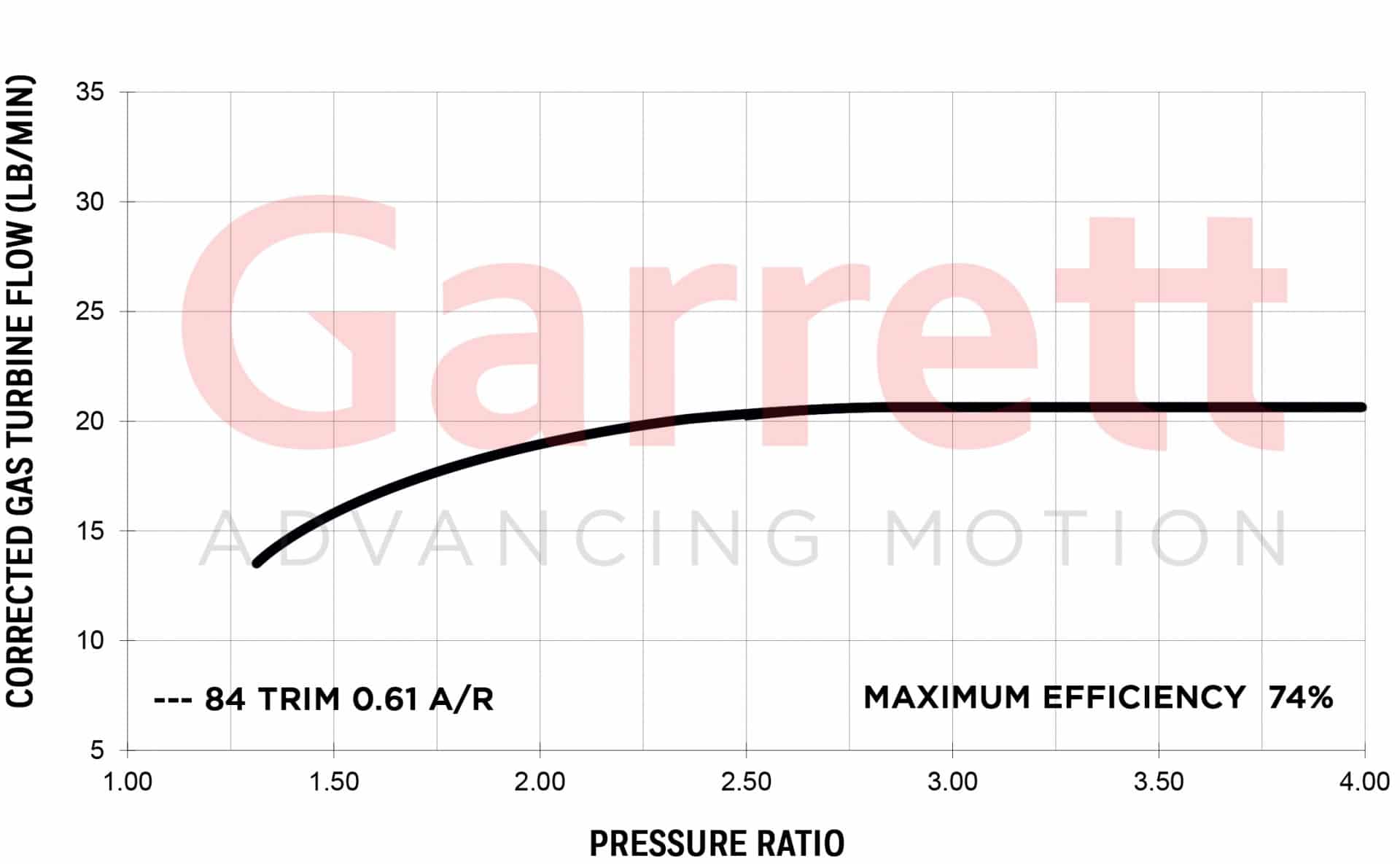

Exhaust Flow Chart

The most powerful small frame turbocharger series on the market

Introducing performance out of a package you never thought possible. This clean sheet product is tailored to meet the demands of hardcore racing enthusiasts while providing industry leading power capability in a small package.

The G-Series G30-660 turbocharger is compatible with 1.4L – 3.0L engine displacements and capable of producing up to 660 horsepower. G Series 30 turbochargers are highly efficient and will outflow all comparable products on the market.

New compressor and turbine aero combined with high temperature resistant materials allowed engineers to push the limits of performance.

A new name designates a new generation of industry leading technology and innovation.

Understanding the Name:
G30-660

G designates 81 years of Garrett® heritage.

30 classifies the size of the frame. The remaining 3 digits identify the max horsepower rating of the turbocharger. (ie 660)

Compressor Aero

Forged fully-machined compressor wheel and new aerodynamics increase maximum horsepower output and boost response. The CFD (computational fluid dynamics) engineered compressor wheel increases airflow up to 15% for 60mm and 30% for 67mm with 79-80% efficiency. (Compared to GTX GEN II) Compressor wheel features 9 blade count and wider compressor maps for a larger operating area.

Available in standard rotation and reverse rotation options for enthusiasts that want the perfect twin turbo installation or a single reverse rotation turbo for applications with installation restrictions.

Speed Sensor

The compressor housing features a fully machined ported shroud to help reduce compressor surge. A fully machined speed sensor port provides enthusiasts the option to add the new G Series speed sensor to measure turbocharger shaft speed, a key factor in determining ideal operating conditions.

The new speed sensor is easy to install and does not need to be adjusted for length like previous sensors. Simply remove and plug, then insert the speed sensor and tighten the bolt. The new speed sensor is sold separately and is not compatible with GT and GTX sensors due to the new design and sizing.  The addition of an o-ring between the compressor housing and backplate reduces the possibility of boost pressure leakage.

*G Series speed sensor kits have new part numbers and are not compatible with GT/GTX kits.

Center Housing

A new one-piece center housing and backplate increases durability and product safety by reducing the number of failure points associated with the turbocharger. The center housing to turbine housing v-band connection allows for 360 degree orientation when installing with Garrett® non-wastegated turbine housings. It also includes water fittings, plugs, and oil restrictor.

Water Jackets

Four large water jacket ports increase cooling capacity and allow enthusiasts to customize water line routing to help improve the installation process. The turbocharger comes with two -6AN water fittings and two plugs.

*Recommended to install waterlines on opposite sides of the housing.

Oil Passage

A single stage oil passage directs pressurized oil to the new oil cavity ensuring proper bearing lubrication at both sides of the cartridge.

Each turbocharger includes (1) -4AN oil restrictor fitting with a 1mm orifice to provide the turbo with the recommended 40psi of oil pressure.

Rotating Group – Twin Piston Rings

A shorter bearing cartridge (8mm dual ceramic ball bearing) allows us to incorporate twin piston rings on both sides of the shaft wheel assembly. This will reduce the likeliness of oil leakage at the seals from the center housing to the compressor and or turbine stage.

Turbine Wheel Aero

The turbine wheel features all new aerodynamics to improve flow and boost response. The new turbine wheel is made of Mar-M, a super alloy that is capable of handling exhaust gas temperatures up to 1050 degrees C.

The new turbine wheel flows 5% more than GTX and has peak efficiency of 74%.

Turbine Housings

All G Series Turbine housings are made from stainless steel to provide ultimate durability and temperature resistance up 1050 degrees C.
Internally wastegated housings are compact, efficient, and designed with maximum bypass port size to reduce boost creep and provide better boost control.
Turbine housings are available in a variety of wastegated and non-wastegated, open volute, T25 and Vband configurations so be sure to order the correct part for your application.

  • 3 inch (76.2mm) V-band inlet (same as GTX)
