GTX4202R Turbocharger

Horsepower: 525 - 1120

Displacement: 2.0L - 7.0L

Features

SUPER CORE AND TURBINE KIT SOLD SEPARATELY
AVAILABLE ONLY WITH DIVIDED TURBINE HOUSINGS
V-BAND COMPRESSOR OUTLET CONFIGURATION

GTX4202R

Reference Data

The latest Garrett technologies featuring many advanced features.

Turbocharger Part Number Chart

Super Core Reference DataCompressorTurbine
Super Core PNCHRA PNInducerExducerTrimA/RInducerExducerTrim
800269-5002S451888-004476mm102mm550.6082mm75mm84
Notes:Turbine Kit PNA/RInletOutletWastegateDividedTrim
Super Core and Turbine Kit Sold Separately757707-00011.01T4V-BandFree FloatY84
757707-00021.15T4V-BandFree FloatY84

GTX4202R

Download Section

The latest Garrett technologies featuring many advanced features.

File NameLinkView
Flange diagram 731376_2DownloadView
Flange diagram 774595_5, 6, 7 & 8DownloadView
File NameLinkView
Compressor MapDownloadView
Exhaust Flow ChartDownloadView
Product PhotoDownloadView
Flange DiagramDownloadView
Speed Sensor Kit Installation InstructionDownloadView

GTX4202R

Compressor Map & Exhaust Flow Chart

The latest Garrett technologies featuring many advanced features.

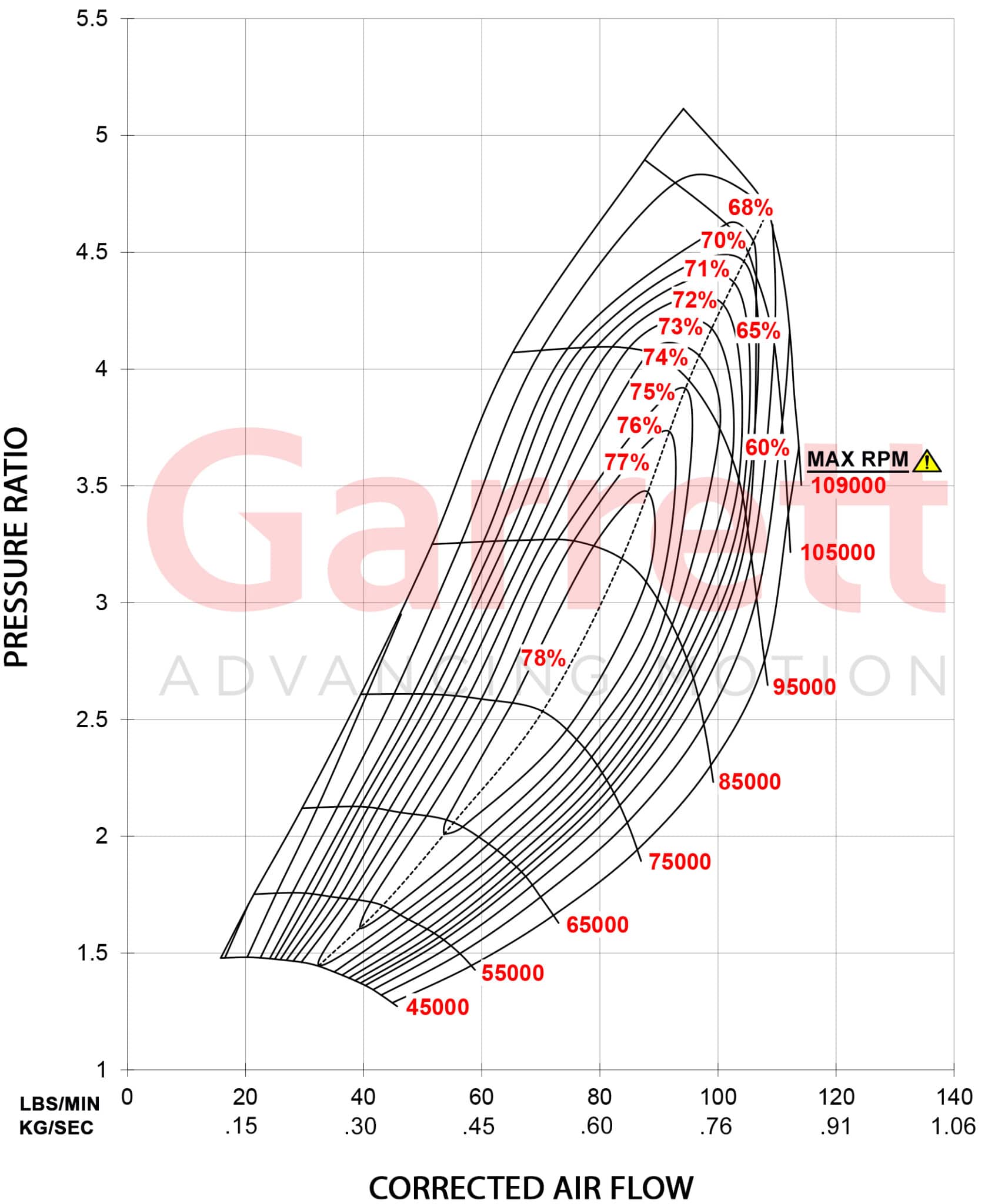

Compressor Map

Exhaust Flow Chart

About Garrett® GTX Series Turbochargers

Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.

Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
