Garrett G-XRace GXR47-80 90.9mm Turbocharger
Horsepower: 500 - 1800
Displacement: 2.5L - 10.0L
Features
G-XRACE UNIVERSAL PERFORMANCE TURBOCHARGER
GXR47-80|116 exd 80.9mm Turbine
- XBoost technology increases power and performance. This turbocharger is rated up to 1800 horsepower
- Increased efficiency at high flow rates provides cooler, denser air to boost power capability
- Lightweight aluminum backplate to reduce turbo weight
- Flange-style speed sensor port for easy installation and turbo speed monitoring for optimal performance and turbo life
- GXR47-80|116mm compressor exducer 953234-5004S
- Patented design*
Competitor Frame Size Reference: 8088 (80.9mm compressor inducer / 88mm turbine exducer)
Read About Turbo System Optimization: A guide to setting up your turbocharger
WARNING: Maximum allowable turbocharger speed is 102.5krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)
Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
IMPORTANT PRODUCT INFORMATION
“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”
Learn More About Other Racer Vehicle Setups
How To Select A Turbo Part 1
With over 35 Garrett turbos to choose, how do you select the right one? This provides some insight into the complicated process.
Turbo Tech: The Difference An A/R Makes Going From .83 To 1.01 With A GTX3076R Gen II Turbo
Ever wondered what A/R stands for and how it affects turbo performance? This explains the basic concepts of the theory with dyno data to show the results
Turbocharging At Elevation
A naturally aspirated combustion engine will lose 3% of its power for every 1,000 ft of elevation gain. Add a Garrett turbocharger to minimize the loss
Garrett Performance Intercoolers
Performance Intercoolers Garrett performance intercoolers and intercooler cores work together with the turbocharger as part of the total induction system. When air is compressed in…
Garrett G-XRace GXR47-80|116 exd 80.9mm Turbocharger
Reference Data
| Supercore PN | Model | Turbo Reference | Horsepower Rating | Comp Inducer | Comp Exducer | Turbine Inducer | Turbine Exducer |
|---|---|---|---|---|---|---|---|
| 953234-5004S | GXR47-80 | 8088 | 1800 | 80.9mm | 116mm | 93mm | 88mm |
| Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | ||
|---|---|---|---|---|---|---|---|
| 761208-0075 | 0.96 | T6 | V-Band | External | N | ||
| 761208-0076 | 1.08 | T6 | V-Band | External | N | ||
| 761208-0077 | 1.23 | T6 | V-Band | External | N | ||
| 761208-0078 | 1.39 | T6 | V-Band | External | Y | ||
Garrett G-XRace GXR47-80|116 exd 80.9mm Turbocharger
Download Section
Garrett G-XRace GXR47-80|116 exd 80.9mm Turbocharger
Compressor Map & Exhaust Flow Chart
Compressor Map
Exhaust Flow Chart
GXR47 Platform Validation
Independent dyno testing of the Garrett GXR47 platform, conducted by Bruno Massel using the GXR47-80 configuration, demonstrates the airflow and performance potential of the GXR47 turbo architecture. The Garrett G-XRace GXR47-80 116 turbocharger was evaluated on a 3.0L 2JZ (183 cubic inch) engine and demonstrated a significant 11% performance improvement over the previous G-Series G47 setup.
During dyno testing, the GXR47-80 produced 1,512 rear wheel horsepower at 55 psi of boost, even with approximately 10 percent converter slip. According to Bruno, the new GXR47 delivered approximately 150 rear wheel horsepower more than the previous G47 combination, with additional power still available in the setup.
Additional test data showed 54 psi backpressure to 55 psi boost. The previous G47 combination produced 49 psi of boost at the track, while the GXR47 achieved 55 psi on the dyno with additional boost still available. On this combination, each additional pound of boost corresponds to roughly 25 horsepower.
These results demonstrate that the GXR47-80 represents a significant step forward in airflow capability, power potential, and overall turbocharger performance for competitive drag racing applications. Actual results will vary depending on engine combination, converter selection, calibration strategy, fuel, and vehicle setup.
Testing results shown were achieved using the Garrett GXR47-80 configuration. Performance of other GXR47 variants, including the GXR47-76, will vary depending on compressor selection, engine combination, calibration, and vehicle setup.

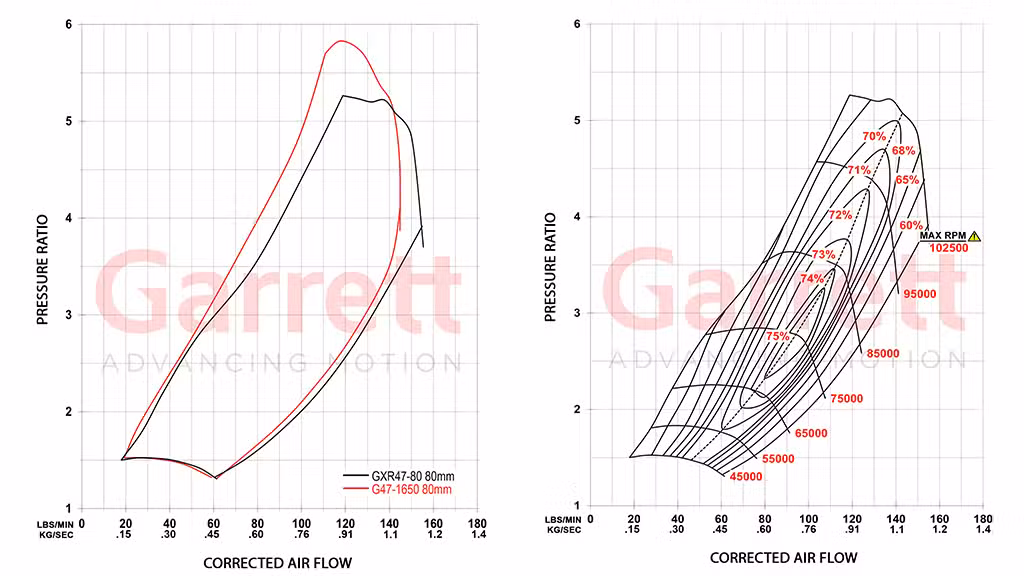

Compressor Map Overlay Explained
The compressor map overlay illustrates the airflow and pressure ratio differences between the G-XRace turbocharger and the G-Series design. In key operating regions, the G-XRace compressor provides increased airflow capability at comparable pressure ratios, expanding the usable operating range and supporting higher horsepower potential where engine demand allows.
To fully realize these gains, ECU calibration is necessary to optimize performance when upgrading from a previous-generation turbocharger.
Engineering & Intellectual Property
Garrett turbochargers are engineered through extensive motorsports and OEM development programs. Garrett’s technologies are protected by a number of intellectual property rights in the USA and other countries, for example by U.S. patents US9850911B2; US10047607B2; US10502263B2.
Why Choose Garrett
Trust the name that’s been powering innovation for over 70 years. Garrett turbochargers are engineered to meticulous standards used in OEM production environments and validated through decades of motorsports and advanced engineering programs. With more than 130 million vehicles powered globally, Garrett delivers performance, reliability, and innovation you can trust.
Turbo Speed Monitoring
This Garrett turbocharger features a fully machined turbo speed sensor port. Monitoring turbocharger shaft speed is recommended to help prevent overspeed and protect long-term durability, especially when operating at higher performance levels. Compatible speed sensor kits are available separately. Use PN 923586-0002 (G-Smart Bluetooth Module / App) or Speed Sensor Kit 781328-0001 (street kit w/ gauge) or 781328-0002 (pro kit w/o gauge)
FAQ
Where can I buy the Garrett GXR47-80|116mm Exducer turbocharger?
Use the Garrett Dealer Locator to find an authorized retailer or distributor. Purchasing through an authorized source ensures product authenticity, technical support, and warranty coverage.
Will I need to retune my engine when installing a G-XRace turbocharger?
Yes. Performance results are highly dependent on vehicle configuration and ECU calibration. The increased airflow capability of the G-XRace compressor requires proper tuning to optimize performance, drivability, and durability.
What horsepower can the G-XRace 47-80 | 116mm compressor exducer support in real-world applications?
The G-XRace is capable of supporting up to 1800 horsepower based on compressor flow testing. Actual results will vary depending on engine displacement, fuel type, boost pressure, supporting modifications, and calibration strategy.
How does G-XRace differ from the G-Series turbochargers?
G-XRace turbochargers feature updated compressor aerodynamics that provide increased airflow and efficiency compared G-Series. These improvements expand the usable operating range and support higher horsepower and pressure ratio potential, where engine demand allows. The turbine wheel and turbine housings are the same and interchangeable between the two series.
Why is turbo speed monitoring recommended for high-performance applications?
Monitoring turbocharger shaft speed helps prevent overspeed conditions that can affect long-term durability. G-XRace turbochargers feature a fully machined speed sensor port, allowing users to monitor operating conditions, especially at higher performance levels.
