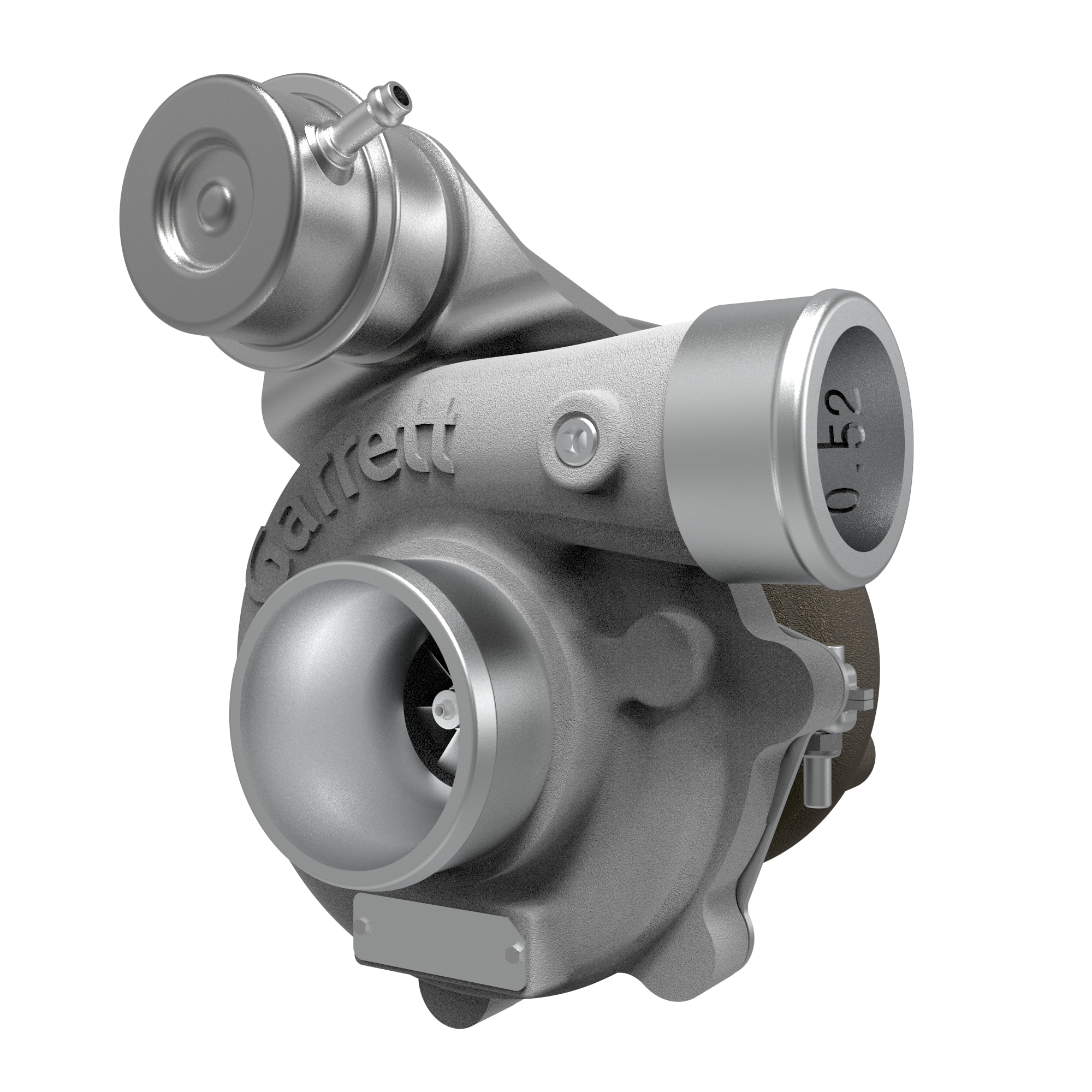

Garrett Boost | Club Line GBC14-200 34MM
Horsepower: 140 - 200
Displacement: 0.4L - 1.0L
Features
- Club Line is a product engineered for small engine displacements. This includes powersports, personal watercraft, and automobiles. These turbochargers feature internally wastegated turbine housings and journal bearing rotating groups. GBC stands for GARRETT BOOST | CLUB LINE. The first two numbers indicate the turbo frame size. The larger the number the larger the turbine wheel. The numbers following the dash indicate the peak potential flywheel horsepower rating.GBC14-200
•34mm compressor inducer | 46mm compressor exducer
•Supports up to 200 horsepower
•Forged Fully-Machined Compressor Wheel
•Journal Bearing Rotating Group
•Internally wastegated turbine housing
•Engineered for small displacement engines including powersports, personal watercraft and automobiles- Read About Turbo System Optimization: A guide to setting up your turbocharger
- The maximum power stated for each turbocharger has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. Please consult with your local distributor before making a purchase.
IMPORTANT PRODUCT INFORMATION
“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”

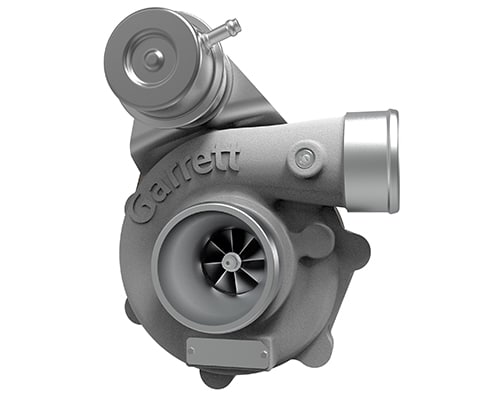

GBC14-200 34mm
Reference Data
GBC14-200 | Compressor | Turbine | |||||
---|---|---|---|---|---|---|---|
HP: 140-200 Disp: 0.4L-1.0L | Inducer | Exducer | A/R | Inducer | Exducer | Trim | AR |
Turbo PN: 896051-5004S | 34mm | 46mm | 0.52 | 39mm | 36mm | 84 | 0.45 |
GBC14-200 34mm
Compressor Map & Exhaust Flow Chart

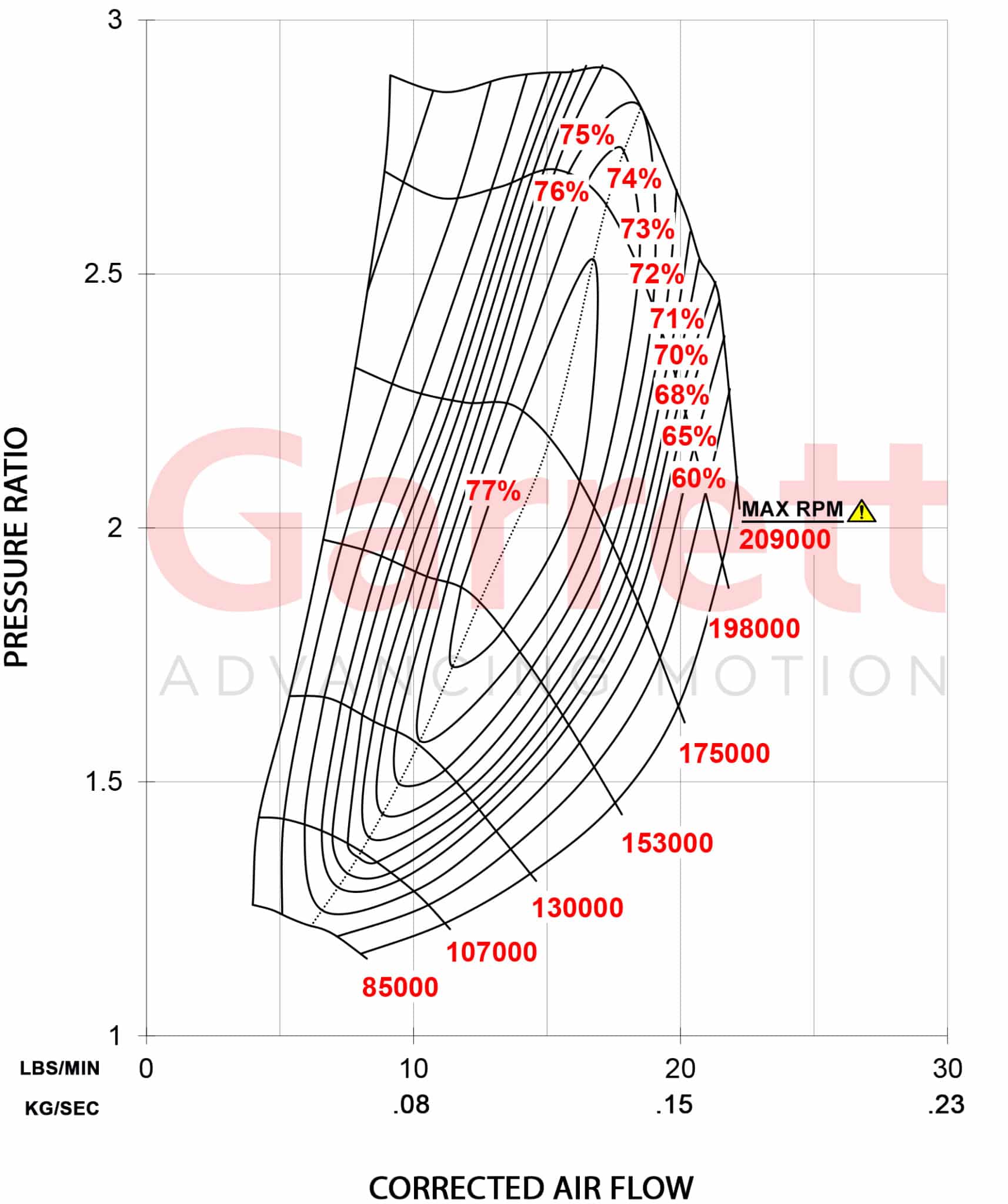

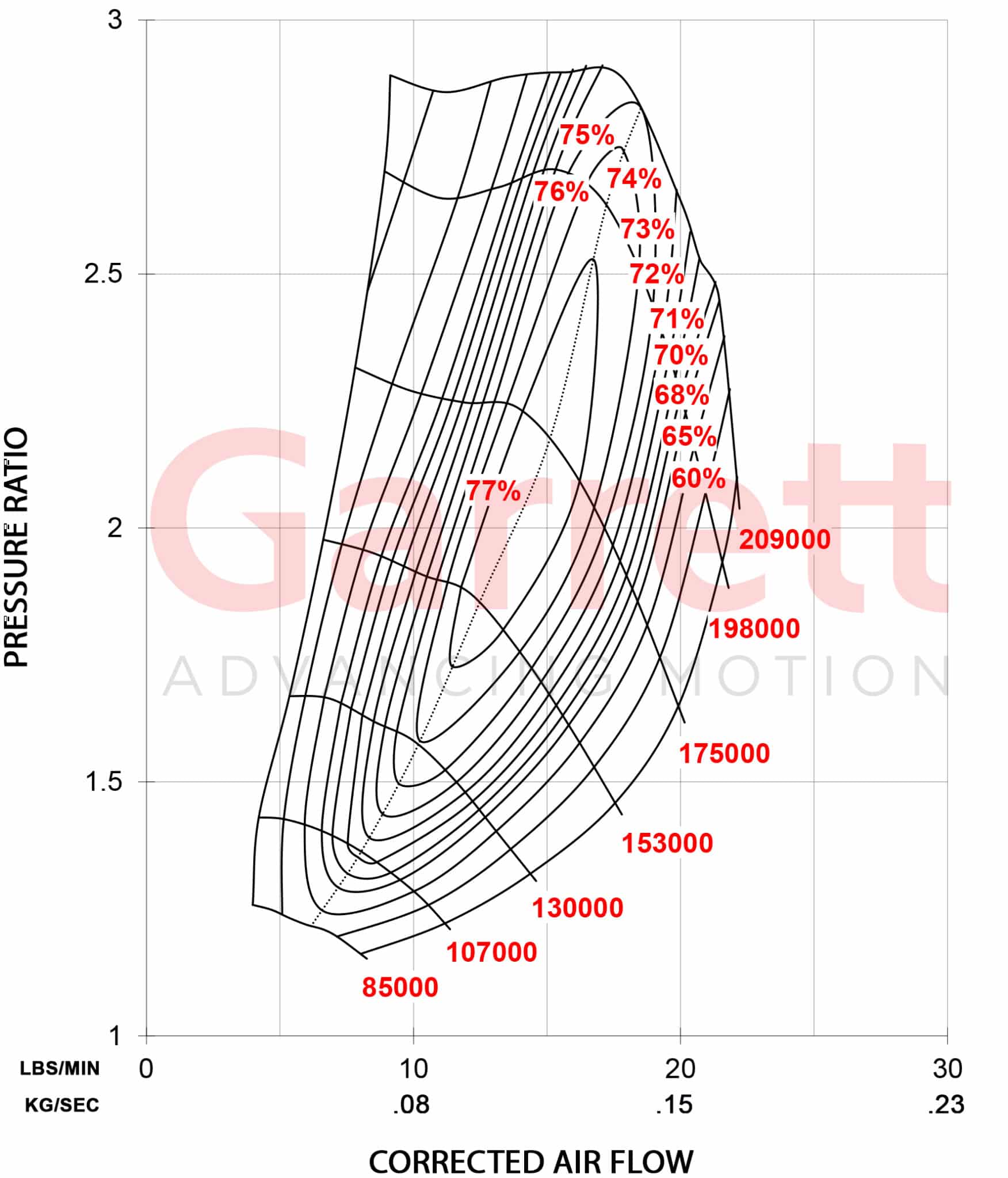

Compressor Map

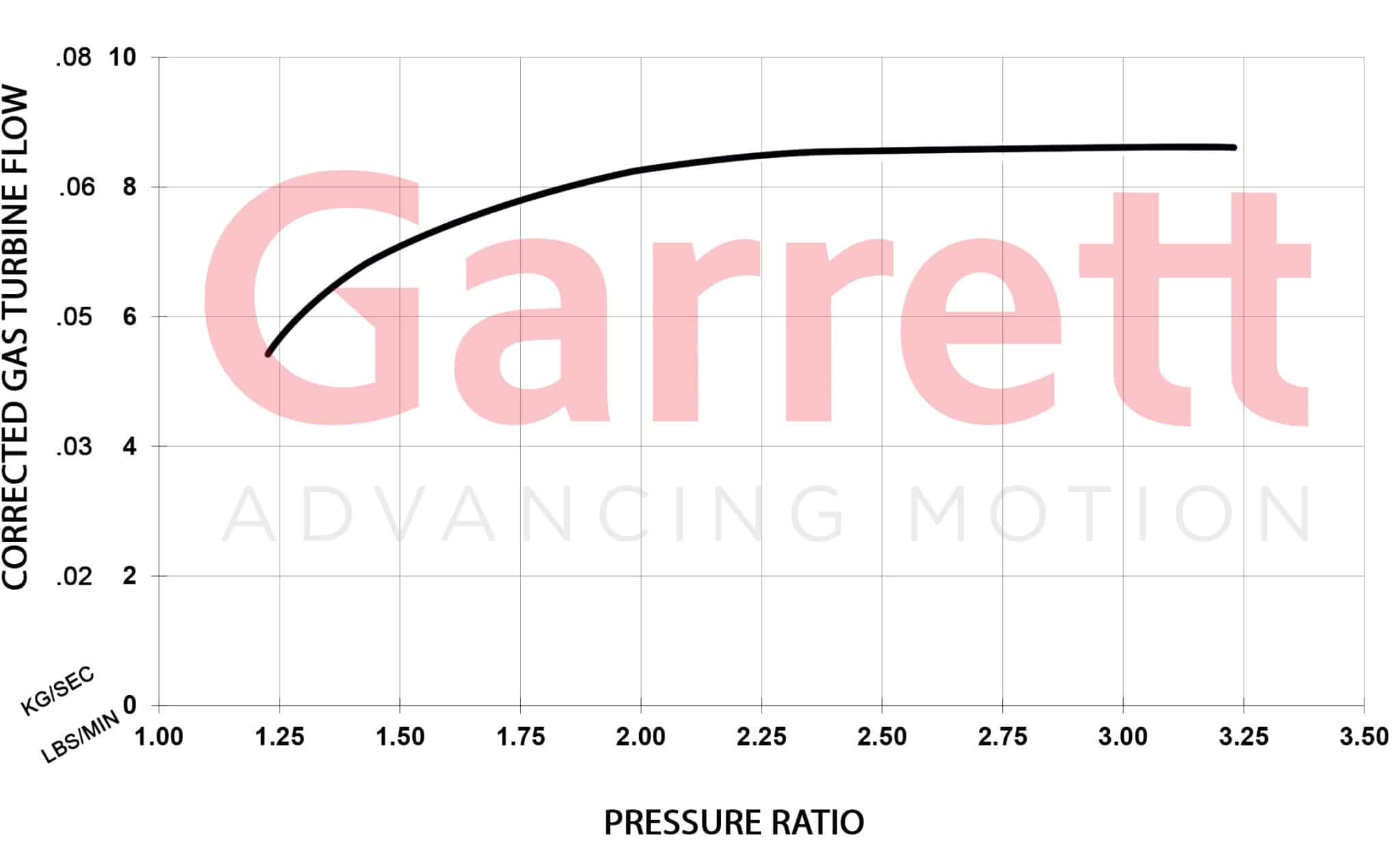

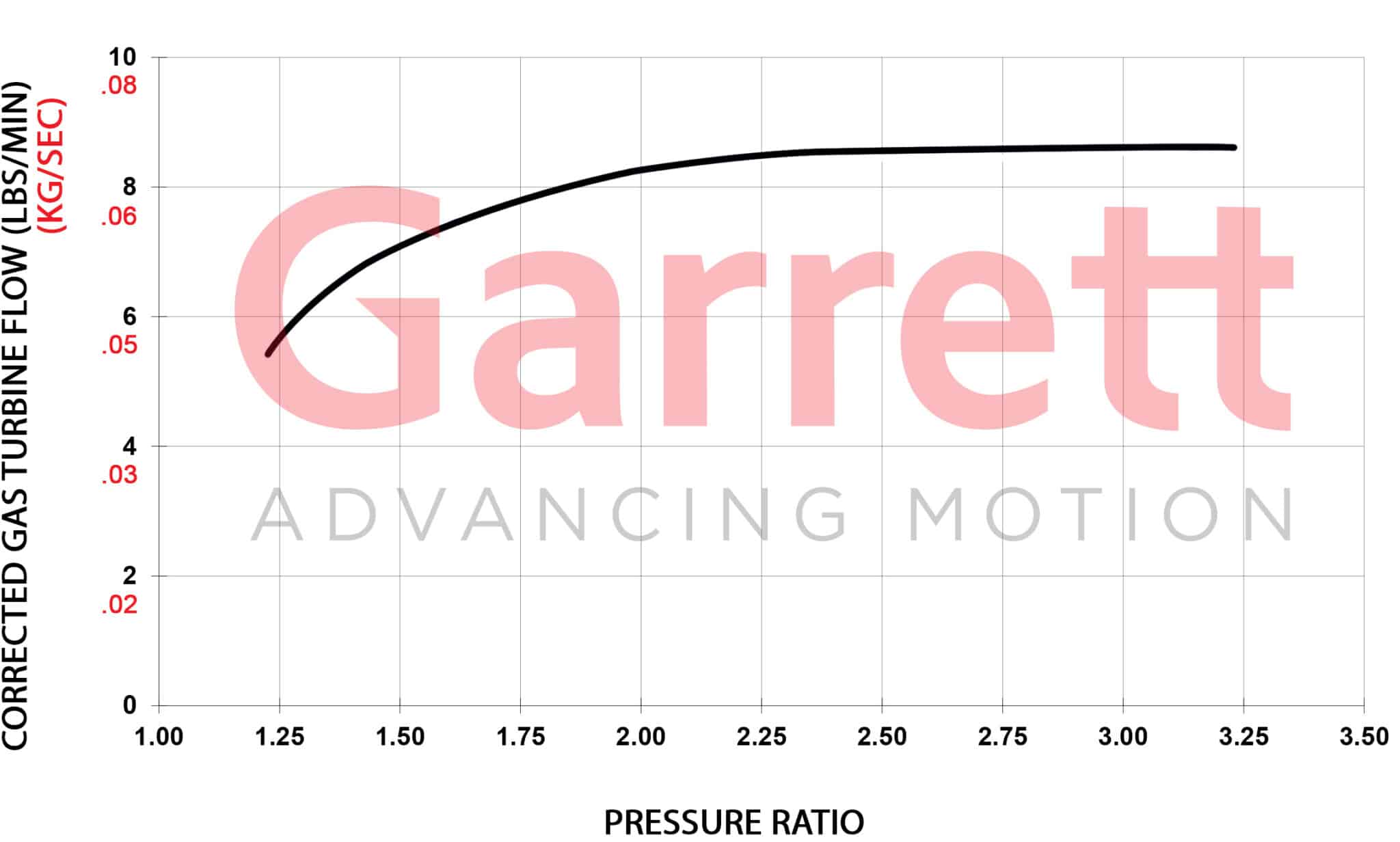

Exhaust Flow Chart
Compressor Aero
Forged, fully-machined compressor wheels with advanced aero is offered in 34mm inducer size and 46mm exducer. GBC14-200 can support from 140-200 350 horsepower. The compressor wheel is a 55 trim and the Compressor housing A/R is 0.52 A/R. This turbocharger can support up to 22 lbs/min of airflow and up to 2.8 pressure ratio.
Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The target power represented has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power.
Journal Bearing Rotating Group
The oil cooled center housing features the latest generation of journal bearing rotor group.

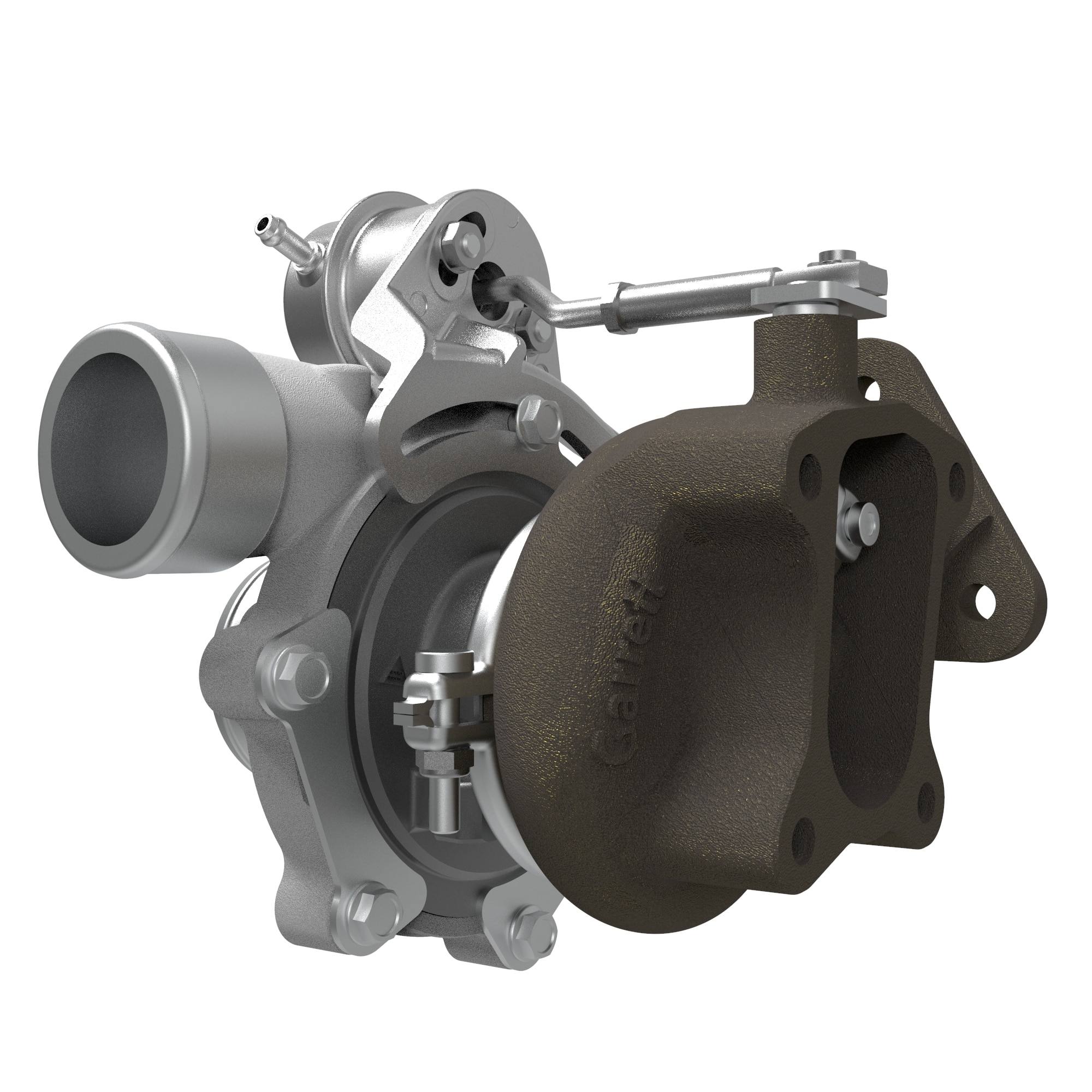

Internally Wastegated
Club Line turbochargers are fully assembled with an internally wastegated turbine housing. Garrett’s technicians calibrate the actuator for optimum performance, eliminating any need for adjustment. Club Line turbochargers are calibrated with a 0.5 bar actuator. Actuators with higher pressure settings (1.0, 1.5 bar) are available for individual purchase.

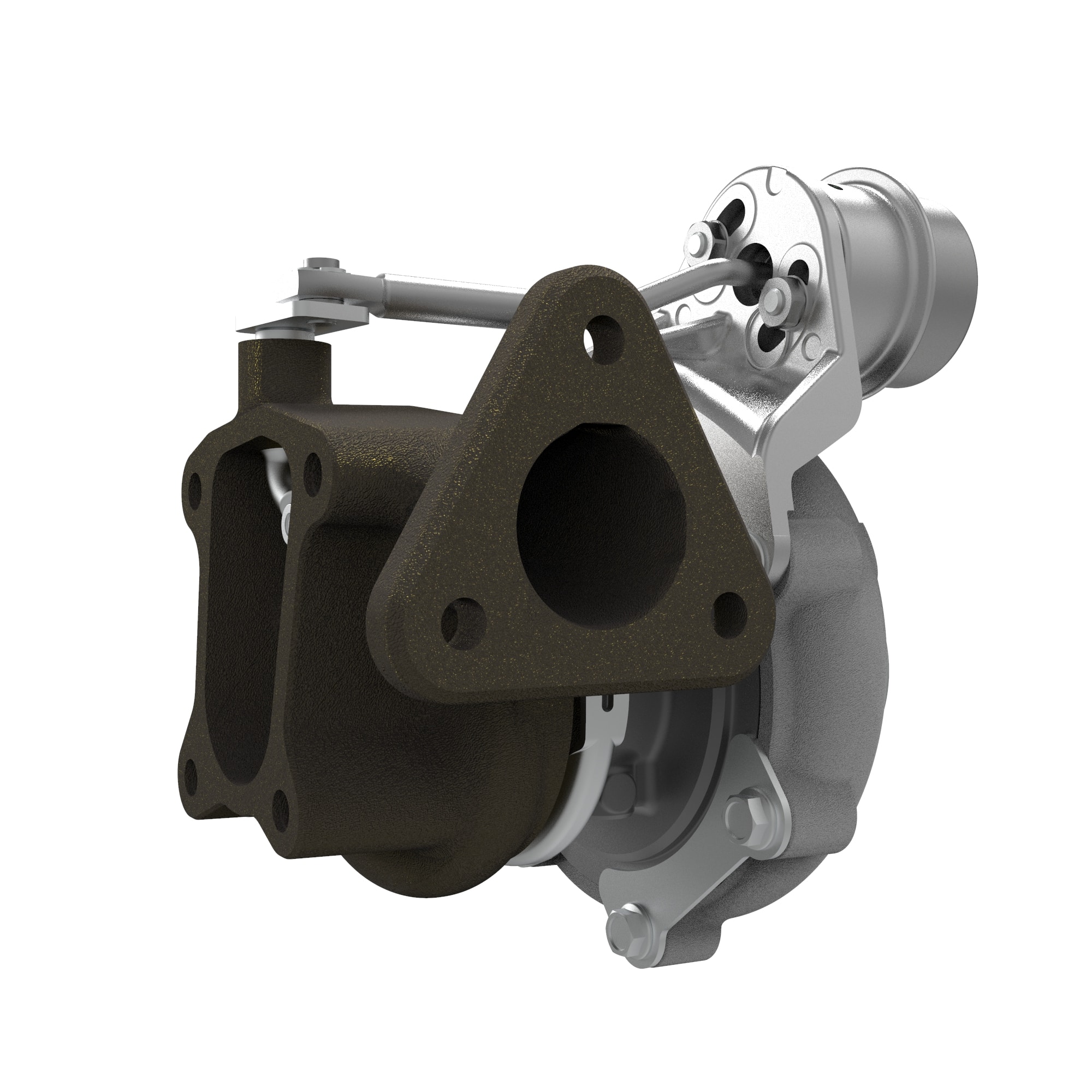

Turbine Housing

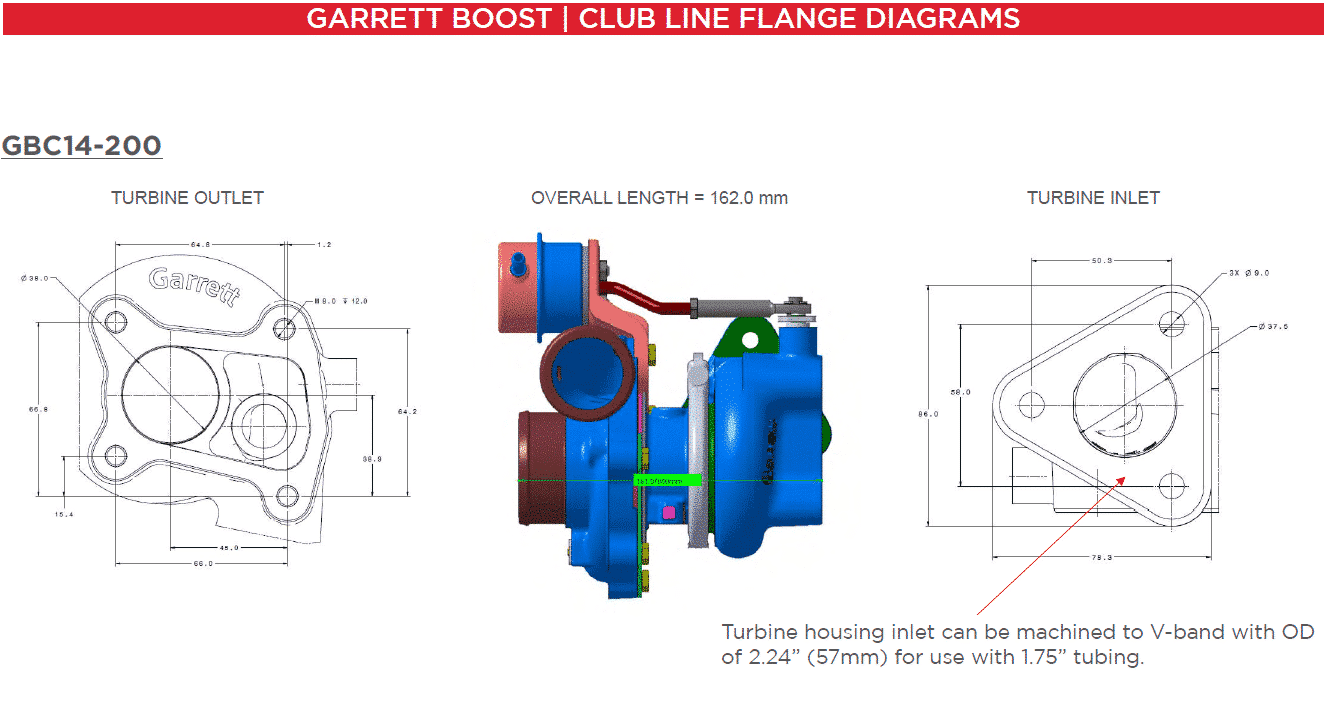

The GBC14-200 turbine housing inlet can be machined to V-band with OD of 2.24” (57mm) for use with 1.75” tubing.
