Features
- G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
- 68mm TURBOCHARGER COMPRESSOR WHEEL
- 78% MAXIMUM COMPRESSOR EFFICIENCY
- MAR-M ALLOY TURBINE WHEEL RATED UP TO 1050° C
- NEW TURBINE AERO PROVIDES HIGHER FLOW AND EFFICIENCY
- STAINLESS STEEL TURBINE HOUSINGS RATED UP TO 1050° C
- OIL RESTRICTOR AND WATER FITTINGS INCLUDED
- FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
- STANDARD AND REVERSE ROTATION SUPERCORE CONFIGURATIONS
- FREE FLOAT TURBINE HOUSING KITS AVAILABLE IN T4 DIVIDED, T3, AND V-BAND INLET CONFIGURATIONS
- STANDARD ROTATION INTERNALLY WASTEGATED TURBOCHARGERS AVAILABLE. FULLY ASSEMBLED AND CALIBRATED WITH A 0.5 BAR ACTUATOR
- STANDARD ROTATION SUPERCORE 880695-5002S
- REVERSE ROTATION SUPERCORE 880696-5002S
- Read About Turbo System Optimization: A guide to setting up your turbocharger
WARNING: Maximum allowable turbocharger speed is 130krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)
Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
Buy now
IMPORTANT PRODUCT INFORMATION
“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”
Learn More About Turbos
Hoonigan’s Hoonipigasus Pike’s Peak Race Car
Ken Block teamed up with Mobil 1 Racing AND BBi Autosport to build this absolutely INSANE 1400hp 4.0L twin turbo flat-six engine
Pump Gas Vs E85: Tunable Performance For Your Turbo
Same car, same engine, same tuner, and same turbo combination (GTX2867R Gen II) and how E85 vs Pump Gas impact performance
Single OR Twin Turbo LS
What is the best setup for an LS engine? Is it a big single turbo or smaller twin turbos? Tune in for the details as we analyze the data from Pro 2 Formula Drift driver Jonathan Hurst’s 5.3L / 800WHP G37 drift machine.
Dylan Hughes Builds A 946 Horsepower E46 BMW
Dylan Hughes builds his BMW E46 Formula Drift competition car from the ground up with a 3.0L 2JZ power plant and Garrett G Series turbochargers. See the results of this 2JZ engine turbo test.
8theV8: Meet The 979 WHP Audi TT RS Coupe
When you make a statement like 8theV8 you better be ready to back it up and this Audi TT RS coupe does just that. This…
Turbo Test: Garrett G35-1050 Tested On Nissan GT-R
Project Supercar Killer Andrew Hawkins is one of Australia’s top builders of performance import cars. He started Motive DVD, a Facebook and YouTube channel dedicated…
Turbo Tech: The Difference An A/R Makes Going From .83 To 1.01 With A GTX3076R Gen II Turbo
Ever wondered what A/R stands for and how it affects turbo performance? This explains the basic concepts of the theory with dyno data to show the results
Harut Stepanyan Discusses The Features Of The New Garrett G35 Turbochargers
Senior Application Engineer, Harut Stepanyan discusses the latest in Garrett performance turbo technology featuring the new G Series product lineup. G Series is the latest…
Garrett Performance Intercoolers
Performance Intercoolers Garrett performance intercoolers and intercooler cores work together with the turbocharger as part of the total induction system. When air is compressed in…
Youngblood’s Land Speed 1.97-Liter Honda Civic Tops 200mph with Garrett Turbo Power
Youngblood Hot Rods’ Land Speed 1.97-liter Honda Civic eclipses the 200mph mark with Garrett turbo power and a family effort.
G-Series G35-1050 68mm
Reference Data
| G35-1050 | Compressor | Turbine | |||||
|---|---|---|---|---|---|---|---|
| Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| HP: 700-1050 Disp: 2.0L-5.5L | 68mm | 84mm | 65 | 0.75 | 68mm | 62mmm | 84 |
| Turbo: Standard Rotation | PN | A/R | Inlet | Outlet | Wastegate | Divided | |
| Assembled and calibrated with 0.5 bar actuator | 880707-5005S | 0.83 | V-Band | V-band | Internal | N | |
| 880707-5006S | 1.01 | V-Band | V-band | Internal | N | ||
| Supercore | PN | ||||||
| Standard Rotation | 880695-5002S | ||||||
| Reverse Rotation | 880696-5002S | ||||||
| Turbine Kits Standard Rotation | PN | A/R | Inlet | Outlet | Wastegate | Divided | |
| Free Float | 740902-0108 | 1.06 | T4 | V-band | Free Float | Y | |
| 740902-0106 | 0.83 | T3 | V-Band | Free Float | N | ||
| 740902-0107 | 1.01 | T3 | V-Band | Free Float | N | ||
| 740902-0102 | 0.61 | V-Band | V-Band | Free Float | N | ||
| 740902-0103 | 0.83 | V-Band | V-band | Free Float | N | ||
| 740902-0104 | 1.01 | V-Band | V-band | Free Float | N | ||
| 740902-0105 | 1.21 | V-Band | V-band | Free Float | N | ||
| Turbine Kits Reverse Rotation | PN | A/R | Inlet | Outlet | Wastegate | Divided | |
| Free Float | 740902-0116 | 0.83 | T3 | V-Band | Free Float | N | |
| 740902-0117 | 1.01 | T3 | V-Band | Free Float | N | ||
| 740902-0112 | 0.61 | V-Band | V-Band | Free Float | N | ||
| 740902-0113 | 0.83 | V-Band | V-band | Free Float | N | ||
| 740902-0114 | 1.01 | V-Band | V-band | Free Float | N | ||
| 740902-0115 | 1.21 | V-Band | V-band | Free Float | N | ||
G-Series G35-1050 68mm
Compressor Map & Exhaust Flow Chart
Compressor Map
Exhaust Flow Chart
The most powerful mid-frame turbocharger series on the market
Introducing performance out of a package you never thought possible. This clean sheet product is tailored to meet the demands of hard core racing enthusiasts while providing industry leading power capability in a small package.
The G-Series G35-1050 turbocharger is compatible with 2.0L – 5.5L engine displacements and capable of producing up to 1050 horsepower. G Series 35 turbochargers are highly efficient and will outflow all comparable products on the market.
New compressor and turbine aero combined with high temperature resistant materials allowed engineers to push the limits of performance.
A new name designates a new generation of industry leading technology and innovation.
Understanding the Name:
G35-1050
G designates 81 years of Garrett® heritage.
35 classifies the size of the frame. The remaining 4 digits identify the max horsepower rating of the turbocharger. (ie 1050)
Compressor Aero
Forged fully-machined compressor wheel and new aerodynamics increase maximum horsepower output and boost response. The CFD (computational fluid dynamics) engineered compressor wheel increases air flow up to 15% for 60mm and 30% for 67mm with 79-80% efficiency. (Compared to GTX GenII)
Available in standard rotation and reverse rotation options for enthusiasts that want the perfect twin turbo installation or a single reverse rotation turbo for applications with installation restrictions.
Speed Sensor
The compressor housing features a fully machined ported shroud to help reduce compressor surge. A fully machined speed sensor port provides enthusiasts the option to add the new G Series speed sensor to measure turbocharger shaft speed, a key factor in determining ideal operating conditions.
The new speed sensor is easy to install and does not need to be adjusted for length like previous sensors. Simply remove and plug, then insert the speed sensor and tighten the bolt. The new speed sensor is sold separately and is not compatible with GT and GTX sensors due to the new design and sizing.
The addition of an o-ring between the compressor housing and backplate reduces the possibility of boost pressure leakage.
Center Housing
A new one-piece center housing and backplate increase durability and product safety by reducing the number of failure points associated with the turbocharger. The center housing to turbine housing v-band connection allows for 360 degree orientation when installing with Garrett® non-wastegated turbine housings.
Water Jackets
Four large water jacket ports increase cooling capacity and allow enthusiasts to customize water line routing to help improve the installation process. The turbocharger comes with two -6AN water fittings and two plugs.
*Recommended to install waterlines on opposite sides of the housing.
Oil Passage
A single stage oil passage directs pressurized oil to the new oil cavity ensuring proper bearing lubrication at both sides of the cartridge.
Each turbocharger includes (1) -4AN oil restrictor fitting with a 1mm orifice to provide the turbo with the recommended 40psi of oil pressure.
Rotating Group – Twin Piston Rings
A shorter bearing cartridge allows us to incorporate twin piston rings on both sides of the shaft wheel assembly. This will reduce the likeliness of oil leakage at the seals from the center housing to the compressor and or turbine stage.
Turbine Wheel Aero
The turbine wheel features all new aerodynamics to improve flow and boost response. The new turbine wheel is made of Mar-M super alloy and is capable of handling exhaust gas temperatures up to 1050 degrees C.
The new turbine wheel flows 15-20% more than GTX and has peak efficiency of 74%.

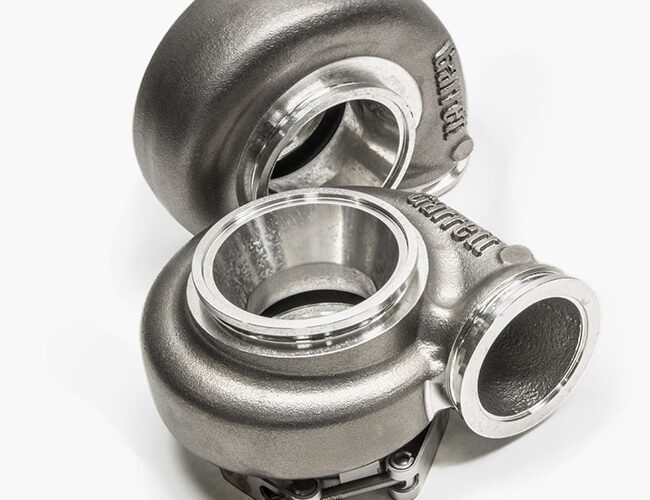

Turbine Housings
