G-Series G35-1050 68mm Reverse Rotation

Horsepower: 700 - 1050

Displacement: 2.0L - 5.5L


  • Read About Turbo System Optimization: A guide to setting up your turbocharger

WARNING: Maximum allowable turbocharger speed is 130krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.

Buy now


“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”

Turbo Testing Data

June 12, 2020

Dylan Hughes Builds A 946 Horsepower E46 BMW

Dylan Hughes builds his BMW E46 Formula Drift competition car from the ground up with a 3.0L 2JZ power plant and Garrett G Series turbochargers. See the results of this 2JZ engine turbo test.

April 23, 2020

8theV8: Meet The 979 WHP Audi TT RS Coupe

When you make a statement like 8theV8 you better be ready to back it up and this Audi TT RS coupe does just that. This…

October 2, 2019

Turbo Tech: The Difference An A/R Makes Going From .83 To 1.01 With A GTX3076R Gen II Turbo

Ever wondered what A/R stands for and how it affects turbo performance? This explains the basic concepts of the theory with dyno data to show the results

March 4, 2020

Turbo Test: Garrett G35-1050 Tested On Nissan GT-R

Project Supercar Killer Andrew Hawkins is one of Australia’s top builders of performance import cars. He started Motive DVD, a Facebook and YouTube channel dedicated…

December 4, 2019

Harut Stepanyan Discusses The Features Of The New Garrett G35 Turbochargers

Senior Application Engineer, Harut Stepanyan discusses the latest in Garrett performance turbo technology featuring the new G Series product lineup. G Series is the latest…

January 29, 2020

Garrett Performance Intercoolers

Performance Intercoolers Garrett performance intercoolers and intercooler cores work together with the turbocharger as part of the total induction system. When air is compressed in…

G-Series G35-1050 68mm Reverse Rotation

Reference Data

G35-1050 Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 700-1050 Disp: 2.0L-5.5L 68mm 84mm 65 0.75 68mm 62mmm 84
Turbo: Standard Rotation PN A/R Inlet Outlet Wastegate Divided
Assembled and calibrated with 0.5 bar actuator 880707-5005S 0.83 V-Band V-band Internal N
880707-5006S 1.01 V-Band V-band Internal N
Supercore PN
Standard Rotation 880695-5002S
Reverse Rotation 880696-5002S
Turbine Kits Standard Rotation PN A/R Inlet Outlet Wastegate Divided
Free Float Turbine Housing 740902-0108 1.06 T4 V-band Free Float Y
740902-0106 0.83 T3 V-Band Free Float N
740902-0107 1.01 T3 V-Band Free Float N
740902-0102 0.61 V-Band V-Band Free Float N
740902-0103 0.83 V-Band V-band Free Float N
740902-0104 1.01 V-Band V-band Free Float N
740902-0105 1.21 V-Band V-band Free Float N
Turbine Kits Reverse Rotation PN A/R Inlet Outlet Wastegate Divided
Free Float Turbine Housing 740902-0116 0.83 T3 V-Band Free Float N
740902-0117 1.01 T3 V-Band Free Float N
740902-0112 0.61 V-Band V-Band Free Float N
740902-0113 0.83 V-Band V-band Free Float N
740902-0114 1.01 V-Band V-band Free Float N
740902-0115 1.21 V-Band V-band Free Float N

G-Series G35-1050 68mm Reverse Rotation

Download Section

File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View

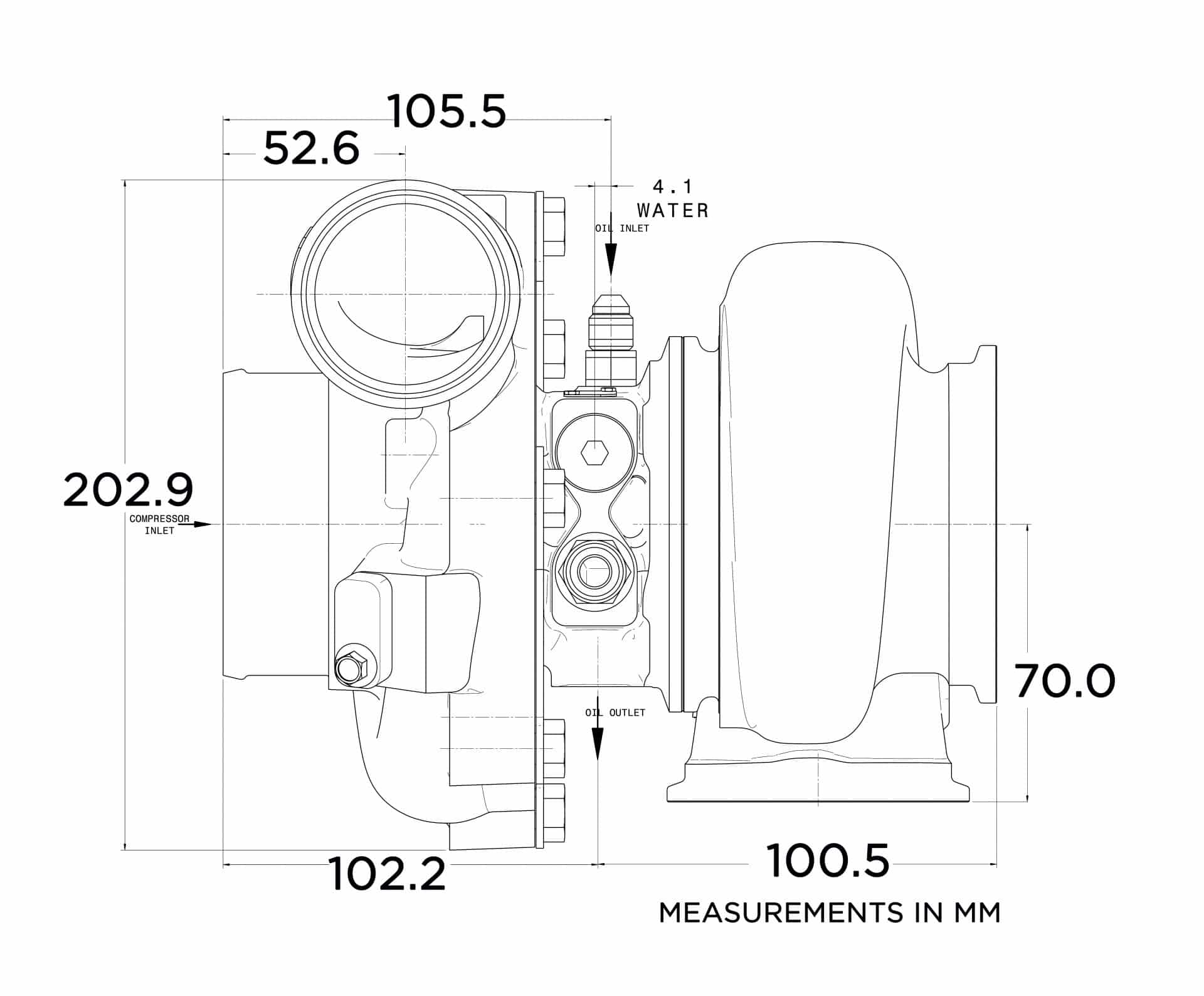

Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

G-Series G35-1050 68mm Reverse Rotation

Compressor Map & Exhaust Flow Chart

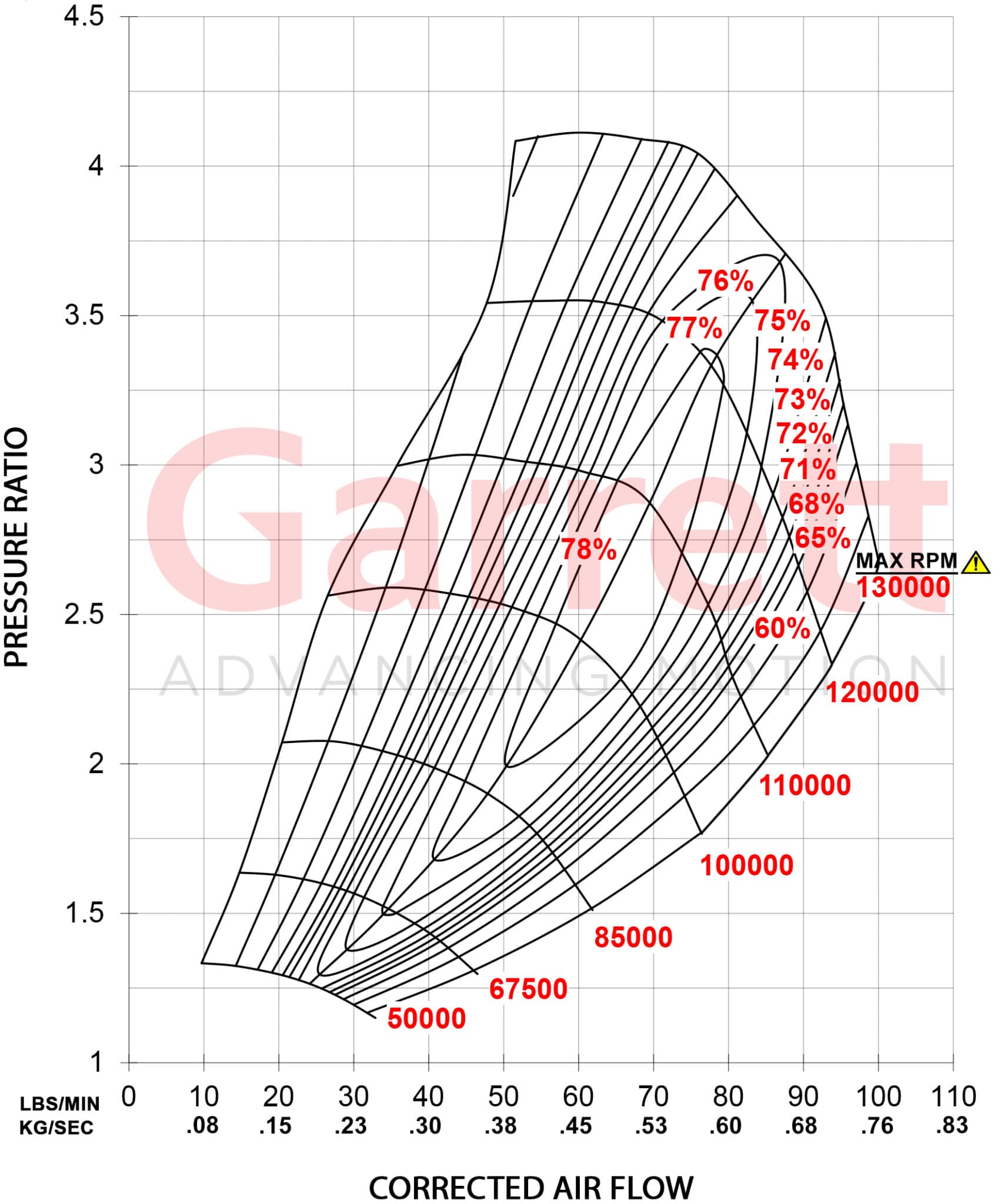

Compressor Map

Exhaust Flow Chart

The most powerful mid-frame turbocharger series on the market

Introducing performance out of a package you never thought possible. This clean sheet product is tailored to meet the demands of hard core racing enthusiasts while providing industry leading power capability in a small package.

The G-Series G35-1050 turbocharger is compatible with 2.0L – 5.5L engine displacements and capable of producing up to 1050 horsepower. G Series 35 turbochargers are highly efficient and will outflow all comparable products on the market.

New compressor and turbine aero combined with high temperature resistant materials allowed engineers to push the limits of performance.

A new name designates a new generation of industry leading technology and innovation.

Understanding the Name:

G designates 81 years of Garrett® heritage.

35 classifies the size of the frame. The remaining 4 digits identify the max horsepower rating of the turbocharger. (ie 1050)

Compressor Aero

Forged fully-machined compressor wheel and new aerodynamics increase maximum horsepower output and boost response. The CFD (computational fluid dynamics) engineered compressor wheel increases air flow up to 15% for 60mm and 30% for 67mm with 79-80% efficiency. (Compared to GTX GenII)

Available in standard rotation and reverse rotation options for enthusiasts that want the perfect twin turbo installation or a single reverse rotation turbo for applications with installation restrictions.

Speed Sensor

The compressor housing features a fully machined ported shroud to help reduce compressor surge. A fully machined speed sensor port provides enthusiasts the option to add the new G Series speed sensor to measure turbocharger shaft speed, a key factor in determining ideal operating conditions.

The new speed sensor is easy to install and does not need to be adjusted for length like previous sensors. Simply remove and plug, then insert the speed sensor and tighten the bolt. The new speed sensor is sold separately and is not compatible with GT and GTX sensors due to the new design and sizing.
The addition of an o-ring between the compressor housing and backplate reduces the possibility of boost pressure leakage.

Center Housing

A new one-piece center housing and backplate increase durability and product safety by reducing the number of failure points associated with the turbocharger. The center housing to turbine housing v-band connection allows for 360 degree orientation when installing with Garrett® non-wastegated turbine housings.

Water Jackets

Four large water jacket ports increase cooling capacity and allow enthusiasts to customize water line routing to help improve the installation process. The turbocharger comes with two -6AN water fittings and two plugs.

*Recommended to install waterlines on opposite sides of the housing.

Oil Passage

A single stage oil passage directs pressurized oil to the new oil cavity ensuring proper bearing lubrication at both sides of the cartridge.

Each turbocharger includes (1) -4AN oil restrictor fitting with a 1mm orifice to provide the turbo with the recommended 40psi of oil pressure.

Rotating Group – Twin Piston Rings

A shorter bearing cartridge allows us to incorporate twin piston rings on both sides of the shaft wheel assembly. This will reduce the likeliness of oil leakage at the seals from the center housing to the compressor and or turbine stage.

Turbine Wheel Aero

The turbine wheel features all new aerodynamics to improve flow and boost response. The new turbine wheel is made of Mar-M super alloy and is capable of handling exhaust gas temperatures up to 1050 degrees C.
The new turbine wheel flows 15-20% more than GTX and has peak efficiency of 74%.

Turbine Housings

All G Series Turbine housings are made from stainless steel to provide ultimate durability and temperature resistance up 1050 degrees C.
Internally wastegated housings are compact, efficient, and designed with maximum bypass port size to reduce boost creep and provide better boost control.
Turbine housings are available in a variety of wastegated and non-wastegated, open volute, T25 and Vband configurations so be sure to order the correct part for your application.
