GTX2860R GEN II Turbocharger
Horsepower: 200 - 475
Displacement: 1.4L - 2.5L
- GEN II AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
- 46mm TURBOCHARGER COMPRESSOR OPTION
- IMPROVED PORTED SHROUD DESIGN FOR SURGE RESISTANCE
- NEW FULLY MACHINED SPEED SENSOR PORT.
- SOLD AS ASSEMBLY KITS (SUPERCORE + TURBINE HSG)
WARNING: Maximum allowable turbocharger speed is 185krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)
Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
GTX2860R GEN II 46mm
|GTX2860R GEN II||Compressor||Turbine|
|HP: 200-475 Disp: 1.4L-2.5L||46mm||60mm||58||0.60||54mm||47mm||76|
|Supercore||Assembly Kit||Turbine Kit||A/R||Inlet||Outlet||Wastegate||Divided|
|Assembly Kit PN Includes||856800-5003S||827690-0003||0.64||T25||5 bolt||Wastegated||N|
|Supercore and Turbine Kit||856800-5004S||827690-0004||0.86||T25||5 bolt||Wastegated||N|
GTX2860R GEN II 46mm

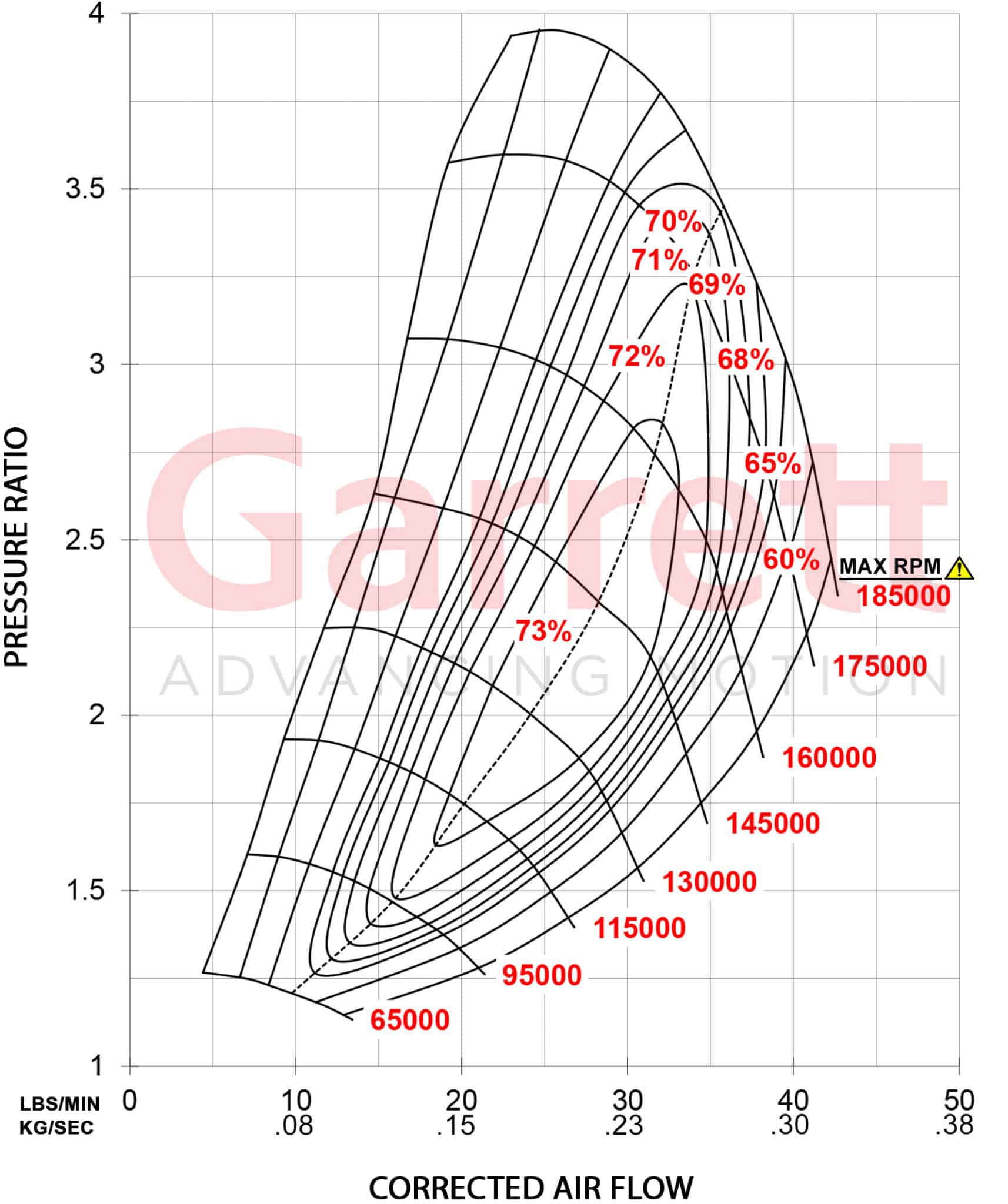

Compressor Map & Exhaust Flow Chart
Exhaust Flow Chart
GTX GEN II: The Next Generation in Turbocharging Technology
Garrett Motion is excited to introduce the GTX2860R GEN II Turbocharger. The GTX GEN II is the next evolution of our GTX line with major updates and new technology. Updates include a compressor wheel aero update that gives it the ability to produce up to 20% more horsepower than the previous version.
Redeveloped Compressor Wheels
GTX GEN II compressor wheels were designed using proprietary Garrett Motion computer simulation technology focusing on CFD analysis to optimize the wheel design to reach maximum efficiency and mass flow for each turbocharger.
Each GTX GEN II turbocharger can create more air mass flow, offering enthusiasts a wider range of power output when tuning the vehicle. The 8mm dual ceramic ball bearing cartridge provides optimal turbo response and reliability through its reduction in shaft motion.
Fully-Machined Inlet, Outlet and Shroud
The GTX GEN II Series Turbochargers feature a fully-machined compressor inlet, fully-machined compressor outlet, and fully-machined ported shroud for precise and accurate tolerances.
Redesigned High-Flowing Compressor Housing
We also added a brand-new compressor housing featuring a high-flowing design matched perfectly for the new compressor wheel upgrade. GEN II compressor housings are not interchangeable with Gen I compressor wheels; however, all Gen II turbochargers are outline interchangeable with the equivalent GT and GTX Gen I products making a turbo swap easy to perform using all existing piping.
Fully-Machined Speed Sensor Port
The new compressor housings are equipped with a fully machined speed sensor port that accepts the Garrett Motion speed sensor (Sold separately). This feature allows tuners to understand existing operating conditions, which is important when fine-tuning a turbocharger to its most efficient operating conditions. The speed sensor port comes plugged from the factory and can be removed using a 5mm Allen key when ready to install a speed sensor kit.
Cross Compatibility with Turbo Turbine Housing Kits
All GTX GEN II series turbochargers are compatible with all existing GT and GTX turbine housings kits. GEN II turbochargers are only offered through Garrett Motion authorized distribution centers.
