Features
- G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
- 62mm TURBOCHARGER COMPRESSOR WHEEL
- 77% MAXIMUM COMPRESSOR EFFICIENCY
- MAR-M ALLOY TURBINE WHEEL RATED UP TO 1050° C
- NEW TURBINE AERO PROVIDES HIGHER FLOW AND EFFICIENCY
- STAINLESS STEEL TURBINE HOUSINGS RATED UP TO 1050° C
- OIL RESTRICTOR AND WATER FITTINGS INCLUDED
- FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
- STANDARD AND REVERSE ROTATION SUPERCORE CONFIGURATIONS
- FREE FLOAT TURBINE HOUSING KITS AVAILABLE IN T4 DIVIDED, T3, AND V-BAND INLET CONFIGURATIONS
- STANDARD ROTATION INTERNALLY WASTEGATED TURBOCHARGERS AVAILABLE. FULLY ASSEMBLED AND CALIBRATED WITH A 0.5 BAR ACTUATOR
- STANDARD ROTATION SUPERCORE 880695-5001S
- REVERSE ROTATION SUPERCORE 880696-5001S
- Read About Turbo System Optimization: A guide to setting up your turbocharger
WARNING: Maximum allowable turbocharger speed is 145krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)
Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
Buy now
IMPORTANT PRODUCT INFORMATION
“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”
Learn More About Turbos
FuelTech’s Garrett Turbocharged 8-Second C8 Corvette Makes 1,350 Horsepower & Sets Records
FuelTech’s C8 Corvette became the first to run in the 8-second zone and makes 1,350-horsepower with its twin Garrett turbos.
How To Select A Turbo Part 1
With over 35 Garrett turbos to choose, how do you select the right one? This provides some insight into the complicated process.
Garrett Turbocharged Grocery Getter: Hert’s Lexus GS300 “Thicccstallion”
Boosted by a Garrett G35-900 turbo, Hert’s Lexus GS300 family cruiser build went from simple to insane with a full 2JZ swap.
Record Setting Racer Feras Qartoumy Puts Garrett Mirrored Turbos To The Test
This is a story of how one turbo offered as a prize became the tipping point for an engine overhaul that helped Feras Qartoumy’s C6…
How To Select A Turbo Part 2: Calculations
Turbo any engine once you apply these calculations. Find the compressor that matches your inputs and you are on your way to turbocharging any engine
Intercooler Tech: What Is Fin Density
Intercooler Tech: Fin Density In the first intercooler article we talked about heat transfer and selecting the best intercooler for your application. (Click here to…
Harut Stepanyan Discusses The Features Of The New Garrett G35 Turbochargers
Senior Application Engineer, Harut Stepanyan discusses the latest in Garrett performance turbo technology featuring the new G Series product lineup. G Series is the latest…
1075 Horsepower Twin Turbo C8 Corvette
FuelTech’s USA R&D center made this the worlds highest horsepower C8 Corvette with 1075 horsepower and Garrett G35-900 mirrored turbochargers
Big Grip and Big Power for This Monstrous Garrett Turbo Time Attack C6 Corvette Z06
Monster power thanks to twin Garrett turbos and monster grip put Feras Qartoumy’s Time Attack C6 Corvette Z06 on the podium.
G-Series G35-900 62mm
Reference Data
| G35-900 | Compressor | Turbine | |||||
|---|---|---|---|---|---|---|---|
| Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| HP: 550-900 Disp: 2.0L-5.5L | 62mm | 76mm | 65 | 0.72 | 68mm | 62mm | 84 |
| Turbo: Standard Rotation | PN | A/R | Inlet | Outlet | Wastegate | Divided | |
| Assembled and calibrated with 0.5 bar actuator | 880707-5002S | 0.83 | V-Band | V-band | Internal | N | |
| 880707-5003S | 1.01 | V-Band | V-band | Internal | N | ||
| Supercore | PN | ||||||
| Standard Rotation | 880695-5001S | ||||||
| Reverse Rotation | 880696-5001S | ||||||
| Turbine Kits Standard Rotation | PN | A/R | Inlet | Outlet | Wastegate | Divided | |
| Free Float | 740902-0108 | 1.06 | T4 | V-band | Free Float | Y | |
| 740902-0106 | 0.83 | T3 | V-Band | Free Float | N | ||
| 740902-0107 | 1.01 | T3 | V-Band | Free Float | N | ||
| 740902-0102 | 0.61 | V-Band | V-Band | Free Float | N | ||
| 740902-0103 | 0.83 | V-Band | V-band | Free Float | N | ||
| 740902-0104 | 1.01 | V-Band | V-band | Free Float | N | ||
| 740902-0105 | 1.21 | V-Band | V-band | Free Float | N | ||
| Turbine Kits Reverse Rotation | PN | A/R | Inlet | Outlet | Wastegate | Divided | |
| Free Float | 740902-0116 | 0.83 | T3 | V-Band | Free Float | N | |
| 740902-0117 | 1.01 | T3 | V-Band | Free Float | N | ||
| 740902-0112 | 0.61 | V-Band | V-Band | Free Float | N | ||
| 740902-0113 | 0.83 | V-Band | V-band | Free Float | N | ||
| 740902-0114 | 1.01 | V-Band | V-band | Free Float | N | ||
| 740902-0115 | 1.21 | V-Band | V-band | Free Float | N | ||
G-Series G35-900 62mm
Compressor Map & Exhaust Flow Chart

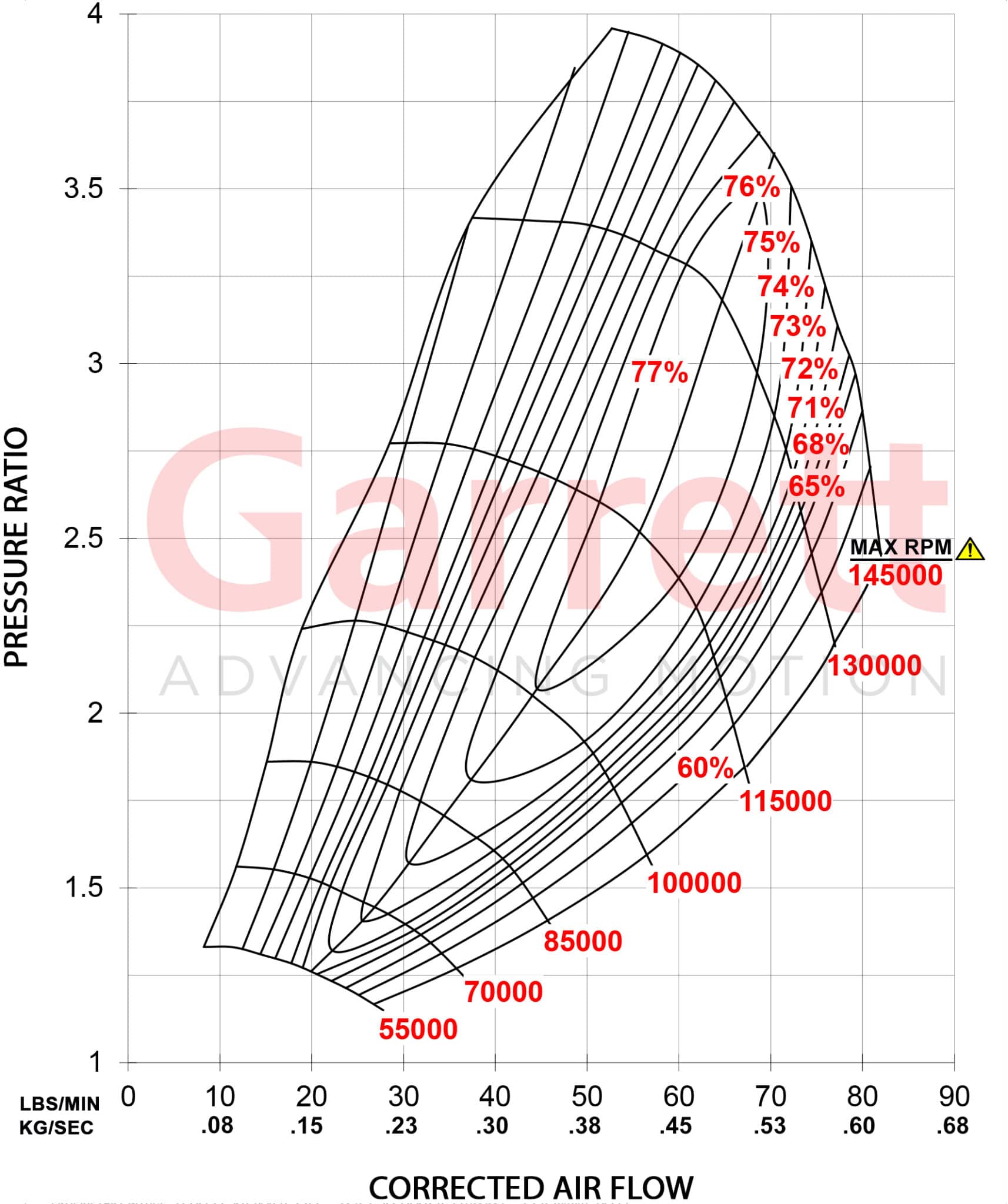

Compressor Map
