GT2252 Turbocharger

Horsepower: 150 - 260

Displacement: 1.7L - 2.5L

Features

  • ORIGINAL GT SERIES AERODYNAMICS
  • 40mm TURBOCHARGER COMPRESSOR OPTION
  • INTERNALLY WASTEGATED TURBINE HOUSING
  • SOLD AS A COMPLETE TURBO (INCLUDES TURBINE KIT & ACTUATOR)

GT2252

Reference Data

The latest Garrett technologies featuring many advanced features.

GT2252 Compressor Turbine
HP: 150-260              Disp: 1.7L-2.5L Inducer Exducer A/R Inducer Exducer Trim A/R
Turbo PN: 452187-5006S 40mm 52mm 0.51 50mm 43mm 72 0.67

GT2252

Download Section

The latest Garrett technologies featuring many advanced features.

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

GT2252

Compressor Map & Exhaust Flow Chart

The latest Garrett technologies featuring many advanced features.

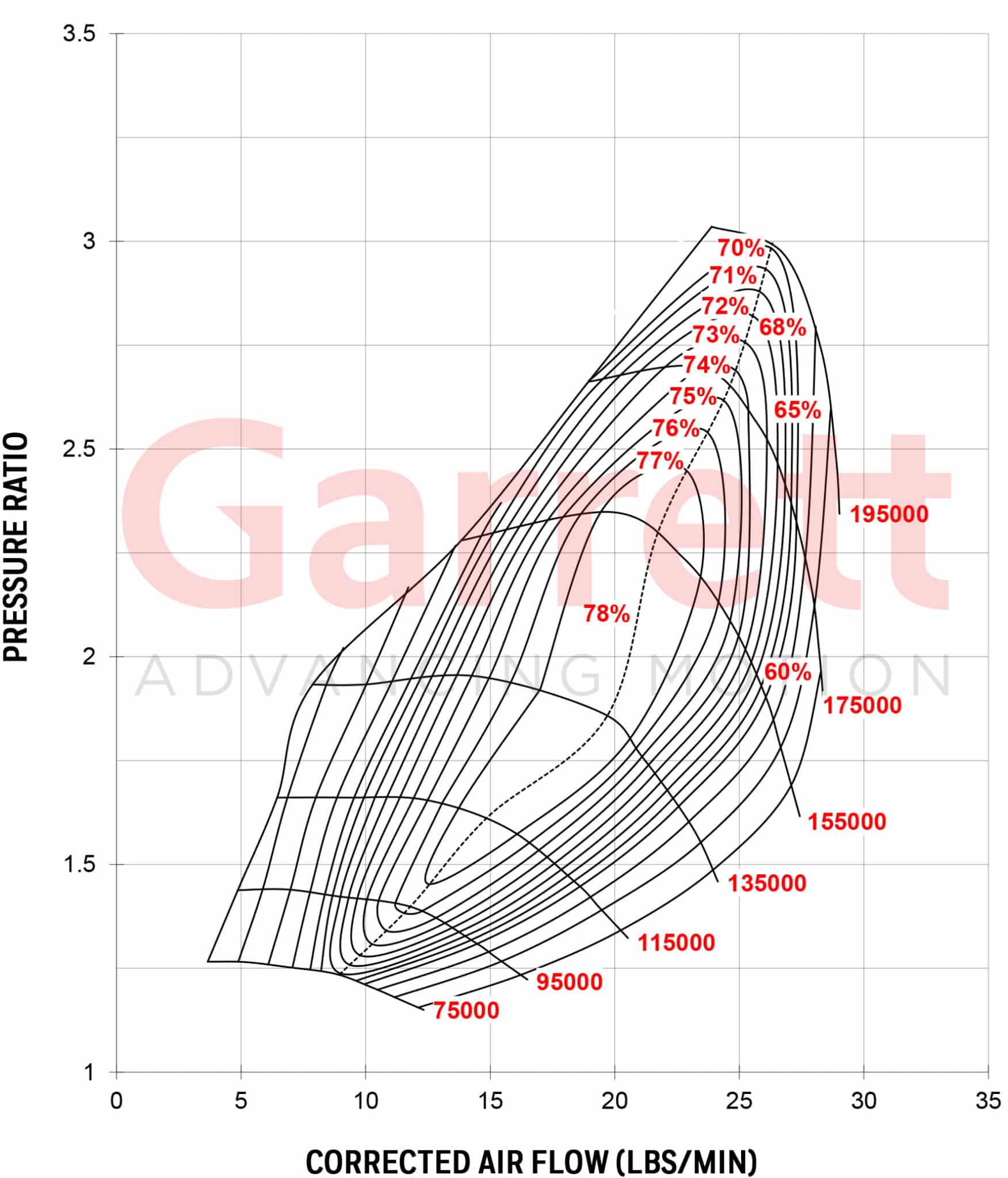

Compressor Map

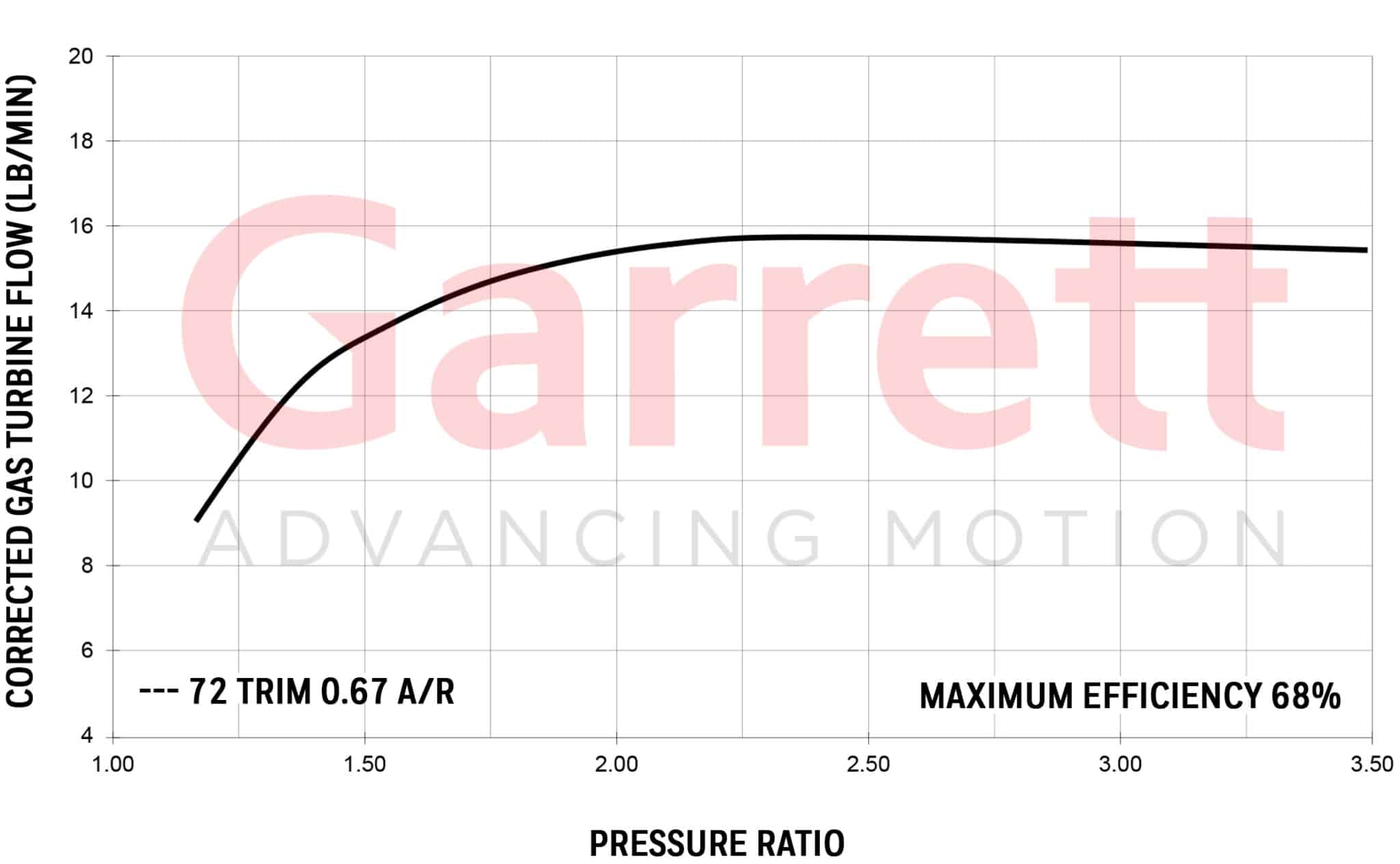

Exhaust Flow Chart

About Garrett® GT Series Turbochargers

Garrett® GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.
