Features
- Patent Pending
- XBoost Technology increases power and performance
- Up to +29% compressor flow compared to G-Series (Depending on model and frame size)
- Improved pressure ratio capability enables higher boost pressure
- Increased efficiency at high flow rates provides cooler, denser air to boost power capability
- Lightweight aluminum backplate to reduce turbo weight
- Flange-style speed sensor port for easy installation and turbo speed monitoring for optimal performance and turbo life
WARNING: Maximum allowable turbocharger speed is 100krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)
Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
GXR45-80 (8082) Supercore PN 952766-5004S
Buy now
IMPORTANT PRODUCT INFORMATION
“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”
Learn More About Race Vehicle Setups
How To Select A Turbo Part 1
With over 35 Garrett turbos to choose, how do you select the right one? This provides some insight into the complicated process.
Prayoonto Racing Claims 1st Place in Sport Front Wheel Drive Class at The Shootout
Garrett Motion is proud to announce that Prayoonto Racing secured a 1st place victory in the highly competitive SFWD Sport Front Wheel Drive, 73.9mm turbo class at The Shootout in Ohio. Prayoonto Racing’s outstanding performance at the event showcases the power and reliability of Garrett’s turbocharger technology.
Prayoonto Racing Takes A90 Supra Class Win at The Shootout Drag Race
Prayoonto Racing has made a powerful statement at this year’s Shootout Drag Race in Norwalk, Ohio, by capturing the A90 Supra Class win. The Prayoonto…
G-XRace GXR45-80 80.9mm
Reference Data
| GXR45-80 8082 | Compressor | Turbine | |||||
|---|---|---|---|---|---|---|---|
| Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | |
| HP: 750-1750 Disp: 2.0L-8.0L | 80.9mm | 109mm | 52 | 0.85 | 89mm | 82mm | 84 |
| Supercore | PN | ||||||
| 952766-5004S | |||||||
| Turbine Kits: | PN | A/R | Inlet | Outlet | Wastegate | Divided | |
| Free Float Turbine Housing | 757707-0019 | 1.01 | V-Band | V-Band | Free Float | N | |
| 757707-0020 | 1.15 | V-Band | V-Band | Free Float | N | ||
| 757707-0021 | 1.28 | V-Band | V-Band | Free Float | N | ||
| 757707-0022 | 1.44 | V-Band | V-Band | Free Float | N | ||
| 757707-0023 | 1.01 | T4 | V-Band | Free Float | Y | ||
| 757707-0024 | 1.15 | T4 | V-Band | Free Float | Y | ||
| 757707-0025 | 1.28 | T4 | V-Band | Free Float | Y | ||
| 757707-0026 | 1.44 | T4 | V-Band | Free Float | Y | ||
G-XRace GXR45-80 80.9mm
Download Section
G-XRace GXR45-80 80.9mm
Compressor Map & Exhaust Flow Chart
Compressor Map
Exhaust Flow Chart
G-XRace Compressor Stage
G-XRace compressor stage delivers enhanced pressure ratio capability and higher boost pressure with XBoost technology. You will notice increased efficiency at high flow rates and lower intake temperatures.
G-XRace Turbine Housing Kits
G-XRace GXR45 turbine housing kits are available in four A/R. 1.01 A/R | 1.15 A/R | 1.28 | 1.44 A/R stainless steel housings with T4 divided or V-Band turbine inlet flanges. G-XRace utilizes the same twin-scroll T4 and V-Band turbine housings as G-Series to enable an easy upgrade.
XBoost Technology In Action

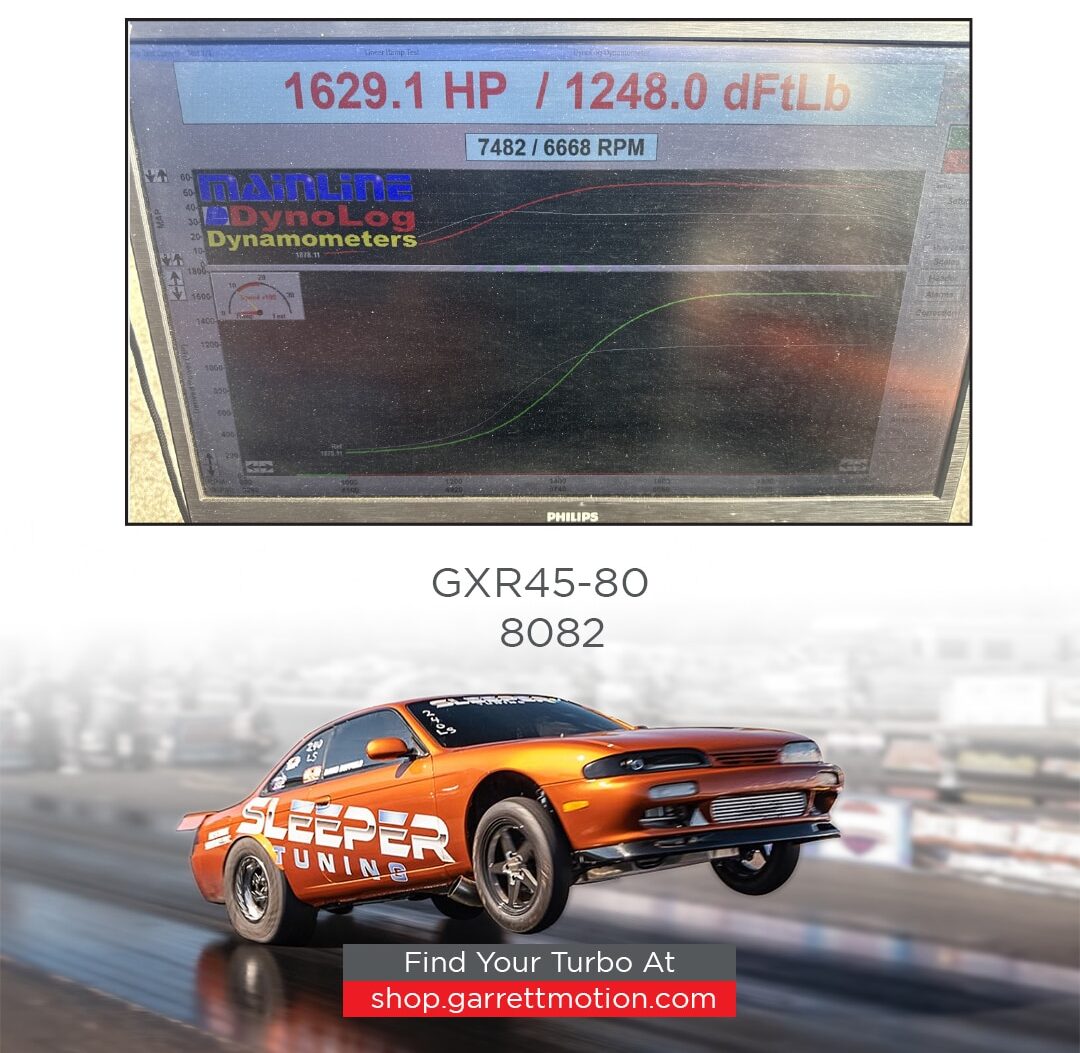

The factory-looking Nissan 240SX hatch from Sleeper Tuning packs a single-turbo 3.2L 2JZ engine running on ethanol, piloted by David “Duffy” Duffield. More than just a show car, this purpose-built race machine serves as a real-world validation platform for Garrett Motion’s G-XRace turbochargers, backed by dyno data and verified seven-second passes. With a documented best ET of 7.345 seconds at 187.70 mph at 2025 World Cup Finals #1 Qualifier and 1st place Limited Street Class. The car has established a proven record of horsepower, reliability, and consistency for the G-XRace product line.
The dyno test results shown were performed on the same vehicle, using the same dyno and calibrator. Tests were conducted on different days, under varying temperature conditions. Horsepower results will vary depending on your vehicle’s modifications and tuning calibration.
Introducing G-XRace Series
