2022+ Ford Bronco / Ranger Raptor 3.0L

Buy now

Description

POWERMAX™ DIRECT FIT PERFORMANCE TURBOCHARGER

2022+ Ford Bronco / Ranger Raptor
Supports up to 640BHP | 477kW (+18% compressor flow and +6% turbine flow compared to the OEM turbo)
Part Number 926432-5002S

Why Choose Garrett
Trust the name that’s been powering innovation for over 70 years. Garrett PowerMax turbochargers are engineered with OEM precision and built to outperform—from daily drivers to weekend track cars. With over 70 years of technology leadership and more than 130 million vehicles powered by our turbos, Garrett is the trusted choice for performance, reliability, and innovation.

Product Features:
• Direct-Fit Upgrade for the 2022+ Ford Bronco / Ranger Raptor 3.0L

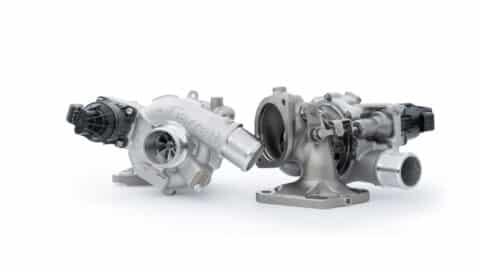

• Kit part number contains complete LH & RH turbo assemblies with calibrated electric actuators
• Garrett is the OEM turbocharger for this application
• CARB Emissions Certified D-871-4
• Supports up to 640BHP | 477kW (+18% compressor flow and +6% turbine flow compared to the OEM turbo)
• 41mm compressor inducer compared to 38mm on the OEM turbo
• Stainless Steel turbine housing rated up to 950°C
• Fully machined sensor port to monitor turbo shaft speed: use PN 923586-0003 (G-Smart Bluetooth Module / App) or 781328-0003 (street kit w/ gauge) or 781328-0004 (pro kit w/o gauge)

WARNING: Maximum allowable turbocharger speed is 214.9krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003 (includes sensor and gauge), 781328-0004 (includes speed sensor), or G-Smart Bluetooth Module with sensor (PN 923586-0003). Sensor Kits sold separately. * Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are based on actual on-vehicle testing.

Buy now

IMPORTANT PRODUCT INFORMATION

“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”

Key Product Features:

Direct-Fit Upgrade for the 2022+ Ford Bronco / Ranger Raptor 3.0L
Kit part number contains complete LH & RH turbo assemblies with calibrated electric actuators
Garrett is the OEM turbocharger for this application
CARB Emissions Certified D-871-4
Supports up to 640BHP | 477kW (+18% compressor flow and +6% turbine flow compared to the OEM turbo)
41mm compressor inducer compared to 38mm on the OEM turbo
Stainless Steel turbine housing rated up to 950°C
Fully machined sensor port to monitor turbo shaft speed: use PN 923586-0003 (G-Smart Bluetooth Module / App) or 781328-0003 (street kit w/ gauge) or 781328-0004 (pro kit w/o gauge)

Why Choose Garrett

Trust the name that’s been powering innovation for over 70 years. Garrett PowerMax turbochargers are engineered with OEM precision and built to outperform—from daily drivers to weekend track cars. With over 70 years of technology leadership and more than 130 million vehicles powered by our turbos, Garrett is the trusted choice for performance, reliability, and innovation.

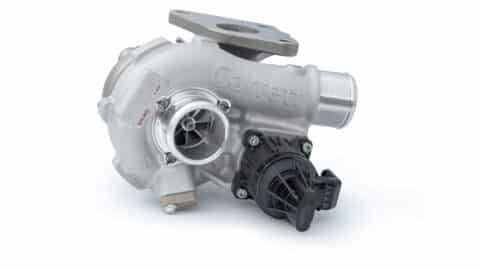

Complete Turbocharger Assembly

This complete turbocharger with electronic actuator can produce up to an impressive +18 compressor flow and +6% turbine flow compared to the OEM turbo.

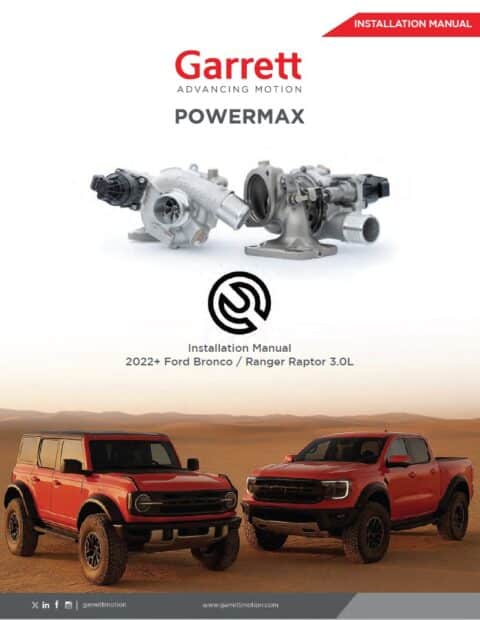

Installation Guide

Click for the Installation Guide
