GTX4294R Turbocharger

Horsepower: 475 - 950

Displacement: 2.0L - 7.0L

Features

  • FEATURES ORIGINAL GTX COMP WHEEL AERODYNAMICS
  • 70mm TURBOCHARGER COMPRESSOR OPTION
  • SUPERCORE AND TURBINE KIT SOLD SEPARATELY
  • AVAILABLE ONLY WITH DIVIDED TURBINE HOUSINGS
  • V-BAND COMPRESSOR OUTLET CONFIGURATION
  • TURBO OPTION FOR LS ENGINE APPLICATIONS
  • SUPERCORE PART NUMBER: 880269-5001S

WARNING: Maximum allowable turbocharger speed is 118krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.

Buy now

IMPORTANT PRODUCT INFORMATION

“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”

Learn More About Race Vehicle Setups

April 24, 2023

How To Select A Turbo Part 1

With over 35 Garrett turbos to choose, how do you select the right one? This provides some insight into the complicated process.

March 19, 2022

Daigo Saito’s 1,000+ Horsepower Garrett Turbocharged Yaris Drift Monster

A 2JZ engine and Garrett turbo amp up Daigo Saito’s Toyota Yaris from its factory form to a 1,000-horsepower drift machine.

April 23, 2023

How To Select A Turbo Part 2: Calculations

Turbo any engine once you apply these calculations. Find the compressor that matches your inputs and you are on your way to turbocharging any engine

April 22, 2020

Best Of Both Worlds: Turbo LS Swapped S550 Mustang

Like it, or love it? Is this the baddest V8 turbocharged drift Mustang built to date? We think so. The 2015 S550 Ford Mustang body…

September 29, 2020

Andy Gray Wins Formula Drift Japan Round 3 At Ebusu Circuit

Andy Gray wins Formula Drift Round 3 at Ebisu Circuit in Japan. The Lexus RC features a 3.6L 2JZ VVTi engine with a GTX4294R turbo.

May 29, 2020

Turbo Tech: Compound Turbo Systems

Compound turbo systems use different size turbos and operate in series where the first turbo feeds the second turbo boosted air and the effect is compounded

GTX4294R 70mm

Reference Data

GTX4294R Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 475-950 Disp: 2.0L-7.0L 70mm 94mm 56 0.60 82mm 75mm 84
Supercore PN
Standard Rotation 800269-5001S
Turbine Kits: GTX42 PN A/R Inlet Outlet Wastegate Divided
Interchangeable with GT|GTX 4294R | 4202R Supercores 757707-0002 1.15 T4 V-Band Free Float Y
757707-0003 1.28 T4 V-Band Free Float Y
757707-0004 1.44 T4 V-Band Free Float Y

GTX4294R 70mm

Download Section

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

GTX4294R 70mm

Compressor Map & Exhaust Flow Chart

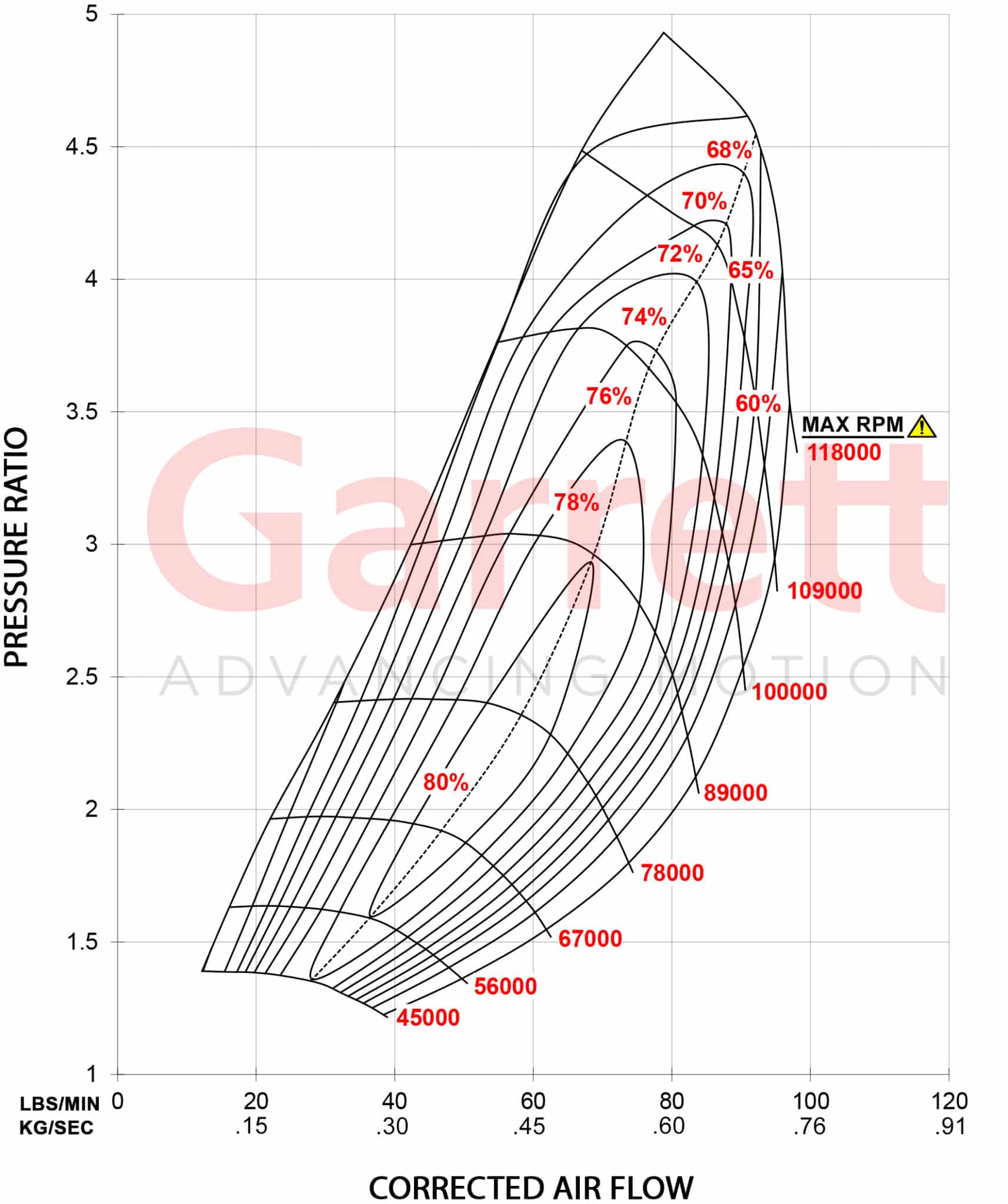

Compressor Map

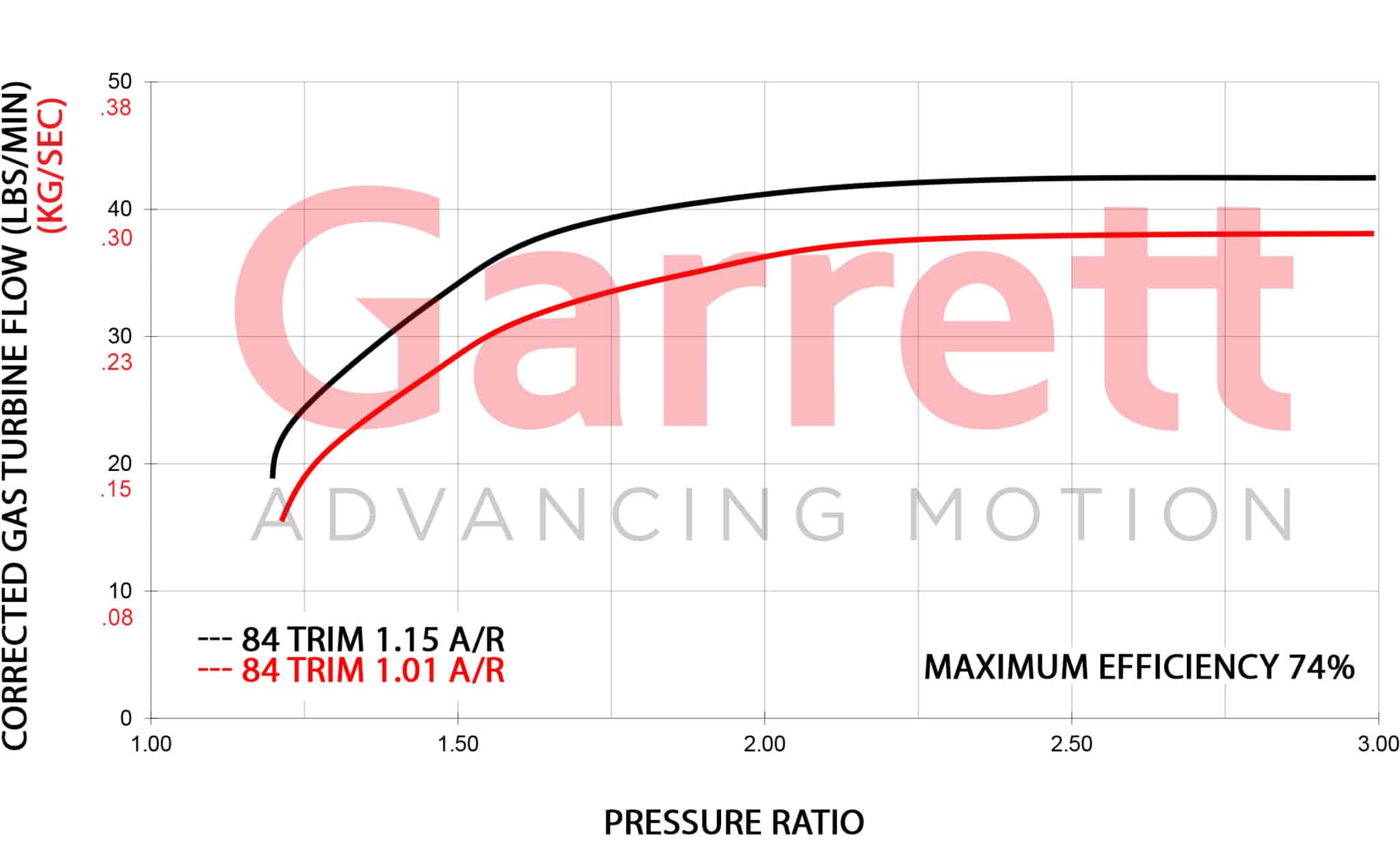

Exhaust Flow Chart

About Garrett GTX Series Turbochargers

Garrett GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.

Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
