GT3582R Turbocharger

Horsepower: 400 - 675

Displacement: 2.0L - 4.5L

Features

ORIGINAL GT SERIES AERODYNAMICS
INTERNALLY WASTEGATED TURBINE HOUSING
NON WASTEGATED TURBINE HOUSINGS AVAILABLE
BALL BEARING CONFIGURATION WITH WATER COOLED CHRA
V-BAND TURBINE HOUSING OPTIONS

GT3582R

Reference Data

The latest Garrett technologies featuring many advanced features.

Turbocharger Part Number Chart
Super Core Reference DataCompressorTurbine
Super Core PNCHRA PNInducerExducerTrimA/RInducerExducerTrim
836033-5002S836005-000361mm82mm560.7068mm62mm84
Notes:Turbine Kit PNA/RInletOutletWastegateDividedTrim
Super Core and Turbine Kit Sold Separately740902-00120.63T3V-BandFree FloatN84
740902-00110.82T3V-BandFree FloatN84
740902-00101.06T3V-BandFree FloatN84
740902-00180.63T4V-BandFree FloatN84
740902-00170.82T4V-BandFree FloatN84
740902-00161.06T4V-BandFree FloatN84
740902-00330.61V-BandV-BandFree FloatN84
740902-00320.83V-BandV-BandFree FloatN84
740902-00311.01V-BandV-BandFree FloatN84
Wastegated Turbine Assembly does not include bolts, clamps, or actuatorTurbine Asbly PNA/RInletOutletWastegateDividedTrim
771300-00030.63T25 BoltWastegatedN84
771300-00020.82T35 BoltWastegatedN84

GT3582R

Download Section

The latest Garrett technologies featuring many advanced features.

File NameLinkView
Flange diagram GT3582R_714568 1, 2 & 3DownloadView
Flange diagram Garrett_714568 7, 8 & 9DownloadView
File NameLinkView
Compressor MapDownloadView
Exhaust Flow ChartDownloadView
Product PhotoDownloadView
Flange DiagramDownloadView
Speed Sensor Kit Installation InstructionDownloadView

GT3582R

Compressor Map & Exhaust Flow Chart

The latest Garrett technologies featuring many advanced features.

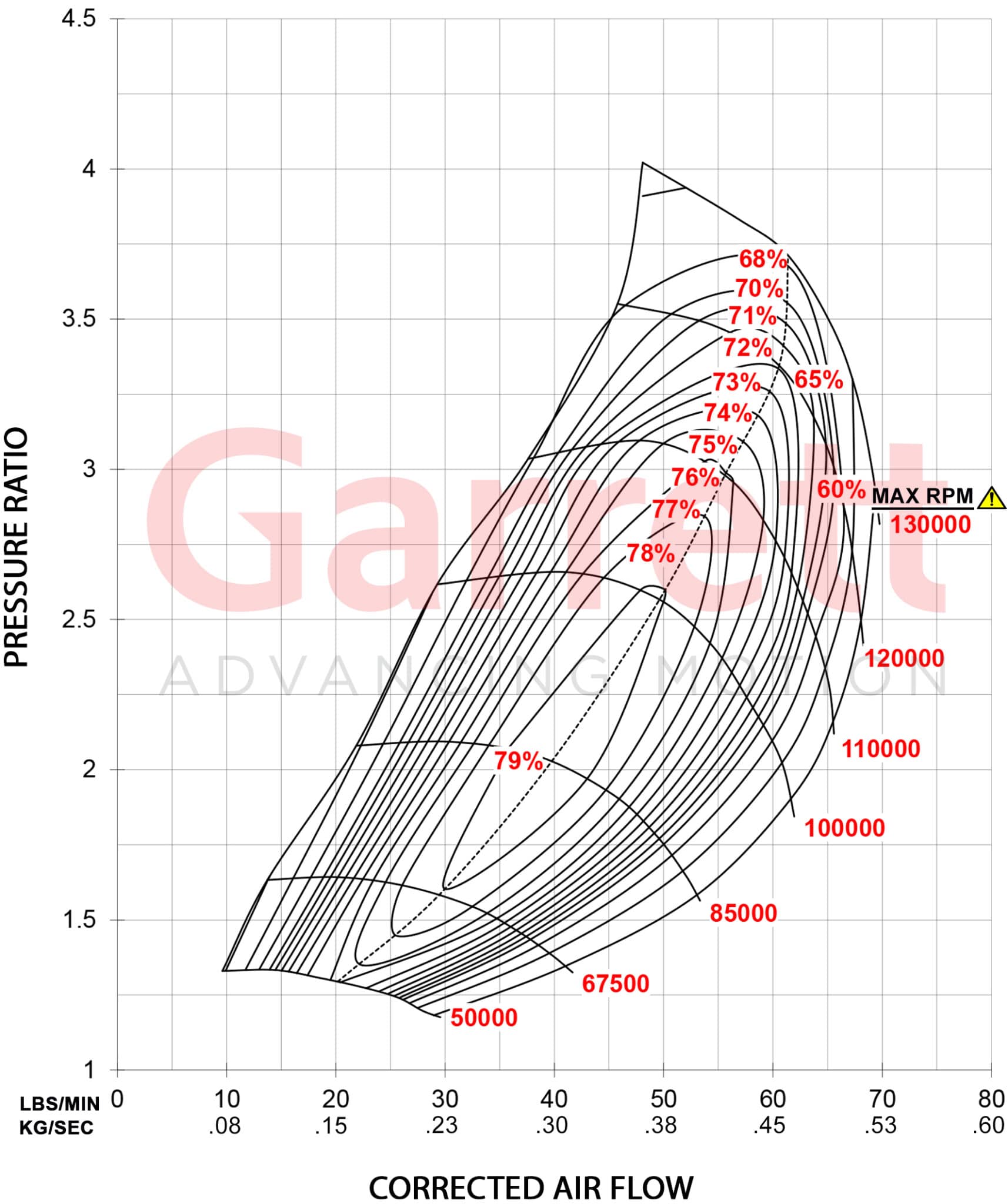

Compressor Map

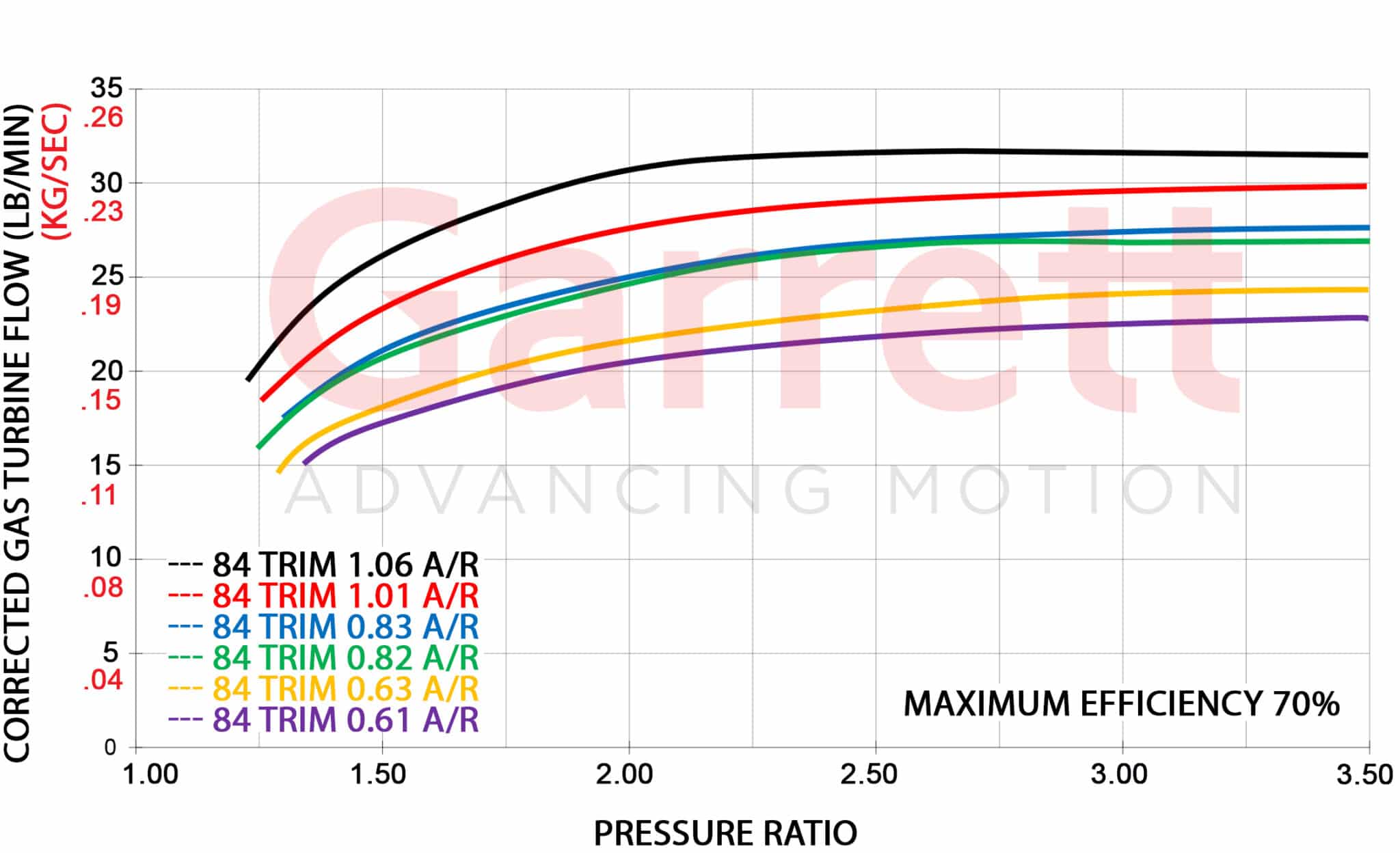

Exhaust Flow Chart

About Garrett® GT Series Turbochargers

Garrett® GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.
