G-Series II G25-585 48mm Turbocharger
Horsepower: 300 - 585
Displacement: 1.4L - 3.0L
Features
G-SERIES II UNIVERSAL PERFORMANCE TURBOCHARGER
G25-585 | 49mm Turbine
- New compressor aero increases power and performance.
- Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM.
- Direct upgrade path for Gen I customers with just a CHRA swap.
- Utilizes Gen I compressor and turbine housings.
- Standard and reverse rotation configurations.
- Turbine wheel constructed of Mar-M alloy rated up to 1050°C.
- Oil restrictor and water fittings included.
Competitor Frame Size Reference: 4849 (48mm compressor inducer / 49mm turbine exducer)
Read About Turbo System Optimization: A guide to setting up your turbocharger
WARNING: Maximum allowable turbocharger speed is 185krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)
Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
IMPORTANT PRODUCT INFORMATION
“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”
Learn More About Other Racer Vehicle Setups
How To Select A Turbo Part 1
With over 35 Garrett turbos to choose, how do you select the right one? This provides some insight into the complicated process.
Turbo Tech: The Difference An A/R Makes Going From .83 To 1.01 With A GTX3076R Gen II Turbo
Ever wondered what A/R stands for and how it affects turbo performance? This explains the basic concepts of the theory with dyno data to show the results
Turbocharging At Elevation
A naturally aspirated combustion engine will lose 3% of its power for every 1,000 ft of elevation gain. Add a Garrett turbocharger to minimize the loss
Garrett Performance Intercoolers
Performance Intercoolers Garrett performance intercoolers and intercooler cores work together with the turbocharger as part of the total induction system. When air is compressed in…
Garrett G-Series II G25-585 48mm Turbocharger
Reference Data
| Supercore PN | CHRA PN | Rotation | Turbo Reference | Horsepower Rating | Comp Inducer | Comp Exducer | Turbine Inducer | Turbine Exducer |
|---|---|---|---|---|---|---|---|---|
| 934075-5001S | 934074-5001S | Standard Rot | 4849 | 585 | 48mm | 60mm | 54mm | 49mm |
| 934114-5001S | 934113-5001S | Reverse Rot |
| Turbine Kit PN | Rotation | A/R | Inlet | Outlet | Wastegate | Divided |
|---|---|---|---|---|---|---|
| 740902-0069 | Standard | 0.72 | V-Band | V-Band | External | N |
| 740902-0068 | Standard | 0.92 | V-Band | V-Band | External | N |
| 740902-0076 | Standard | 0.72 | V-Band | V-Band | Internal | N |
| 740902-0077 | Standard | 0.92 | V-Band | V-Band | Internal | N |
| 740902-0080 | Standard | 0.49 | T25 | V-Band | Internal | N |
| 740902-0073 | Reverse | 0.72 | V-Band | V-Band | External | N |
| 740902-0074 | Reverse | 0.92 | V-Band | V-Band | External | N |
| 740902-0078 | Reverse | 0.72 | V-Band | V-Band | Internal | N |
| 740902-0079 | Reverse | 0.92 | V-Band | V-Band | Internal | N |
| Turbo PN | Rotation | A/R | Inlet | Outlet | Wastegate | Divided |
|---|---|---|---|---|---|---|
| 934076-5001S | Standard | 0.49 | T25 | V-Band | Internal | N |
| 934076-5002S | Standard | 0.72 | V-Band | V-Band | Internal | N |
| 934076-5003S | Standard | 0.92 | V-Band | V-Band | Internal | N |
| 934115-5001S | Reverse | 0.72 | V-Band | V-Band | Internal | N |
| 934115-5002S | Reverse | 0.92 | V-Band | V-Band | Internal | N |
| * Turbo PN assembled and calibrated with a 0.5 bar actuator | ||||||
Garrett G-Series II G25-585 48mm Turbocharger
Download Section
Garrett G-Series II G25-585 48mm Turbocharger
Compressor Map & Exhaust Flow Chart
Compressor Map
Exhaust Flow Chart

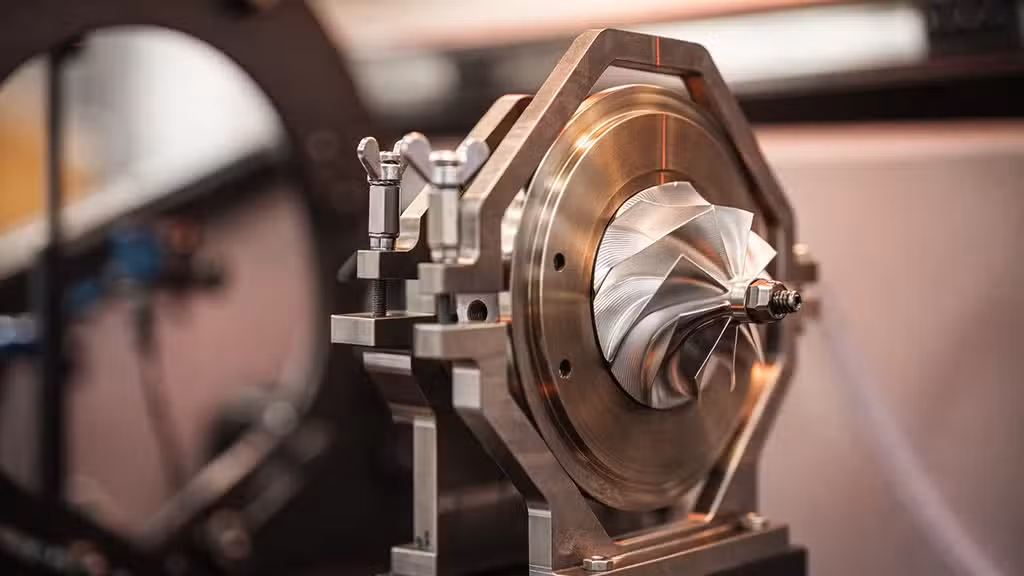

Why Choose Garrett
Trust the name that’s been powering innovation for over 70 years. Garrett turbochargers are engineered to meticulous standards used in OEM production environments and validated through decades of motorsports and advanced engineering programs. With more than 130 million vehicles powered globally, Garrett delivers performance, reliability, and innovation you can trust.

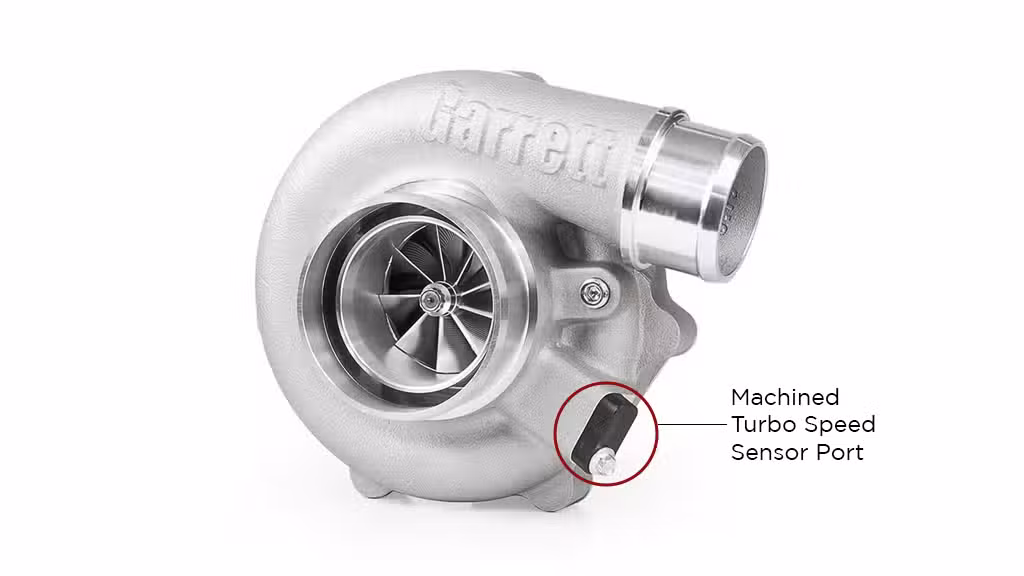

Turbo Speed Monitoring
This Garrett turbocharger features a fully machined turbo speed sensor port. Monitoring turbocharger shaft speed is recommended to help prevent overspeed and protect long-term durability, especially when operating at higher performance levels. Compatible speed sensor kits are available separately. Use PN 923586-0002 (G-Smart Bluetooth Module / App) or Speed Sensor Kit 781328-0001 (street kit w/ gauge) or 781328-0002 (pro kit w/o gauge)
FAQ
Where can I buy?
Use the Garrett Dealer Locator to find an authorized retailer.
Will I need tuning?
Performance results are highly dependent on your vehicle’s modifications and tuning/calibration. The horsepower values referenced are based on laboratory flow testing and represent total turbo capability. ECU calibration may be required depending on your setup and performance goals.
Compressor Aero
• New compressor aero technology increases power and performance.
• Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM.
• See the compressor map overlay for performance comparison.
• Calibration required to take advantage of increased flow for a horsepower upgrade.
• Increased efficiency at high flow rates.
Compressor Housing Compatibility
G-Series II is a direct upgrade path for Gen I customers with just a CHRA purchase because the compressor housings have the same contour. This allows existing Gen I customers to use their compressor cover when upgrading.
A one-piece center housing and backplate increase durability and product safety by reducing the number of failure points associated with the turbocharger. The center housing to turbine housing V-Band connection allows for 360 degree orientation when installing with Garrett non-wastegated turbine housings.
Engineering & Design
Garrett turbochargers are engineered through extensive motorsports and OEM development programs. Garrett’s technologies are protected by a number of intellectual property rights in the USA and other countries, for example by U.S. patents US9850911B2; US10047607B2; US10502263B2.
