GT3076R Turbocharger

Horsepower: 310 - 525

Displacement: 2.0L - 3.5L

Features

  • ORIGINAL GT SERIES AERODYNAMICS
  • 57mm TURBOCHARGER COMPRESSOR OPTION
  • INTERNALLY WASTEGATED TURBINE HOUSING
  • NON WASTEGATED TURBINE HOUSINGS AVAILABLE
  • BALL BEARING CONFIGURATION WITH WATER COOLED CHRA
  • V-BAND TURBINE HOUSING OPTIONS
Buy now

IMPORTANT PRODUCT INFORMATION

“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”

Learn More About Turbos



April 24, 2023

How To Select A Turbo Part 1

With over 35 Garrett turbos to choose, how do you select the right one? This provides some insight into the complicated process.

July 7, 2020

Pump Gas Vs E85: Tunable Performance For Your Turbo

Same car, same engine, same tuner, and same turbo combination (GTX2867R Gen II) and how E85 vs Pump Gas impact performance

September 14, 2020

Single OR Twin Turbo LS

What is the best setup for an LS engine? Is it a big single turbo or smaller twin turbos? Tune in for the details as we analyze the data from Pro 2 Formula Drift driver Jonathan Hurst’s 5.3L / 800WHP G37 drift machine.

October 2, 2019

Turbo Tech: The Difference An A/R Makes Going From .83 To 1.01 With A GTX3076R Gen II Turbo

Ever wondered what A/R stands for and how it affects turbo performance? This explains the basic concepts of the theory with dyno data to show the results

January 29, 2020

Garrett Performance Intercoolers

Performance Intercoolers Garrett performance intercoolers and intercooler cores work together with the turbocharger as part of the total induction system. When air is compressed in…

August 15, 2019

Turbocharging At Elevation

A naturally aspirated combustion engine will lose 3% of its power for every 1,000 ft of elevation gain. Add a Garrett turbocharger to minimize the loss

GT3076R

Reference Data

GT3076R Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
HP: 310-525 Disp: 2.0L-3.5L 57mm 76mm 56 0.60 60mm 55mm 84
Supercore PN PN
836028-5003S
Turbine Kits: GT30 PN A/R Inlet Outlet Wastegate Divided
Interchangeable with GT, GTX Gen I, and GTX Gen II 30 Series Supercores 740902-0009 0.63 T3 V-Band Free Float N
740902-0008 0.82 T3 V-Band Free Float N
740902-0007 1.06 T3 V-Band Free Float N
740902-0036 0.61 V-Band V-Band Free Float N
740902-0035 0.83 V-Band V-Band Free Float N
740902-0034 1.01 V-Band V-Band Free Float N
PN A/R Inlet Outlet Wastegate Divided
Wastegated turbine assembly does not include bolts, clamps, or actuator 771300-0006 0.63 T3 5 bolt Wastegated N
771300-0005 0.82 T3 5 bolt Wastegated N
771300-0004 1.06 T3 5 bolt Wastegated N

GT3076R

Download Section

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

GT3076R

Compressor Map & Exhaust Flow Chart

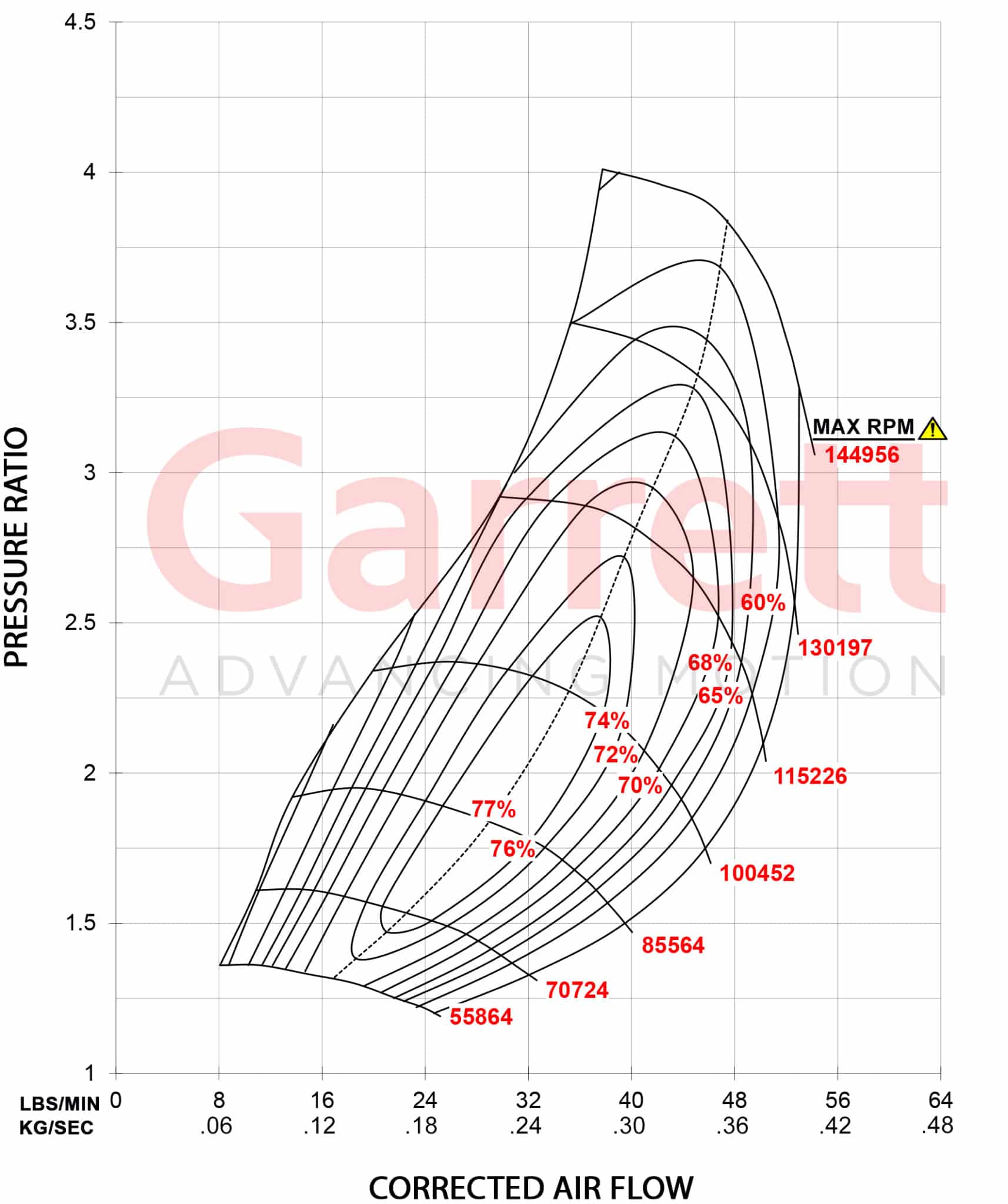

Compressor Map

Exhaust Flow Chart

About Garrett® GT Series Turbochargers

Garrett® GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.
