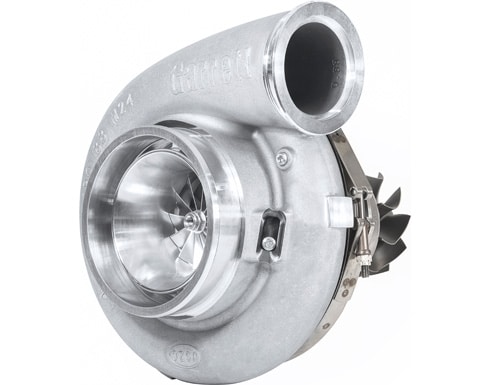

GTX5009R GEN II Turbocharger 76MM

Horsepower: 875 - 1700

Displacement: 2.5L - 10.0L

Features

  • GEN II COMPRESSOR WHEEL AERODYNAMICS
  • 76MM COMPRESSOR INDUCER | 109MM COMPRESSOR EXDUCER
  • 99MM TURBINE INDUCER | 91MM TURBINE EXDUCER
  • 15% INCREASED FLOW
  • LARGER  .88 A/R COMPRESSOR HOUSING VOLUTE
  • GTX5009R FEATURES A 109mm COMP EXDUCER ( + 1mm) AND HAS 39% LOWER INERTIA
  • SUPERCORE AND TURBINE HOUSING SOLD SEPARATELY
  • COMPATIBLE WITH GT AND GTX TURBINE HOUSINGS
  • 76MM SUPERCORE PN: 851285-5016S

WARNING: Maximum allowable turbocharger speed is 102.5krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.

Buy now

IMPORTANT PRODUCT INFORMATION

“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”

Learn More About Race Vehicle Setups

April 24, 2023

How To Select A Turbo Part 1

With over 35 Garrett turbos to choose, how do you select the right one? This provides some insight into the complicated process.

April 23, 2023

How To Select A Turbo Part 2: Calculations

Turbo any engine once you apply these calculations. Find the compressor that matches your inputs and you are on your way to turbocharging any engine

May 20, 2020

Diesel Tuning Tips From High Performance Academy

Ever wondered what’s different about tuning diesel engines? The team at HP Academy cover some of the basics in this diesel turbo tech writeup

May 29, 2020

Turbo Tech: Compound Turbo Systems

Compound turbo systems use different size turbos and operate in series where the first turbo feeds the second turbo boosted air and the effect is compounded

July 21, 2019

Dai Yoshihara Drifts Into 3rd Place With Garrett GTX5009R Gen II

Dai Yoshihara Drifts into 3rd place at the fifth round Formula Drift in Seattle, Washington. The Subaru BRZ has an LS engine platform that produces…

August 2, 2019

Old Smokey F-1: How To Make Clouds With 1400 Horsepower

How does one start off with a $225 Craigslist find and end up with a race vehicle worth well over $200,000? This is the story…

April 13, 2022

Salty Box Racing’s Garrett Turbocharged 1,200+ HP Dodge Ram 2500 “Sooty” Sets 230+mph Salt Flat Records

Salty Box Racing’s Garrett turbo Dodge Ram 2500 “Sooty” makes 1,200+ hp and sets records on the salt flats at 230+ mph.

GTX5009R GEN II 76mm

Reference Data

GTX5009R GEN II Compressor Turbine
HP: 875-1700  Disp: 2.5L-10.0L Inducer Exducer Trim A/R Inducer Exducer Trim
Supercore PN
851285-5016S 76mm 109mm 49 0.88 99mm 91mm 84
851285-5017S 80mm 109mm 54 0.88 99mm 91mm 84
Turbine Kits: GTX50 PN A/R Inlet Outlet Wastegate Divided
Interchangeable with GT|GTX 5008 5009 5018 5020 Supercores 761208-0030 0.96 T6 V-Band Free Float N
761208-0032 1.23 T6 V-Band Free Float N
761208-0033 1.39 T6 V-Band Free Float N

GTX5009R GEN II 76mm

Download Section

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

GTX5009R GEN II 76mm

Compressor Map & Exhaust Flow Chart

Compressor Map

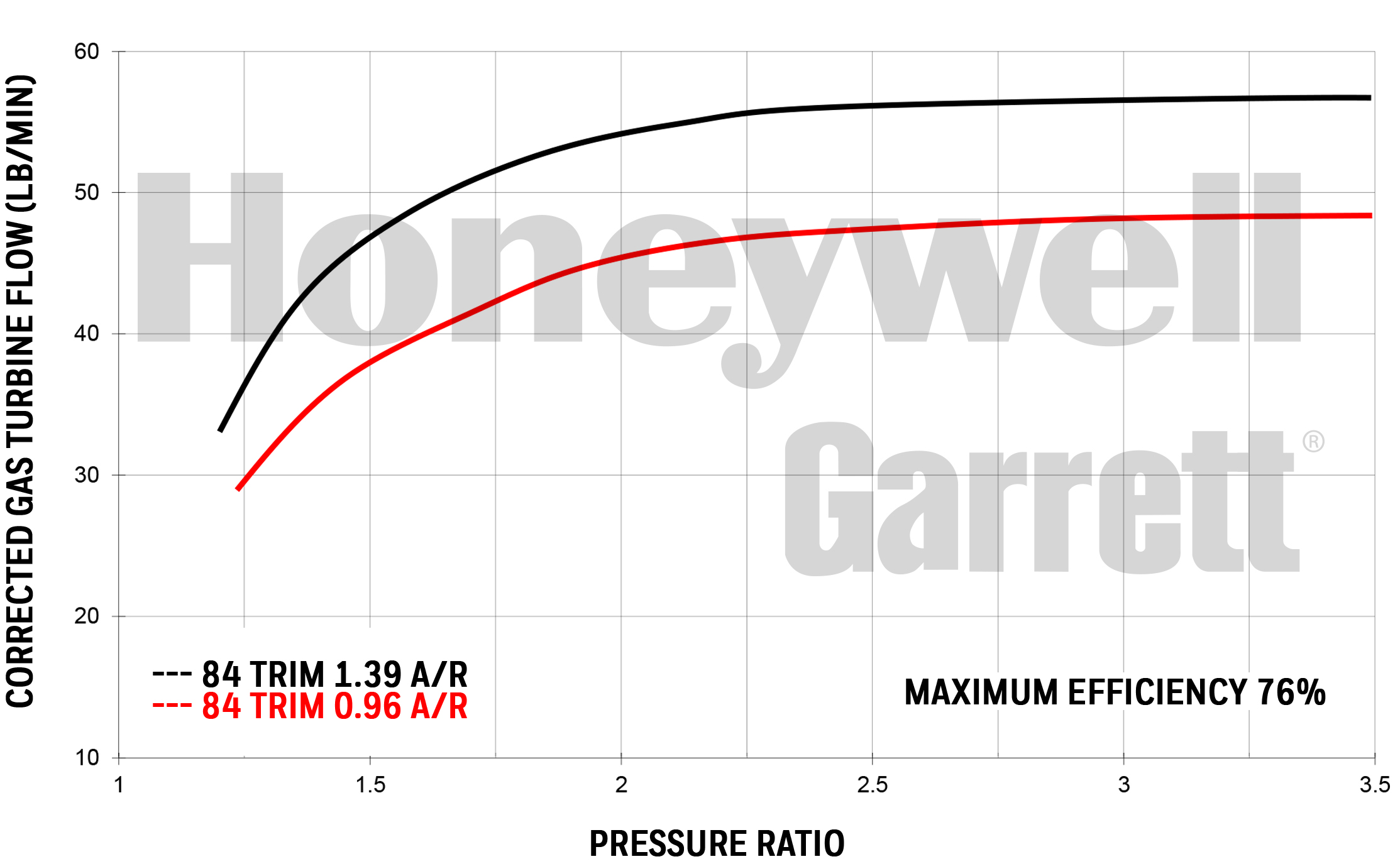

Exhaust Flow Chart

Gen II Compressor Wheel Dimensions and Aerodynamics

GTX5009R Available in 76mm and 80mm inducer diameters

  • Comp exducer is now 109mm (+1mm vs Gen I)
  • Gen II wheel produces 15% more air flow
  • 39% lower inertia

Larger Comp Exducer on Gen II

.88 A/R Compressor Housing

Gen II features a larger .88 A/R (Gen I .69 A/R)

  • This helps maximize the power capacity of the new compressor wheel.
  • This is also the same compressor housing used on the GTX5533R (85mm and 88mm)

Larger Compressor Volute

.88 A/R Compressor Housing

Gen II features a larger .88 A/R compressor housing that will cause an increase in outline dimensions only on the cold side of the turbo.

  • +6mm longer on the comp outlet Fig. A
  • +10mm longer on the comp inlet Fig. B
  • Comp outlet diameter 107mm (same)
  • Not outline interchangeable with gen 1

Dimensional Compressor Measurements vs. Gen I

Additional Features

  • Lightweight billet backplate
  • (NEW) Backplate to compressor housing O-ring
  • Speed sensor port compatible only with new flange style speed sensors: (pn 781328-0003 Street Kit | pn 781328-0004 Pro)

Compatible only with New G Series Speed Sensor
