GT2871R Turbocharger

Horsepower: 280 - 475

Displacement: 1.8L - 3.0L

Features

  • ORIGINAL GT SERIES AERODYNAMICS
  • 53mm TURBOCHARGER COMPRESSOR OPTION
  • INTERNALLY WASTEGATED TURBINE HOUSING OPTIONS
  • NON WASTEGATED TURBINE HOUSINGS AVAILABLE
  • SOLD AS A COMPLETE TURBO (INCLUDES TURBINE KIT & ACTUATOR)
  • BALL BEARING CONFIGURATION WITH WATER COOLED CHRA
  • V-BAND TURBINE HOUSING OPTIONS

Learn More About Turbos



GT2871R

Reference Data

The latest Garrett technologies featuring many advanced features.

GT2871R Compressor Turbine
HP: 280-475              Disp: 1.8L-3.0L Inducer Exducer A/R Inducer Exducer Trim A/R
Turbo PN: 836026-5020S 53mm 71mm 0.60 54mm 47mm 76 0.86
Turbo PN: 836026-5021S 53mm 71mm 0.60 54mm 47mm 76 0.64
Turbine Kits: GT28 PN A/R Inlet Outlet Wastegate Divided
Kits not directly interchangable.
Modifications required to the exhaust system to fit.
827690-0005 0.64 T25 5-Bolt Wastegated N
827690-0004 0.86 T25 5-Bolt Wastegated N
827690-0001 0.57 V-Band V-Band Free Float N
827690-0002 0.72 V-Band V-Band Free Float N

GT2871R

Download Section

The latest Garrett technologies featuring many advanced features.

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

GT2871R

Compressor Map & Exhaust Flow Chart

The latest Garrett technologies featuring many advanced features.

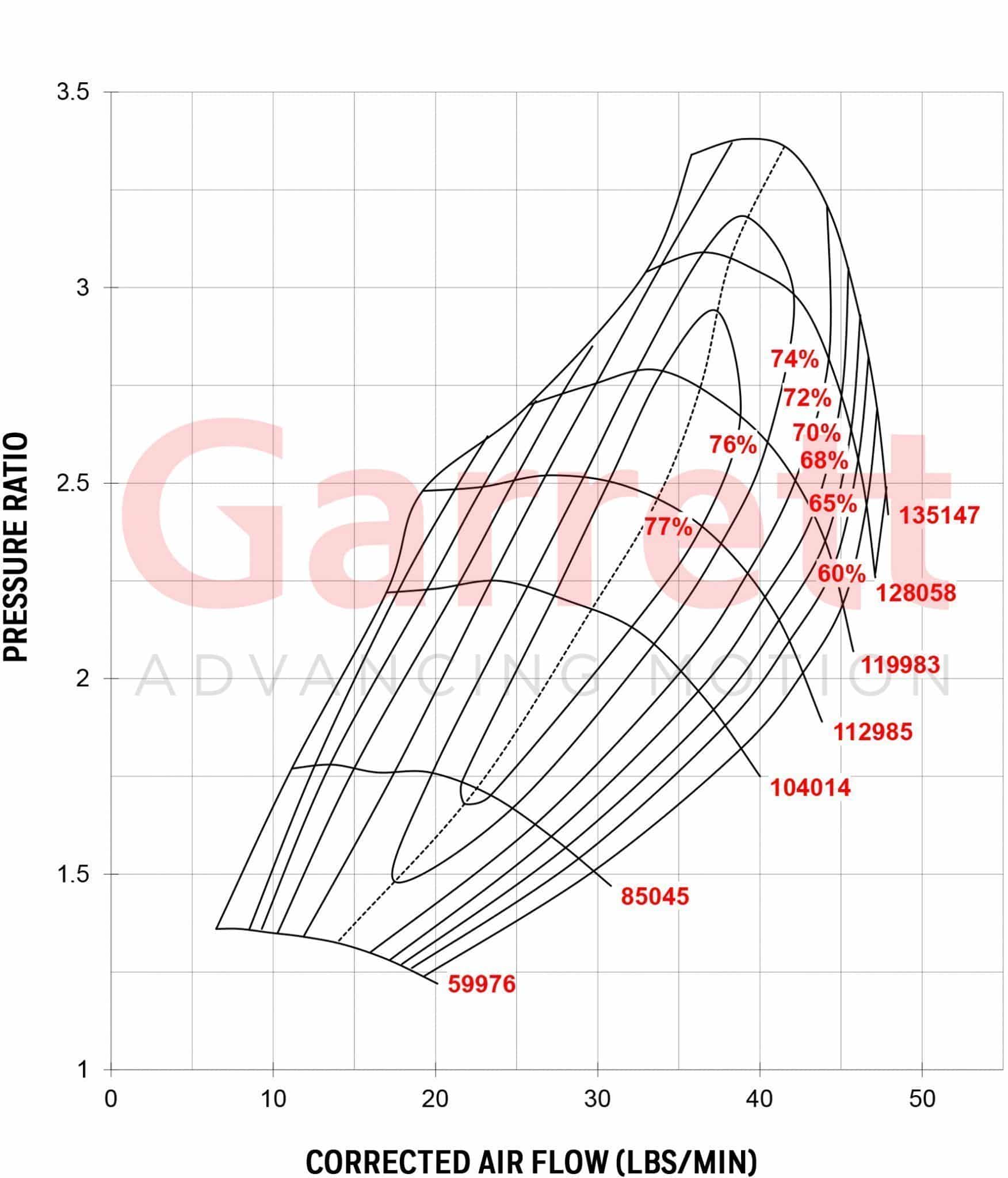

Compressor Map

Exhaust Flow Chart

About Garrett® GT Series Turbochargers

Garrett® GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.
