G-Series G57-3000

Horsepower: 1400 - 3000

Displacement: 3.0L - 12.0L

Features

• Supports up to 3000 horsepower
• 88mm, 94mm, 98mm, 102mm, 106mm compressor options
• 118mm inducer turbine wheel
• 28% more turbine flow (compared to GTX) see graph below
• One-piece aluminum center housing
• 16mm dual ceramic ball bearing cartridge
• Outline interchangeable with GTX Gen II turbos
• Stainless Steel turbine kit sold individually. 1.09 A/R, 1.25 A/R, 1.41 A/R

  • G57-2000 (88mm Compressor Inducer) 880547-5008S
  • G57-2350 (94mm Compressor Inducer) 880547-5009S
  • G57-2550 (98mm Compressor Inducer) 880547-5010S
  • G57-2750 (102mm Compressor Inducer) 880547-5006S
  • G57-3000 (106mm Compressor Inducer) 880547-5007S



Learn More About Race Vehicle Setups



G-Series G57-3000

Reference Data

The latest Garrett technologies featuring many advanced features.



G Series G57 Compressor Turbine
Super Core PN Model Inducer Exducer Trim A/R Inducer Exducer Trim
880547-5008S G57-2000 88mm 133mm 44 0.88 118 112 90
880547-5009S G57-2350 94mm 133mm 50 0.96 118 112 90
880547-5010S G57-2550 98mm 133mm 54 0.96 118 112 90
880547-5006S G57-2750 102mm 144mm 50 0.96 118 112 90
880547-5007S G57-3000 106mm 144mm 54 0.96 118 112 90
Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim
Super Core and Turbine Kit Sold Separately 761208-0066 1.09 V-band V-Band Free Float N 90
761208-0067 1.25 V-band V-Band Free Float N 90
761208-0068 1.41 V-Band V-Band Free Float N 90

G-Series G57-3000

Download Section

The latest Garrett technologies featuring many advanced features.

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

G-Series G57-3000

Compressor Map & Exhaust Flow Chart

The latest Garrett technologies featuring many advanced features.

Compressor Map

Exhaust Flow Chart

G Series: A Turn Ahead Of The Competition

G Series G57 turbochargers feature the latest innovations in turbocharger technology. Advanced compressor and turbine aero offer a range of high horsepower performance boosting solutions for 3.0L – 12.0L engine platforms. 88mm, 94mm, 98mm, 102mm, 106mm compressor inducer sizes produce up to 3000 horsepower for today’s top drag race eams.

Turbine Stage:

The newly engineered turbine wheel with optimized G Series aerodynamics increases flow up to 28% (Compared to GTX Gen II, see graph below). The large 90 trim turbine stage measures 118mm at the inducer and 112mm at the exducer. G57 is offered with three stainless steel V-band turbine housings in 1.09 A/R, 1.25 A/R, and 1.41 A/R.

Part Numbers

  • 1.09 A/R: 761208-0066 (Stainless Steel V-band inlet & Outlet)
  • 1.25 A/R: 761208-0067 (Stainless Steel V-band inlet & Outlet)
  • 1.41 A/R: 761208-0068 (Stainless Steel V-band inlet & Outlet)

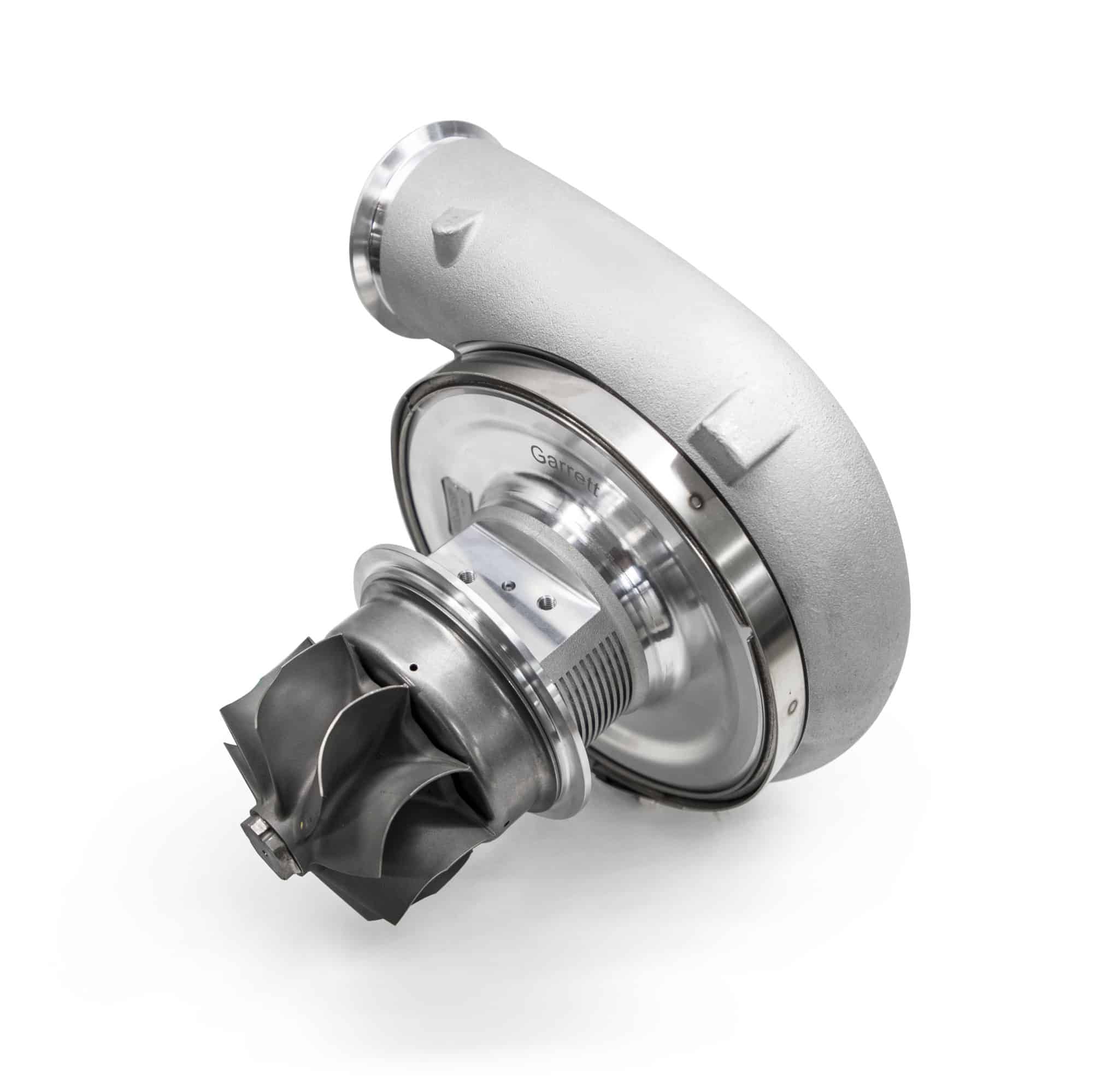

Center Housing:

One-piece aluminum center housing reduces supercore weight. The center housing is air cooled, features a 16mm dual ceramic ball bearing for premium rotor dynamics, and retains the oil inlet and outlet specifications from previous GTX designs.

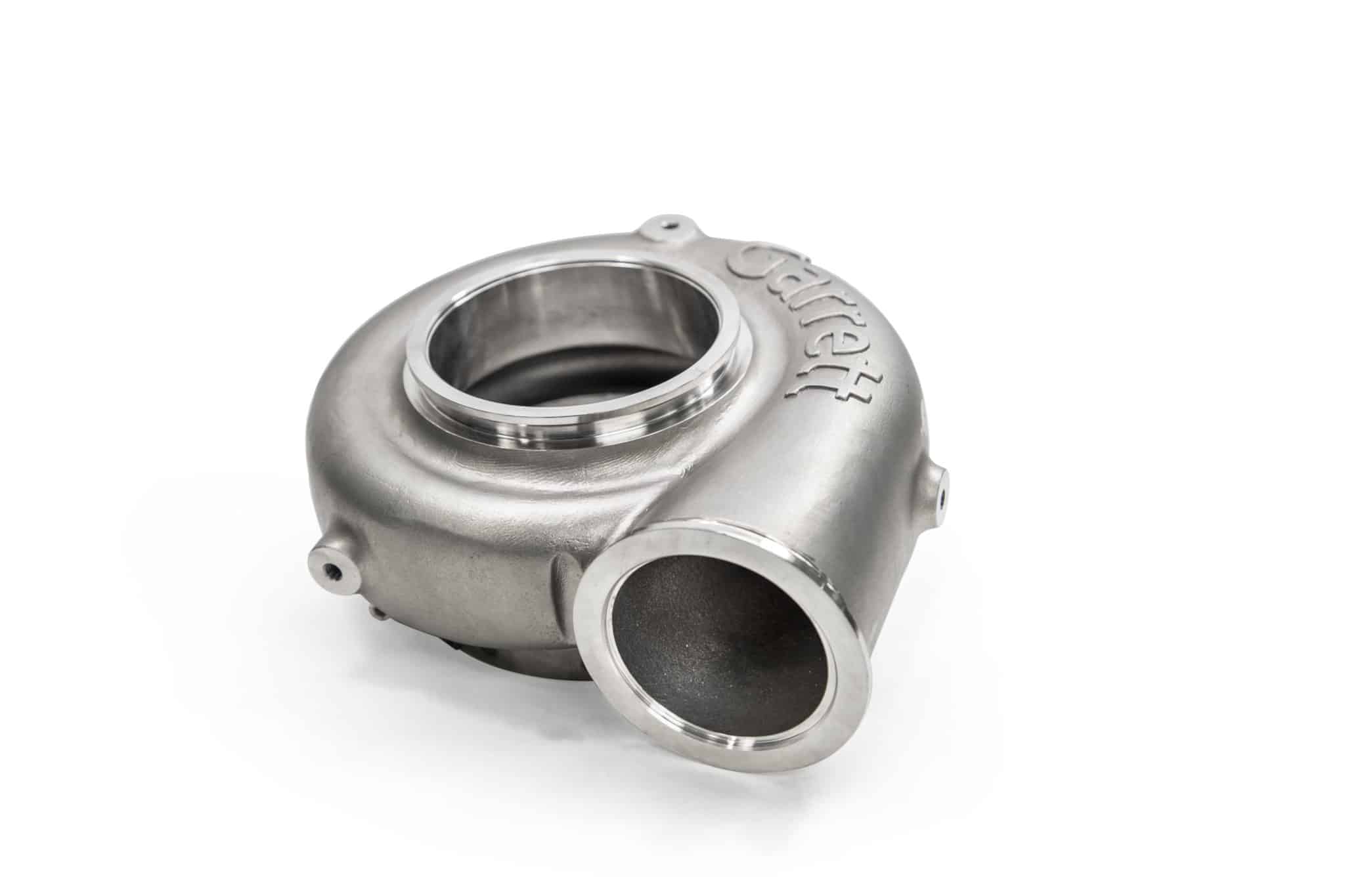

Compressor Stage:

Garrett G57 compressor stages are offered in 88mm, 94mm, 98mm, 102mm, and 106mm inducer sizes each with their own horsepower ratings indicated in the model name.

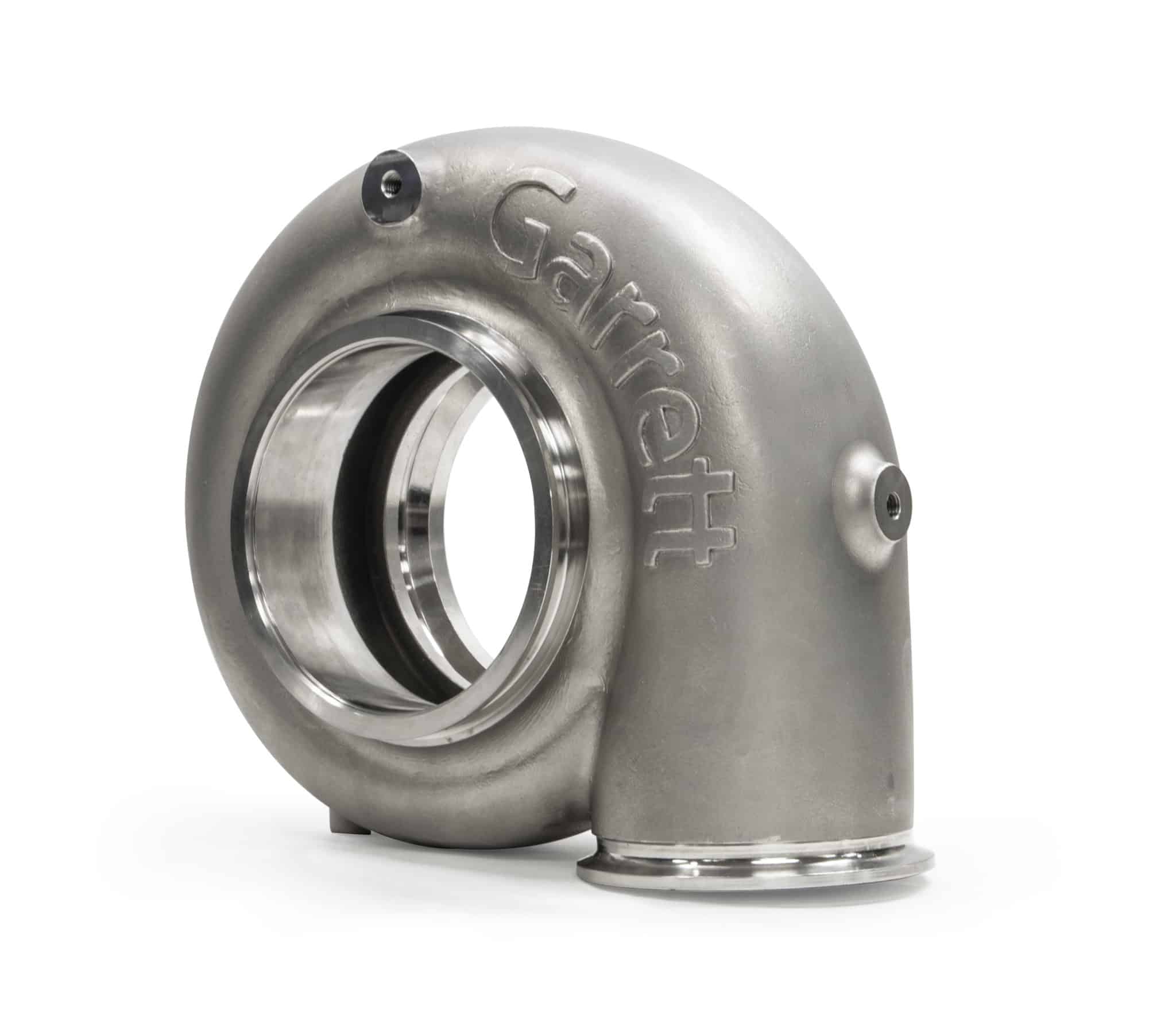

Turbine Housings:

Stainless steel turbine housings

Short outlet (SFI certified not available)

(3) Turbine configurations: 1.09 A/R, 1.25 A/R, 1.41 A/R

V-band inlet: 4.25 inch (108mm) (same as GTX55)

V-band outlet: 5.15 inch (131mm) (same as GTX55)

Dual Ceramic Ball Bearing

An oil restrictor is recommended for optimal performance with ball bearing turbochargers.The G57 turbochargers utilize a massive 16mm dual ball bearing cartridge with steel cages. An oil pressure of 40 – 45 psi at maximum engine speed is recommended to prevent damage to the turbocharger’s internals. In order to achieve this pressure, a restrictor with a 0.040” orifice will normally suffice, but you should always verify the oil pressure entering the turbo after the restrictor in insure that the components are functioning properly. Recommended oil feed is -3AN or -4AN line or hose/tubing with a similar ID. As always, use an oil filter that meets or exceeds the OEM specifications.
