GARRETT G45-1350 72MM

Horsepower: 650 - 1350

Displacement: 2.0L - 8.0L

Features

• G45-1350 compressor aero increases flow up to 15% (compared to GTX4502R 72mm)
• 72mm compressor inducer | 102mm compressor exducer
• Dual ceramic ball bearing with steel cages
• G Series turbine aero increases flow 14% (compared to GTX45R)
• Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
• Lightweight aluminum backplate
• Fully machined speed sensor and pressure ports
• Water fittings included with super core
• Stainless steel turbine housings available in T4 divided inlet
• Sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter

G45-1350 Part Number: 888169-5004S

Learn More About Race Vehicle Setups

G-Series G45-1350 72mm

Reference Data

The latest Garrett technologies featuring many advanced features.

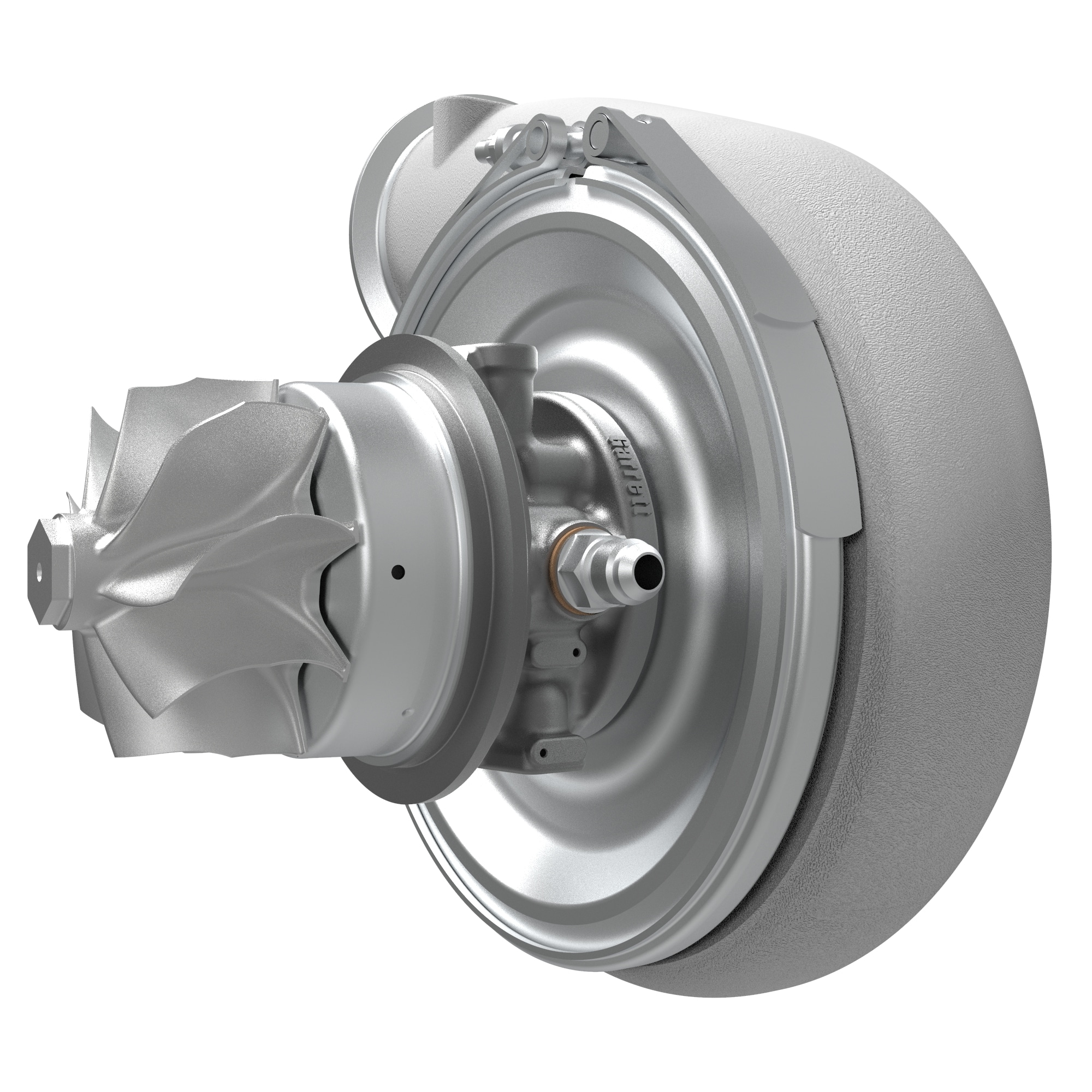

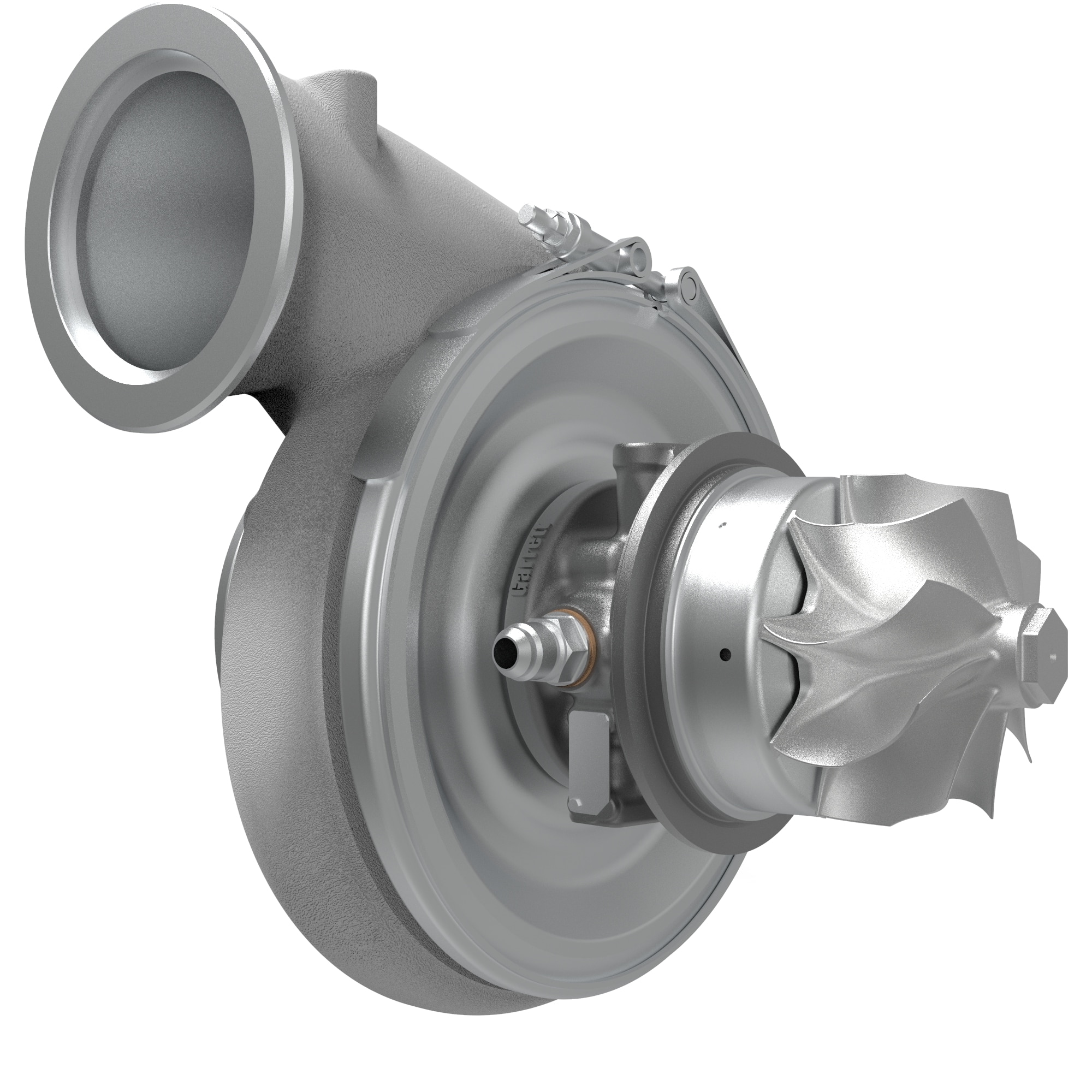

G45-1350 Supercore Reference Data

SuperCore PN: 888169-5004S

Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
72mm 102mm 44 0.85 89mm 82mm 84

G45 Turbine Housing Kits Turbine Kit PN A/R Inlet Outlet Wastegate Divided
Free float / non-wastegated turbine housing kits are sold
independently of the super core
757707-0023 1.01 T4 V-Band Free Float Y
757707-0024 1.15 T4 V-band Free Float Y
757707-0025 1.28 T4 V-band Free Float Y
757707-0026 1.44 T4 V-band Free Float Y

G-Series G45-1350 72mm

Download Section

The latest Garrett technologies featuring many advanced features.

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View

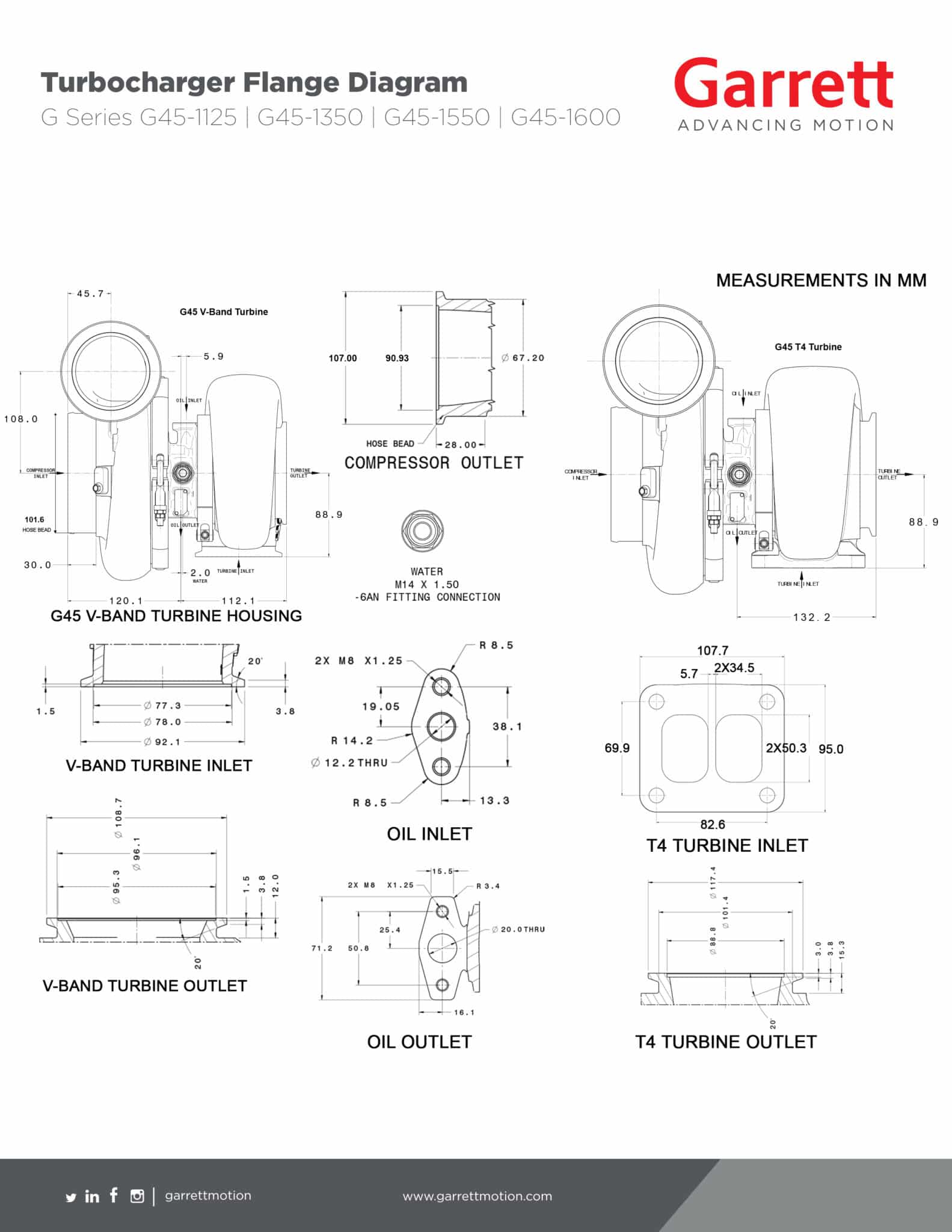

Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

G-Series G45-1350 72mm

Compressor Map & Exhaust Flow Chart

The latest Garrett technologies featuring many advanced features.

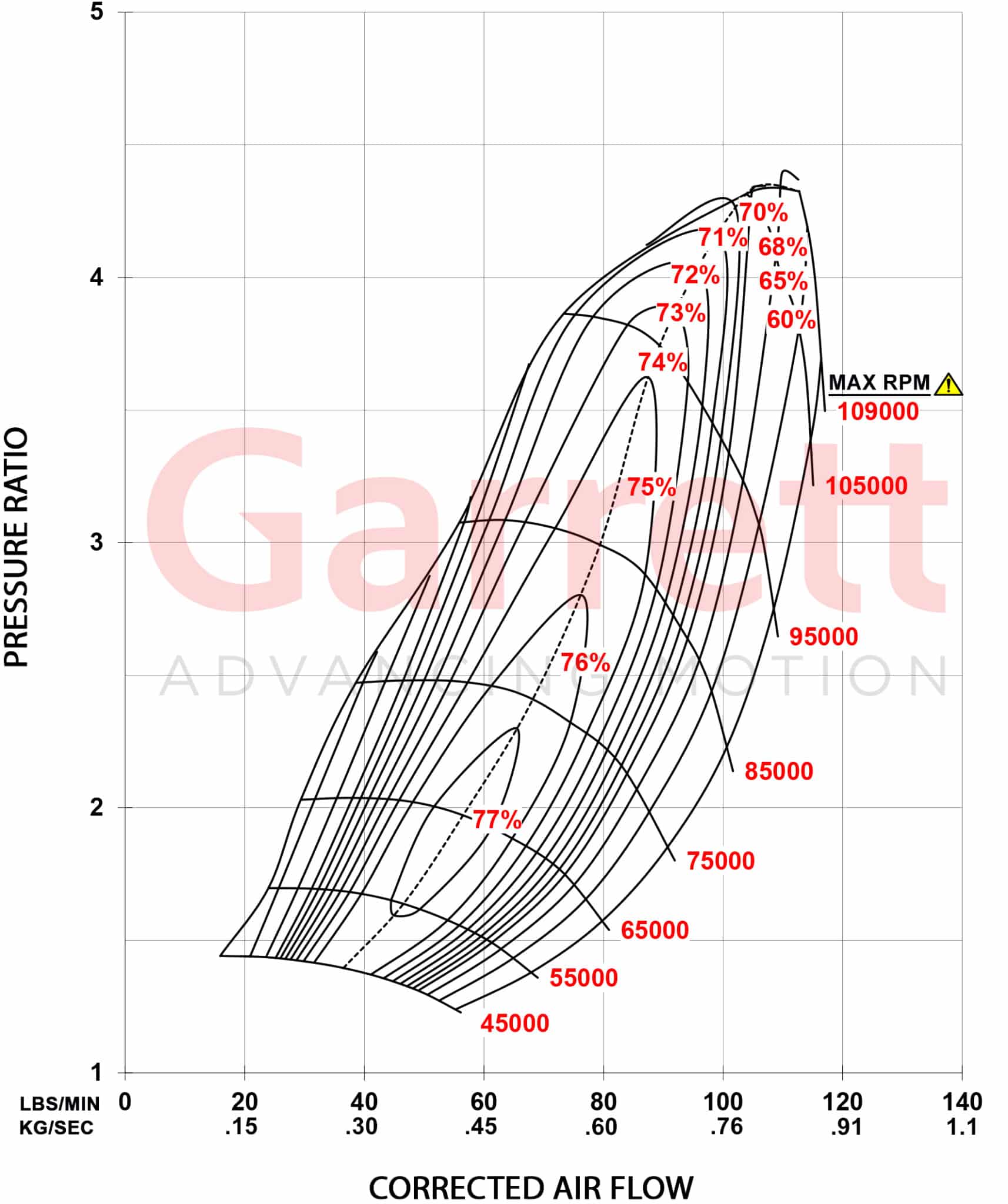

Compressor Map

Exhaust Flow Chart

Additional G45 Configurations

G Series G45 is available in 2 additional compressor inducer sizes. G45-1125 (67mm) and G45-1500 (76mm) You can click the hyperlinks to go directly to those product pages. All G45 models are interchangeable meaning they are the same size and can be swapped out without having to reconfigure any other turbo kit parts.



G45 Turbine Housing Kits

G45 turbine housing kits are available in four A/R. 1.01 A/R | 1.15 A/R | 1.28 A/R | 1.44 A/R stainless steel housings with T4 divided inlet flange. Our 1.44 A/R T4 turbine housing flows 57 LBS/MIN of air which is a 14% increase over the GTX45 turbine wheel.
