2013 – 2018 Ford 2.0L EcoBoost Focus ST | Escape / Kuga | Fusion | Taurus | MKC | MKT | MKZ

Description

POWERMAX™ DIRECT FIT PERFORMANCE TURBOCHARGER
2013 – 2018 Ford 2.0L EcoBoost Stage 1 Upgrade Supports Up To 350 BHP (260kW)
Focus ST | Escape / Kuga | Fusion | Taurus | MKC | MKT | MKZ

Part number: 886195-5001S  Supports up to 350 BHP \ (260kW)*

The Garrett PowerMax™ Stage 1 turbocharger upgrade for the 2013 – 2018 2.0L Ford EcoBoost engine platform is engineered to increase engine performance capability while maintaining OEM installation specifications. This direct drop-in turbocharger provides up to 16% more flow than OEM and will support up to 350 BHP* (260kW). Improvements in compressor efficiency and flow can be attributed to the 52mm fully-machined compressor wheel with advanced aero design. Inconel alloy turbine wheel and stainless steel turbine housings are rated for up to 950° C. This turbocharger kit comes fully assembled, calibrated, and is outline interchangeable with the OE hardware to ensure a perfect fit every time.

Part Number 886195-5001S
Model Year Body & Trim
Escape/ Kuga 2014 – 2016 SE, Titanium
Focus 2013 – 2018 ST
Fusion 2013 – 2016 SE, Titanium
Police Sedan 2014 – 2018 Base
Taurus 2013 – 2017 Limited, SE, SEL
MKC 2015 – 2017 Base, Black Label, Premiere, Reserve, Select
MKZ 2013 – 2016 Base, Black Label
Engine
Type 2.0L EcoBoost
Fuel Gas
Cylinders 4

WARNING: The maximum allowable turbocharger speed is 214.9 krpm. The use of this product above 214.9krpm is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0001 (includes sensor and gauge), and 781328-0002 (includes speed sensor). Speed sensors sold separately.

*Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The target power has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power.

IMPORTANT PRODUCT INFORMATION

“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”

2013 – 2018 Ford 2.0L EcoBoost Focus ST | Escape / Kuga | Fusion | Taurus | MKC | MKT | MKZ

Compressor Map & Exhaust Flow Chart

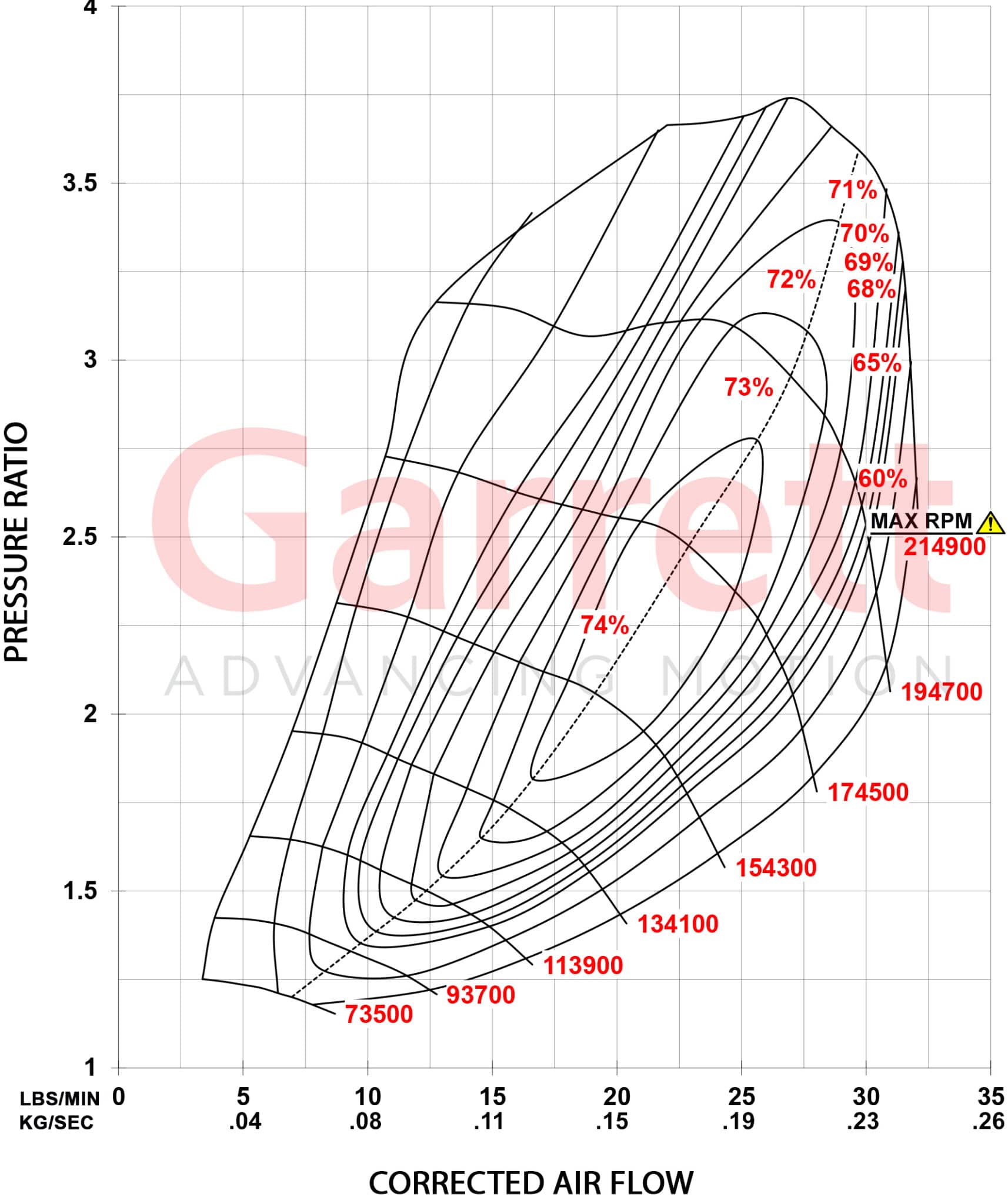

Compressor Map

2013 – 2018 Ford 2.0L EcoBoost Focus ST | Escape / Kuga | Fusion | Taurus | MKC | MKT | MKZ

Performance Comparison Sheet

PowerMax PN 886195-5001S
Interchangeable with OE PN CJ5E-6K682-C | CJ5E-6K682-E | CJ5E-6K682-F | CJ5Z-6K682-C | CJ5Z-6K682-E | CJ5Z-6K682-F
Make Ford
Model Focus ST | Escape / Kuga | Fusion | Taurus | MKC | MKT | MKZ
Year 2013 – 2018
Type 2.0L EcoBoost
Fuel Gasoline
Emissions N/A

2013 – 2018 Ford 2.0L EcoBoost Focus ST | Escape / Kuga | Fusion | Taurus | MKC | MKT | MKZ

Download Section





Item Link
Flyer Click to download
