Nissan 400Z 3.0L V6 VR30DDTT Twin-Turbo (2022+)

Description

POWERMAX DIRECT-FIT PERFORMANCE TURBOCHARGER

Nissan 400Z 3.0L V6 VR30DDTT Twin-Turbo (2022+)

EASY INSTALLATION & INTEGRATION
– Direct-fit, bolt-on performance upgrade with calibrated actuator for hassle-free installation

PROVEN PERFORMANCE GAINS
+12% compressor flow compared to the OEM turbochargers to support up to 560 BHP | 412 kW

OEM-LEVEL QUALITY
– Engineered to OEM standards for durability, reliability, and long-term performance

Part Number: 959782-5001S (LH & RH turbo)

IMPORTANT PRODUCT INFORMATION

“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”

Why Choose Garrett

Trust the name that’s been powering innovation for over 70 years. Garrett PowerMax™ turbochargers are engineered with OEM precision and designed to deliver improved performance and response for daily drivers and spirited driving alike. With more than 130 million vehicles powered globally, Garrett delivers performance, reliability, and innovation you can trust.

Garrett aftermarket turbochargers OEM-engineered quality

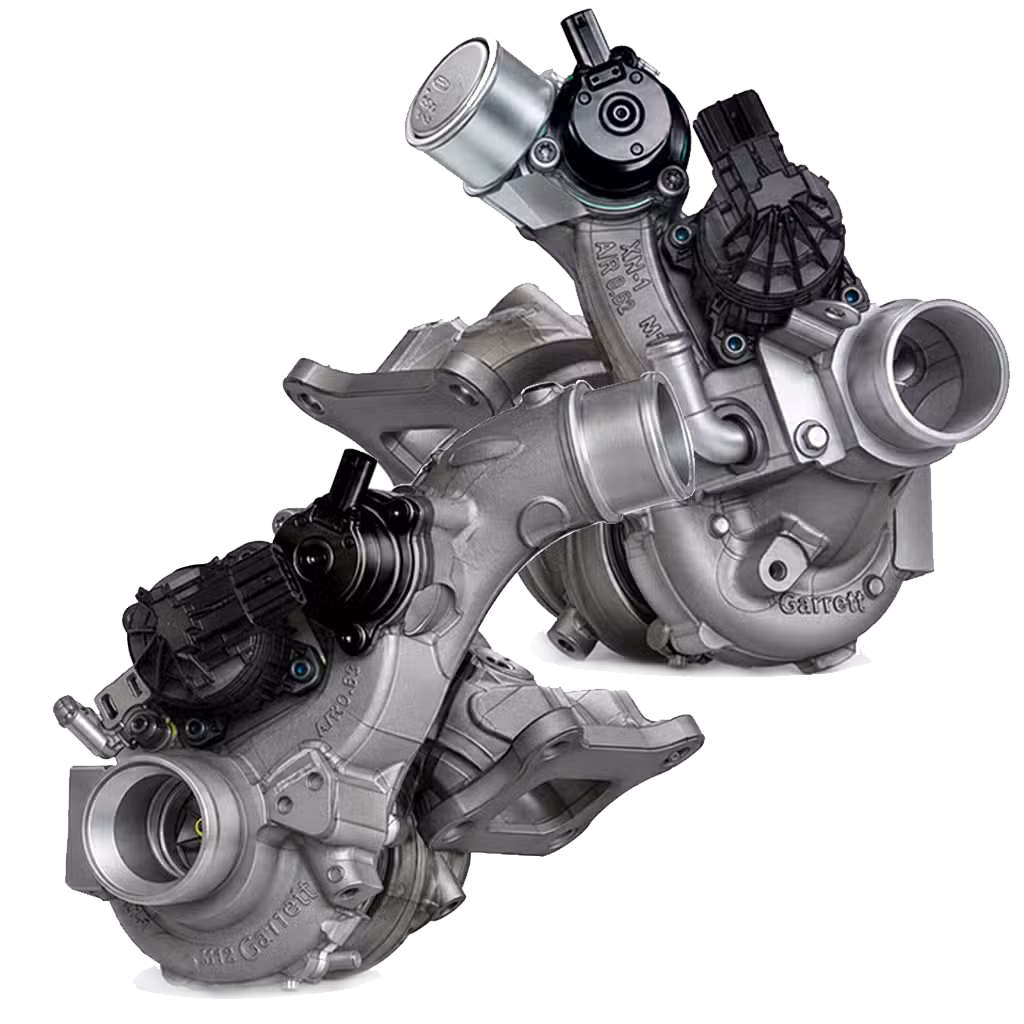

Complete Turbocharger Assembly

The Garrett PowerMax™ direct-fit turbocharger for the 2022+ Nissan 400Z 3.0L V6 VR30DDTT Twin-Turbo  is engineered as a complete, direct-fit replacement for the factory turbochargers. Each assembly includes a calibrated actuator and matches the original OEM footprint, allowing reuse of factory mounting locations, oil and coolant connections, and intake and exhaust interfaces for straightforward installation.

PowerMax Turbocharger vs OEM Turbocharger

The Garrett PowerMax™ turbocharger is engineered as an OEM-plus upgrade, designed to retain factory fitment while increasing airflow and overall performance capability compared to the original equipment turbocharger.

Feature OEM Turbocharger Garrett PowerMax™ Turbocharger
Fitment Factory-installed Direct-fit OEM replacement
Installation Factory Bolt-on, no fabrication required
Power Capability OEM output Supports higher power potential
Turbo Assembly OEM configuration Complete upgraded assembly
Actuator OEM Included, calibrated actuator
Drivability OEM OEM-like drivability retained
Reliability OEM durability OEM-engineered for increased performance

Performance Capability Explained

The horsepower capability referenced for this turbocharger is based on laboratory compressor flow testing and represents the total performance capability of the turbocharger itself. Actual performance results will vary depending on vehicle configuration, supporting modifications, and ECU tuning or calibration.

FAQ

Where can I buy? Use the Garrett Dealer Locator to find an authorized retailer.

Will I need tuning? Performance results are highly dependent on your vehicle’s modifications and tuning/calibration. The horsepower values referenced are based on laboratory flow testing and represent total turbo capability. ECU calibration may be required depending on your setup and performance goals.

Nissan 400Z 3.0L V6 VR30DDTT Twin-Turbo (2022+)

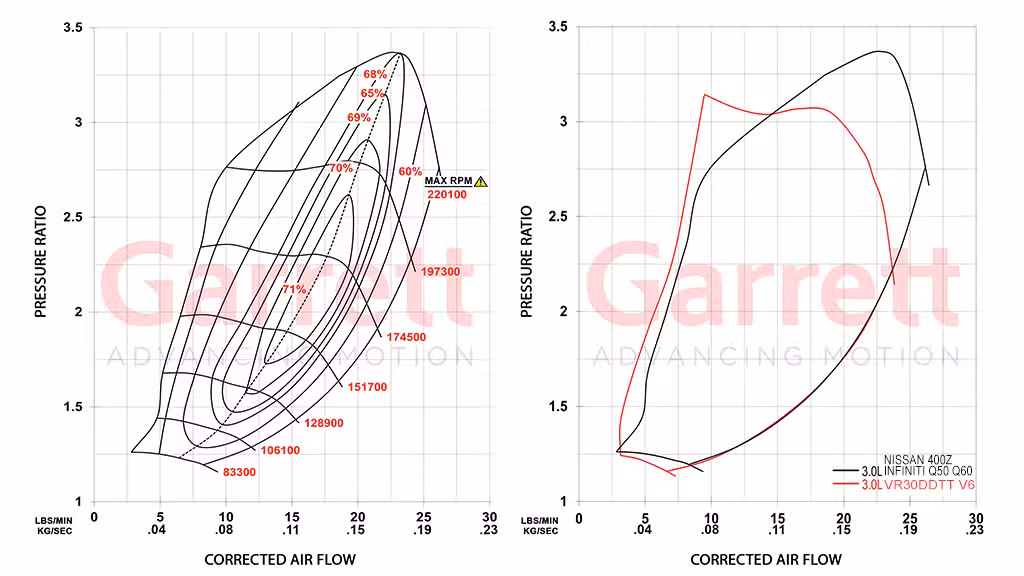

Compressor Map & Exhaust Flow Chart

Compressor Map

Nissan 400Z 3.0L V6 VR30DDTT Twin-Turbo (2022+)

Performance Comparison Sheet

TURBOCHARGER DATA
Kit Part Number
(LH & RH Turbo)
Power Turbo
Model
Comp
IndUCER
Comp
ExdUCER
Turb
IndUCER
Turb
ExdUCER
959782-5001S 560 BHP
412 kW
MGT1446Z 36mm 46mm 39mm 36mm

Turbocharger Kit PN contains turbochargers 955654-5001S (LH) and 955655-5001S (RH)

VEHICLE APPLICATION DATA
Year Region Make Model Trim Engine
2022+ Japan Nissan Fairlady Z (RZ34) All 3.0L VR30DDTT
Twin-Turbo V6
2023+ North America Z (RZ34) All
Australia & New Zealand Z (RZ34) All
EMEA Z / Fairlady Z (RZ34) Imported Vehicles
PART NUMBER CROSS REFERENCE
Side OEM PN Garrett OES
LH 14411-6GP0B | 14411-6GP1B
14411-6GP1D | 14411-6GP2B
893067-5002 | 893067-5003
893067-5004 | 893067-5006
RH 14411-6GP2B | 14411-6GP0A
14411-6GP1A | 14411-6GP1D
893062-5002 | 893062-5003
893062-5004 | 893062-5005

Nissan 400Z 3.0L V6 VR30DDTT Twin-Turbo (2022+)

Download Section



Item Link
Flyer Click to Download
