GT3071R Turbocharger

Horsepower: 280 - 480

Displacement: 2.5L - 3.5L

Features

  • ORIGINAL GT SERIES AERODYNAMICS
  • 53mm TURBOCHARGER COMPRESSOR OPTION
  • INTERNALLY WASTEGATED TURBINE HOUSING
  • NON WASTEGATED TURBINE HOUSINGS AVAILABLE
  • BALL BEARING CONFIGURATION WITH WATER COOLED CHRA
  • V-BAND TURBINE HOUSING OPTIONS

GT3071R

Reference Data

The latest Garrett technologies featuring many advanced features.

Turbocharger Part Number Chart
Super Core Reference Data Compressor Turbine
Super Core PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim
836028-5001S 836000-0002 53mm 71mm 56 0.50 60mm 55mm 84
836028-5002S 836000-0002 53mm 71mm 56 0.50 60mm 55mm 84
836028-5004S 836000-0001 53mm 71mm 56 0.50 60mm 55mm 84
836028-5005S 836000-0001 53mm 71mm 56 0.50 60mm 55mm 84
Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim
Super Core and Turbine Kit Sold Separately 740902-0009 0.63 T3 V-Band Free Float N 84
740902-0008 0.82 T3 V-Band Free Float N 84
740902-0007 1.06 T3 V-Band Free Float N 84
740902-0036 0.61 V-Band V-Band Free Float N 84
740902-0035 0.83 V-Band V-Band Free Float N 84
740902-0034 1.01 V-Band V-Band Free Float N 84
Wastegated Turbine Assembly does not include bolts, clamps, or actuator Turbine Asbly PN A/R Inlet Outlet Wastegate Divided Trim
771300-0006 0.63 T3 5 bolt Wastegated N 84
771300-0005 0.82 T3 5 bolt Wastegated N 84
771300-0004 1.06 T3 5 bolt Wastegated N 84

GT3071R

Download Section

The latest Garrett technologies featuring many advanced features.

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

GT3071R

Compressor Map & Exhaust Flow Chart

The latest Garrett technologies featuring many advanced features.

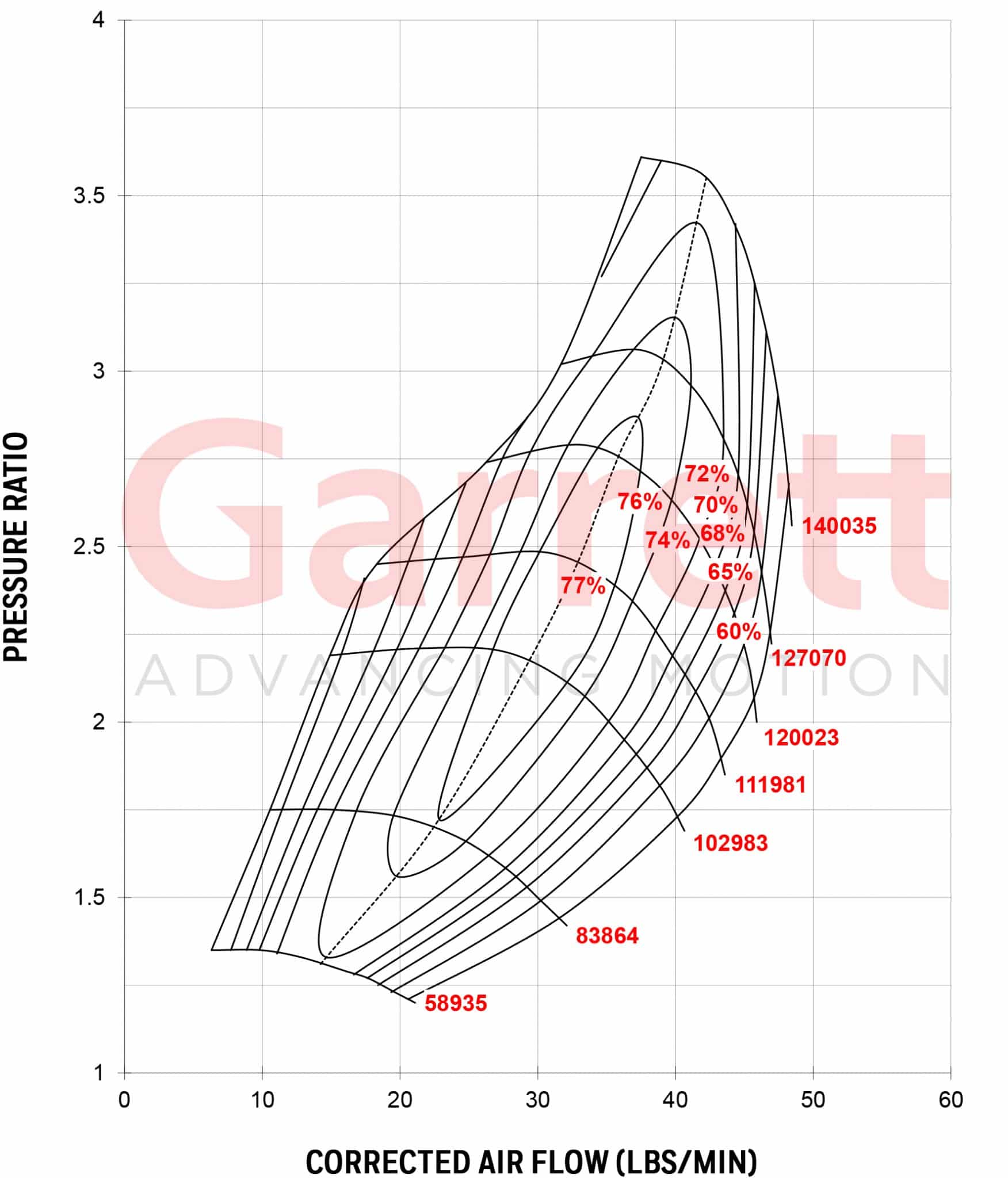

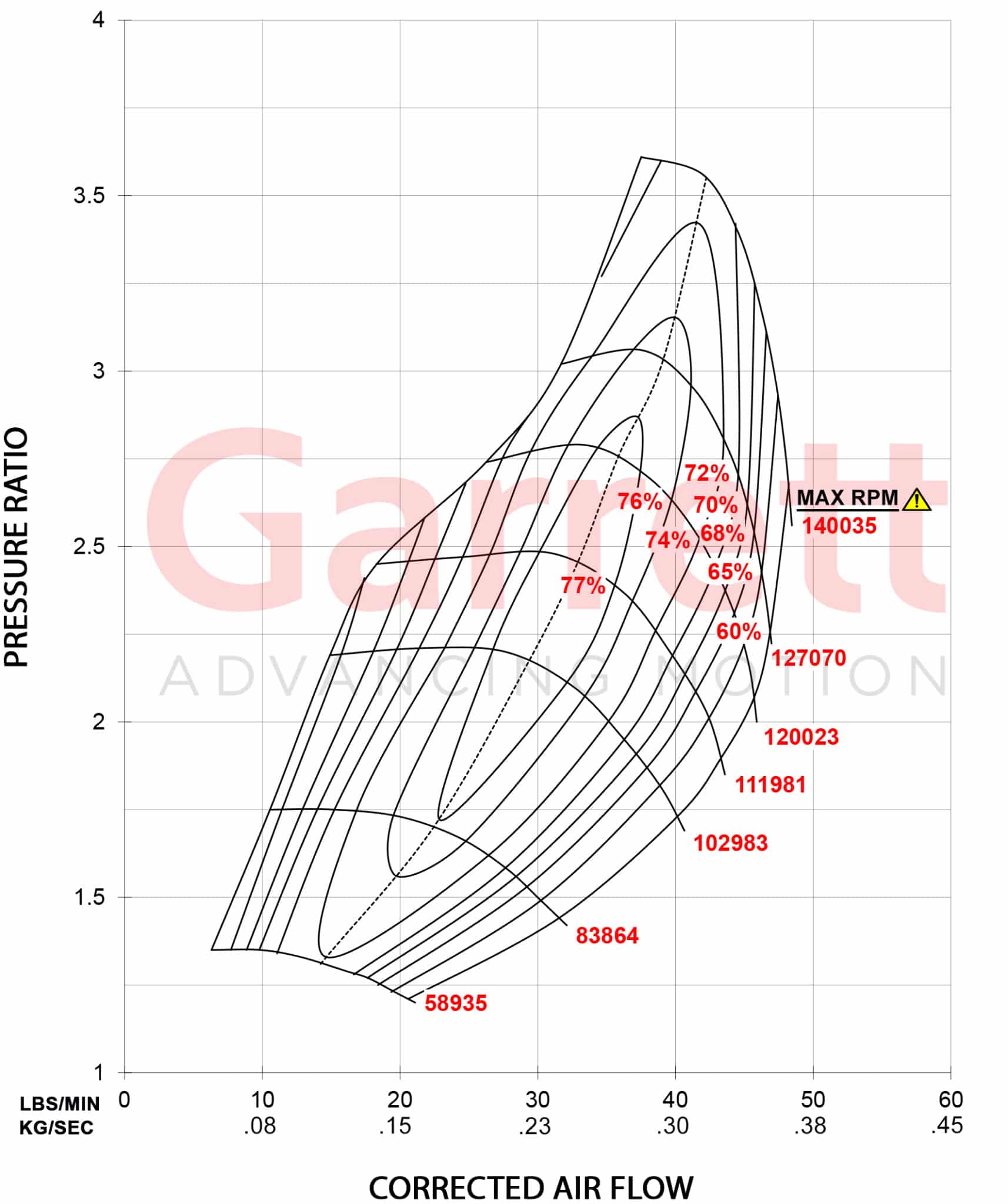

Compressor Map

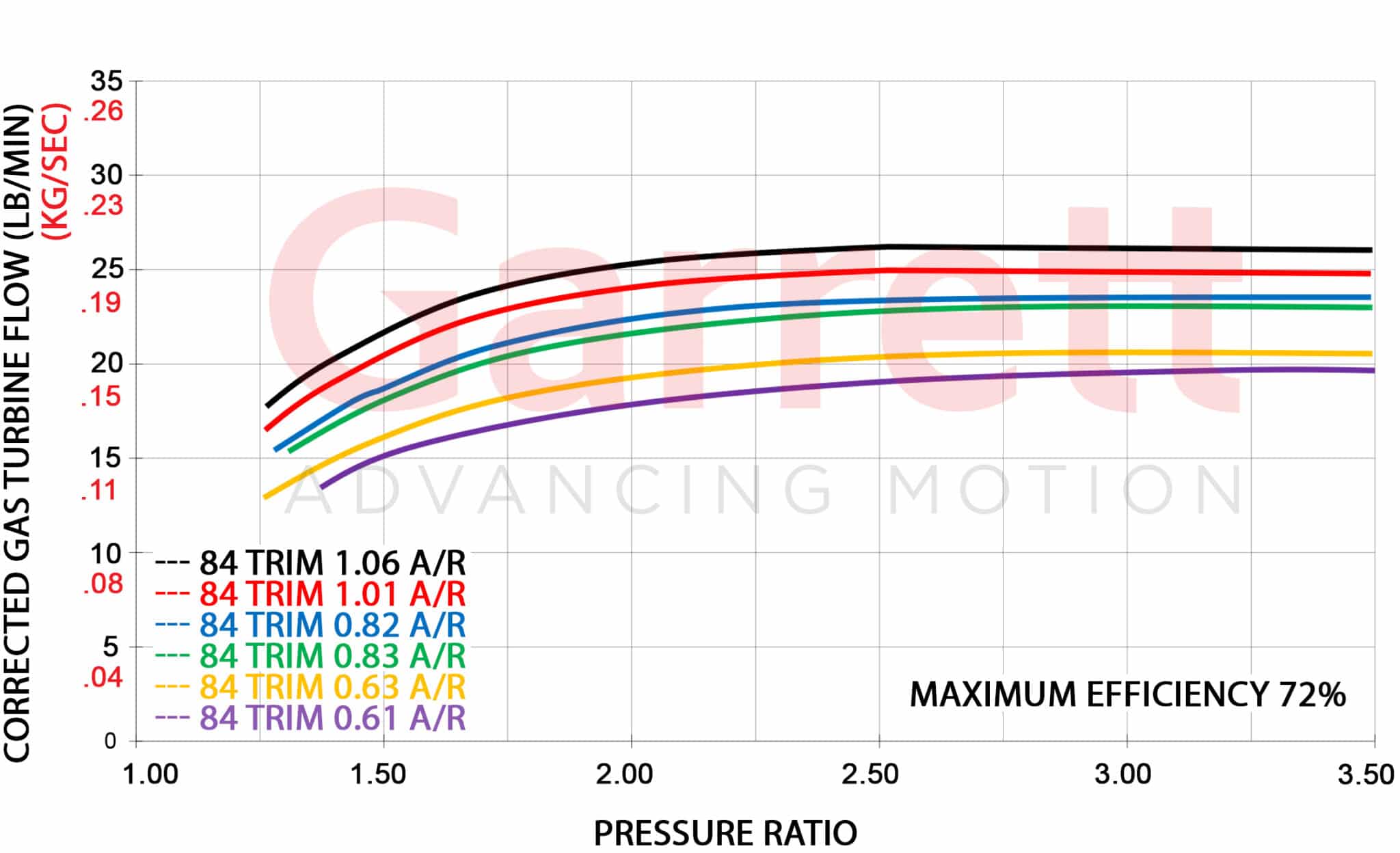

Exhaust Flow Chart

About Garrett GT Series Turbochargers

Garrett® GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.
