GT2860R Turbocharger

Horsepower: 250 - 360

Displacement: 1.8L - 3.0L

Features

  • ORIGINAL GT SERIES AERODYNAMICS
  • 47mm TURBOCHARGER COMPRESSOR OPTION
  • INTERNALLY WASTEGATED TURBINE HOUSING
  • SOLD AS A COMPLETE TURBO (INCLUDES TURBINE KIT & ACTUATOR)
  • BALL BEARING CONFIGURATION WITH WATER COOLED CHRA
  • V-BAND TURBINE HOUSING OPTIONS
  • BOLT-ON UPGRADE FOR NISSAN RB26DETT

GT2860R

Reference Data

The latest Garrett technologies featuring many advanced features.

Turbocharger Part Number Chart

Turbo Reference Data Compressor Turbine
Turbo PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim A/R
836026-5005S 835998-0006 47mm 60mm 62 0.60 54mm 47mm 76 0.64
Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim
Additional Turbine Housing Options
(Additional housings are not directly interchangeable and will require modifications to the exhaust to be fitted)
827690-0005 0.64 T25 5-Bolt Wastegated N 76
827690-0004 0.86 T25 5-Bolt Wastegated N 76
827690-0001 0.57 V-Band V-Band Free Float N 76
827690-0002 0.72 V-Band V-Band Free Float N 76

GT2860R

Download Section

The latest Garrett technologies featuring many advanced features.

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

GT2860R

Compressor Map & Exhaust Flow Chart

The latest Garrett technologies featuring many advanced features.

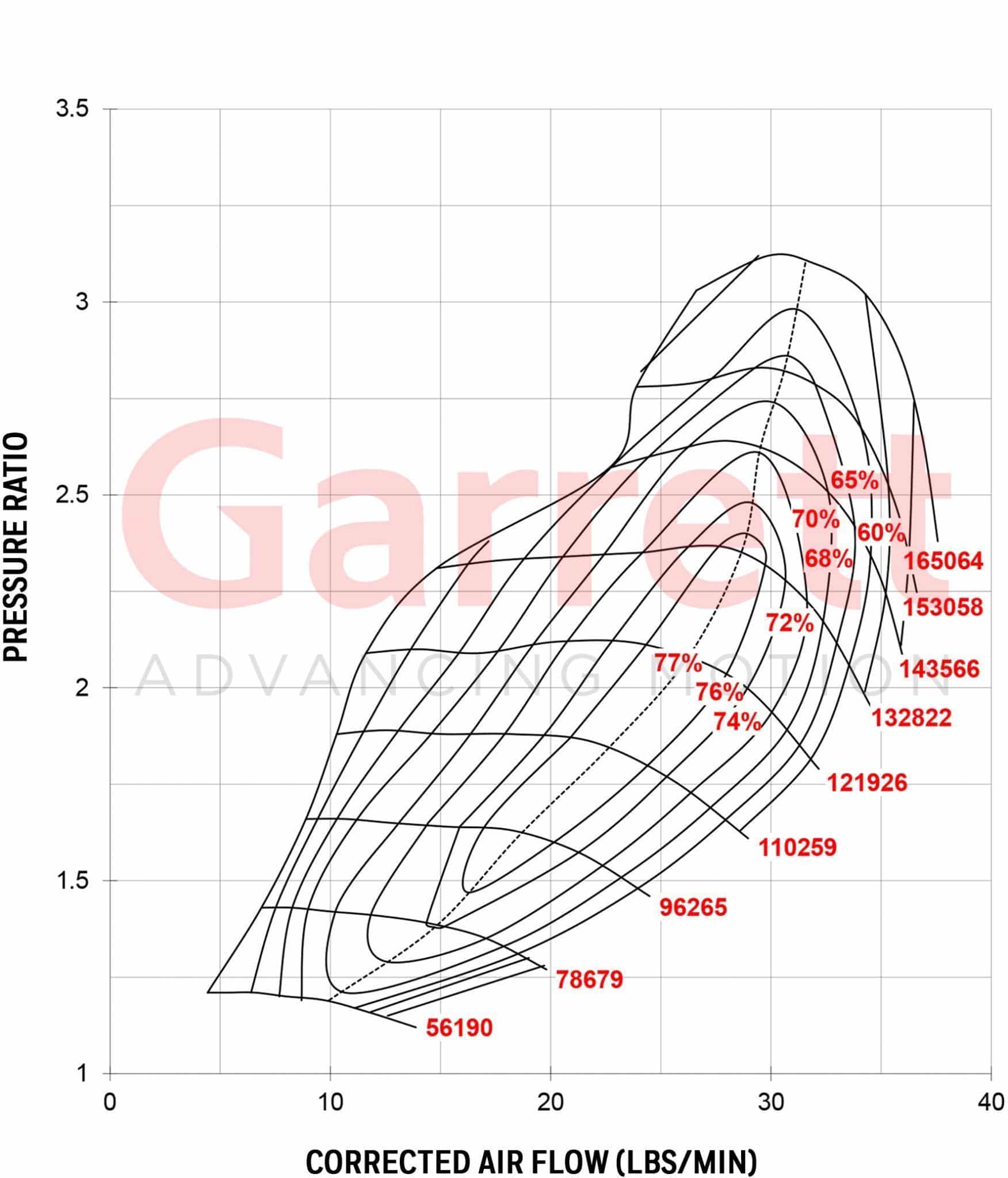

Compressor Map

Exhaust Flow Chart

About Garrett® GT Series Turbochargers

Garrett® GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.
