GT2052 Turbocharger

Horsepower: 140 - 230

Displacement: 1.4L - 2.0L

Features

  • INTERNALLY WASTEGATED TURBINE HOUSING
  • 38mm TURBOCHARGER COMPRESSOR OPTION
  • SOLD AS A COMPLETE TURBO (INCLUDES TURBINE KIT)
  • JOURNAL BEARING CONFIGURATION
  • OIL COOLED CHRA
Buy now

IMPORTANT PRODUCT INFORMATION

“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”

GT2052

Reference Data

GT2052 Compressor Turbine
HP: 140-230              Disp: 1.4L-2.0L Inducer Exducer A/R Inducer Exducer Trim A/R
Turbo PN: 727264-5001W 38mm 52mm 0.51 47mm 40mm 72 0.50

GT2052

Download Section

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

GT2052

Compressor Map & Exhaust Flow Chart

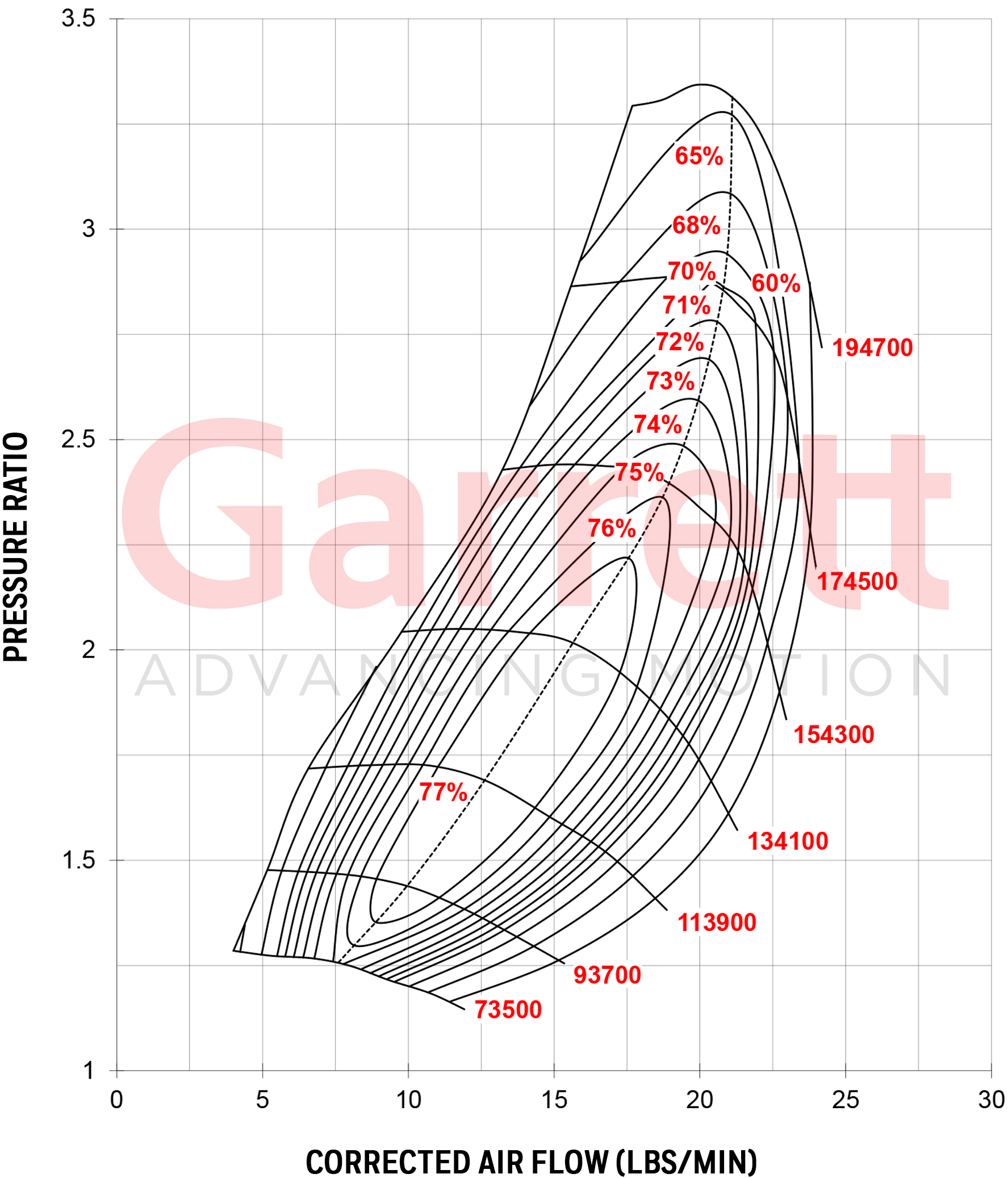

Compressor Map

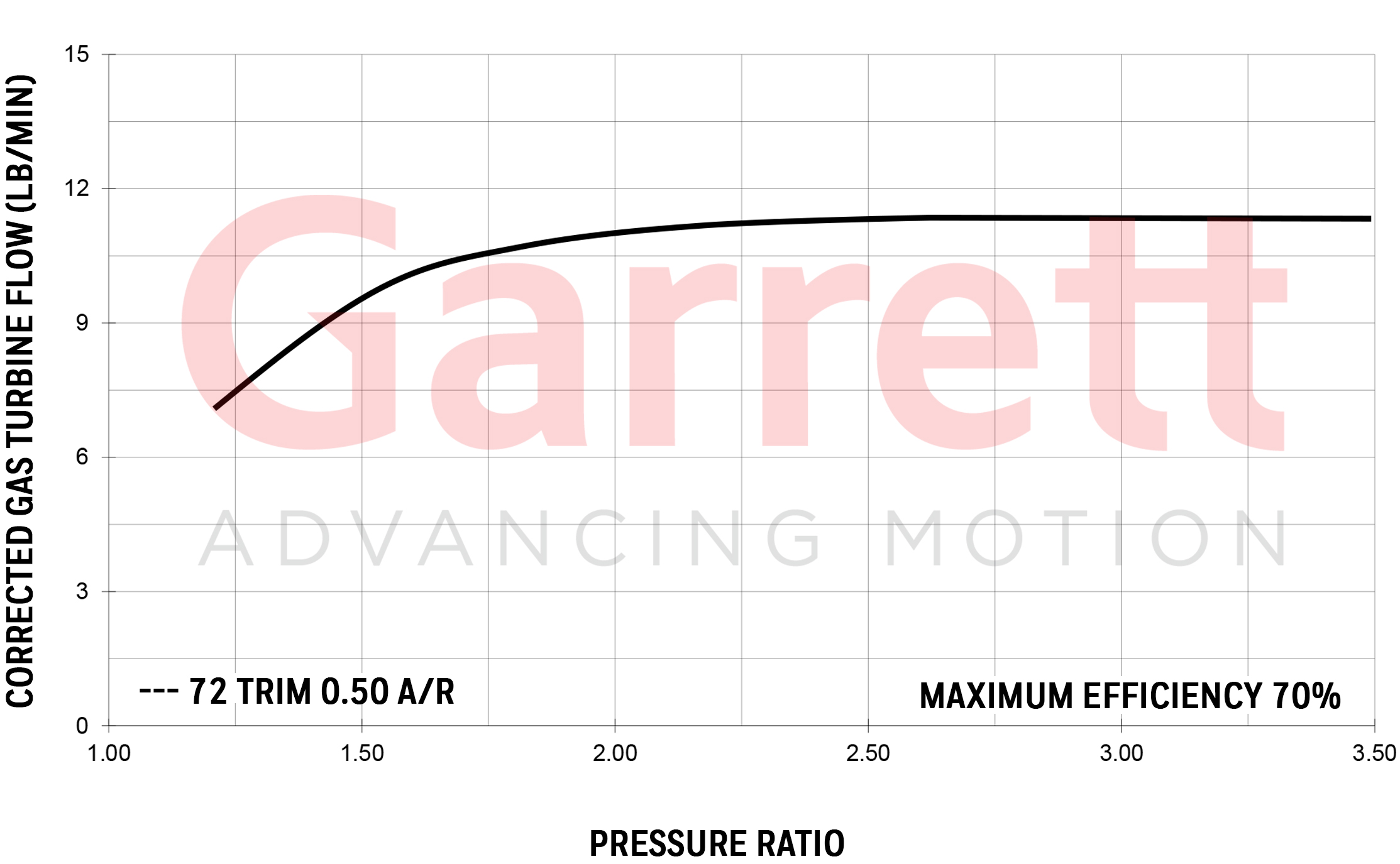

Exhaust Flow Chart

About Garrett GT Series Turbochargers

Garrett GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.
