6.0L Ford Power Stroke (1999.5 – 2007)

Description

Powermax Turbo Upgrade for Ford Power Stroke

6.0L Power Stroke

Part Number: 777469-5002S (560HP*)
Application: 2003 Ford F-Series & Excursion Power Stroke 6.0L

Part Number: 772441-5002S (560HP*)
Application: 2004-2007 Ford F250, F350 & Excursion Power Stroke 6.0L

The GT3788VA Turbocharger features the Garrett patented Advanced Variable Nozzle. Turbine AVNT™ design for increased compressor flow and boost response. Utilizes nine movable vanes which significantly increase turbine efficiency and improve engine performance from idle launch through peak torque. Patented integral electro-hydraulic actuation and proportional solenoid for infinitely variable control. Larger compressor wheel over stock increases maximum power range while keeping turbo speeds down for the same power output. Outline interchangeable for a perfect fit each and every time.

* Estimated Horsepower. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/ calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.

6.0L Ford Power Stroke (1999.5 – 2007)

Compressor Map & Exhaust Flow Chart

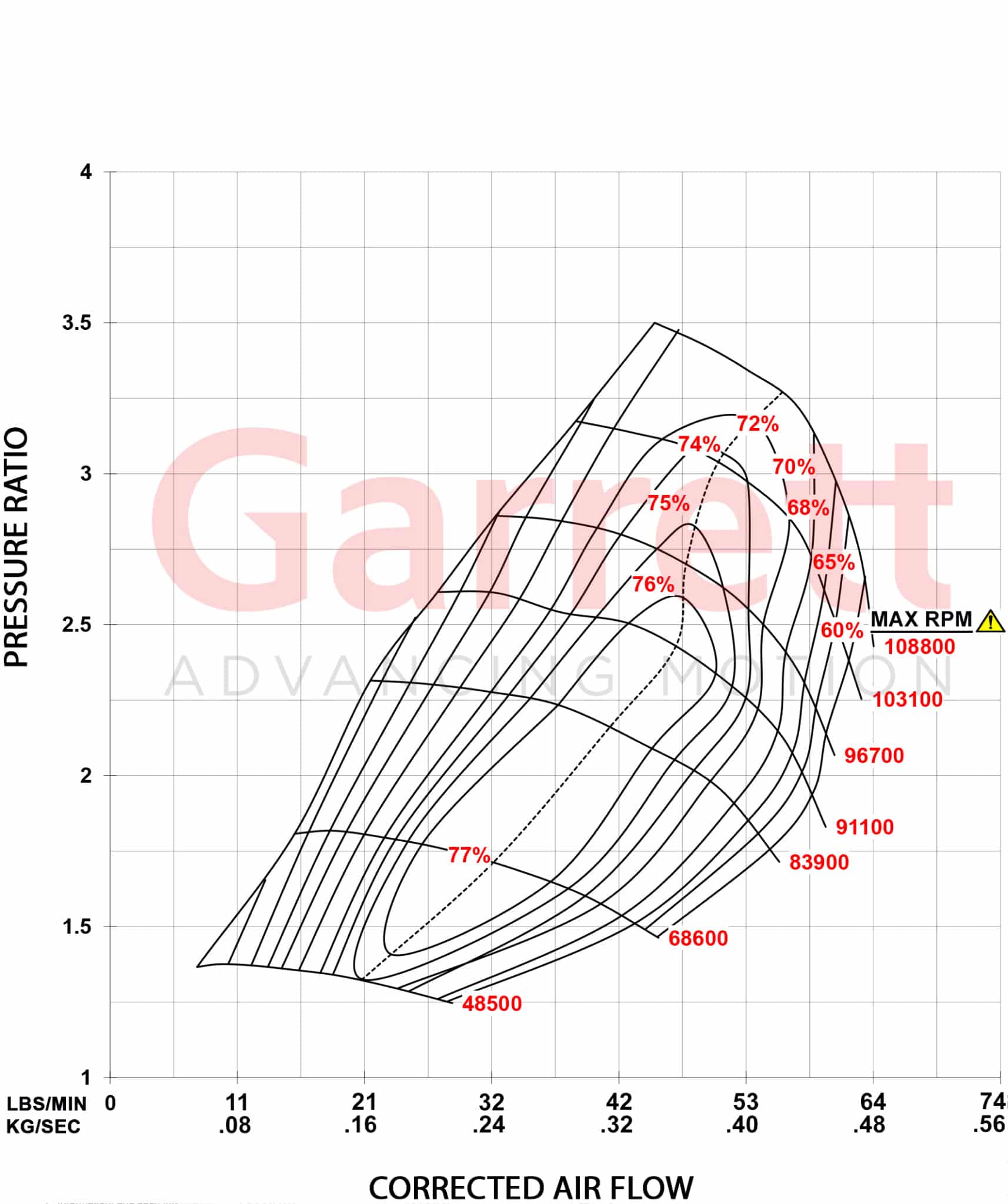

Compressor Map

6.0L Ford Power Stroke (1999.5 – 2007)

Performance Comparison Sheet

6.0 L Power Stroke

The GT3788VA Turbocharger features the Garrett patented Advanced Variable Nozzle. Turbine AVNT™ design for increased compressor flow and boost response. Utilizes nine movable vanes which significantly increase turbine efficiency and improve engine performance from idle launch through peak torque. Patented integral electro-hydraulic actuation and proportional solenoid for infinitely variable control. Larger compressor wheel over stock increases maximum power range while keeping turbo speeds down for the same power output. Outline interchangeable for a perfect fit each and every time.

Compressor Turbine
Ford Power Stroke Upgrade Turbo PN HP* Inducer Exducer Trim A/R Inducer Exducer Trim A/R
Power Stroke 6.0L 2003 Stage 1 777469-5002S 560 64mm 88mm 52 0.58 73mm 66mm 84 0.90
Power Stroke 6.0L 2004-2007 Stage 1 772441-5002S 560 64mm 88mm 52 0.58 73mm 66mm 84 0.90

6.0L Ford Power Stroke (1999.5 – 2007)

Download Section

Item Link
Compressor Map Click to download
Power Stroke Flyer Click to download
File Name Link View
Compressor Map Download View
Product Photo Download View
Speed Sensor Kit Installation Instruction Download View
