2014 – 2018 Volkswagen / Audi 2.0L TSI MK7 Stage 1 and Stage 2

Description

POWERMAX™ DIRECT FIT PERFORMANCE TURBOCHARGER
2014 – 2018 Volkswagen / Audi 2.0L TSI MK7
Stage 1 and Stage 2 Turbochargers

Stage 1 Part number: 898199-5001W Supports up to 485 BHP (362kW)*
Stage 2 Part Number: 898200-5001W Supports up to 600 BHP (447kW)*

Garrett PowerMax™ turbocharger upgrades for the Volkswagen and Audi MK7 2.0L TSI engine platform is engineered to increase engine performance while maintaining OEM installation specifications. Stage 1 (485 HP*) and Stage 2 (600 HP*) upgrades maximize efficiency and air flow compared to the OEM turbocharger. High temperature, Mar-M alloy turbine wheel and twin scroll stainless steel turbine housings are rated for up to 1050° C. These turbochargers are fully assembled with a calibrated electronic actuator and ancillary components for direct OEM fitment.

WARNING: Maximum allowable turbocharger speed is 185krpm (Stage 1) | 165krpm (Stage 2). The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003 (includes sensor and gauge), and 781328-0004 (includes speed sensor). Speed sensors sold separately.

*Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The target power has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power.

Turbocharger Data

PowerMax PN Stage Power Model Comp Ind Comp Exd Turb ind Turb Exd
898199-5001W Stage 1 485HP | 362kW GT2260S 47mm 60mm 50mm 45mm
898200-5001W Stage 2 600HP | 447kW G25-660 54mm 67mm 54mm 49mm

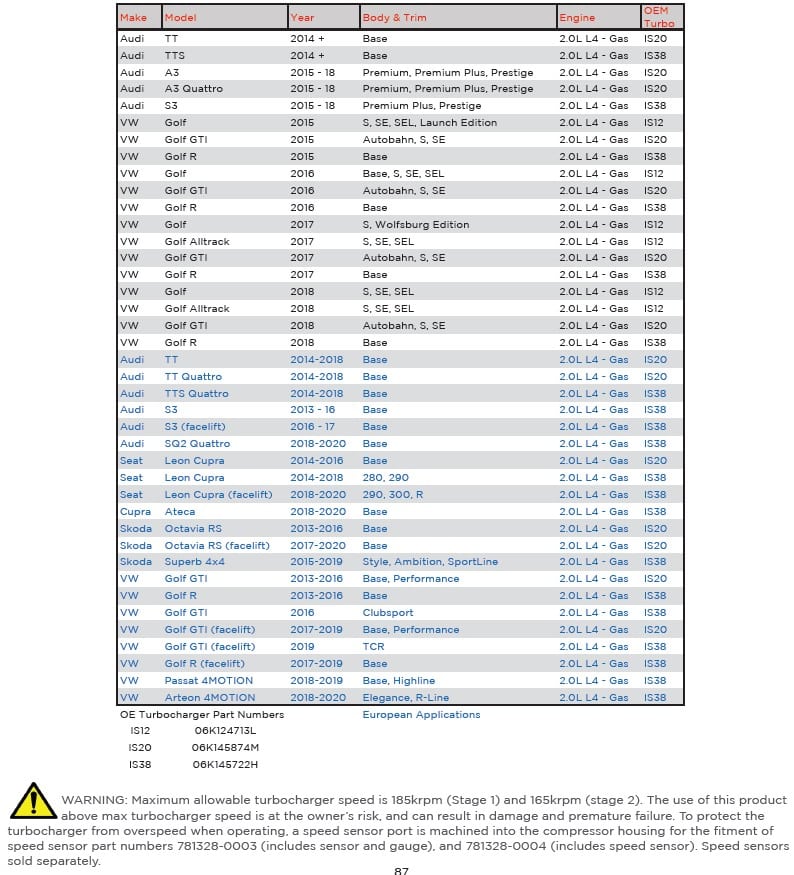

Application Data

Make Model Year Body & Trim Engine OEM Turbo
Audi TT 2014 + Base 2.0L L4 – Gas IS20
Audi TTS 2014 + Base 2.0L L4 – Gas IS38
Audi A3 2015 – 2018 Premium, Premium Plus, Prestige 2.0L L4 – Gas IS20
Audi A3 Quattro 2015 – 2018 Premium, Premium Plus, Prestige 2.0L L4 – Gas IS20
Audi S3 2015 – 2018 Premium, Plus, Prestige 2.0L L4 – Gas IS38
VW Golf 2015 S, SE, SEL, Launch Edition 2.0L L4 – Gas IS12
VW Golf GTI 2015 Autobahn, S, SE 2.0L L4 – Gas IS20
VW Golf R 2015 Base 2.0L L4 – Gas IS38
VW Golf 2016 Base, S, SE, SEL 2.0L L4 – Gas IS12
VW Golf GTI 2016 Autobahn, S, SE 2.0L L4 – Gas IS20
VW Golf R 2016 Base 2.0L L4 – Gas IS38
VW Golf 2017 S, Wolfsburg Edition 2.0L L4 – Gas IS12
VW Golf Alltrack 2017 S, SE, SEL 2.0L L4 – Gas IS12
VW Golf GTI 2017 Autobahn, S, SE 2.0L L4 – Gas IS20
VW Golf R 2017 Base 2.0L L4 – Gas IS38
Audi Golf 2018 S, SE, SEL 2.0L L4 – Gas IS12
Audi Golf Alltrack 2018 S, SE, SEL 2.0L L4 – Gas IS12
Audi Golf GTI 2018 Autobahn, S, SE 2.0L L4 – Gas IS20
Audi Golf R 2018 Base 2.0L L4 – Gas IS38

Stage 1 Features:

• Direct-Fit Stage 1 Upgrade
• 485HP | 362kW (flywheel) power capability (on-vehicle results)
• 47mm compressor inducer, 60mm compressor exducer
• 50mm turbine inducer, 45mm turbine exducer
• GT2260S turbocharger
• Audi A3, S3, TT, TTS
• VW Golf Base, AllTrack, GTI and R
• Complete assembly with calibrated electric actuator and ancillary components for OE fitment
• +17% flow compared to IS38 turbo (stock Golf R)
• GTX Gen II compressor wheel aero
• Modern gasoline turbine wheel aerodynamics constructed of Mar-M alloy rated for up to 1050C
• Stainless steel turbine housing rated for up to 1050C
• Fully machined speed sensor port
• Latest generation of journal bearing rotor group
• 360-degree thrust bearing –reinforced for application

Stage 1 Part number: 898199-5001W Supports up to 485 HP (362kW)*

Stage 2 Features:

• Direct-Fit Stage 2 Upgrade
• 600HP | 447kW (flywheel) power capability (on-vehicle results)
• 54mm compressor inducer, 67mm compressor exducer
• 54mm turbine inducer, 49mm turbine exducer
• G25-660 turbocharger
• Audi A3, S3, TT, TTS
• VW Golf Base, AllTrack, GTI and R
• Complete assembly with calibrated electric actuator and ancillary components for OE fitment
• +59% flow compared to IS38 turbo (stock Golf R)
• G-Series compressor wheel aerodynamics for maximum horsepower
• G-Series turbine wheel aerodynamics constructed of Mar-M alloy rated for up to 1050C
• Stainless steel turbine housing rated for up to 1050C
• Fully machined speed sensor port
• Ball-bearing

Stage 2 Part Number: 898200-5001W Supports up to 600 HP (447kW)*

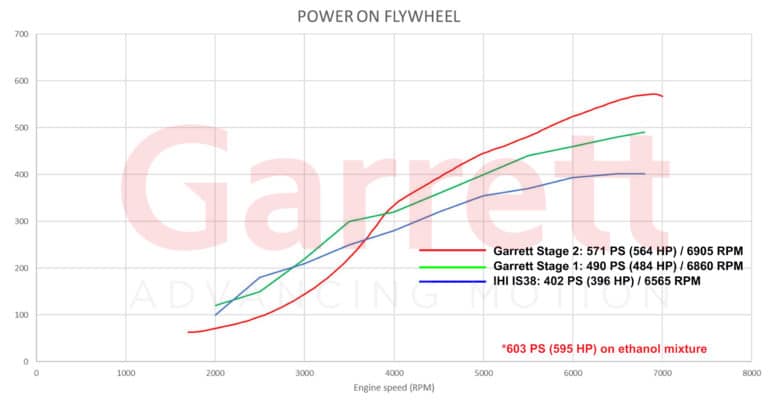

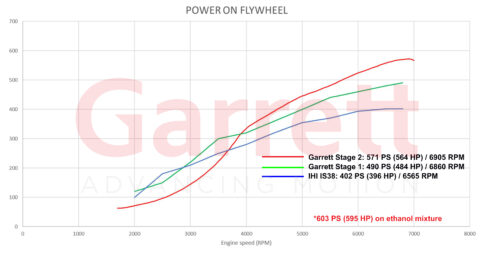

Performance Results: Horsepower (On-Vehicle Results)

• AUDI TT 2.0 TFSI (EA888 Gen 3)
• Garrett PMAX Stages 1 and 2 upgrade turbos
• Larger intercooler
• Custom exhaust system
• Reinforced pistons -lowered compression ratio of 9.2:1
• Upgraded fuel system -larger high pressure fuel pump and larger injectors
• Transmission upgrades -software upgrade only
• Cylinder head upgrades -valve springs only
• Fuel -102 octane unleaded (Stage 2 also run with ethanol mixture)

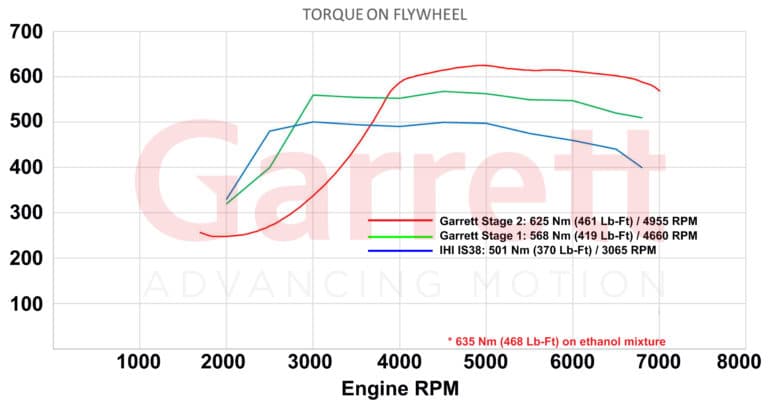

Performance Results: Torque (On-Vehicle Results)

• AUDI TT 2.0 TFSI (EA888 Gen 3)
• Garrett PMAX Stages 1 and 2 upgrade turbos
• Larger intercooler
• Custom exhaust system
• Reinforced pistons -lowered compression ratio of 9.2:1
• Upgraded fuel system -larger high pressure fuel pump and larger injectors
• Transmission upgrades -software upgrade only
• Cylinder head upgrades -valve springs only
• Fuel -102 octane unleaded (Stage 2 also run with ethanol mixture)

2014 – 2018 Volkswagen / Audi 2.0L TSI MK7 Stage 1 and Stage 2

Compressor Map & Exhaust Flow Chart

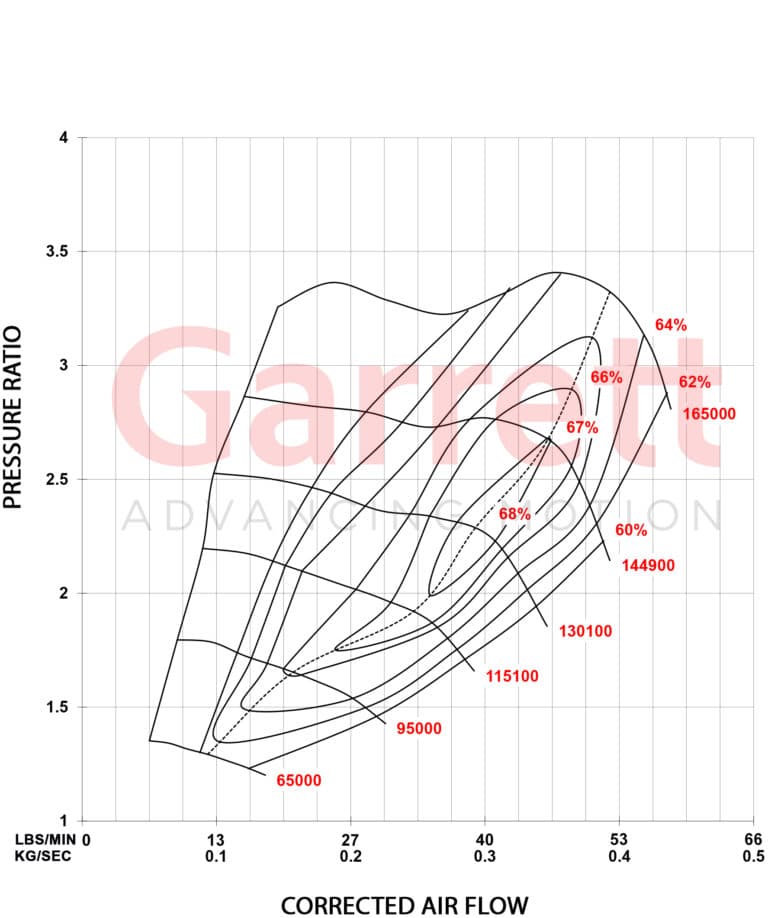

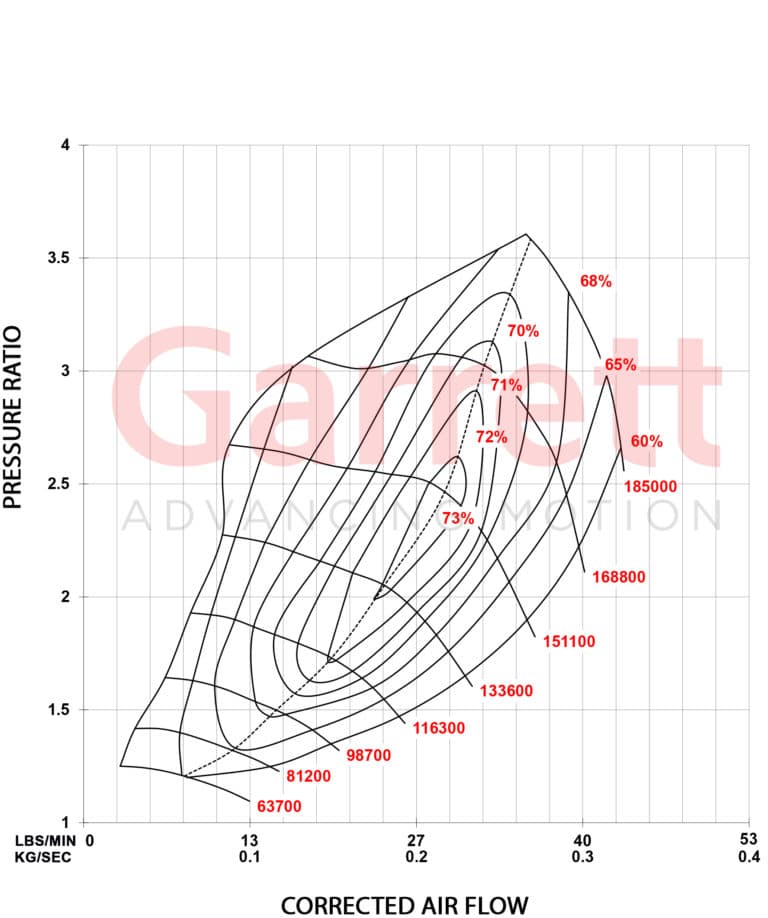

Compressor Map

Exhaust Flow Chart

2014 – 2018 Volkswagen / Audi 2.0L TSI MK7 Stage 1 and Stage 2

Performance Comparison Sheet

PowerMax PN Stage Power Model Comp Ind Comp Exd Turb ind Turb Exd
898199-5001W Stage 1 485HP | 362kW GT2260S 47mm 60mm 50mm 45mm
898200-5001W Stage 2 600HP | 447kW G25-660 54mm 67mm 54mm 49mm
Make Model Year Body & Trim Engine OEM Turbo
Audi TT 2014 + Base 2.0L L4 – Gas IS20
Audi TTS 2014 + Base 2.0L L4 – Gas IS38
Audi A3 2015 – 2018 Premium, Premium Plus, Prestige 2.0L L4 – Gas IS20
Audi A3 Quattro 2015 – 2018 Premium, Premium Plus, Prestige 2.0L L4 – Gas IS20
Audi S3 2015 – 2018 Premium, Plus, Prestige 2.0L L4 – Gas IS38
VW Golf 2015 S, SE, SEL, Launch Edition 2.0L L4 – Gas IS12
VW Golf GTI 2015 Autobahn, S, SE 2.0L L4 – Gas IS20
VW Golf R 2015 Base 2.0L L4 – Gas IS38
VW Golf 2016 Base, S, SE, SEL 2.0L L4 – Gas IS12
VW Golf GTI 2016 Autobahn, S, SE 2.0L L4 – Gas IS20
VW Golf R 2016 Base 2.0L L4 – Gas IS38
VW Golf 2017 S, Wolfsburg Edition 2.0L L4 – Gas IS12
VW Golf Alltrack 2017 S, SE, SEL 2.0L L4 – Gas IS12
VW Golf GTI 2017 Autobahn, S, SE 2.0L L4 – Gas IS20
VW Golf R 2017 Base 2.0L L4 – Gas IS38
Audi Golf 2018 S, SE, SEL 2.0L L4 – Gas IS12
Audi Golf Alltrack 2018 S, SE, SEL 2.0L L4 – Gas IS12
Audi Golf GTI 2018 Autobahn, S, SE 2.0L L4 – Gas IS20
Audi Golf R 2018 Base 2.0L L4 – Gas IS38

2014 – 2018 Volkswagen / Audi 2.0L TSI MK7 Stage 1 and Stage 2

Download Section





Item Link
Flyer Click to download
