Garrett G-Series II Turbochargers

Whether you’re a kit maker or an owner of a high-performance vehicle, now you can harness the power of motorsport legends and experience the durability of champions in your car with the NEW G-Series II universal Performance Turbos line from Garrett. Designed with the same quality and craftmanship that has powered motorsport legends for over 4 decades.

G-Series II turbochargers are available in multiple frame sizes to suit your individual needs, whether as a complete new turbo or as a CHRA swap to upgrade your G-Series I Turbo.

Home > Racing and Performance > Garrett G-Series II Turbochargers

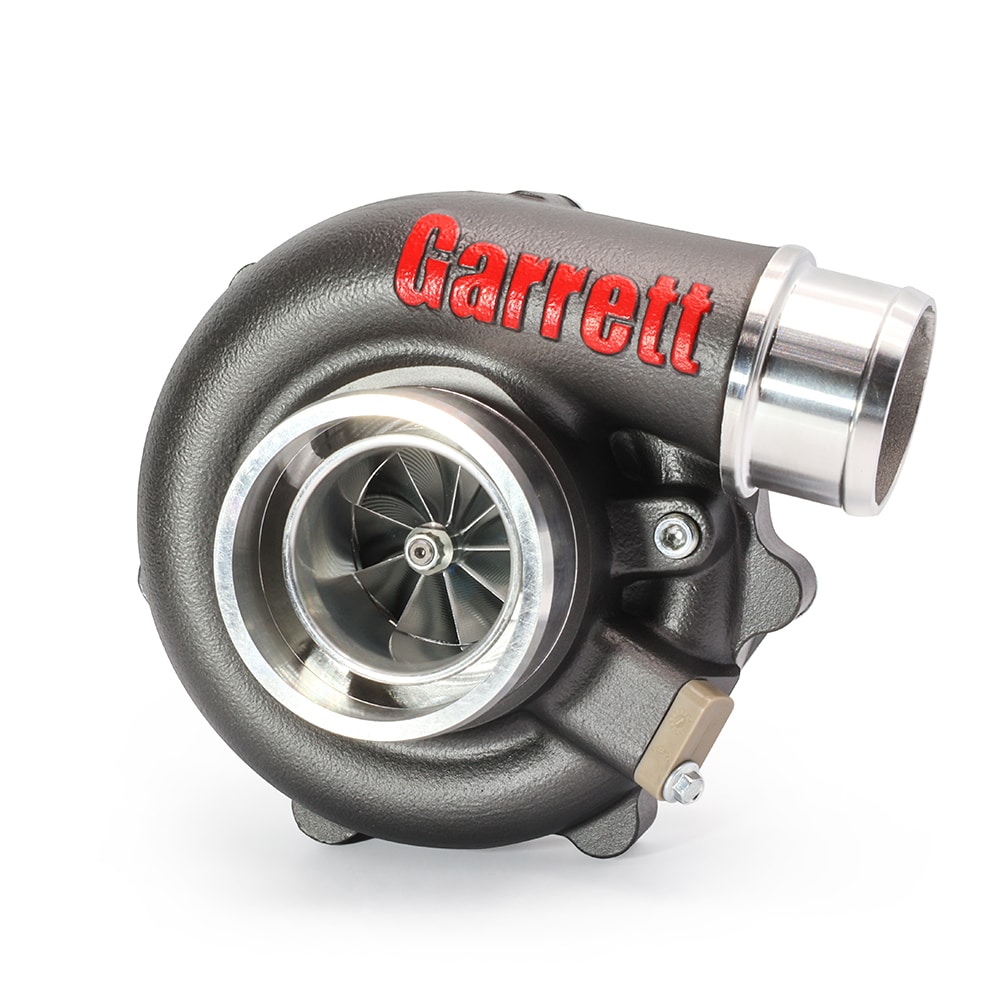

G-Series II Launch Edition supercore

Power Of Legends

G-Series II Launch Edition supercore

G35-990-G-Series-II supercore

Durability Of Champions

G35-990-G-Series-II supercore

G35-990-G-Series-II Supercore

swiper prev arrow
swiper next arrow

G-Series II Product Guide

Welcome to the official Garrett G-Series II Turbo Guide — your go-to reference for product selection, sizing, and application insights. This guide is built for distributors, kit builders, and tuning professionals who demand high performance, reliability, and easy integration.



Download the Install Guide

Garrett, a History of Powering Motorsport Legends

Only the best of the best qualify to compete in prestigious Motorsport races, like the 24 Hours of Le Mans. It takes a combination of unparalleled skill, relentless hard work, and cutting-edge technology to reach the podium and achieve immortality. Those who succeed become legends.

For over 40 years, Garrett has been the name behind the legends of motorsport, powering the winners of the most prestigious races, including the Le Mans champions of the last 25 years. Our turbochargers are engineered by a team of 1300 engineers and tested across five R&D centers around the world, to deliver unmatched performance and reliability.

Harness the Power of Legends and Experience the Durability of Champions

Whether you’re a kit maker or an owner of a high-performance vehicle, now you can harness the power of motorsport legends and experience the durability of champions in your car with the NEW G-Series II universal Performance Turbos line from Garrett. Designed with the same quality and craftmanship that has powered motorsport legends for over 4 decades.

G-Series II turbochargers are available in multiple frame sizes to suit your individual needs, whether as a complete new turbo or as a CHRA swap to upgrade your G-Series I Turbo.

Download the Install Guide

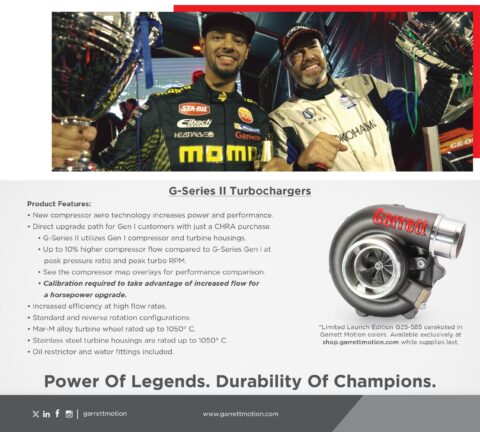

G-Series II Product Features

Product Features: • New compressor aero technology increases power and performance

• Direct upgrade path for Gen I customers with just a CHRA purchase

• G-Series II utilizes Gen I compressor and turbine housings

• Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM

• See the compressor map overlays below for performance comparison

• Calibration required to take advantage of increased flow for a horsepower upgrade

• Increased efficiency at high flow rates

• Standard and reverse rotation configurations

• Mar-M alloy turbine wheel rated up to 1050° C

• Stainless steel turbine housings are rated up to 1050° C

• Oil restrictor and water fittings included

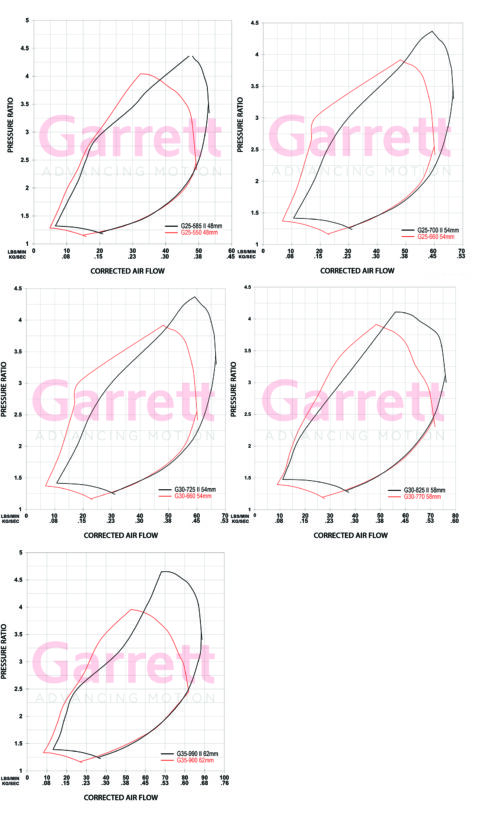

Compressor Map Overlays for Garrett G-Series II versus G-Series. Vertical Format

Sizes To Choose From

G-Series II G25-585
HP: 300-585  Disp: 1.4L – 3.0LCLICK TO VISIT TURBO PAGE
Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim A/R Inlet Outlet
48mm 60mm 65 0.70 54mm 49mm 84 .49
.72 | .92
T25
V-Band
V-Band
G-Series II G25-700
HP: 350-700  Disp: 1.4L – 3.0LCLICK TO VISIT TURBO PAGE
Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim A/R Inlet Outlet
54mm 67mm 65 0.70 54mm 49mm 84  .49
.72 | .92
T25
V-Band
V-Band
G-Series II G30-725
HP: 350-725  Disp: 2.0L – 3.5LCLICK TO VISIT TURBO PAGE
Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim A/R Inlet Outlet
54mm 67mm 65 0.70 60mm 55mm 84 .61 | .83 | 1.01 | 1.21
.83 | 1.01
1.06
V-Band
T3
T4
V-Band
G-Series II G30-825
HP: 475-825  Disp: 2.0L – 3.5LCLICK TO VISIT TURBO PAGE
Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim A/R Inlet Outlet
58mm 71mm 65 0.72 60mm 55mm 84 .61 | .83 | 1.01 | 1.21
.83 | 1.01
1.06
V-Band
T3
T4
V-Band
G-Series II G35-990
HP: 550-990  Disp: 2.0L – 5.5LCLICK TO VISIT TURBO PAGE
Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim A/R Inlet Outlet
62mm 76mm 65 0.72 68mm 62mm 84 .61 | .83 | 1.01 | 1.21
.83 | 1.01
1.06
V-Band
T3
T4
V-Band
