Maximum Performance

Turbocharger Accessories

Genuine replacement components for most Garrett G Series and GTX Gen II turbochargers

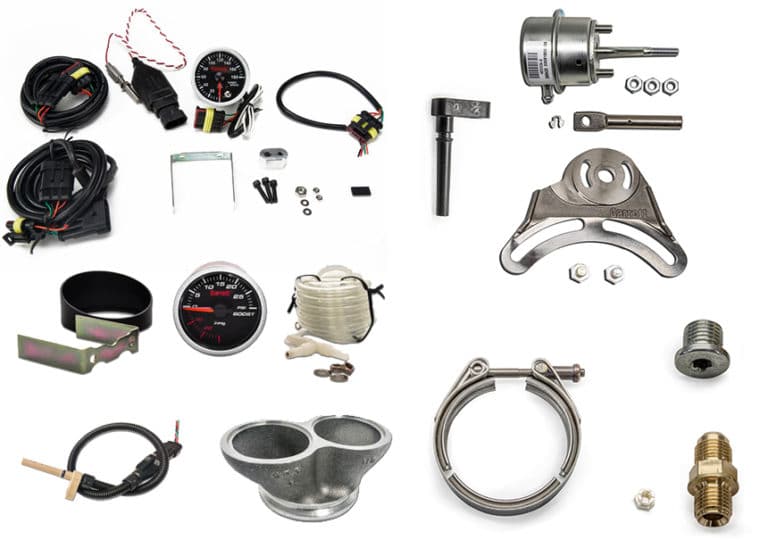

Garrett turbo accessories include speed sensors, boost gauges, actuator kits, and more. We also offer genuine replacement components for most G Series and GTX Gen II turbochargers. From bolts, to clamps, actuator brackets, rod ends, o-rings, oil and water fittings and more. Scroll below to see all the categories.

Speed Sensor

Select GTX turbochargers come standard with a fully machined speed sensor port. Just remove the bolt and screw in the appropriate kit for your application. GT/GTX speed sensor kit not applicable on G Series turbochargers. The Garrett Turbocharger Speed Sensor works with any turbocharger to accurately determine compressor wheel speed. The instructions include detailed drawings of the exact machining specifications for all Garrett GT catalog turbochargers as well as general guidelines for other compressor housing types. The Garrett Turbocharger Speed Sensor Kit includes all necessary wiring for easy installation and simple data logging.

Speed Sensor Kits Part Number Type Sensor Harness Gauge Bolt
GTX Gen II \ GTX \ GT \ GTW 781328-0001 Street Y Y Y
GTX Gen II \ GTX \ GT \ GTW 781328-0002 Pro Y Y
G Series \ GTX55 Gen II \ GTX50 Gen II \ GTX47 Gen II 781328-0003 Street Y Y Y Y
G Series \ GTX55 Gen II \ GTX50 Gen II \ GTX47 Gen II 781328-0004 Pro Y Y Y

Maximum Performance

Comparing boost levels and shaft speed on a compressor map, you can determine the ideal operating conditions to insure peak power over a wider operating range. All Garrett Turbocharger Speed Sensor Kits are compatible with data loggers to enhance engine tuning capability. In addition, the Garrett-branded gauge’s maximum speed recall function will retain the highest wheel speed for five minutes for easy mapping.

The data gained from the Garrett Turbocharger Speed Sensor Kit can be used to closely estimate the engine’s flow behavior without a flow bench. Flow information is invaluable for determining if the turbocharger is reaching its maximum performance, for validating the turbo match, and for ensuring that it is not over-speeding, allowing you to avoid potentially damaging operating conditions.

This kit could even be used in conjunction with an aftermarket ECU to limit compressor speed. The Garrett Turbocharger Speed Sensor Kit will help you be sure you’ve got the correct turbo for your needs!

Boost Gauge

Boost Gauge PSI Part Number: 773326-0001 Boost Gauge BAR Part Number: 773326-0002

The Garrett Mechanical Boost Gauge is the perfect addition to your interior for the important job of accurately monitoring your boost levels. The gauge has a sleek design and features a black face, white backlit numbers, and a brushed aluminum ring. The gauge monitors boost from 30 Hg of vacuum to 30 psi of boost. Gauge kit comes with vacuum line, hardware, mounting brace and installation instructions.

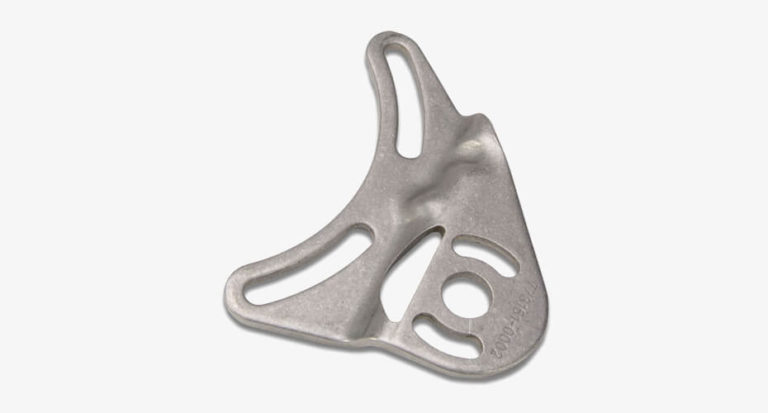

Adjustable Wastegate Bracket

Part Number: 773151-0002

The Garrett Adjustable Wastegate Bracket allows for a significantly greater range of motion to set up the compressor outlet and wastegate can. This provides easier fitment in tight engine bays by giving you the ability to make smaller adjustments to compressor housing clocking than would be possible through the standard bolt adjustments which adjust the compressor outlet at 60* increments on GT25R and GT28R turbochargers. The bracket also allows for redirection of the actuator to keep vacuum lines away from heat or sharp edges. The adjustable actuator bracket is available for use on GT25R, GT28R, and GT30R turbochargers.

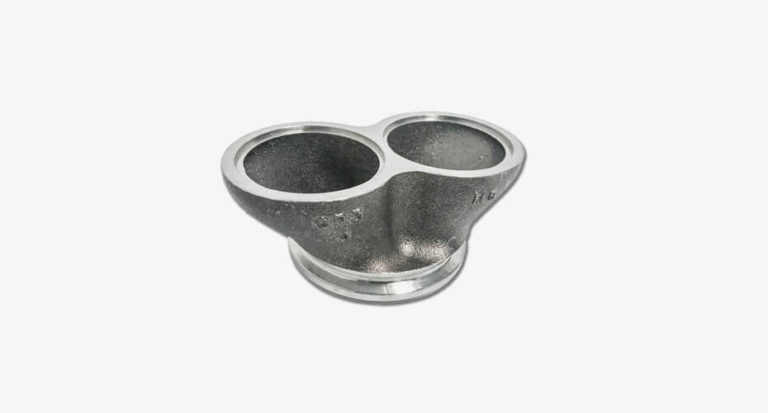

Turbine Inlet Divided V-Band Adapter

This adapter converts the turbine inlet on Garrett GT/GTX30-35 V-band, and G25, G30, G35 V-band turbine housings from an open inlet to twin scroll.

Part Number: 813444-0001

GTX & G Series Spare Components

G Series turbochargers have many new features on the compressor and CHRA sides of the turbo. The new speed sensor plug, bolt, and o-ring, pressure port plug, and oil and water fittings to name a few. These small ancillary components are now available for purchase.

Part Number Chart

Description Model Part Number
Plug, compressor housing GTX Gen II, G Series 400809-0203
O-ring, speed sensor G Series 403069-0242
Plug, speed sensor G Series 871104-0001
Bolt, speed sensor G Series 400674-0516
Bolt, compressor housing G25, G30, G35-900 700975-0203
Bolt, compressor housing GTX28 Gen II, G35-1050 400975-0303
Clamp, compressor housing G25, G30, G35-900 871795-0001
Clamp, compressor housing G35-1050 871795-0003
O-ring, compressor housing GTX30 Gen II, GTX35 Gen II 403069-0077
O-ring, compressor housing G25, G30-660 403069-0157
O-ring, compressor housing G30-770, G30-900, G35 403069-0162
O-ring backplate GTX 28, 30, 35 Gen II 403069-0164
Fitting, oil inlet GTX 28, 30, 35 Gen II, G25, G30, G35 767567-0002
Plug, water GTX 28, 30, 35 Gen II, G25, G30, G35 434705-0004
Fitting, water GTX 28, 30, 35 Gen II, G25, G30, G35, G40, G42, G45 872902-0001
Washer, copper GTX 28, 30, 35 Gen II, G25, G30, G35, G40, G42, G45 444657-0006
Circlip, rod end GTX 28, 30, 35 Gen II, G25, G30, G35 400702-1025
Rod end GTX 28, 30, 35 Gen II, G25, G30, G35 413885-0032
Nut, actuator bracket / rod end GTX 28, 30, 35 Gen II, G25, G30, G35 400146-0207
Bracket, actuator – standard rotation G25 876079-0001
Bracket, actuator – reverse rotation G25 876079-0002
Bracket, actuator – twin scroll G25 | G30-660 876079-0003
V-band, turbine inlet GTX28(turbine outlet), GTX30- GTX35 Gen II, G25, G30, G35 826466-0001
V-band, turbine outlet GTX30 – GTX35 Gen II, G25, G30, G35 446397-0364
V-band, center hsg to turbine housing G25, G30, G35 446397-0382
Locknut, V-band GTX Gen II, G Series 400515-0212

Actuator Kits

Accessory PN Description
773326-0001 Boost Gauge PSI
773326-0002 Boost Gauge BAR
774175-0001 3.0″ V-Band Turbine Outlet Adapter G25 | G30 | G35 | GTX30 | GTX35
813444-0001 Turbine Inlet Div V-Band Flange Adapter
773151-0002 Adjustable Actuator Bracket GT25, GT28, GT30
785928-0001 Heat Shield Kit (Turbine Hsg) GT28/28
781328-0003 Speed Sensor Street Kit: G Series Models
781328-0004 Speed Sensor Pro: G Series Models
781328-0001 Speed Sensor Street Kit GT/GTX Models
781328-0002 Speed Sensor Pro GT/GTX Models
PN Model Bar Actuator Assembly
480009-0009 G|GT|GTX28 0.5 Actuator
*Rod end, jam nut, bracket, heat shield, retaining clip not included
480009-0006 G|GT|GTX28 1
480009-0010 G|GT|GTX28 1.5
Kit PN Model Bar Actuator Assembly Kit
700187-0001 T25 Actuator (fixed rod), bracket, heat shield.
759498-0001 GT|GTX28 0.5 Actuator, rod end, jam nut, retaining clip.
*Bracket and heat shield not included
759498-0007 GT|GTX28 1.0
759498-0005 GT|GTX28 1.5
759498-0004 GT|GTX35R 0.8
759498-0008 G25 0.5 G-Series V-band standard rotation, actuator, bracket and bolts, rod end, jam nut, retaining clip.
*Heat shield not included
759498-0009 G25 1.0
759498-0010 G25 1.5
759498-0011 G25 0.5 G-Series V-band reverse rotation, actuator, bracket and bolts, rod end, jam nut, retaining clip.
*Heat shield not included
759498-0012 G25 1.0
759498-0013 G25 1.5
759498-0014 G25 0.5 G-Series T4 standard rotation, actuator, bracket and bolts, rod end, jam nut, retaining clip.
*Heat shield not included
759498-0015 G25 1.0
759498-0016 G25 1.5
759498-0004 for use with turbine housing wastegate family 771300
Downloadable Instructions Download View
Garrett Turbocharger Speed Sensor Installation Instructions Click Here Click Here
Garrett Turbocharger Machining Drawings (Print to 11 x 17 paper) Click Here Click Here
