2004.5 – 2010 GM 6.6L Duramax

Description

POWERMAX TURBO UPGRADE FOR CHEVY | GM DURAMAX

Part Number 773540-5001S (590HP*) Stage 1

Applications: 2004.5-2009 Chevy / GMC 2500, 3500

The Duramax Stage 1 turbocharger kit features Garrett patented Advanced Variable Nozzle Turbine AVNT™ design for increased compressor and turbine flow. The GT Series wheel design ensures top performance, lower back pressure, and reduces intake and exhaust gas temperatures. The unique design features nine movable vanes which significantly increase turbine efficiency and improve engine performance from idle launch through peak torque. Patented integral electro-hydraulic actuation and proportional solenoid allow for infinitely variable control. Suitable as a performance upgrade or replacement for original equipment. Outline interchangeable with the OE turbo for perfect fit each and every time.

Part Number 773542-5001S (630HP*) Stage 2

Applications: 2004.5-2009 Chevy / GMC 2500, 3500

The Duramax Stage 1 turbocharger kit features Garrett patented Advanced Variable Nozzle Turbine AVNT™ design for increased compressor and turbine flow. Utilizes nine movable vanes which significantly increase turbine efficiency and improve engine performance from idle launch through peak torque. Patented integral electro-hydraulic actuation and proportional solenoid allow for infinitely variable control. Larger compressor trim (52), plus larger GT40 turbine wheel and vanes. Outline interchangeable with the OE turbo for perfect fit each and every time.

* Estimated. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.

IMPORTANT PRODUCT INFORMATION

“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”

2004.5 – 2010 GM 6.6L Duramax

Compressor Map & Exhaust Flow Chart

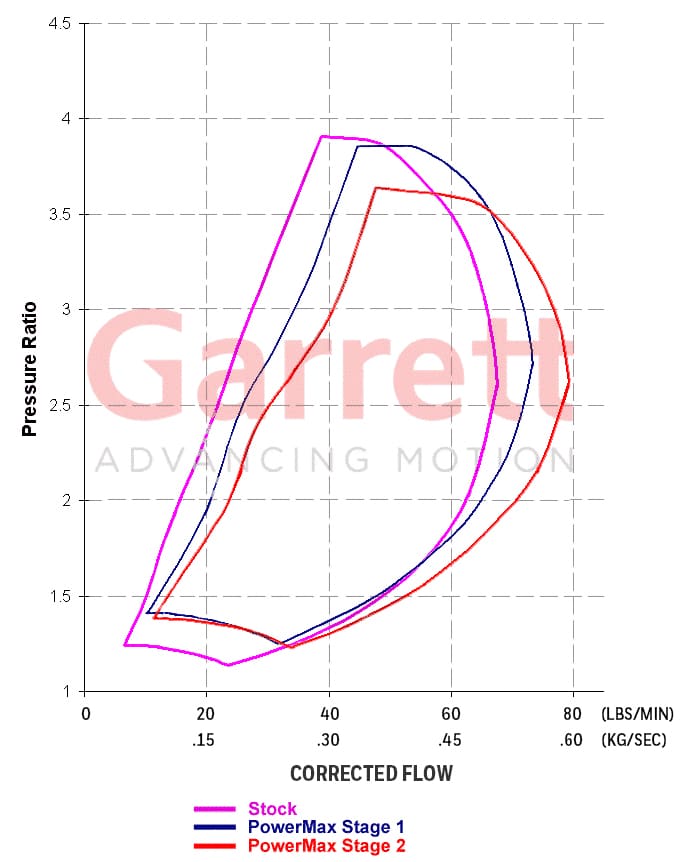

Compressor Map

2004.5 – 2010 GM 6.6L Duramax

Performance Comparison Sheet

Part Number 773540-5001S (590HP*) Stage 1

The Duramax Stage 1 turbocharger kit features Garrett patented Advanced Variable Nozzle Turbine AVNT™ design for increased compressor and turbine flow. The GT Series wheel design ensures top performance, lower back pressure, and reduces intake and exhaust gas temperatures. The unique design features nine movable vanes which significantly increase turbine efficiency and improve engine performance from idle launch through peak torque. Patented integral electro-hydraulic actuation and proportional solenoid allow for infinitely variable control. Suitable as a performance upgrade or replacement for original equipment. Outline interchangeable with the OE turbo for perfect fit each and every time.

Part Number 773542-5001S (630HP*) Stage 2

The Duramax Stage 1 turbocharger kit features Garrett patented Advanced Variable Nozzle Turbine AVNT™ design for increased compressor and turbine flow. Utilizes nine movable vanes which significantly increase turbine efficiency and improve engine performance from idle launch through peak torque. Patented integral electro-hydraulic actuation and proportional solenoid allow for infinitely variable control. Larger compressor trim (52), plus larger GT40 turbine wheel and vanes. Outline interchangeable with the OE turbo for perfect fit each and every time.

Compressor Turbine
CHEVY | GMC Duramax Upgrade Turbo PN HP* Inducer Exducer Trim A/R Inducer Exducer Trim A/R
Duramax 6.6L 2004.5-2009 Stage 1 773540-5001S 590 65mm 94mm 48 0.58 73mm 67mm 78 0.90
Duramax 6.6L 2004.5-2009 Stage 2 773542-5001S 630 68mm 94mm 52 0.58 77mm 68mm 79 0.90

2004.5 – 2010 GM 6.6L Duramax

Download Section

Item Link
Adaptor Cable Instructions Click to download
Stage 1 & 2 Compressor Map Click to download
Duramax Flyer Click to download
File Name Link View
Compressor Map Download View
Product Photo Download View
Speed Sensor Kit Installation Instruction Download View
