2007 – 2018 Toyota Land Cruiser 4.5L 1VD-FTV Turbo Diesel

Description

TURBO UPGRADE FOR Toyota 4.5L 1VD-FTV Diesel Engines

Part number: 881604-5001S (164kW*)

This Garrett PowerMax direct fit turbocharger is designed for the 4.5L Toyota Land Cruiser 1VD-FTV V8 diesel engine platform found in the 2007-2018 Toyota Land Cruiser. The forged, fully machined compressor wheel designed for the G Series product line increases flow by 20% over the OE wheel. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning. The power represented above was recorded on a chassis dyno with a modified ECU and OEM fuel delivery system enabling the engine to produce 164kW from the OE standard 151kW. All Garrett PowerMax direct fit turbochargers are outline interchangeable with the OE turbocharger ensuring a perfect fit every time.

Features:
• G Series compressor wheel aerodynamics
• Wider compressor map for improved performance
• 20% more flow than the OE turbocharger
• VNT variable geometry technology

*Estimated. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The target power represented above has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power.

IMPORTANT PRODUCT INFORMATION

“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”

2007 – 2018 Toyota Land Cruiser 4.5L 1VD-FTV Turbo Diesel

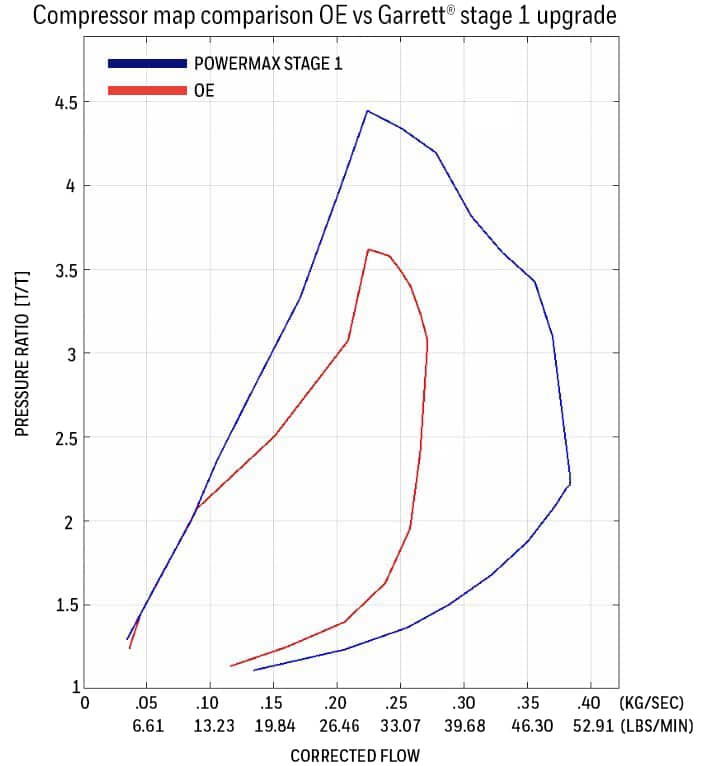

Compressor Map & Exhaust Flow Chart

Compressor Map

2007 – 2018 Toyota Land Cruiser 4.5L 1VD-FTV Turbo Diesel

Performance Comparison Sheet

PowerMax PN 881604-5001S
Model GTA2359V
Interchangeable with OE PN 775095-5001S | 842127-5001S
Make Toyota
Model Land Cruiser
Year 2007-2018
Type 4.5L 1VD-FTV V8 Turbo Diesel
Fuel Diesel
Emissions Euro IV

2007 – 2018 Toyota Land Cruiser 4.5L 1VD-FTV Turbo Diesel

Download Section

Item Link
Flyer Click to download
Installation Instructions Click to download
