2022+ Ford Ranger 3.0L V6 Diesel

Description

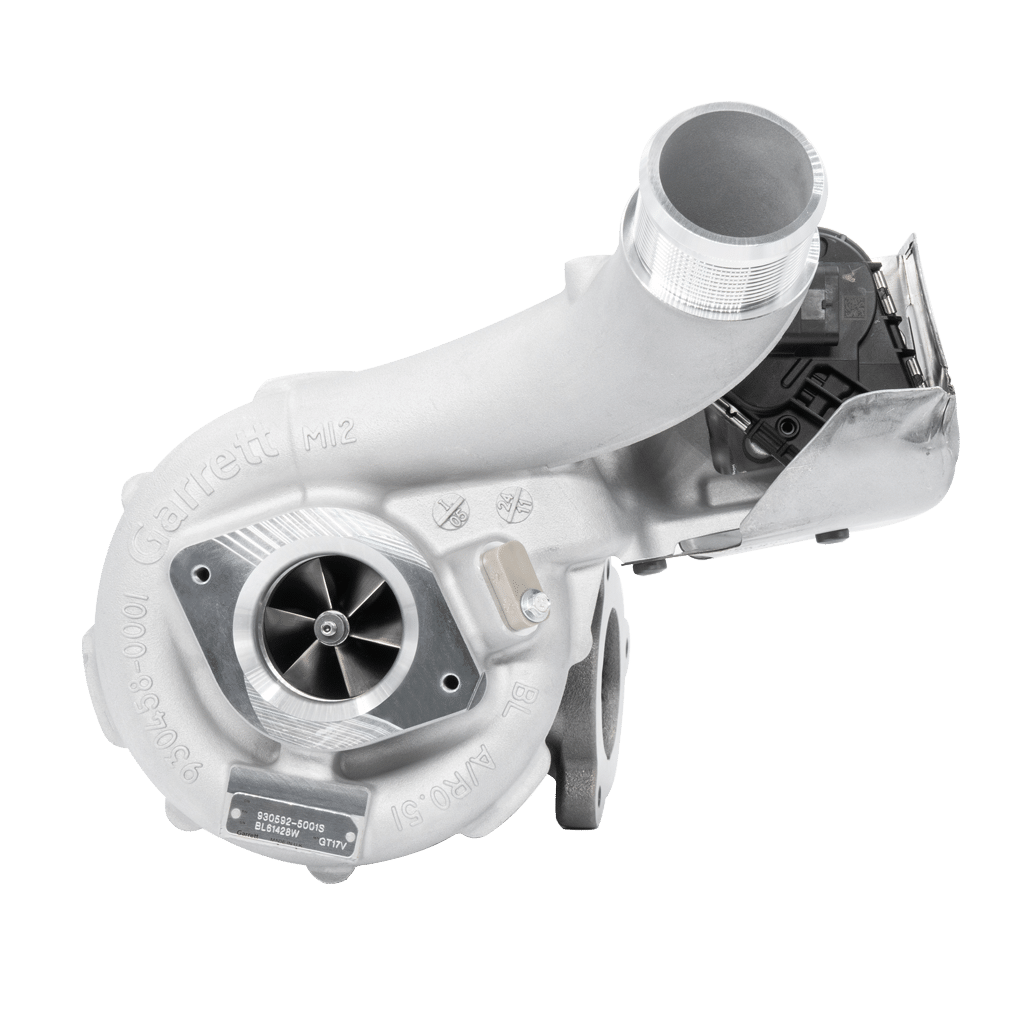

POWERMAX™ DIRECT FIT PERFORMANCE TURBOCHARGER

2022+ Ford Ranger 3.0L V6 Diesel
+27% compressor flow compared to the OEM turbo
Part Number 930592-5001S

Why Choose Garrett
Trust the name that’s been powering innovation for over 70 years. Garrett PowerMax turbochargers are engineered with OEM precision and built to outperform—from daily drivers to weekend track cars. With over 70 years of technology leadership and more than 130 million vehicles powered by our turbos, Garrett is the trusted choice for performance, reliability, and innovation.

Product Features:
• Direct-Fit Upgrade for the 2022+ Ford Ranger 3.0L V6 Diesel
• Replacement for Garrett OEM PN: MB3Q-6K682-AB
• +27% compressor flow compared to the OEM turbo
• +20% torque and horsepower at 2000RPM without modifications, for improved towing and 4×4 performance.
• Complete assembly with calibrated electric actuator for direct fitment
• Ball bearing design for optimized boost response and durability
• DUCTILE IRON turbine housing rated for up to 830°C
• Fully machined speed sensor port

WARNING: Maximum allowable turbocharger speed is 186.2krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003 (includes sensor and gauge), 781328-0004 (includes speed sensor), or G-Smart Bluetooth Module with sensor (PN 923586-0003). Sensor Kits sold separately. * Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are based on actual on-vehicle testing.

Buy now

IMPORTANT PRODUCT INFORMATION

“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”

Key Product Features:

  • Direct-Fit Upgrade for the 2022+ Ford Ranger 3.0L V6 Diesel
  • Replacement for Garrett OEM PN: MB3Q-6K682-AB
  • +27% compressor flow compared to the OEM turbo
  • +20% torque and horsepower at 2000RPM without modifications, for improved towing and 4×4 performance
  • Complete assembly with calibrated electric actuator for direct fitment
  • Ball bearing design for optimized boost response and durability
  • DUCTILE IRON turbine housing rated for up to 830°C
  • Fully machined speed sensor port

Why Choose Garrett

Trust the name that’s been powering innovation for over 70 years. Garrett PowerMax turbochargers are engineered with OEM precision and built to outperform—from daily drivers to weekend track cars. With over 70 years of technology leadership and more than 130 million vehicles powered by our turbos, Garrett is the trusted choice for performance, reliability, and innovation.

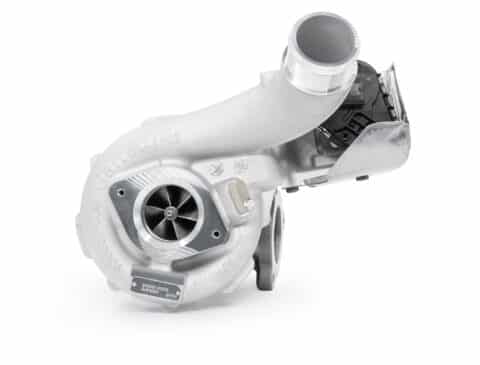

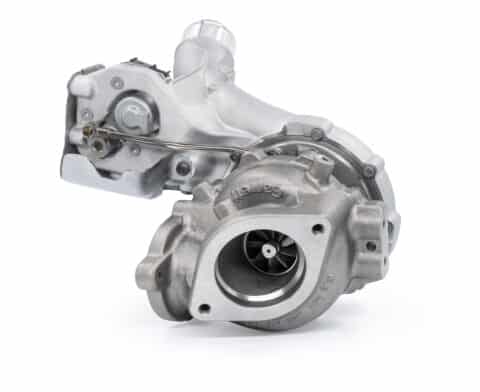

Complete Turbocharger Assembly

This complete turbocharger with electronic actuator can produce up to an impressive +27% compressor flow compared to the OEM turbo.

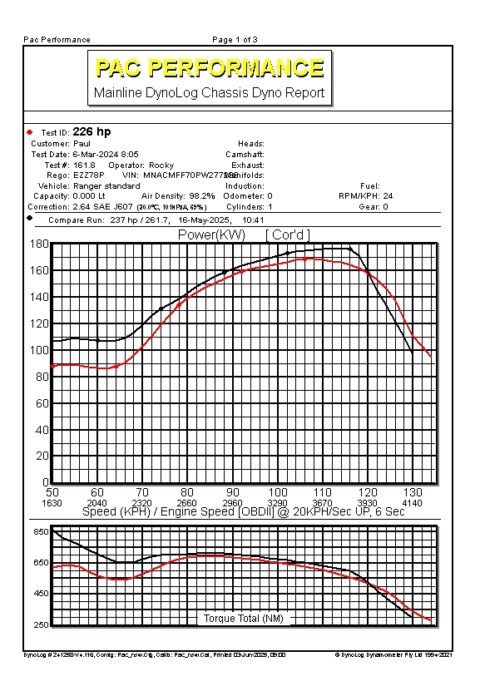

On-Vehicle Results

This PowerMax turbocharger was installed on a stock Ford Ranger and run a dyno without additional modifications or calibrations.

  • +27% compressor flow compared to the OEM turbo
  • +20% torque and horsepower at 2000RPM without modifications, for improved towing and 4×4 performance.

2022+ Ford Ranger 3.0L V6 Diesel

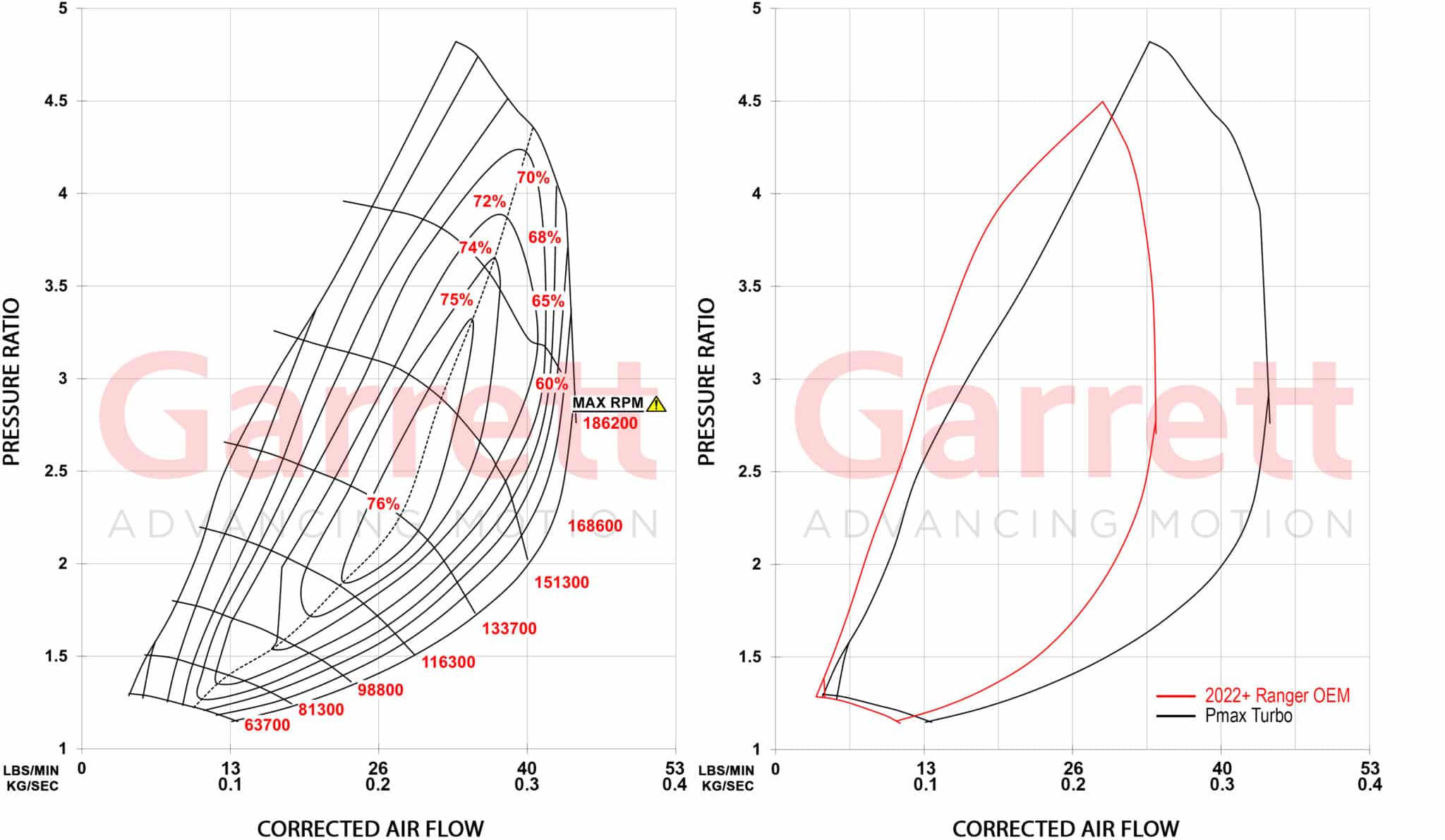

Compressor Map & Exhaust Flow Chart

Compressor Map

2022+ Ford Ranger 3.0L V6 Diesel

Performance Comparison Sheet

Part Number Model Comp Ind Comp Exd Turb Ind Turb Exd
930592-5001S GTD2060V 47mm 60mm 47mm 43mm

2022+ Ford Ranger 3.0L V6 Diesel

Download Section

Item Link
Flyer Click to download
