Garrett PowerMax Turbocharger – Toyota Hilux / 120 Prado 3.0L 1KD Diesel (2002–2016)

Description

POWERMAX DIRECT-FIT PERFORMANCE TURBOCHARGER

Toyota Hilux / 120 Prado 3.0L 1KD Diesel (2002–2016)

Supports up to 265 BHP | 198 kW, with a +38% increase in power tested on-dyno compared to the OEM turbo, delivering improved performance potential while maintaining factory drivability.

Kit Part Number:
953907-5001S (2002-2016) Toyota Hilux
953907-5002S (2002-2016) Toyota 120 Prado

IMPORTANT PRODUCT INFORMATION

“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”

Key Product Features

  • Direct-fit performance turbocharger for the Toyota Hilux & 120 Prado 3.0L 1KD Diesel (2002 – 2016)
  • Supports up to 265BHP | 198kW (+38% increase in power tested on-dyno compared to the OEM turbo)
  • 70% increase in torque (550Nm from 320Nm tested on-dyno compared to the OEM turbo)
  • Improved electric actuator assembly for increased durability
  • Complete turbocharger assembly with calibrated electric actuator
  • Fully machined speed sensor port to monitor turbo shaft speed: use PN 923586-0002 (G-Smart Bluetooth Module / App) or Speed Sensor Kit 781328-0001 (street kit w/ gauge) or 781328-0002 (pro kit w/o gauge)
  • Engineered to OEM durability and quality standards



Why Choose Garrett

Trust the name that’s been powering innovation for over 70 years. Garrett PowerMax™ turbochargers are engineered with OEM precision and designed to deliver improved performance and response for daily drivers and spirited driving alike. With more than 130 million vehicles powered globally, Garrett delivers performance, reliability, and innovation you can trust.

Garrett aftermarket turbochargers OEM-engineered quality

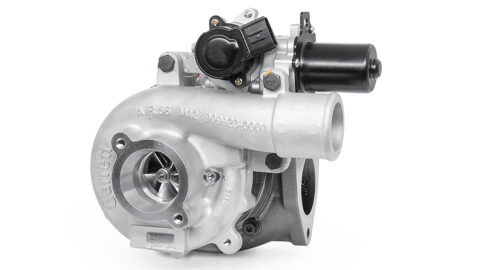

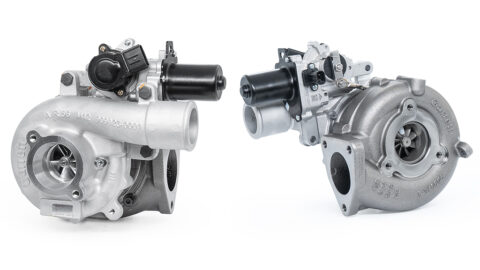

Complete Turbocharger Assembly

The Garrett PowerMax™ direct-fit turbocharger for the Toyota Hilux and Toyota 120 Prado is engineered as a complete, direct-fit replacement for the factory unit. Each assembly includes a calibrated actuator and matches the original OEM footprint, allowing reuse of factory mounting locations, oil and coolant connections, and intake and exhaust interfaces for straightforward installation.

PowerMax Turbocharger vs OEM Turbocharger

The Garrett PowerMax™ turbocharger is engineered as an OEM-plus upgrade, designed to retain factory fitment while increasing airflow and overall performance capability compared to the original equipment turbocharger.

Feature OEM Turbocharger Garrett PowerMax™ Turbocharger
Fitment Factory-installed Direct-fit OEM replacement
Installation Factory Bolt-on, no fabrication required
Airflow OEM-rated Increased compressor flow
Power Capability OEM output Supports higher power potential
Turbo Assembly OEM configuration Complete upgraded assembly
Actuator OEM Included, calibrated actuator
Drivability OEM OEM-like drivability retained
Reliability OEM durability OEM-engineered for increased performance

Performance Capability Explained

The horsepower capability referenced for this turbocharger is based on laboratory compressor flow testing and represents the total performance capability of the turbocharger itself. Actual performance results will vary depending on vehicle configuration, supporting modifications, and ECU tuning or calibration.

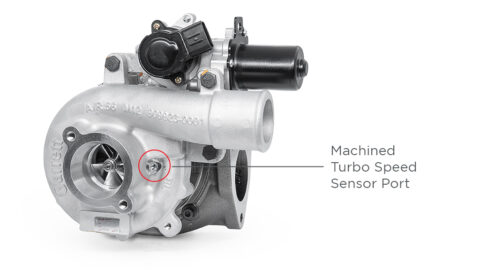

Turbo Speed Monitoring

This PowerMax™ turbocharger features a fully machined turbo speed sensor port. Monitoring turbocharger shaft speed is recommended to help prevent overspeed and protect long-term durability, especially when operating at higher performance levels. Compatible speed sensor kits are available separately. Use PN 923586-0002 (G-Smart Bluetooth Module / App) or Speed Sensor Kit 781328-0001 (street kit w/ gauge) or 781328-0002 (pro kit w/o gauge)

FAQ

Where can I buy? Use the Garrett Dealer Locator to find an authorized retailer.

Will I need tuning? Performance results are highly dependent on your vehicle’s modifications and tuning/calibration. The horsepower values referenced are based on laboratory flow testing and represent total turbo capability. ECU calibration may be required depending on your setup and performance goals.

Garrett PowerMax Turbocharger – Toyota Hilux / 120 Prado 3.0L 1KD Diesel (2002–2016)

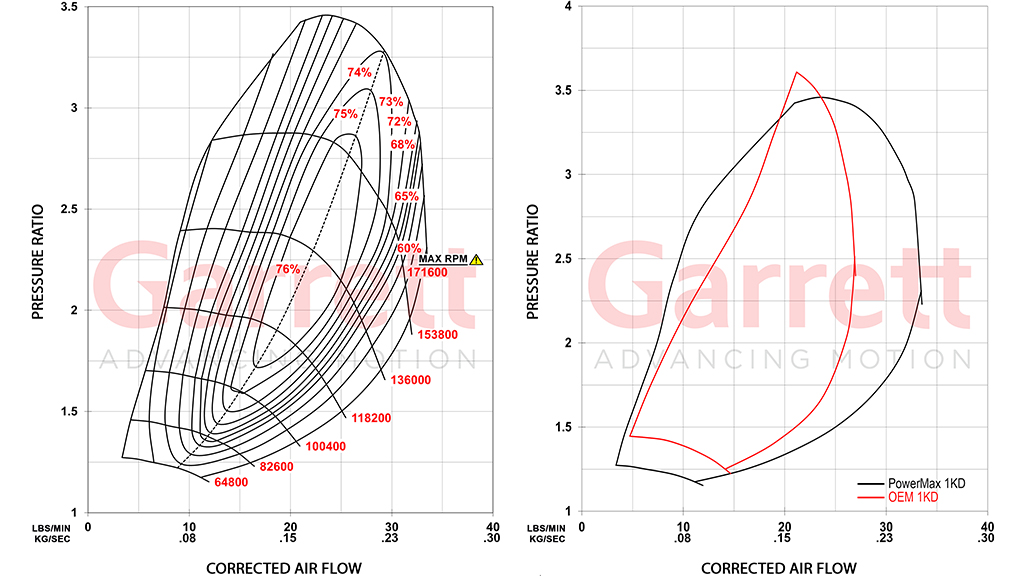

Compressor Map & Exhaust Flow Chart

Compressor Map

Garrett PowerMax Turbocharger – Toyota Hilux / 120 Prado 3.0L 1KD Diesel (2002–2016)

Performance Comparison Sheet

Kit Part Number Application Description Engine Power Model Comp Ind Comp Exd Turb Ind Turb Exd
953907-5001S

953907-5002S

2002-2016 Toyota Hilux

2002-2016 Toyota 120 Prado

3.0L 1KD Diesel 265 BHP | 198 kW GTB2260V 42.4 mm 61 mm 50 mm 45 mm

Garrett PowerMax Turbocharger – Toyota Hilux / 120 Prado 3.0L 1KD Diesel (2002–2016)

Download Section



Item Link
Flyer Click to download
