Wiborg Engineering in Mölnlycke Sweden is the go-to performance garage for designing and building some of Europe’s fastest Time Attack cars including their own highly modified Mitsubishi Evo 6. The team has claimed many Time Attack records over the years and most recently an overall victory at the King Of Mantorp Event with a 1:12.1 lap time with the car running on only 3 of its 4 cylinders. The team knew there was more time to make up so they fixed the 950 horsepower GTX3584RS turbocharged 4G63 engine, made some updates to the aero package and headed to the track once more to beat their record time and to become the first car ever at Mantorp Park to make a lap time under 1:10.00.



Fighting with some minor brake issues and traffic that cost a few tenths of a second, and on medium boost, Fredrik Wiborg drove an impressively smooth lap resulting in a new overall track record lap time of 1:09.92. Fredrik says, “But we are not done with a 1:09:92 and be sure of it, a cleaner lap with less traffic, more boost (still got 125-150 hp up our sleeve), and some fine tuning to the gearing in the Drenth Gearbox, we will continue to push the limits of Mantorp. Thanks to all our sponsors and partners behind the project making us continuously improving and breaking and re-breaking track records.”

View the record breaking lap as Wiborg Engineering’s own Fredrik Wiborg pilots the Evo 6 to a new track record lap time of 1:09.92

Vehicle Spec Sheet

GENERAL INFORMATION-
Company/ Team: Wiborg Engineering
Social Media Handles and Hashtags:
FB: @WiborgEngineering
Instagram: @wiborg_engineering

VEHICLE INFORMATION-
Year / Make / Model:Mitsubishi Evo 6
Chassis Code: tubular chassis
Competition Class: Time attack – unlimited class

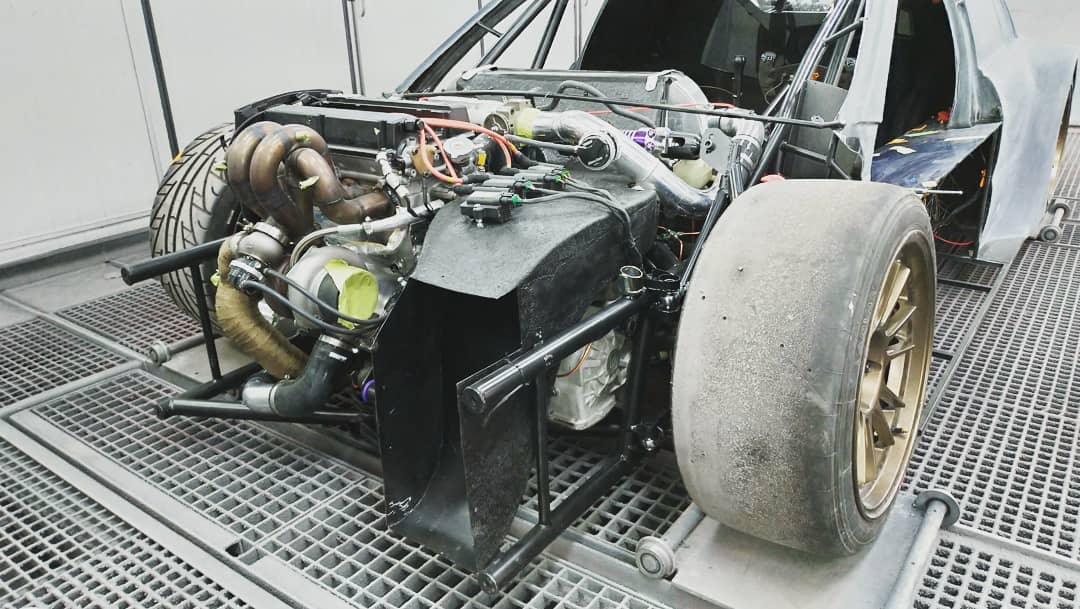

ENGINE INFORMATION-
Engine Code: 4g63
Peak HP / TQ: est 950 hp and 1000 Nm
Boost Pressure (@ RPM): maximum 2,85 bar/9000 rpm
Dyno Type: hub rotor (only run to 2.0 bar boost on dyno)
Block Modifications: Bullet Engineering billet aluminum 4g63 block +6mm deck height with custom billet dry sump system
Pistons / Compression Ratio: 9.0:1
Connecting Rods / Crank: Oliver I-beam rods, Bridgeway super lightweight crank
Cylinder Head Modifications: SME race cast head with solid lifters
Intake Manifold / Throttle Body: Wiborg Engineering custom intake system
Exhaust Manifold: Wiborg Engineering custom exhaust manifold
Exhaust System / Downpipe: Wiborg Engineering custom downpipe/exhaust
Wastegate: Single Turbosmart Gen V wg45 ”HP”
Blow-Off Valve: Turbosmart raceport
Intercooler: Custom Wiborg Engineering intercooler with Garrett 486827-6002 core
Fuel Injectors: 4x Bosch 2200cc
Fuel Pump(s): 3x DW400
Additional Fuel Delivery: –
Engine Management System: Motec m800
Engine Management Tuner: Wiborg Engineering
Boost Controller: Motec M800

TURBOCHARGER
Garrett GTX3584RS with 1.01 A/R housing

#No1 #RecordFactory #MoreToCome #NeverStopImproving
