How a Turbo Works
Turbos are fundamental to addressing the auto industry’s most pressing challenges. They dramatically improve combustion process efficiency, enhance vehicle performance and help reduce emissions. No wonder more than 140 million Garrett turbos currently boost cars and trucks around the world.
What is and how a Turbo Works?
Critical Component Highly Customized For The Engine

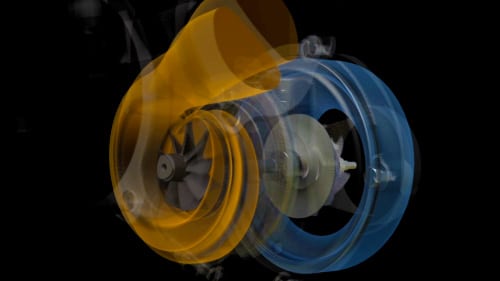

A Turbocharger Uses An Engine’s Exhaust Gas To Drive The Turbine Wheel Up To 350,000 RPM
The Turbine Wheel Drives The Compressor Wheel Through a Shaft
The Compressor Wheel Provides Compressed Air To The Engine
This Compressed Air Makes The Fuel Burn More Efficiently For Greater Power and Fuel Economy
Up To 1900 Fahrenheit
Up To 350,000 RPM
A Turbocharger is Highly Engineered with High Value Components
And The Next Step-Change is e-Boosting
With Advanced Power Electronics
How a Turbo System Works
Turbos utilise exhaust gases to power a turbine wheel, which is connected via a shaft to a compressor wheel. As the two wheels turn, large amounts of ambient air are sucked in and compressed. This air is passed through a charge-air cooler to further increase its density before it enters the engine. Turbocharged engines generate more power than naturally-aspirated engines of the same size. And the combustion process becomes more efficient. Furthermore, this helps reduce emissions and enhance the driving experience.
3rd Generation VNT™ Turbo

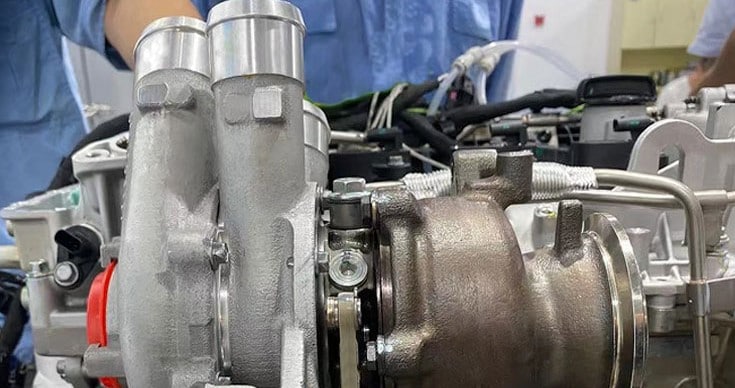

In a Garrett variable geometry VNT turbo, a row of moveable vanes positioned around the inlet of the turbine wheel can be adjusted instantaneously to vary the exhaust gas flow through the turbine wheel. This makes it possible to regulate the flow of gas so that a VNT turbo will act like a small turbo at low speeds – supplying more engine boost – while automatically providing larger turbo performance at higher speeds. The ability to vary the mass flow through the VNT enables car manufacturers to optimize fuel efficiency, emissions and driveability.
Broadest Turbo Range

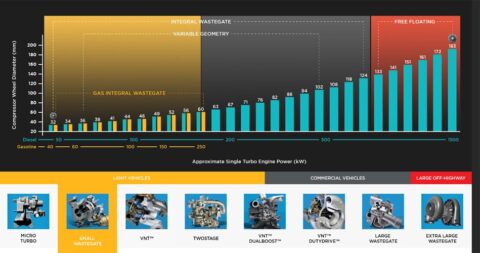

Garrett’s turbo portfolio covers the widest engine range in the automotive industry. From micro turbos for small cars to large turbos for off-highway equipment, Garrett’s line-up offers the world’s auto manufacturers boosting solutions for gasoline, diesel, CNG, hybrid powertrains and hydrogen fuel cells.
Browse our turbo resources to boost your knowledge base.
Get to grips with the Garrett turbo basics covering blow-off valves, wastegates, oil and water plumbing, and journal bearings vs. ball bearings.
Step up a level and explore wheel trim, turbine housing A/R and housing sizing, log style vs. equal length manifolds, compression ratio with boost, and air/fuel ratio tuning: rich vs lean.
Dive deep into compressor mapping, with guidance on how to estimate pressure ratio and mass flow rate for your engine, and how to plot the points on the maps to choose the right turbocharger.
