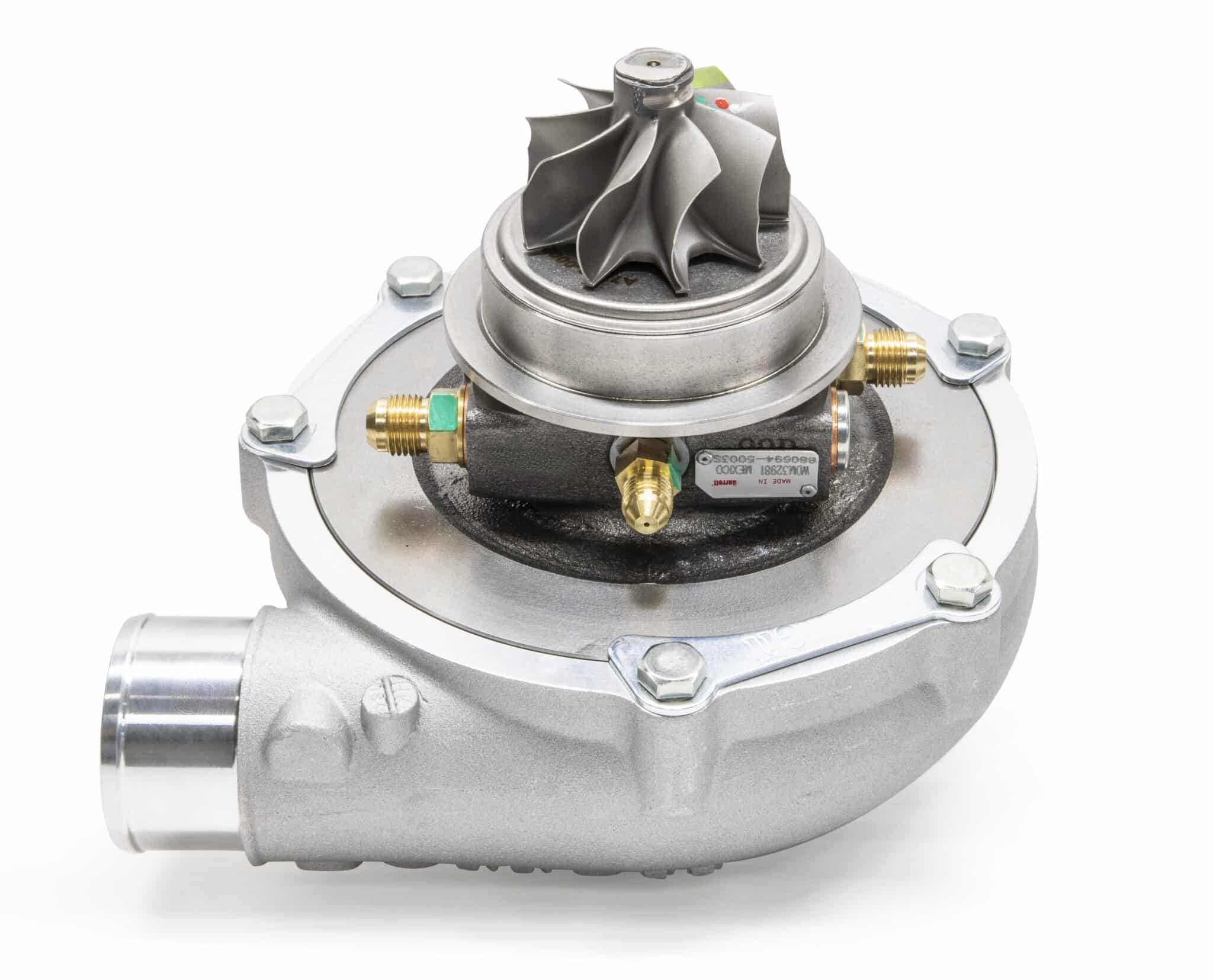

GTX3076R GEN II Reverse Rotation Turbocharger
Horsepower: 400 - 750
Displacement: 1.8L - 3.0L
Features
- GEN II AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
- 58mm TURBOCHARGER COMPRESSOR OPTION
- NEW FULLY MACHINED SPEED SENSOR PORT
- NEW REVERSE ROTATION OPTIONS AVAILABLE
- GTX3076R GEN II REVERSE ROTATION SUPERCORE PN: 844621-5004S
WARNING: Maximum allowable turbocharger speed is 145krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)
Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
Buy now
IMPORTANT PRODUCT INFORMATION
“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”
Learn More About Race Vehicle Setups
Alex Bernstein’s Super Sick Widebody 500+ HP BMW 135i Rips the Road Course with a Garrett Turbo
Alex Bernstein built a super sick widebody BMW 135i that’s equipped with a Garrett GTX3076R Gen II turbo to help rip around the road course.
Danger Dan’s 2JZ-Powered and Garrett Boosted Nissan 240SX Drift Machine
The S14 is a popular platform for drifting, and this Hoonigan-built Nissan 240SX has a sick Garrett turbocharged 2JZ swap.
Jackie Ding’s 615WHP Time Attack A90 Toyota Supra
Jackie Ding uses AMS Performance’s A90 Supra turbo kit to make 615 whp and 550 ft-lb of torque on a single Garrett GTX3076R Gen II turbo
Turbocharging At Elevation
A naturally aspirated combustion engine will lose 3% of its power for every 1,000 ft of elevation gain. Add a Garrett turbocharger to minimize the loss
How To Select A Turbo Part 1
With over 35 Garrett turbos to choose, how do you select the right one? This provides some insight into the complicated process.
Turbo Tech: The Difference An A/R Makes Going From .83 To 1.01 With A GTX3076R Gen II Turbo
Ever wondered what A/R stands for and how it affects turbo performance? This explains the basic concepts of the theory with dyno data to show the results
Garrett Performance Intercoolers
Performance Intercoolers Garrett performance intercoolers and intercooler cores work together with the turbocharger as part of the total induction system. When air is compressed in…
GTX3076R GEN II 58mm Reverse Rotation
Reference Data
| GTX3076R GEN II | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | ||
| HP: 400-750 Disp: 1.8L-3.0L | 58mm | 76mm | 58 | 0.60 | 60mm | 55mm | 84 | |
| Supercore | Assembly Kit | Turbine Kit | A/R | Inlet | Outlet | Wastegate | Divided | |
| 851154-5001S | 856801-5027S | 740902-0009 | 0.63 | T3 | V-Band | Free Float | N | |
| 856801-5026S | 740902-0008 | 0.82 | T3 | V-Band | Free Float | N | ||
| 740902-0007 | 1.06 | T3 | V-Band | Free Float | N | |||
| 856801-5039S | 740902-0036 | 0.61 | V-Band | V-Band | Free Float | N | ||
| 856801-5038S | 740902-0035 | 0.83 | V-Band | V-Band | Free Float | N | ||
| 856801-5037S | 740902-0034 | 1.01 | V-Band | V-Band | Free Float | N | ||
| 771300-0006 | 0.63 | T3 | 5 bolt | Wastegated | N | |||
| Assembly Kit PN Includes | 771300-0005 | 0.82 | T3 | 5 bolt | Wastegated | N | ||
| Supercore and Turbine Kit | 771300-0004 | 1.06 | T3 | 5 bolt | Wastegated | N | ||
| Reverse Rotation | Supercore | Turbine Kit | A/R | Inlet | Outlet | Wastegate | Divided | |
| 844621-5004S | 740902-0053 | 0.61 | V-Band | V-Band | Free Float | N | ||
| 740902-0054 | 0.83 | V-Band | V-Band | Free Float | N | |||
| 740902-0055 | 1.01 | V-Band | V-Band | Free Float | N | |||
GTX3076R GEN II 58mm Reverse Rotation
Download Section
GTX3076R GEN II 58mm Reverse Rotation
Compressor Map & Exhaust Flow Chart
Compressor Map
Exhaust Flow Chart
GTX GEN II: The Next Generation in Turbocharging Technology
Garrett Motion is excited to introduce the GTX3076R GEN II Reverse Rotation Turbocharger. The GTX GEN II is the next evolution of our GTX line with major updates and new technology. Updates include a compressor wheel aero update that gives it the ability to produce up to 20% more horsepower than the previous version.
Redeveloped Compressor Wheels
GTX GEN II compressor wheels were designed using proprietary Garrett Motion computer simulation technology focusing on CFD analysis to optimize the wheel design to reach maximum efficiency and mass flow for each turbocharger.
Each GTX GEN II turbocharger can create more air mass flow, offering enthusiasts a wider range of power output when tuning the vehicle. The 8mm dual ceramic ball bearing cartridge provides optimal turbo response and reliability through its reduction in shaft motion.
Fully-Machined Inlet, Outlet and Shroud
The GEN II GTX Series Turbochargers feature a fully-machined compressor inlet, fully-machined compressor outlet, and fully-machined ported shroud for precise and accurate tolerances.
Redesigned High-Flowing Compressor Housing
We also added a brand-new compressor housing featuring a high-flowing design matched perfectly for the new compressor wheel upgrade. GEN II compressor housings are not interchangeable with GEN I compressor wheels; however, all GEN II turbochargers are outline interchangeable with the equivalent GT and GTX GEN I products making a turbo swap easy to perform using all existing piping.
Fully-Machined Speed Sensor Port
The new compressor housings are equipped with a fully machined speed sensor port that accepts the Garrett Motion speed sensor (Sold separately). This feature allows tuners to understand existing operating conditions, which is important when fine-tuning a turbocharger to its most efficient operating conditions. The speed sensor port comes plugged from the factory and can be removed using a 5mm Allen key when ready to install a speed sensor kit.
Cross Compatibility Turbo Turbine Housing Kit Platform
All GEN II GTX series turbochargers are compatible with all existing GT and GTX turbine housings kits. GEN II turbochargers are only offered through Garrett Motion authorized distribution centers.
