2014 – 2021 Volkswagen / Audi 2.0L TSI MK7 Stage 1 and Stage 2

Buy now

Description

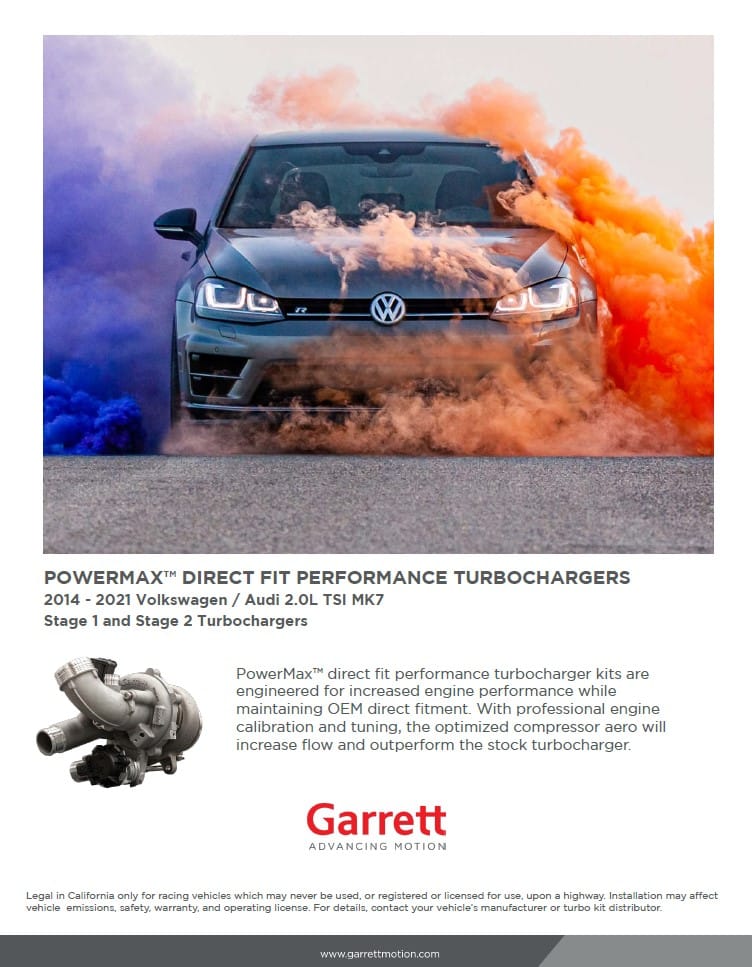

POWERMAX™ DIRECT FIT PERFORMANCE TURBOCHARGER
2014 – 2021 Volkswagen / Audi 2.0L TSI MK7 | 7.5

Stage 1 Part number: 898199-5001W Supports up to 485 BHP (362kW)*

Stage 2 Part Number: 898200-5001W Supports up to 600 BHP (447kW)*

Garrett PowerMax™ turbocharger upgrades for the Volkswagen and Audi MK7 2.0L TSI engine platform is engineered to increase engine performance while maintaining OEM installation specifications. Stage 1 (485 HP*) and Stage 2 (600 HP*) upgrades maximize efficiency and air flow compared to the OEM turbocharger. High temperature, Mar-M alloy turbine wheel and twin scroll stainless steel turbine housings are rated for up to 1050° C. These turbochargers are fully assembled with a calibrated electronic actuator and ancillary components for direct OEM fitment.
WARNING: Maximum allowable turbocharger speed is 185krpm (Stage 1) | 165krpm (Stage 2). The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003 (includes sensor and gauge), and 781328-0004 (includes speed sensor). Speed sensors sold separately.

*Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The target power has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power.

Buy now

IMPORTANT PRODUCT INFORMATION

“Garrett Performance Kits are professional aftermarket products only designed for certain racing vehicles driven on particular racing tracks and shall only be used on racing vehicles that will never be driven on public roads or highways. Garrett Performance Kits are not legal for the use in vehicles on public roads or other roads to which public road law applies. Any vehicle modifications using Garrett Performance Kits are AT YOUR OWN RESPONSIBILITY and AT YOUR OWN RISK. Only use Garrett Performance Kits in compliance with all applicable laws, regulations, and ordinances (including but not limited to emission, noise, operating license, performance, safety, and type-approval aspects). A vehicle modification using Garrett Performance Kits may particularly affect or void a vehicle’s warranty, operating license or type-approval. Moreover, only use Garrett Performance Kits in compliance with all applicable racing and racing track provisions. It is YOUR OWN RESPONSIBILITY AND RISK to ensure that your Garrett Performance Kit fits your vehicle and area of application. YOU MUST ENSURE LAWFUL AND SAFE OPERATIONS AT ANY TIME. You should particularly consult the owner’s manual and service manual of your vehicle. You should also contact your vehicle’s manufacturer to determine what effects modifications may have on important aspects such as safety, warranty, performance, etc. Only install and use Garrett Performance Kits if you have fully read and understood this important safety information and if you fully agree with the terms and conditions set forth therein.”

Turbo Reference Data

Part Number	Stage	Power	Model	Comp Ind	Comp Exd	Turb Ind	Turb Exd
898199‑5001W	Stage 1	485 HP \| 362 kW	GT2260S	47 mm	60 mm	50 mm	45 mm
898200‑5001W	Stage 2	600 HP \| 447 kW	G25‑660	54 mm	67 mm	54 mm	49 mm

Application Data

Make	Model	Year	Body & Trim	Engine	OEM Turbo	OEM Turbo PN
Audi	TT	2014 +	Base	2.0L L4 – Gas	IS20	06K145874M
Audi	TTS	2014 +	Base	2.0L L4 – Gas	IS38	06K145722H
Audi	A3	2015 – 18	Premium, Premium Plus, Prestige	2.0L L4 – Gas	IS20	06K145874M
Audi	A3 Quattro	2015 – 18	Premium, Premium Plus, Prestige	2.0L L4 – Gas	IS20	06K145874M
Audi	S3	2015 – 18	Premium Plus, Prestige	2.0L L4 – Gas	IS38	06K145722H
VW	Golf	2015	S, SE, SEL, Launch Edition	2.0L L4 – Gas	IS12	06K124713L
VW	Golf GTI	2015	Autobahn, S, SE	2.0L L4 – Gas	IS20	06K145874M
VW	Golf R	2015	Base	2.0L L4 – Gas	IS38	06K145722H
VW	Golf	2016	Base, S, SE, SEL	2.0L L4 – Gas	IS12	06K124713L
VW	Golf GTI	2016	Autobahn, S, SE	2.0L L4 – Gas	IS20	06K145874M
VW	Golf R	2016	Base	2.0L L4 – Gas	IS38	06K145722H
VW	Golf	2017	S, Wolfsburg Edition	2.0L L4 – Gas	IS12	06K124713L
VW	Golf Alltrack	2017	S, SE, SEL	2.0L L4 – Gas	IS12	06K124713L
VW	Golf GTI	2017	Autobahn, S, SE	2.0L L4 – Gas	IS20	06K145874M
VW	Golf R	2017	Base	2.0L L4 – Gas	IS38	06K145722H
VW	Golf	2018	S, SE, SEL	2.0L L4 – Gas	IS12	06K124713L
VW	Golf Alltrack	2018	S, SE, SEL	2.0L L4 – Gas	IS12	06K124713L
VW	Golf GTI	2018	Autobahn, S, SE	2.0L L4 – Gas	IS20	06K145874M
VW	Golf R	2018	Base	2.0L L4 – Gas	IS38	06K145722H
Audi	TT, TT Quattro	2014-2018	Base	2.0L L4 – Gas	IS20	06K145874M
Audi	TT 45, TT 45 Quattro	2018+	Base	2.0L L4 – Gas	IS20	06K145874M
Audi	TTS Quattro	2014-2018	Base	2.0L L4 – Gas	IS38	06K145722H
Audi	TTS Quattro (facelift)	2019-2020	Base	2.0L L4 – Gas	IS38	06K145722H
Audi	S3	2013 – 16	Base	2.0L L4 – Gas	IS38	06K145722H
Audi	S3 (facelift)	2016 – 17	Base	2.0L L4 – Gas	IS38	06K145722H
Audi	SQ2 Quattro	2018-2020	Base	2.0L L4 – Gas	IS38	06K145722H
Audi	Q3	2015-2018	Base	2.0L L4 – Gas	IS20	06K145874M
Seat	Leon Cupra	2014-2016	Base	2.0L L4 – Gas	IS20	06K145874M
Seat	Leon Cupra	2014-2018	280, 290	2.0L L4 – Gas	IS38	06K145722H
Seat	Leon Cupra (facelift)	2018-2020	290, 300, R	2.0L L4 – Gas	IS38	06K145722H
Cupra	Ateca	2018-2020	Base	2.0L L4 – Gas	IS38	06K145722H
Skoda	Octavia RS	2013-2016	Base	2.0L L4 – Gas	IS20	06K145874M
Skoda	Octavia RS (facelift)	2017-2020	Base	2.0L L4 – Gas	IS20	06K145874M
Skoda	Superb 4×4	2015-2019	Style, Ambition, SportLine	2.0L L4 – Gas	IS38	06K145722H
VW	Golf GTI	2013-2016	Base, Performance	2.0L L4 – Gas	IS20	06K145874M
VW	Golf R	2013-2016	Base	2.0L L4 – Gas	IS38	06K145722H
VW	Golf GTI	2016	Clubsport	2.0L L4 – Gas	IS38	06K145722H
VW	Golf GTI (facelift)	2017-2019	Base, Performance	2.0L L4 – Gas	IS20	06K145874M
VW	Golf GTI (facelift)	2019	TCR	2.0L L4 – Gas	IS38	06K145722H
VW	Golf R (facelift)	2017-2019	Base	2.0L L4 – Gas	IS38	06K145722H
VW	Passat	2015-2018	Base	2.0L L4 – Gas	IS20	06K145874M
VW	Passat 4MOTION	2018-2019	Base, Highline	2.0L L4 – Gas	IS38	06K145722H
VW	Tiguan	2016-2020	Base	2.0L L4 – Gas	IS20	06K145874M
VW	Arteon 4MOTION	2018-2020	Elegance, R-Line	2.0L L4 – Gas	IS38	06K145722H
	European Applications

Stage 1 Features:

Direct-Fit Stage 1 Upgrade
485HP | 362kW (flywheel) power capability (on-vehicle results)
47mm compressor inducer, 60mm compressor exducer
50mm turbine inducer, 45mm turbine exducer
GT2260S turbocharger
Audi A3, S3, TT, TTS
VW Golf Base, AllTrack, GTI and R
Complete assembly with calibrated electric actuator and ancillary components for OE fitment
+17% flow compared to IS38 turbo (stock Golf R)
GTX Gen II compressor wheel aero
Modern gasoline turbine wheel aerodynamics constructed of Mar-M alloy rated for up to 1050C
Stainless steel turbine housing rated for up to 1050C
Fully machined speed sensor port
Latest generation of journal bearing rotor group
360-degree thrust bearing –reinforced for application

Stage 1 Part number: 898199-5001W Supports up to 485 HP (362kW)*

Stage 2 Features:

Direct-Fit Stage 2 Upgrade
600HP | 447kW (flywheel) power capability (on-vehicle results)
54mm compressor inducer, 67mm compressor exducer
54mm turbine inducer, 49mm turbine exducer
G25-660 turbocharger
Audi A3, S3, TT, TTS
VW Golf Base, AllTrack, GTI and R
Complete assembly with calibrated electric actuator and ancillary components for OE fitment
+59% flow compared to IS38 turbo (stock Golf R)
G-Series compressor wheel aerodynamics for maximum horsepower
G-Series turbine wheel aerodynamics constructed of Mar-M alloy rated for up to 1050C
Stainless steel turbine housing rated for up to 1050C
Fully machined speed sensor port
Ball-bearing

Stage 2 Part Number: 898200-5001W Supports up to 600 HP (447kW)*

Performance Results: Horsepower (On-Vehicle Results)

AUDI TT 2.0 TFSI (EA888 Gen 3)
Garrett PMAX Stages 1 and 2 upgrade turbos
Larger intercooler
Custom exhaust system
Reinforced pistons -lowered compression ratio of 9.2:1
Upgraded fuel system -larger high pressure fuel pump and larger injectors
Transmission upgrades -software upgrade only
Cylinder head upgrades -valve springs only
Fuel -102 octane unleaded (Stage 2 also run with ethanol mixture)

Performance Results: Torque (On-Vehicle Results)

AUDI TT 2.0 TFSI (EA888 Gen 3)
Garrett PMAX Stages 1 and 2 upgrade turbos
Larger intercooler
Custom exhaust system
Reinforced pistons -lowered compression ratio of 9.2:1
Upgraded fuel system -larger high pressure fuel pump and larger injectors
Transmission upgrades -software upgrade only
Cylinder head upgrades -valve springs only
Fuel -102 octane unleaded (Stage 2 also run with ethanol mixture)
