SAE JA6268TM标准是什么?盖瑞特如何成功运用它
JA6268TM是一部SAETM 标准,它用于简化汽车制造商之间交换数据,并支持采用智能诊断(IVHM)。
SAE JA6268TM 标准由SAE健康就绪组件HRCSTM (Health-Ready Component Systems) 联盟制定。在汽车和航空航天等诸多行业中都拥有该标准。总的来说,它为可在车辆中的主要部件提供了标准模板,描述了它们的故障模式、监测其健康状况的机制,以及实现健康监测所需的运行时数据。HRCSTM负责托管该模板,并在2021年春季向公众开放。
每个标准模板都需要由供应商、OEM和车队运营商针对具体的车辆或部件进行调整/适应。
了解 JA6268TM 的优势

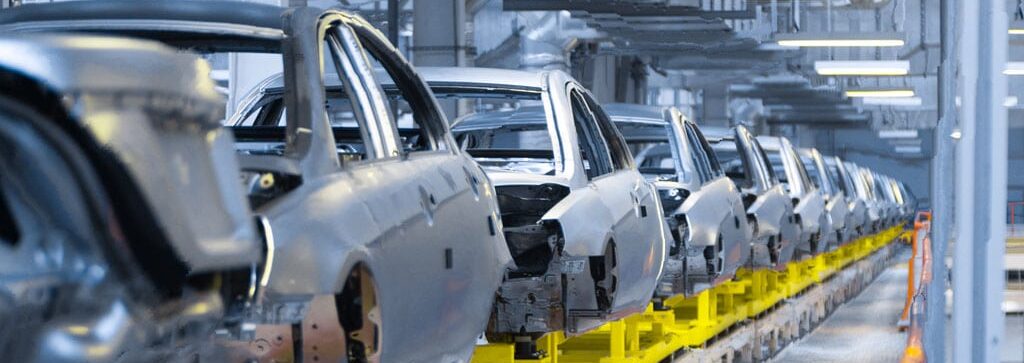

客户目标:
- “我希望减少保修费用(减少‘未发现问题’)。”
- “我想要采用远程诊断和预测功能。”
- “我希望能看到更好的服务与质量成果。”
- “我希望在自己的生态系统内有一个分享车辆信息的标准机制。”
优势:
- 用更低的失误率,更好的设计,更高的预见问题能力来提高产品价值
- 提升消费者满意度
- 用更低的价格提供新的服务与销售模式!

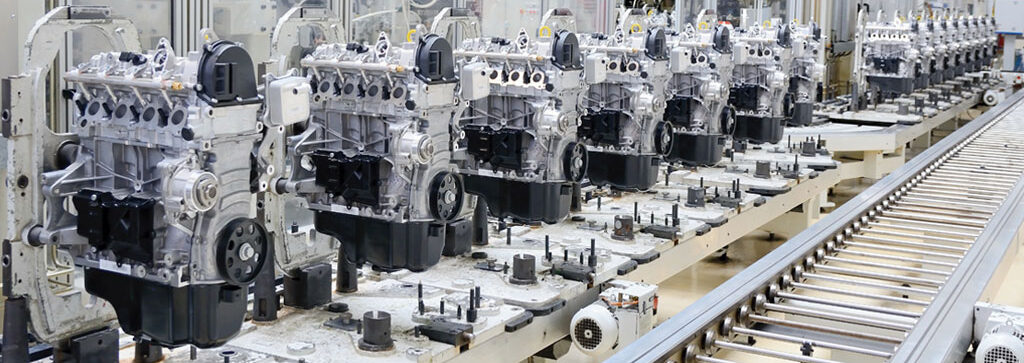

客户目标:
- “我希望为我们的产品提供更好的支持。”
- “我希望通过了解故障模式以及在现实情况中车辆部件的相关性能来提升产品质量。”
- “我希望在自己的生态系统内有一个分享车辆信息的标准机制。”
优势:
- 提升产品和服务价值
- 提升产品质量
- 降低研发和整合成本
客户目标:
- “我希望车队在有需要的时候可以正常运转。”
- “我希望能减少维护成本。”
- “我的车队有众多汽车品牌,但我想要一个统一的车辆健康管理系统。”
- “与服务中心沟通时,我希望能有一个标准流程。”
- “我希望有一个适应OEM服务公告的标准流程。”
优势:
- 采用统一的诊断和预测功能
- 通过减少复杂性和成本来管理车队健康
