Mitsubishi Evolution X (2008+) GTX Series

Description

ApplicationMitsubishi Evolution X
Part NumberGTX3071R (0.73 A/R) – 788550-5
GTX3076R (0.94 A/R) – 788550-8
DescriptionEngine: 2.0L 4B11 Turbocharged Inline 4

The Garrett® Evo X Turbo Upgrade allows you to push your AWD, rally-bred monster up to an estimated 550 HP with the Garrett® GTX3071R or a tire-smoking estimated 650 HP with the Garrett® GTX3076R. Each turbo has been meticulously designed to be a bolt-on upgrade with no major modifications or guesswork required.

The Garrett® Evo X Turbo Upgrade features a specially designed twin-scroll turbine housing that mates up directly to the Evo X’s stock exhaust manifold as well as the stock exhaust down pipe to allow for aftermarket exhausts to be used without worrying about fitment.

The turbine housing allows for the retention of the stock exhaust heat shield for better temperature control as well as a stealth look.

The ported shroud compressor housing reduces the occurrence of surge during operation and mates directly to the intake piping as well as the stock outlet position.

The Garrett® patented dual ball bearing center housing is standard on both turbocharger options for unmatched power handling and unbeatable response.

Mitsubishi Evolution X (2008+) GTX Series

Compressor Map & Exhaust Flow Chart

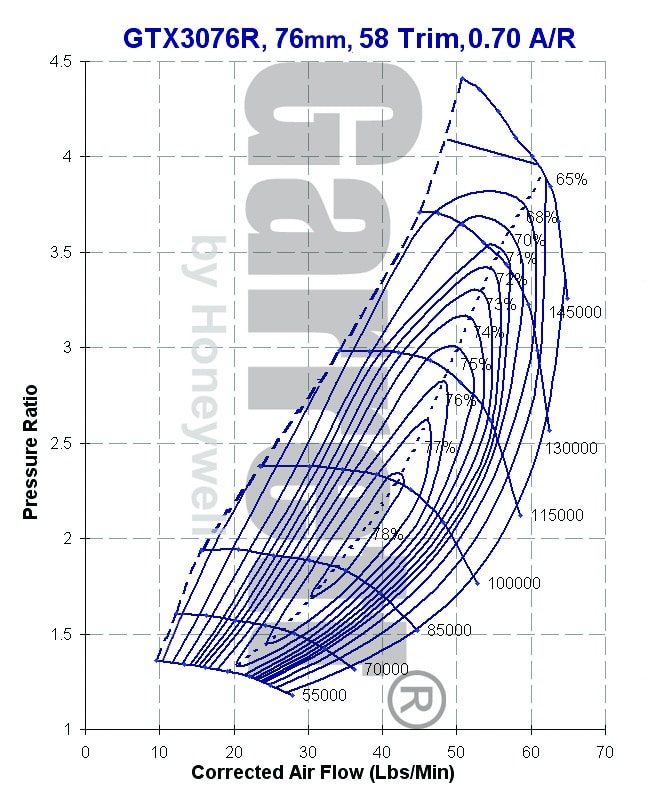

Compressor Map

Mitsubishi Evolution X (2008+) GTX Series

Performance Comparison Sheet

Garrett GTX3071R KitGarrett GTX3076R Kit
Horsepower550*650*
* Estimated. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.

Mitsubishi Evolution X (2008+) GTX Series

Download Section

ItemLink
Installation InstructionsClick to download
