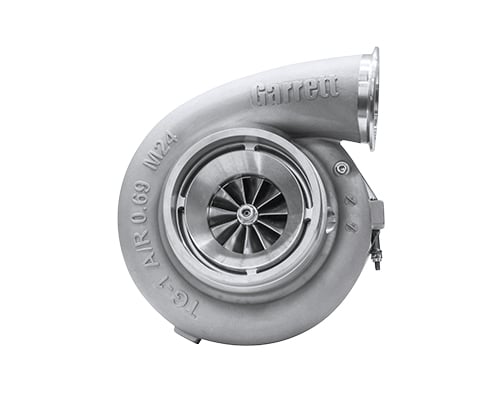

GTX5008R Turbocharger

Horsepower: 720 - 1270

Displacement: 2.5L - 10.0L

Features

FEATURES ORIGINAL GTX COMP WHEEL AERODYNAMICS
NEW FULLY-MACHINED SPEED SENSOR PORT.
SUPER CORE AND TURBINE KIT SOLD SEPARATELY
V-BAND COMPRESSOR OUTLET CONFIGURATION
LIGHTWEIGHT BILLET BACKPLATE

GTX5008R

Reference Data

The latest Garrett technologies featuring many advanced features.

Turbocharger Part Number Chart
Super Core Reference DataCompressorTurbine
Super Core PNCHRA PNInducerExducerTrimA/RInducerExducerTrim
804878-5020S769210-003580mm108mm550.6999mm91mm84
Notes:Turbine Kit PNA/RInletOutletWastegateDividedTrim
Super Core and Turbine Kit Sold Separately761208-00300.96T6V-BandFree FloatN84
761208-00331.39T6V-BandFree FloatN84

GTX5008R

Download Section

The latest Garrett technologies featuring many advanced features.

File NameLinkView
Compressor MapDownloadView
Exhaust Flow ChartDownloadView
Product PhotoDownloadView
Flange DiagramDownloadView
Speed Sensor Kit Installation InstructionDownloadView

GTX5008R

Compressor Map & Exhaust Flow Chart

The latest Garrett technologies featuring many advanced features.

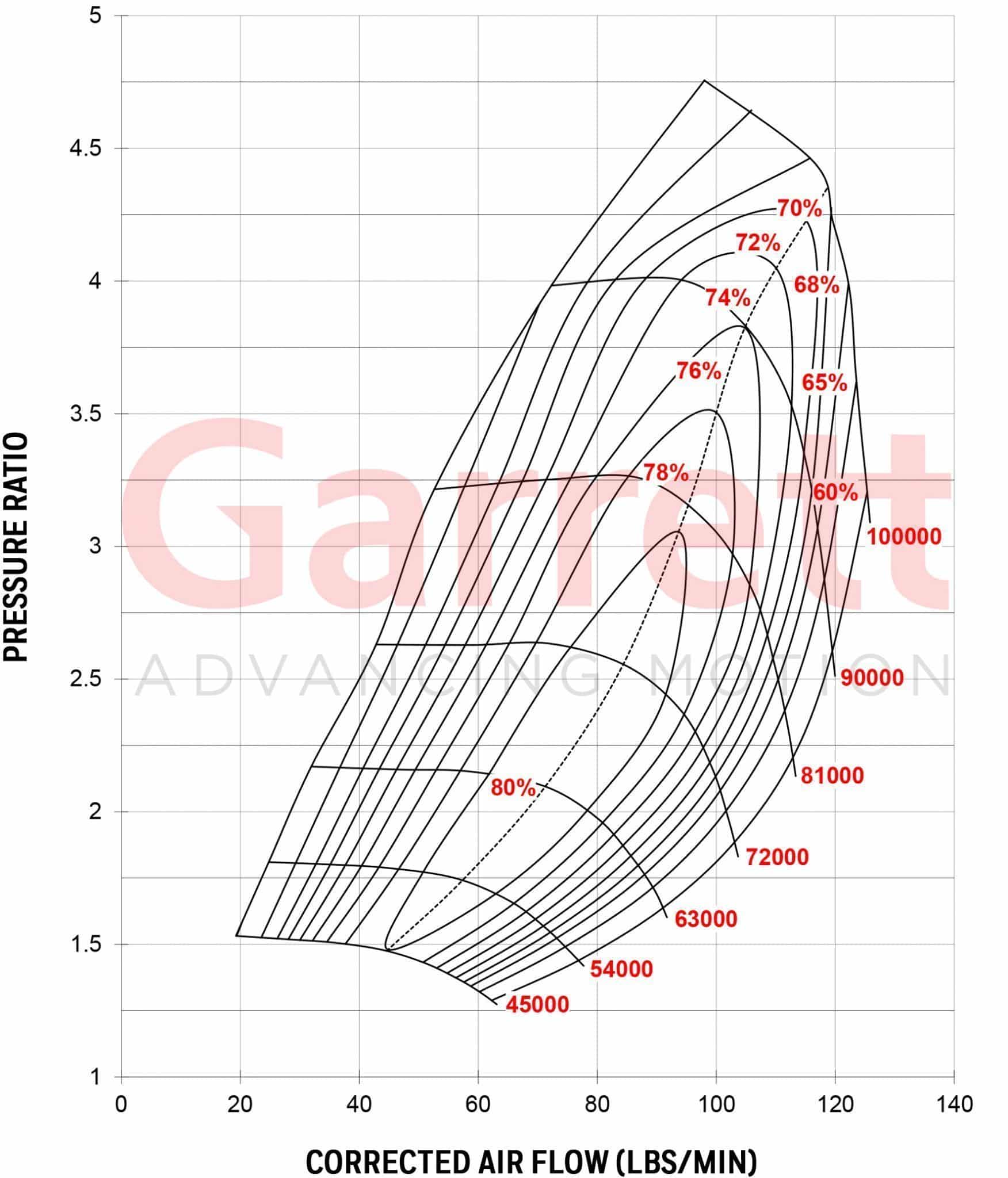

Compressor Map

Exhaust Flow Chart

About Garrett® GTX Series Turbochargers

Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.

Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
