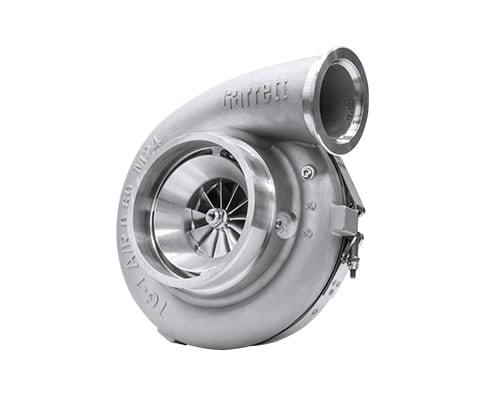

GTX4708R Turbocharger

Horsepower: 720 - 1270

Displacement: 2.0L - 10.0L

Features

FEATURES ORIGINAL GTX COMP WHEEL AERODYNAMICS
NEW FULLY-MACHINED SPEED SENSOR PORT.
SUPER CORE AND TURBINE KIT SOLD SEPARATELY
V-BAND COMPRESSOR OUTLET CONFIGURATION
LIGHTWEIGHT BILLET BACKPLATE

GTX4708R

Reference Data

The latest Garrett technologies featuring many advanced features.

Turbocharger Part Number Chart

Super Core Reference DataCompressorTurbine
Super Core PNCHRA PNInducerExducerTrimA/RInducerExducerTrim
804878-5002S769210-001880mm108mm550.6993mm84mm82
Notes:Turbine Kit PNA/RInletOutletWastegateDividedTrim
Super Core and Turbine Kit Sold Separately761208-00090.96T6V-BandFree FloatN82
761208-00101.08T6V-BandFree FloatN82
761208-00111.23T6V-BandFree FloatN82
761208-00121.39T6V-BandFree FloatN82

GTX4708R

Download Section

The latest Garrett technologies featuring many advanced features.

File NameLinkView
Flange diagram 763740_1DownloadView
Flange diagram 763740_3, 4, 5 & 6DownloadView
Flange diagram 769112_1, 2, 3 & 4DownloadView
File NameLinkView
Compressor MapDownloadView
Exhaust Flow ChartDownloadView
Product PhotoDownloadView
Flange DiagramDownloadView
Speed Sensor Kit Installation InstructionDownloadView

GTX4708R

Compressor Map & Exhaust Flow Chart

The latest Garrett technologies featuring many advanced features.

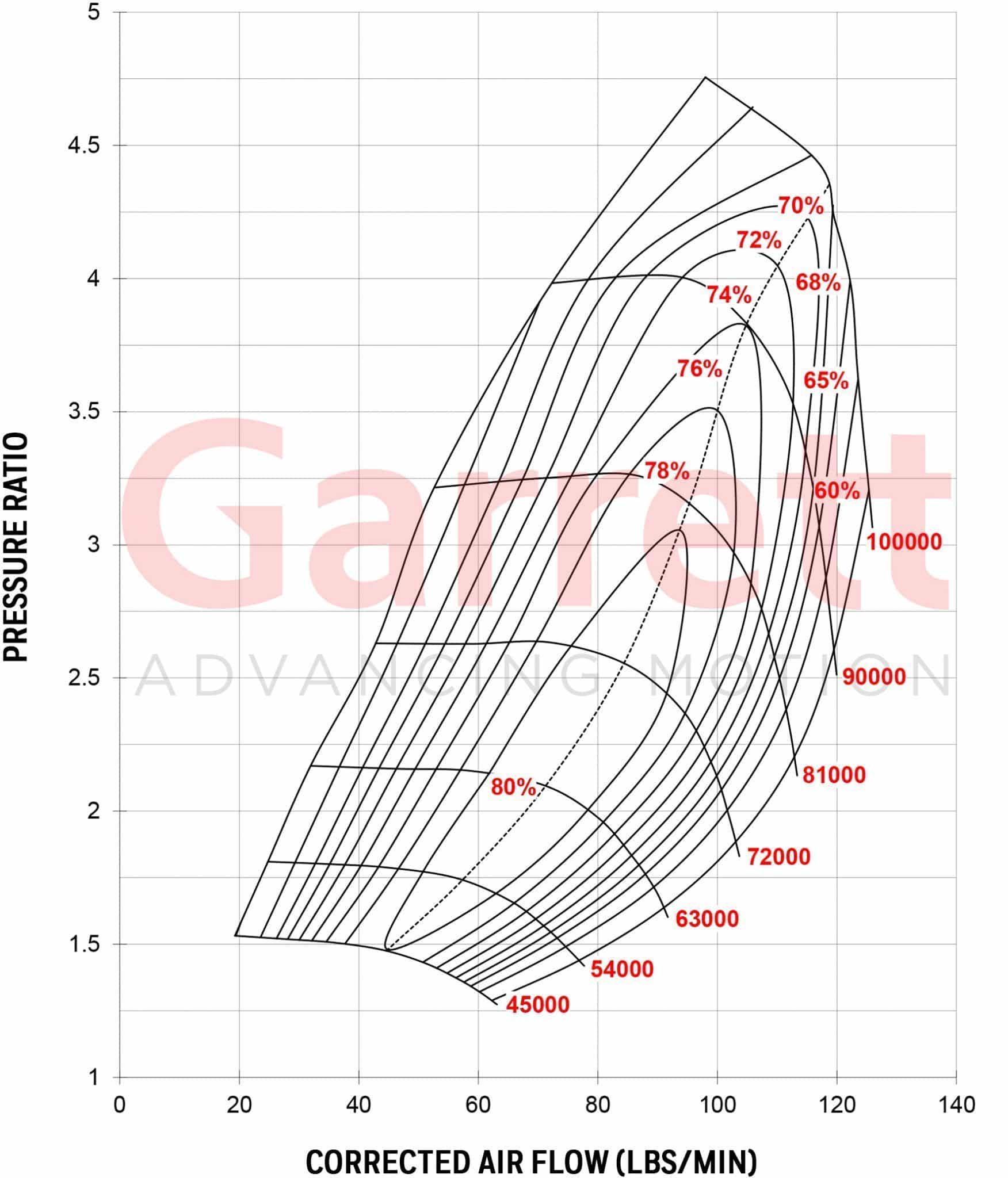

Compressor Map

Exhaust Flow Chart

About Garrett® GTX Series Turbochargers

Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.

Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
