GTX2971R Turbocharger

Horsepower: 340 - 560

Displacement: 1.8L - 3.0L

Features

  • FEATURES ORIGINAL GTX COMP WHEEL AERODYNAMICS
  • 54mm TURBOCHARGER COMPRESSOR OPTION
  • SUPER CORE AND TURBINE KIT SOLD SEPARATELY
  • AVAILABLE IN 84 AND 90 TRIM TURBINE OPTIONS

GTX2971R

Reference Data

The latest Garrett technologies featuring many advanced features.

Turbocharger Part Number Chart
Super Core Reference Data Compressor Turbine
Super Core PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim
836041-5002S 836013-0002 54mm 71mm 58 0.60 57mm 52mm 84
836041-5003S 836013-0003 54mm 71mm 58 0.60 57mm 54mm 90
Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim
Super Core and Turbine Kit Sold Separately 827690-0006 0.64  T25 5-Bolt Wastegated N 84
827690-0007 0.86  T25 5-Bolt Wastegated N 90
740902-0048 0.61  V-Band V-band Free Float N 84
740902-0051 0.61  V-Band V-band Free Float N 90
740902-0047 0.83  V-Band V-band Free Float N 84
740902-0050 0.83  V-Band V-band Free Float N 90
740902-0046 1.01  V-Band V-band Free Float N 84
740902-0049 1.01  V-Band V-band Free Float N 90

GTX2971R

Download Section

The latest Garrett technologies featuring many advanced features.

File Name Link View
Configuration Guide Download View
File Name Link View
Compressor Map Download View
Exhaust Flow Chart Download View
Product Photo Download View
Flange Diagram Download View
Speed Sensor Kit Installation Instruction Download View

GTX2971R

Compressor Map & Exhaust Flow Chart

The latest Garrett technologies featuring many advanced features.

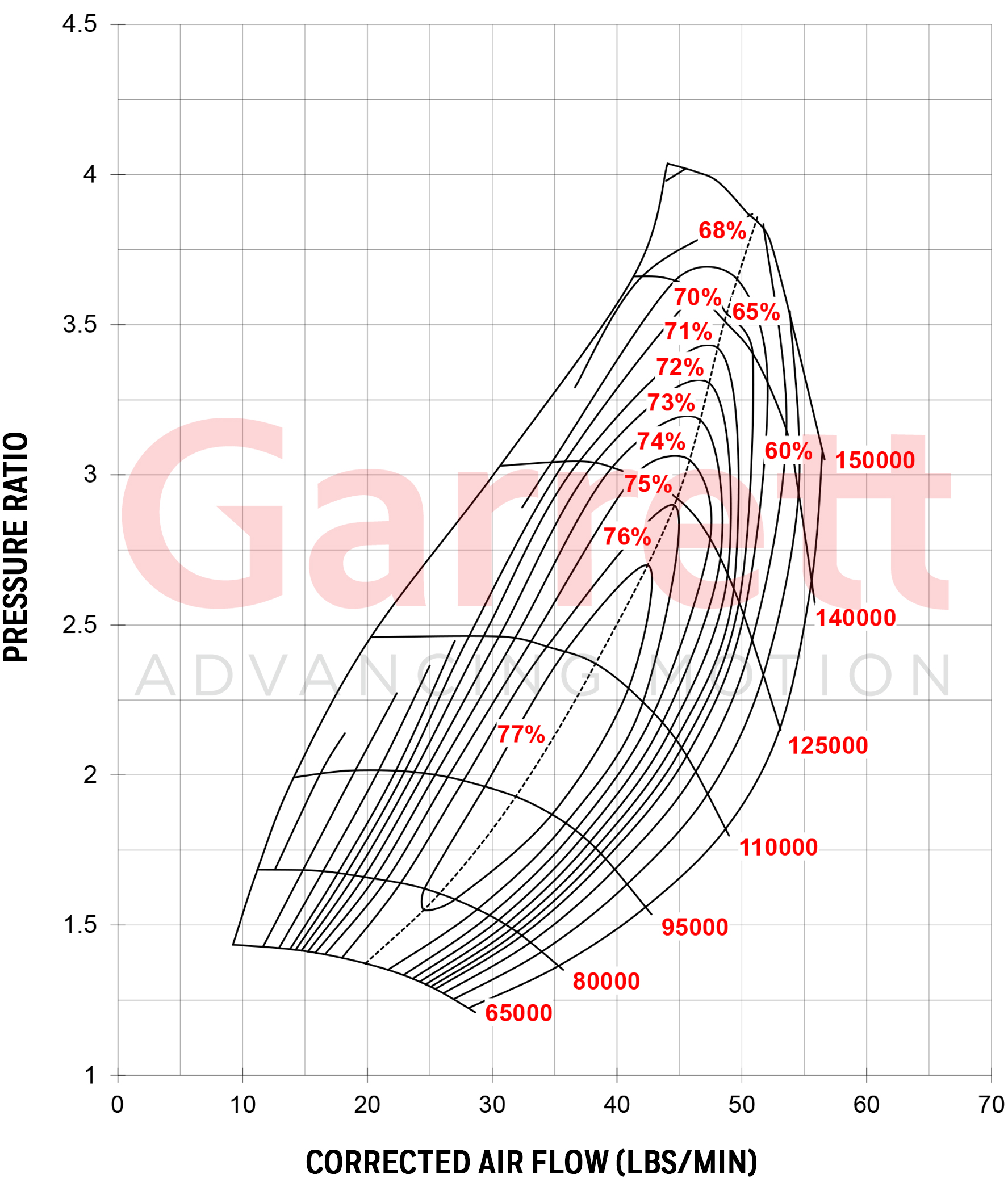

Compressor Map

Exhaust Flow Chart

About Garrett® GTX Series Turbochargers

Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.

Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
