Ford Power Stroke (2003)

Description

ApplicationFord F-Series & Excursion Power Stroke 6.0L Diesel
Part Number777469-5002S
Description– GT3788VA Turbo
– Features the Garrett® patented Advanced Variable Nozzle
– Turbine (AVNTTM) design for increased compressor flow and boost response
– Utilizes nine movable vanes which significantly increase turbine efficiency and improve engine performance from idle launch through peak torque
– Patented integral electro-hydraulic actuation and proportional solenoid for infinitely variable control
– Larger compressor wheel over stock increases maximum power range while keeping turbo speeds down for the same power output
– Outline interchangeable for a perfect fit each and every timeAvailable through the Garrett Master Distributors, Garrett Performance Distributors and PowerMax Distributor network.

Ford Power Stroke (2003)

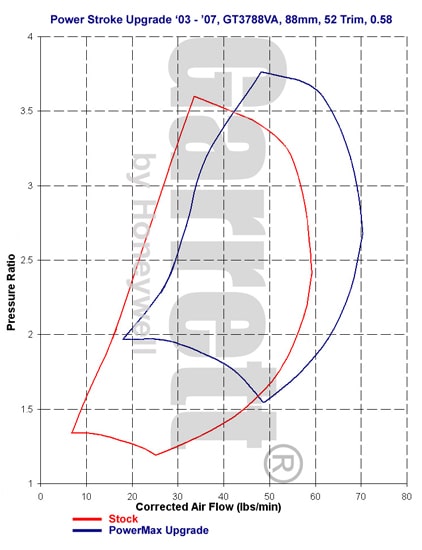

Compressor Map & Exhaust Flow Chart

Compressor Map

Ford Power Stroke (2003)

Performance Comparison Sheet

Garrett Turbo Kit
Horsepower560 HP*
* Estimated. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.

Ford Power Stroke (2003)

Download Section

ItemLink
Compressor MapClick to download
Power Stroke FlyerClick to download
